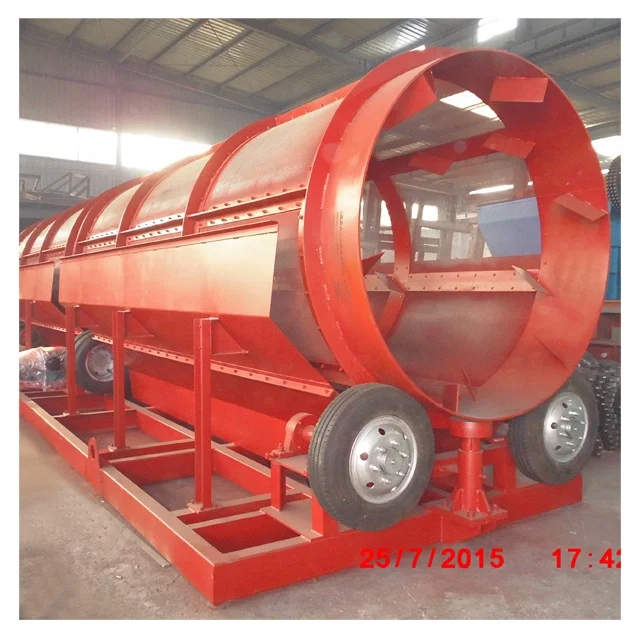

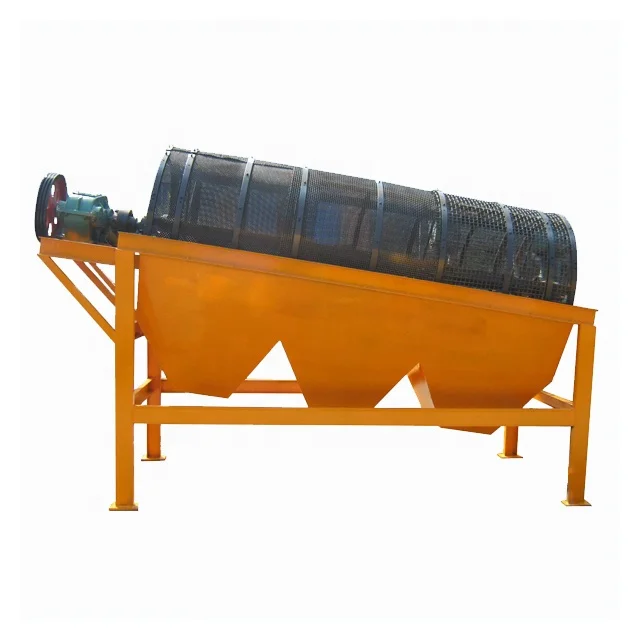

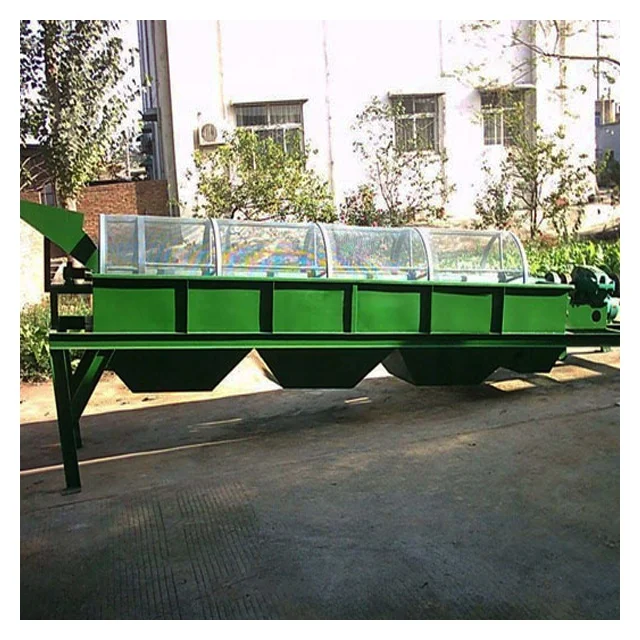

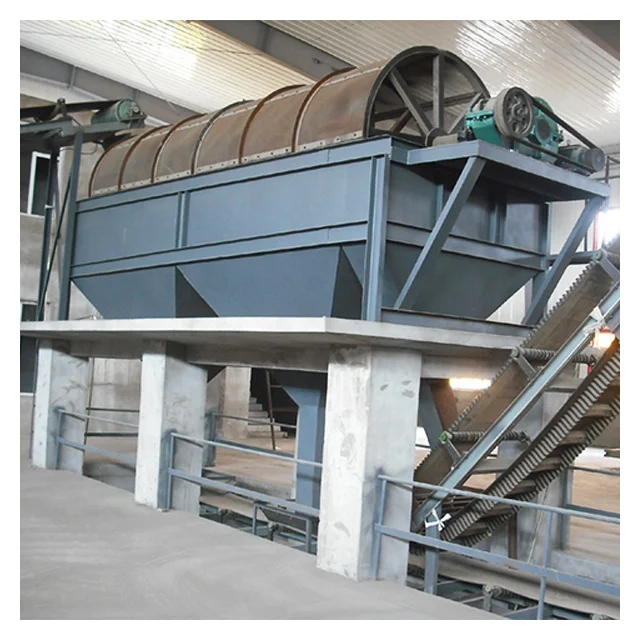

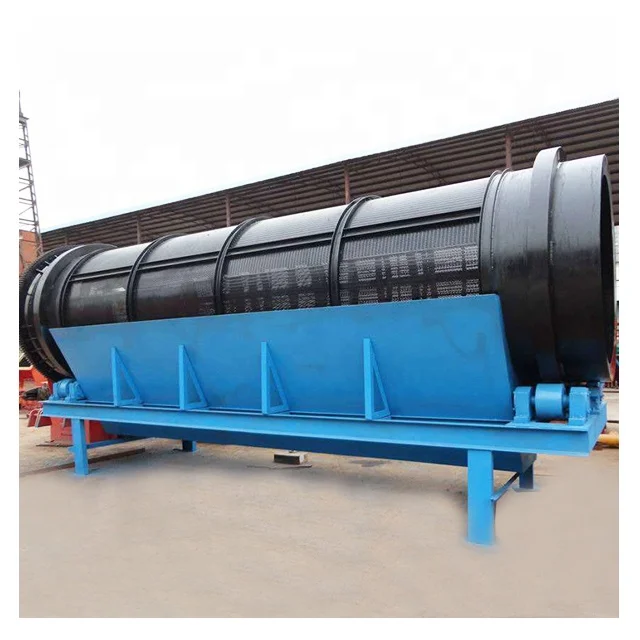

Mobile soil screener waste trommel screen diamond trommel screen machine
Product Description
Waste trommel screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
• Waste trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.
Technical parameters
Model | Length range (m) | Screen segments | Mesh range (mm) | Power (kw) | Degree of tilt | Max Size (mm) | Drum speed (r/min) | Handling capacity (m3/h) | Reference weight (kg) |
YTS600 | 2~4 | 1~3 | 5~35 | 2.2~3 | 7° | 35 | 20 | 10 | 1.6 |
YTS800 | 2~4 | 1~3 | 5~40 | 2.2~5.5 | 7° | 45 | 18 | 14 | 2.4 |
YTS1000 | 2~6 | 1~4 | 5~45 | 3~7.5 | 7° | 60 | 16 | 16 | 4.2 |
YTS1200 | 2~8 | 1~4 | 5~50 | 4~11 | 7° | 70 | 15 | 20 | 5.8 |
YTS1500 | 2~8 | 1~4 | 5~55 | 4~15 | 7° | 80 | 12 | 32 | 7.2 |
YTS2000 | 2~9 | 1~4 | 5~60 | 5.5~18.5 | 7° | 90 | 8 | 45 | 11 |
Customer Case
Our Services
About YingDa:
Henan YingDa Heavy Industry Co., Ltd is professional manufacturer for bucket elevator and conveyors in China. We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
2. Screw conveyors: Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Chain conveyors: FU chain conveyor, drag conveyor, scraper chain conveyor and Cast stone scraper conveyor etc.
5. Apron feeders: Light duty apron feeder, middle duty apron feeder and heavy duty apron feeder.
6. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
7. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
Certificate
1. Are you factory or trading company?
We are 30+ years manufacturing experience conveyor factory.
2. Do you provide design for us?
Yes, we will provide engineer design service before order.
3. What's the delivery time?
15-25 days.
4. Do you provide installation service?
Yes, we will send our engineer go to your working site to guide installation and commissioning.
5. Payment terms?
TT, LC.
