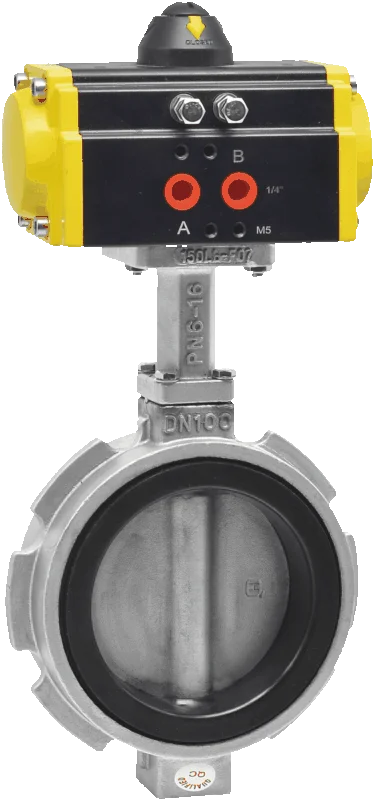

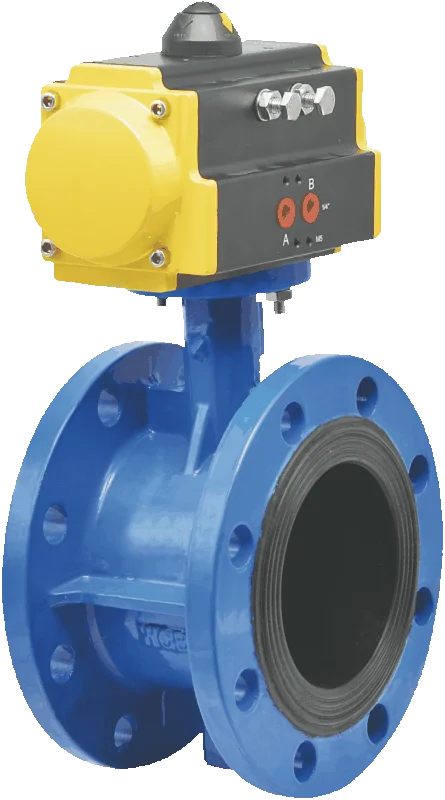

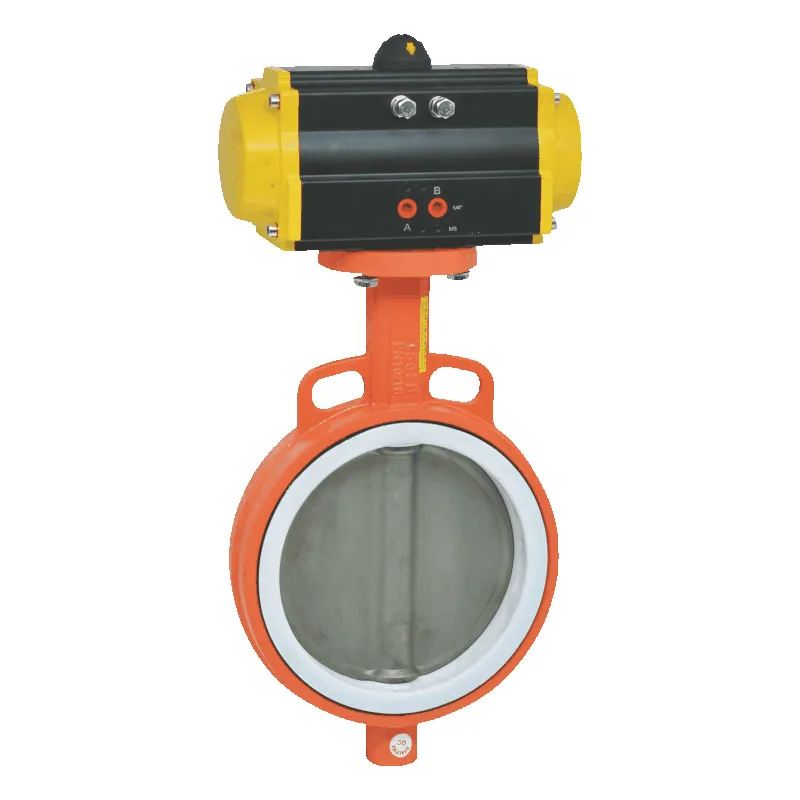

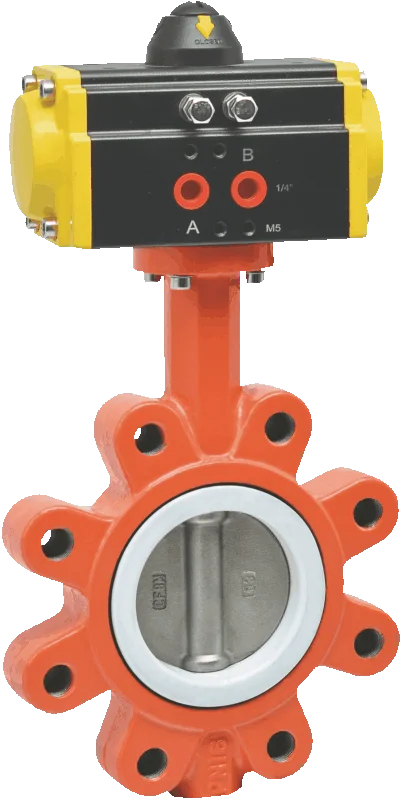

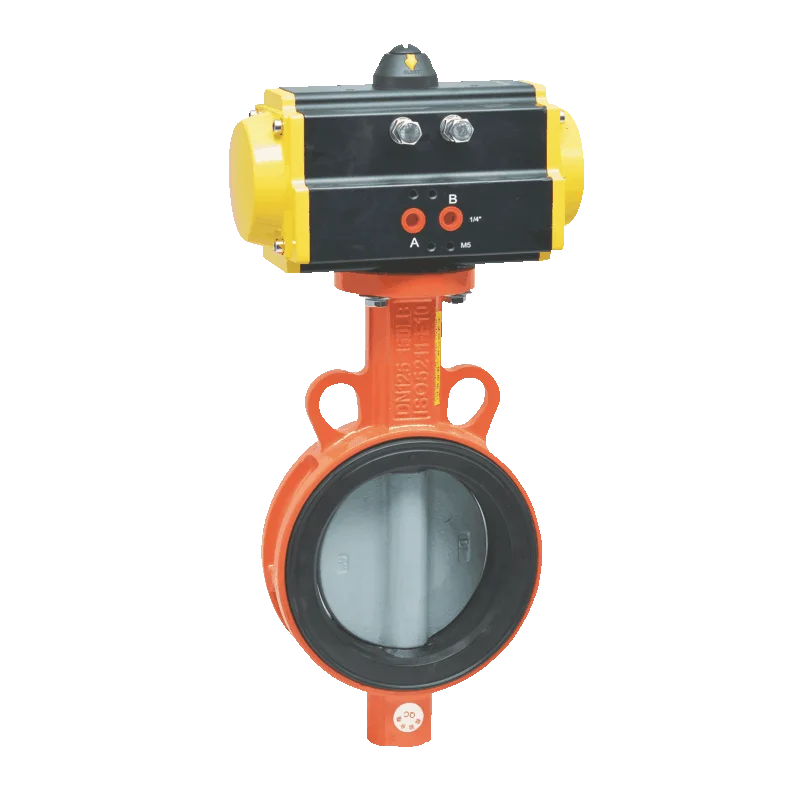

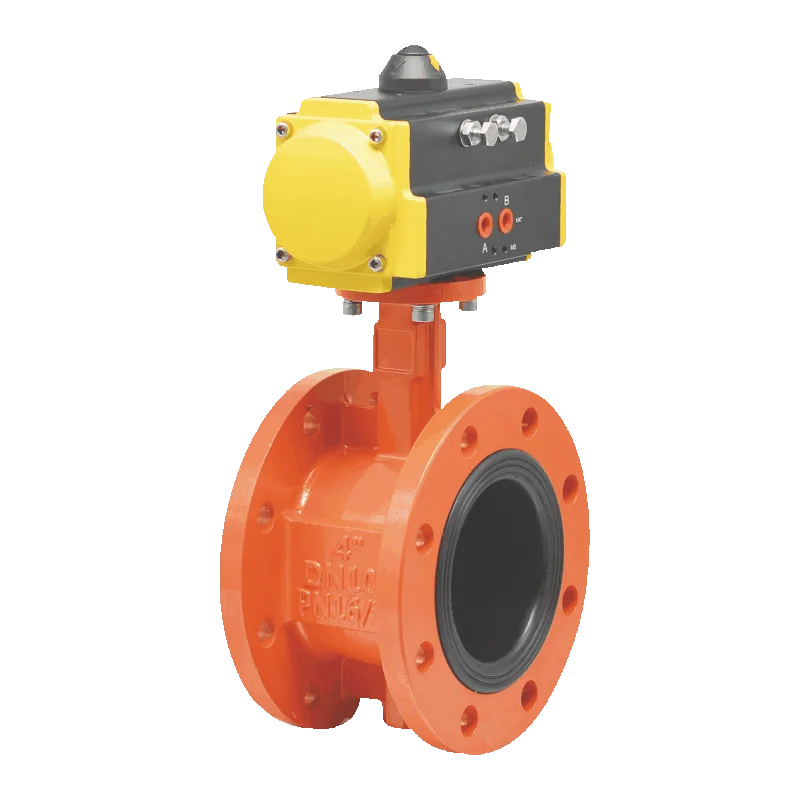

double acting pneumatic control rotary actuator electro pneumatic butterfly valve

Share on (62220705647):


Price:RUB 6,653.97

Quantity:


Product Overview

Description

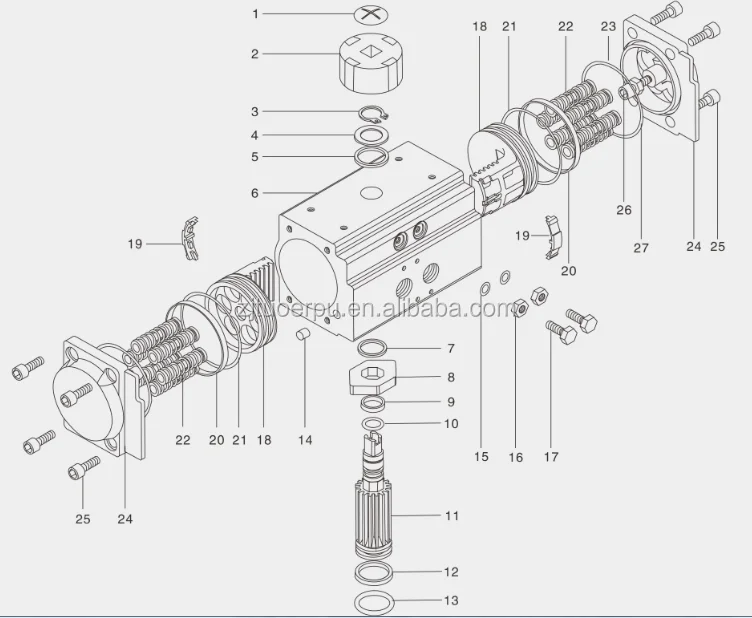

No.
Discription
Qty
Standard Meterial
Protection
Optional Meterial
1
Indicator Screw
1
Plastic


2
Indicator
1
Plastic


3
Spring Clip
1
Stainless Steel


4
Thrust Washer
1
Stainless Steel


5
Outside Washer
1
Engineering Plastics


6
Body
1
Extruded Alluminum alloy
Hard anodized etc

7
Inside Washer
1
Engineering Plastics


8
Cam
1
Alloy Steel


9
O-ring(pinion top )
1
NBR

Viton/Sillcone
10
Bearing (Pinion top)
1
Engineering Plastics

Stainless Steel
11
Pinion
1
Alloy Steel
Nickel Plated

12
O-ring(pinion bottom)
1
Engineering Plastics

Viton/Sillcone
13
Bearing (Pinion bottom)
1
NBR

Viton/Sillcone
14
Plug
2
NBR

Viton/Sillcone
15
O-ring(Piston )
2
NBR


16
Nut(Adjust Screw)
2
Stainless Steel


17
Adjust Screw
2
Stainless Steel


18
Piston
2
Cast Aluminum/casting
Anodized /Zinc galvanized
Stainless steel
19
Guide (Piston)
2
Engineering Plastics


20
Bearing(Piston )
2
Engineering Plastics


21
O-ring (Piston )
2
NBR

Viton/Sillcone
22
Spring
0~12
Spring Steel
Dip coating

23
O-ring (End cap )
2
NBR
Power Polyster painted etc
Viton/Sillcone
24
End Cap
2
Cast Aluminum


25
Cap Screw
8
Stainless Steel


26
Stop Screw
2
Stainless Steel


27
Nut(Stop Screw )
2
Stainless Steel


Detailed Images
Packing & Delivery
Application
Electric actuators are widely used in the production process detection and control system of many departments, such as electric power, metallurgy, petroleum, chemical industry, etc. Due to different site conditions, the actuator should be carefully selected and configured.
Our Company
About us
        Located in Oubei "China valve village", Tuoerpu Technology Co., Ltd. is a professional manufacturer engaged in the research, development, production sale and service of electric actuator, electric valve and automatic control automatic control system. With the aim of creating value for our customer, our company sincerely provides high-quality intelligent industrial solutions for domestic and foreign customers.
We have strict requirements on quality and are committed to giving customers the best service experience. We also offer an 18-month warranty, lifetime after-sales service and technical support.
Customer Photos
Certifications

FAQ:


1.Is sample order acceptable ?
    Of course ,we accept .


2.How to place the order ?
   You can send us email or inquiry on Alibaba directly .

3.How many days for delivery ?
   For standrd products , we can send out 7 days after payment .

4 .How do make the payment ?
     We accept Bank T/T ,L/C.

5.How will make the shippment ?
     A.By Sea Shippment ,By Air ,Express Service
