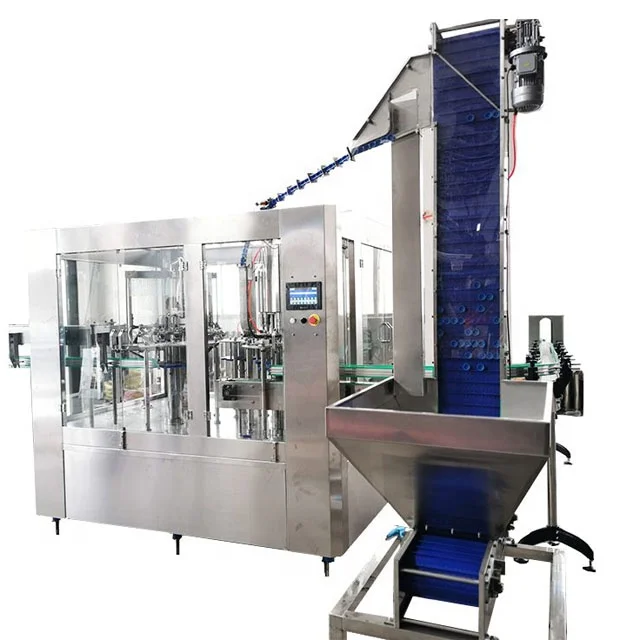

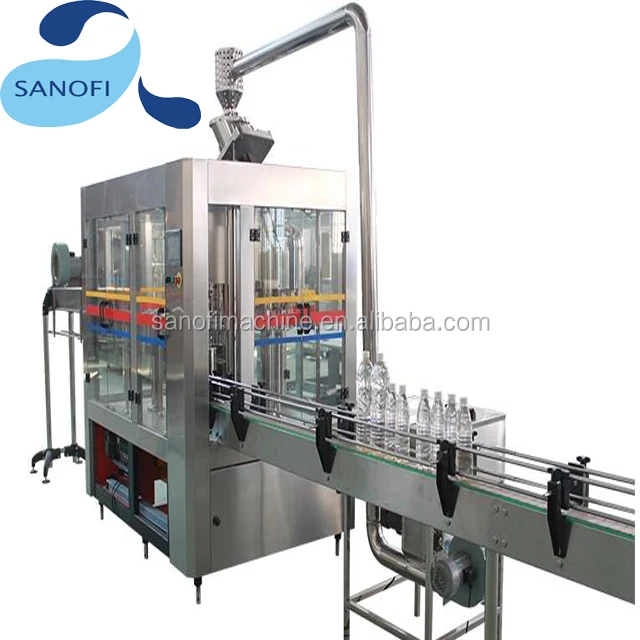

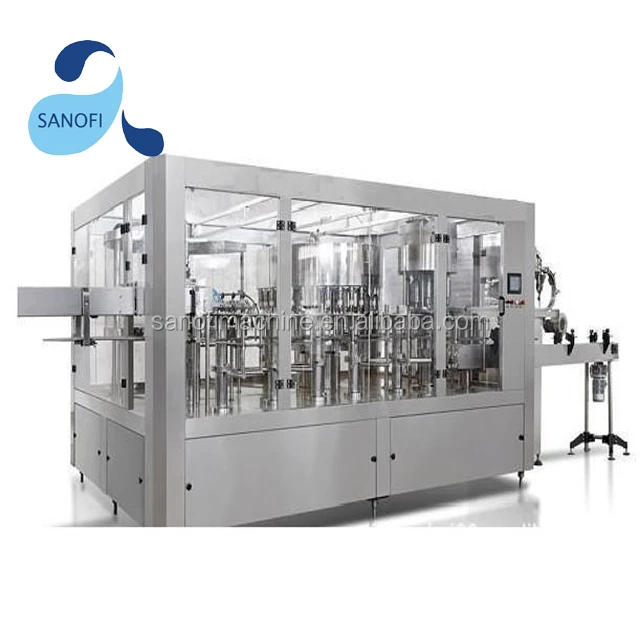

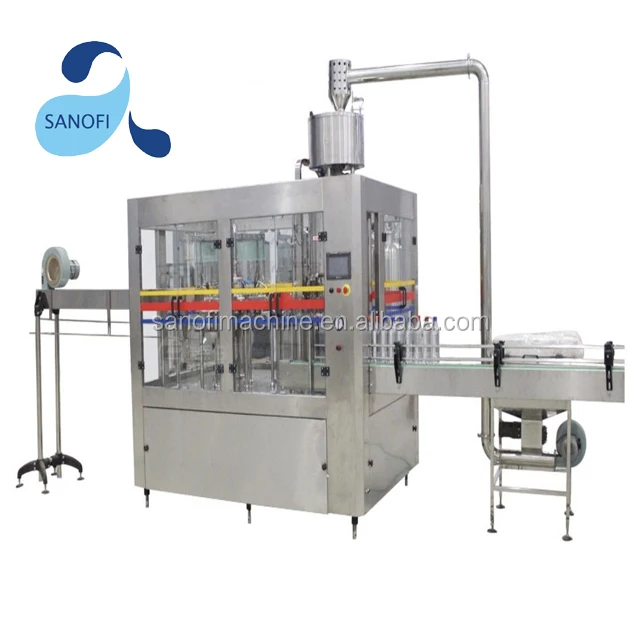

High-quality three-in-one bottle water filling machine
The machine is mainly used for filling water drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
Washing No | 16 | 18 | 24 | 32 | 40 | 50 |
Filling No | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No | 6 | 6 | 8 | 10 | 12 | 15 |
Production Capacity(500ml) | 3000BPH | 5000BPH | 8000BPH | 12000BPH | 15000BPH | 18000BPH |
Install Capacity(KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
Overall size (mm) | 2450×1800×2400 | 2650×1900×2400 | 2900×2100×2400 | 4100×2400×2400 | 4550×2650×2400 | 5450×3210×2400 |
Detailed Images

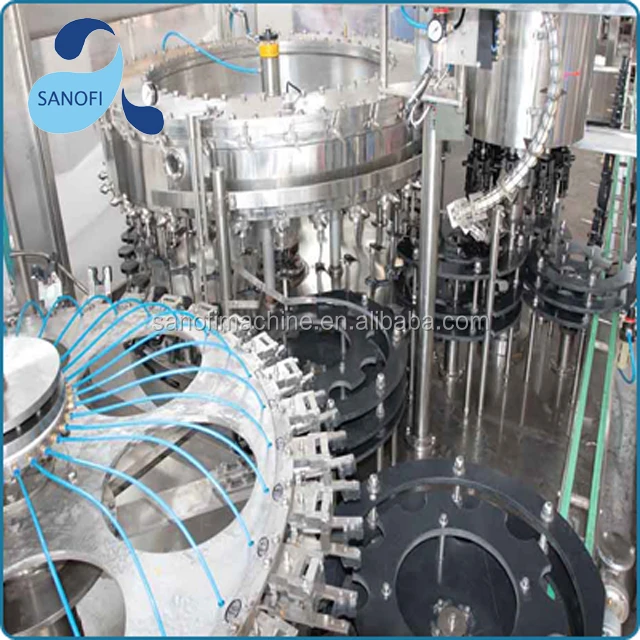

Washing Parts
1)Into bottle way is air conveyor direct connection with Bottle dial .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .

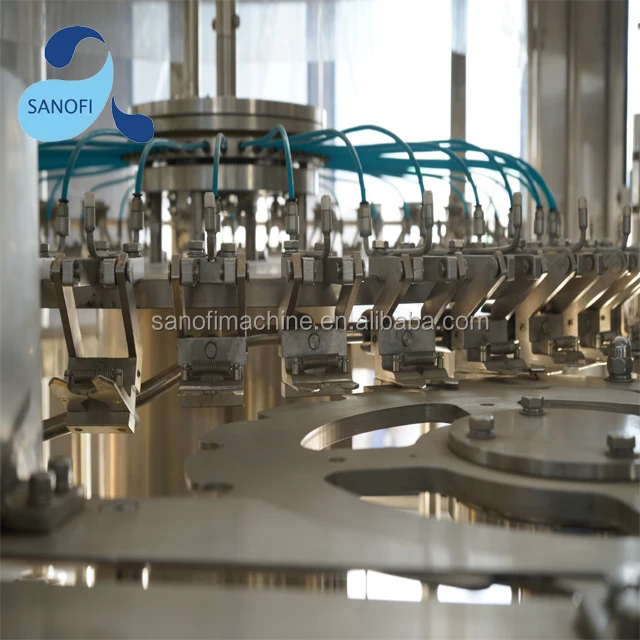

3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4) 304/316 stainless steel washing pump make the machine more durable .

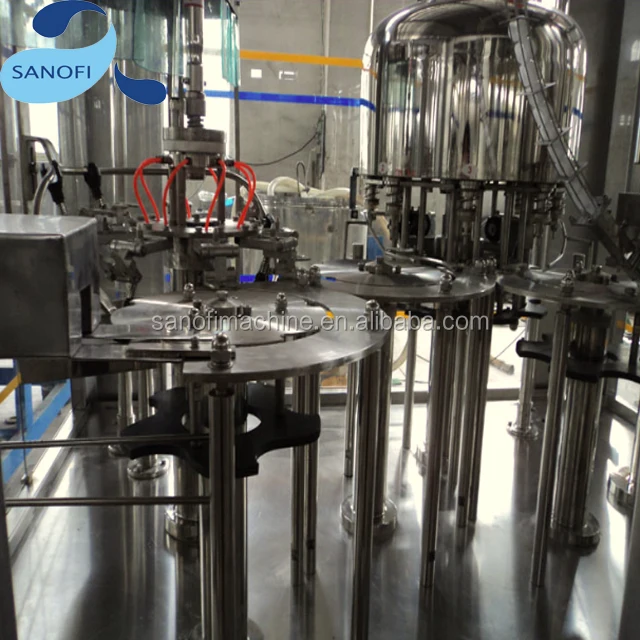

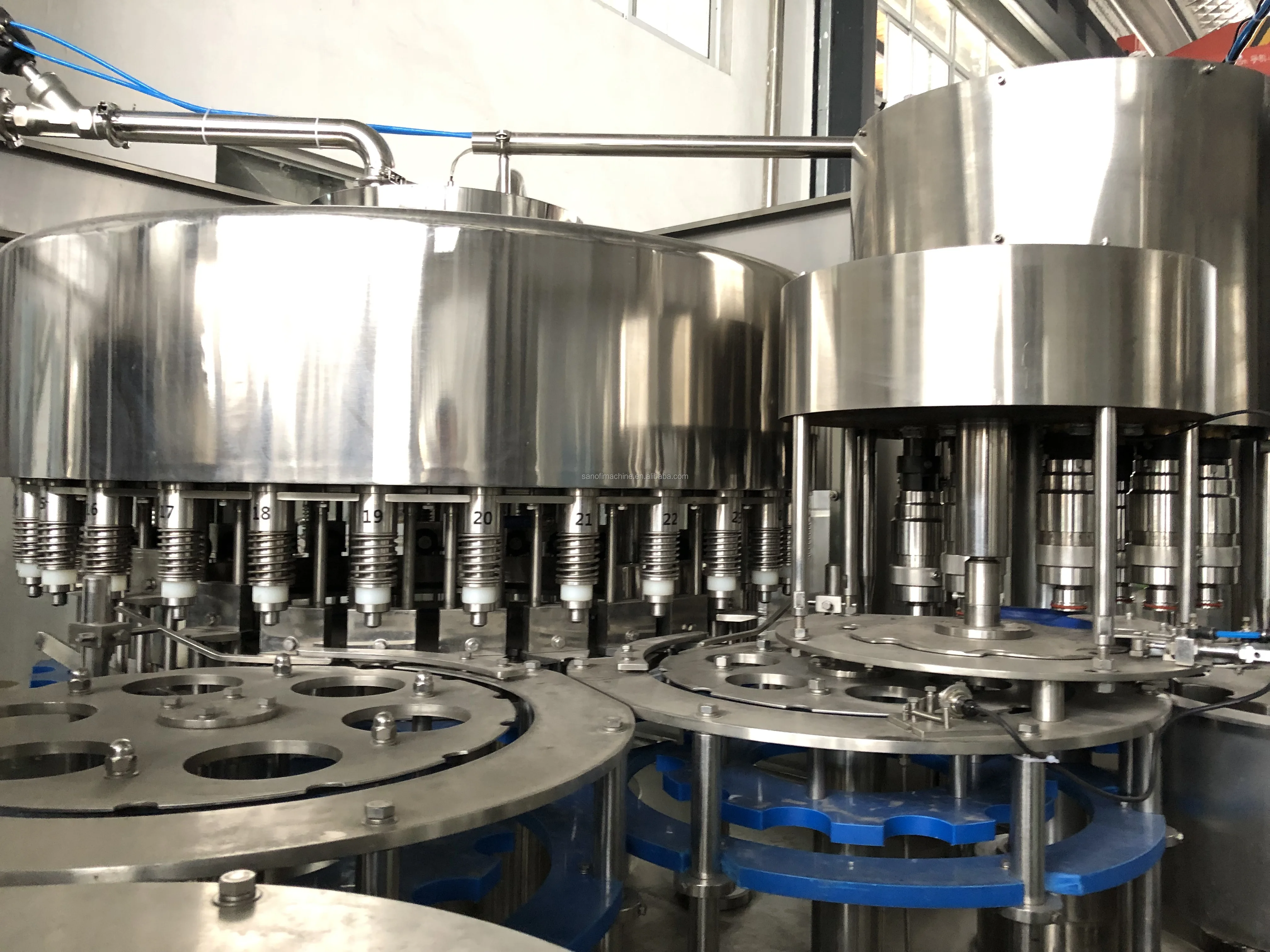

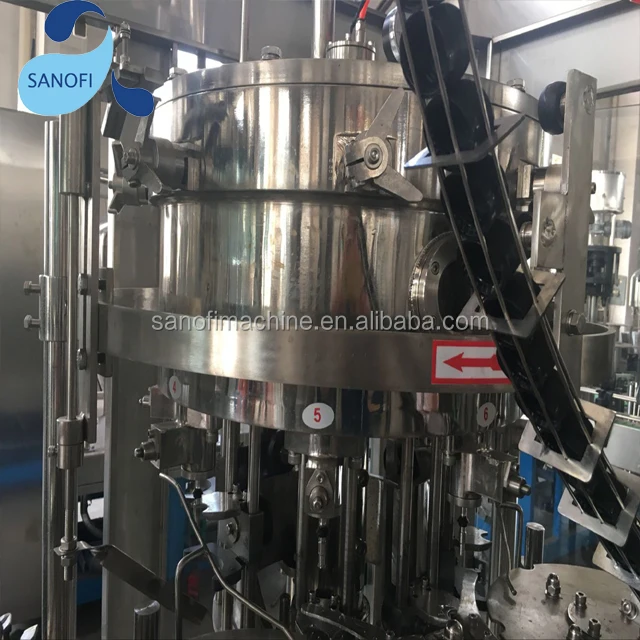

Filling Parts
1) 304/316 Stainless steel high precision filling nozzle
2) Filling volume adjustable in fine rank, same liquid level after filling
3) All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing

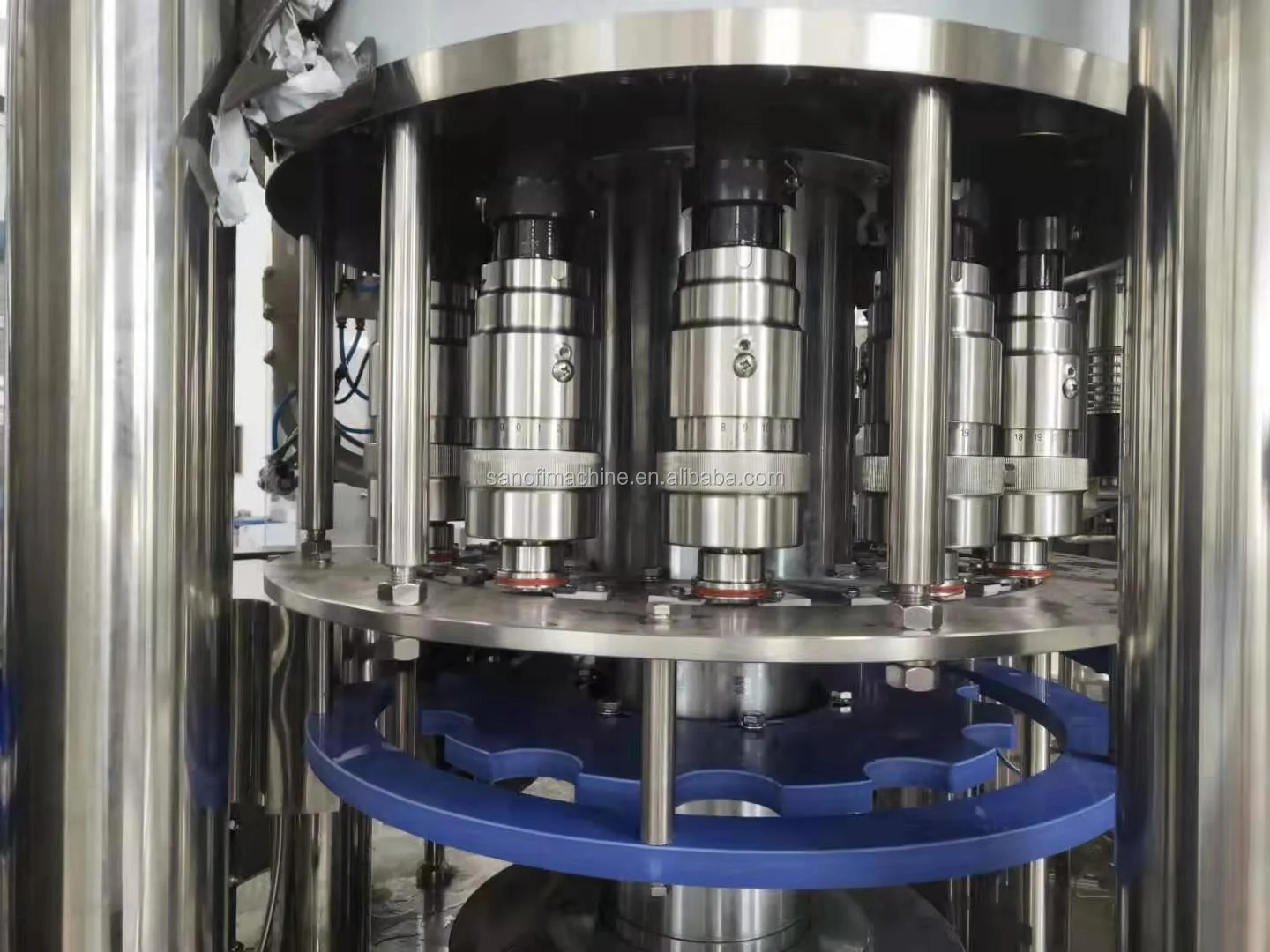

Capping Parts
1>)Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2)All 304/316 stainless steel construction
3) No bottle no capping
4) Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2% .

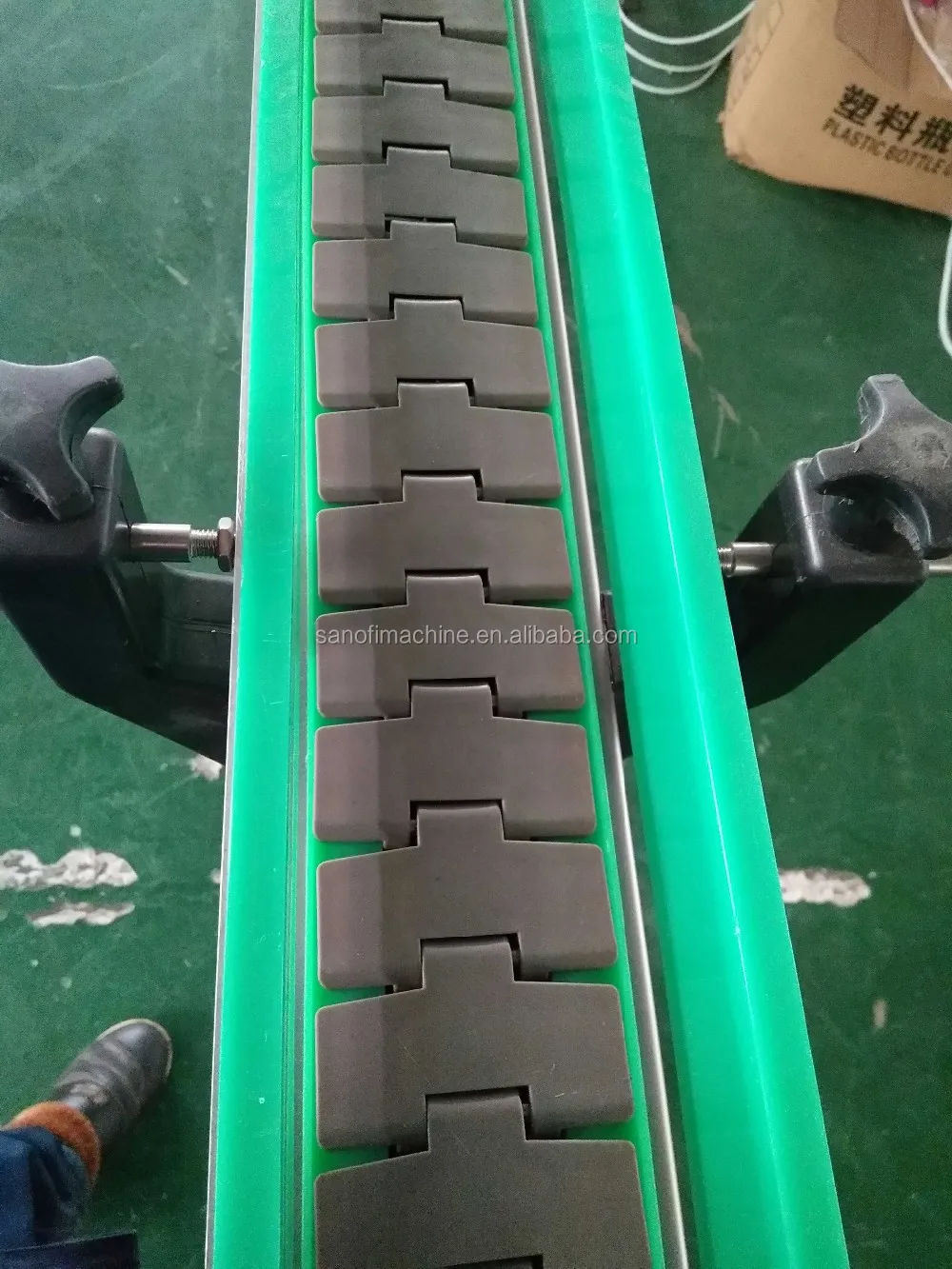

Conveyor.
1)Energy saving. High efficient. Adapt to customer factory layout
2)Special lubrication system, keep products clean, health, safety
3)Extended service life
4)Electric eyes design keep whole line running safety and quickly
5)Overload protection mechanism to effectively ensure the safety of the machine
SANOFI Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
