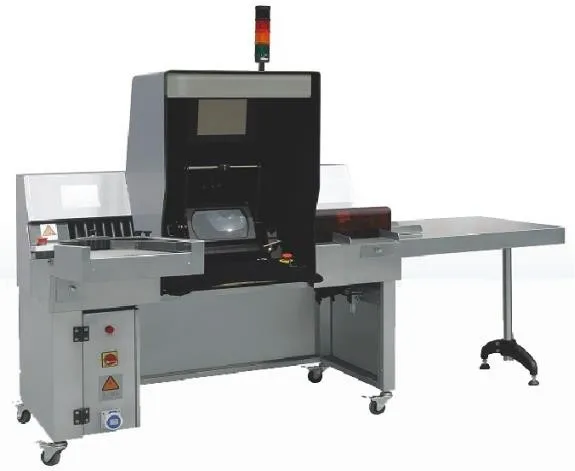

Online Support Semi Automatic Vials Ampoules Light Inspecting Machine

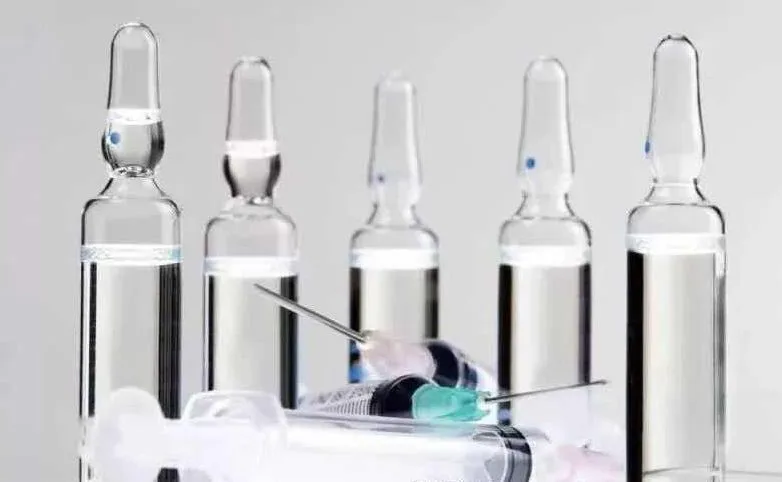

The light inspection machine is a new product developed by our company. The product is used for the inspection of various preparation bottles, such as vials and ampoules in the pharmaceutical industry. The bottles are arranged on the conveyor shaft through the feeding device (the bottle feeding will be connected with the ahead processing line).

The liquid in the bottle will be fluctuated when the bottle enter the high speed rotating station,which will make the impurity in the liquid floating,and then rotates itself and passes through the examination of the dark chamber, and then pass through the light curtain which is with the concentrated light source,and causes the Tyndall effect under the light curtain, causing a strong contrast of the impurity particles, which is very easy to be identified.

Also the small packaging defects and external defects of the bottle will be totally reflected by the upper and lower reflector and also the bottle rotating. The observer can accurately check the defects of the products through the magnifying glass. With the help of the automatic control system, the qualified and non-qualified bottles will automatically enter their respective passageways if the observer identify the non-qualified products.

1. By using Tyndall effect, the concentrated light screen makes the impurity particles strongly contrasting, and will be easily to identify.

2.There are many types of products can be inspecting: solution liquid, pure water, antibiotics, suspensions, eyedrops, diagnostic reagents.

3. A variety of defects can be detected: particles, impurities, appearance defects of glass containers, and microwave cracks

4. Adjustable high efficiency cold light combined with reflector and magnifying lens makes inspection more effective.

5.The color temperature is optional, the illumination is adjustable, the angle is adjustable, which obtained the best viewing effect.

6. High efficiency: Improve detection efficiency and reduce operation intensity, so that the observer's attention will be focused on product defects

7.Widely range of applications: it can be used to test ampoule, vials, pre-filled syringes, infusion bottles, dental syringes, and so on. The specifications range of the products can be 0.5~1000ml.The floating speed and rotation speed can be adjusted to obtain optimal experience.

8.Adopts advanced PLC and touch screen,making the operation humanized and convenient to adjust various parameters

9.It can make records for the counts of the qualified and non-qualified products.

10. It is easily to adjust and maintain, and connect with other erquipment with production line.

Q1:Are You A Factory or A Trading Company?
A: We Provided Perfect OEM and After-sale Service.

Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan

Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine

Q4:How Can I Know Your Machine Is Designed For My Product?
A:You Can Send Us Samples of Your Product and We Test It On Machine

Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying Methods

Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated

Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
