1.8' 12864 soldering FPC liquid crystal display JHD12864 G0092BSWF B
- Category: >>>
- Supplier: Shenzhen JHDLCM Electronics Co. Ltd.
Share on (62221132985):
Product Overview
Description
Product Description
General Specification
Item | Contents | Unit |
LCD type | FSTN POSITIVE/NEGATIVE | - |
Viewing direction | 6:00 | O’Clock |
Module size (W´H´T) | 43.6X33.8X3.5(excluded FPC length) | mm |
Viewing area (W´H) | 39.8X25.5 | mm |
Active area(W´H) | 37.09X23.01 | mm |
Dot Pitch | 0.03 | mm |
Dot Size | 0.26X0.33 | mm |
Driver IC | UC1701 | - |
Number of dots | 128*64 | - |
Backlight type | 3 LEDS White 3.0V 45mA | - |
Interface type | Parallel interface | - |
Interface spec | 14 PIN, 1.0 mm PIN pitch | - |
Operating temperature | -20 ~ 70 | ℃ |
Storage temperature | -30 ~ 80 | ℃ |

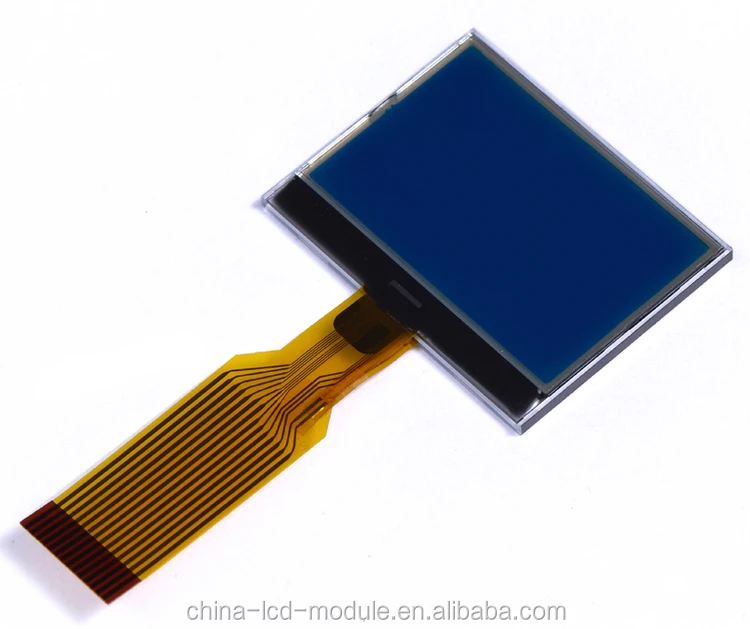

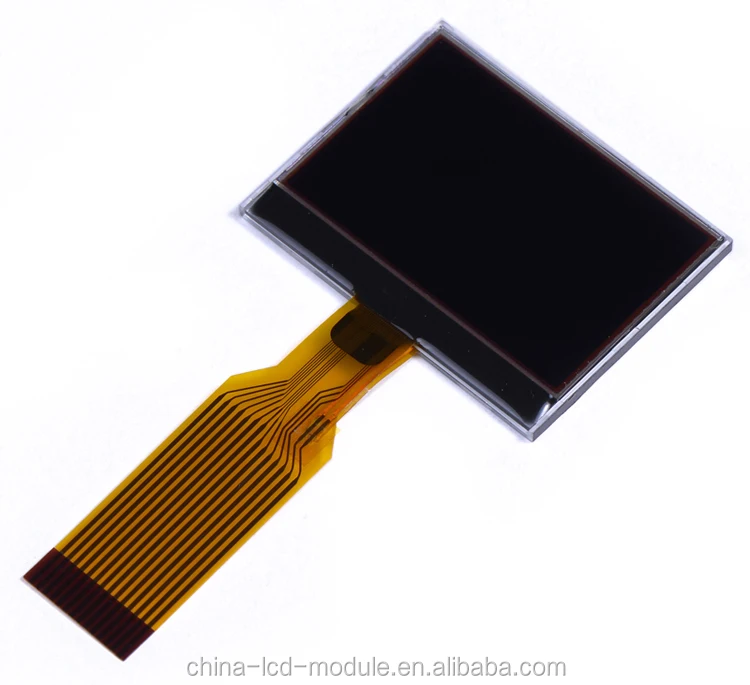

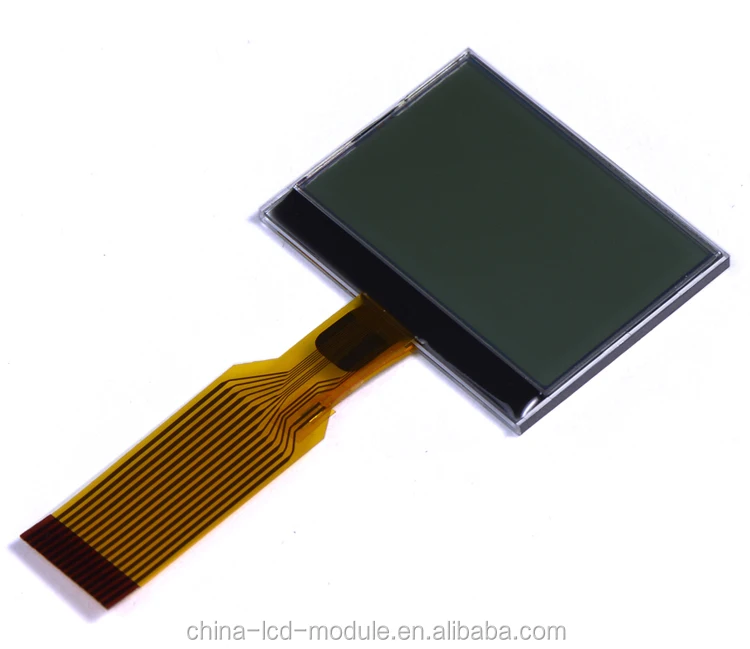

Product Showing
Related Products

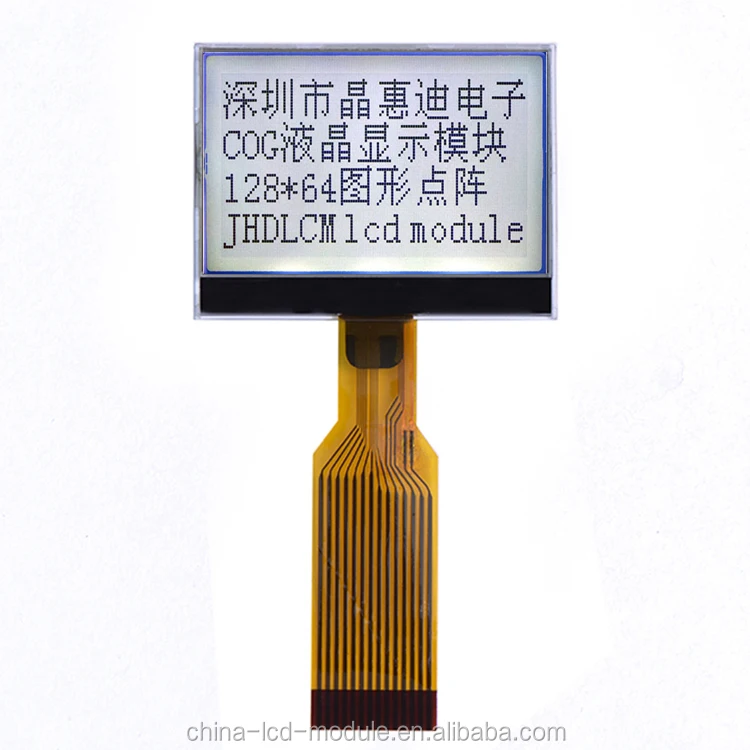

Black Words on Gray Background

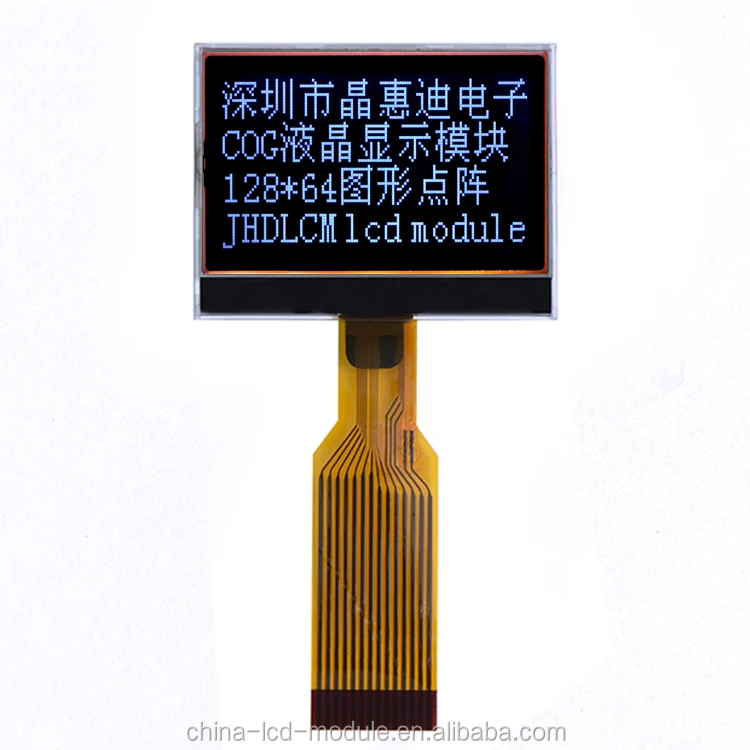

White Words on Black Background

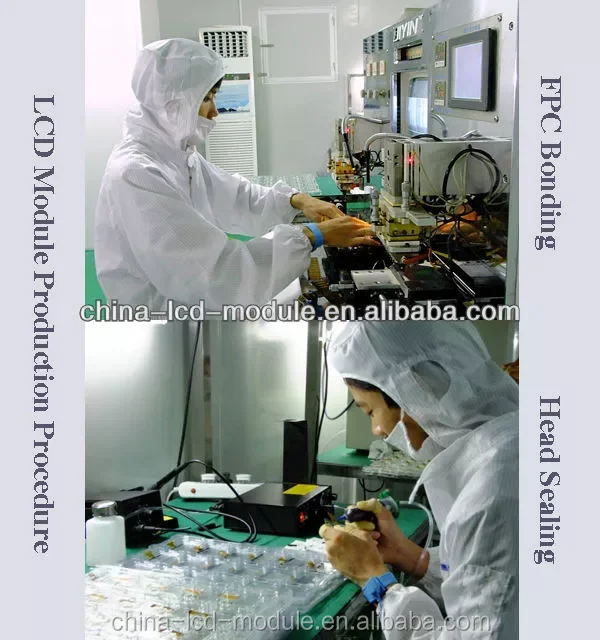

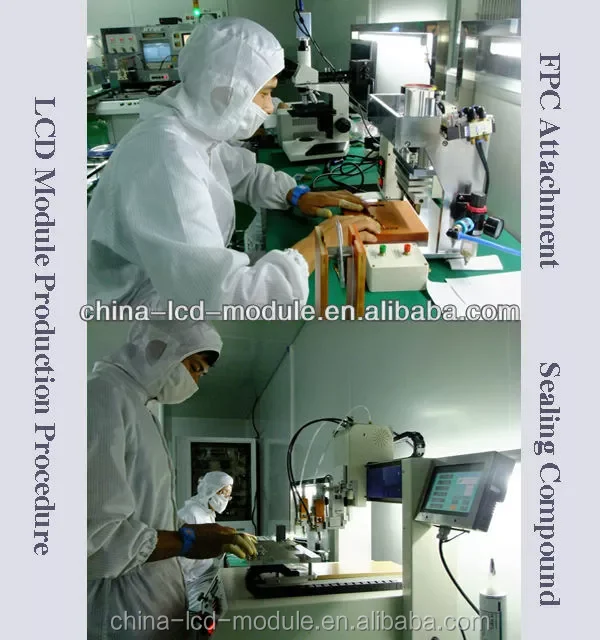

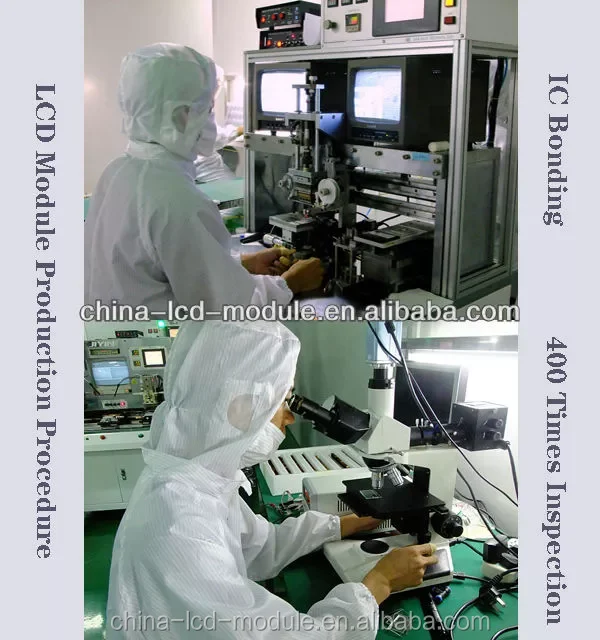

Production Procedures in Our Plant
Main Application
Telecommunication Devices | Telephone, Interphone, watch, radio, etc. |
Home Appliances | Washing Machine, Refrigerator, Home Integrator |
Industrial Control | Homotaxial Numerically-controlled machine tool |
Instrument and Apparatus | Tester, Medical instruments |
Vehical-mounted Digital | MP3, MP4 and vehical-mounted air conditioner |
Mining | Mine's lamp charger, gas tester |
Marine | Salinity tester |
ODM is accepted.
Various LCD Display Mode Available
Various Backlight Color Available
Various Temperature Range Available
Product Range
1) TN, STN, FSTN LCD panels / modules
2) Customized LCD panels / modules
3) Small(1.5 inch-7 inch)TFT LCD
Contact Us
For more details, pls feel free to contact us at anytime.
24 hours hot-line tel:0086 13316894211 or jhdlcm(at)lcd-module dot com
Alice Wang will be happy to serve you.
