KC certificated power supply 12vdc adapter
- Category: >>>
- Supplier: Shenzhen Chuanqing Technology Co. Ltd.
Share on (62221145549):
Product Overview
Description
Product Description
| Output | Voltage | 5V 7.5V 9V 10 12 V 12V 24V DC(OPTIANL) | |
| Current | 1A 1.5A 2A 0.5A (Optinal) | ||
| Output power | 24w | ||
| DC cord and Jack | 1.5M length 26 AWG with 5.5*2.1*10mm DC(CUSTOMIZED) | ||
| Ripple and Noise | <120Mv at full road with 20MHz bandwidth | ||
| Input | Rated Voltage | 100Vac~240Vac | |
| Frequency Range | 47Hz~63Hz | ||
| conversion efficieny | >85% | ||
| Protection | Over Voltage,Load& Current /Short Circuit /High Temp | ||
| Temperature | Operating Temperature | 0°C----+60°C | |
| Storage Temperature | -20°C----+85°C | ||
| Isolation test | Isolation voltage | Input/output terminal 3000VAC,5MA | |
| Other | Type | Plug in | |

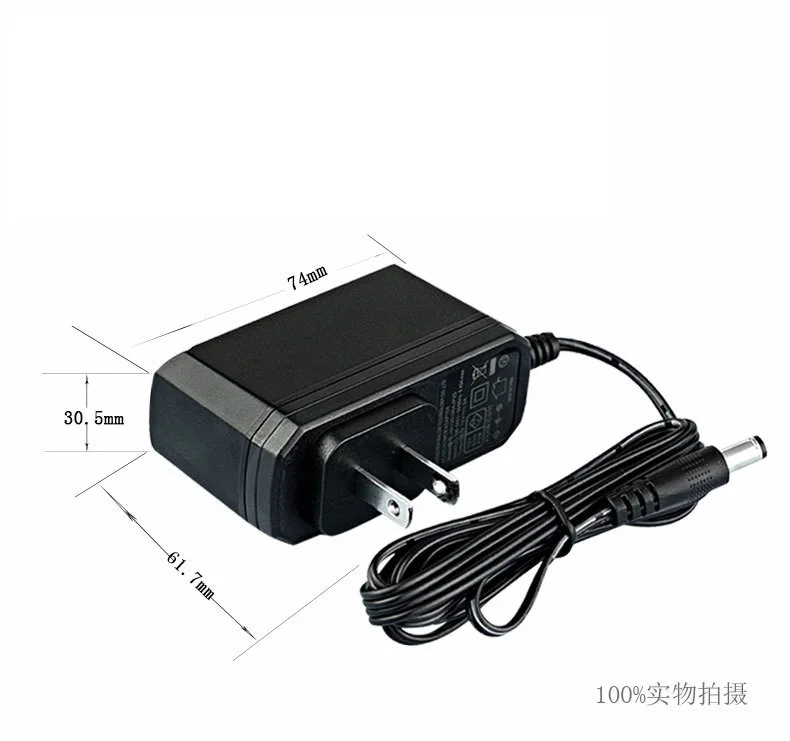

| Size(mm) | see below picture | ||
| Certification | ROHS ETL CE KC PSE CB FCC GS BIS SAAapproved | ||
| Shell color | Black/White | ||
| Shell materials |
ABS or P C |
||
