Product Overview

Description

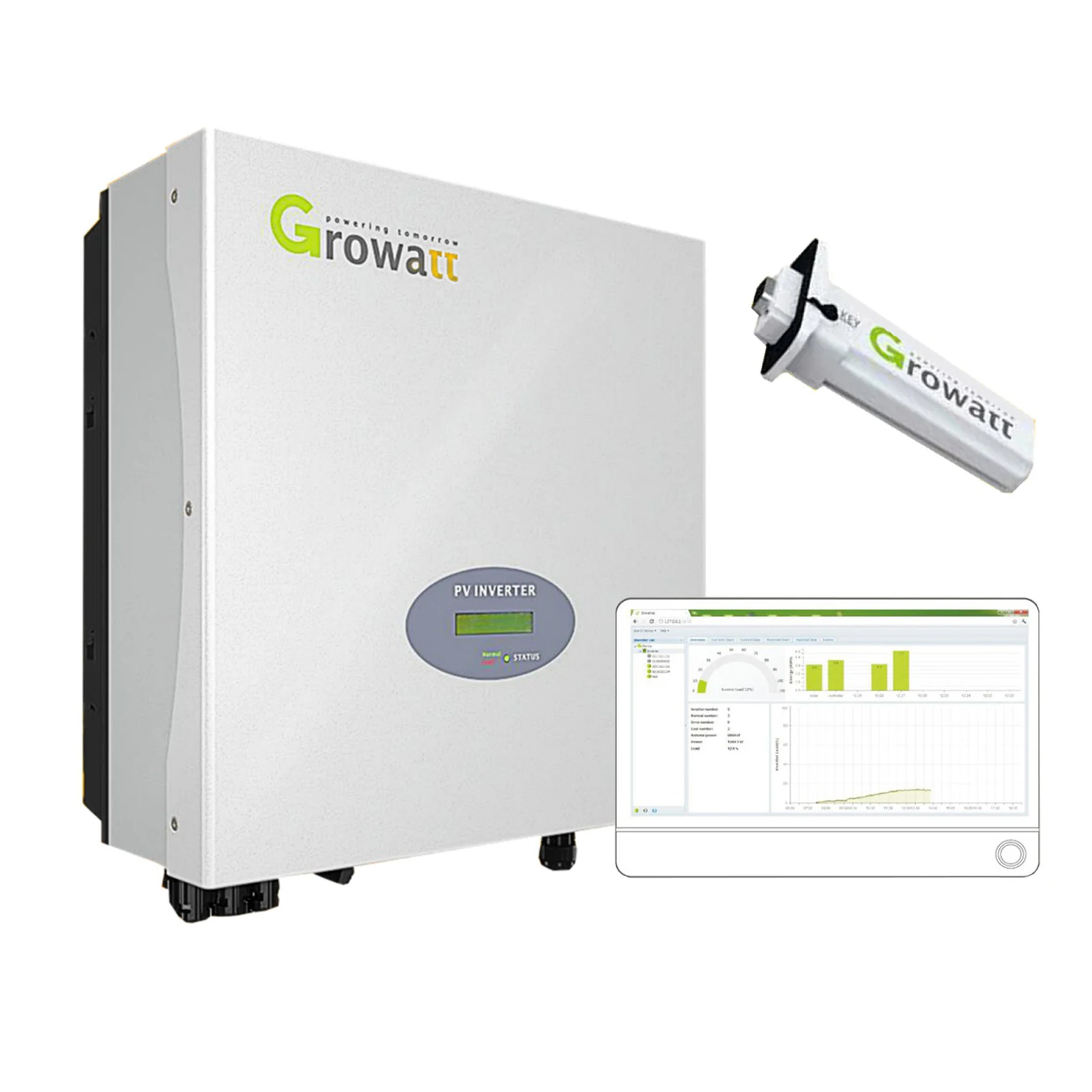

50Hz/60Hz 5000MTL-S Single Phase 5KW Growatt solar Inverter











High efficiency, high quality, save your energy, environmental solar panel


































































































Datasheet


Growatt 5000MTL-S


Input Data


Max recommended PV Power


6150W


Max DC voltage


550V


Start Voltage


100V


PV voltage range


80V - 550V


Nominal voltage


360V


Max. input current


15A / 15A


Number of MPP trackers /strings per MPP tracker


2/ 1


Output (AC)


Rated AC output power


4.6 KW


Max. AC apparent power


4.6 KVA


Max. output current


20.9 A


AC nominal voltage;range


220V,230V,240V; 180Vac-280Vac


AC grid frequency


50Hz/60Hz


Adjustable power factor


0.8 leading - 0.95 lagging


THD


<3%


AC grid connection type


Single phase


Efficiency


Max.efficiency


97.9%


Euro - eta


97.4%


MPPT efficiency


99.50%








1563938427(1)156393831015639384411563938413(1)
