24 inch multi touch monitor poly foil for pcap touch panel
- Category: >>>
- Supplier: Touch Explorer Photoelectric Co. Ltd.
Share on (62221407137):
Product Overview
Description
Product Description
24 inch multi touch monitor poly foil for pcap touch panel
24 inch multi touch monitor poly foil for pcap touch panel
*Light weight, suitable to be laminated to glass, acrylic or photographic film.
*Transparent, no frame, durable and safe.
*Accurate positioning
*No mechanical or pressure-sensitive elements, durable and stable
*Not sensitive to outer light, the change of light would not affect.
*Premium quality transparent multi-touch foils (up to 50 touch points)
*Simple & quick to install – removable & reusable cling liner
*Multi touch function – glass up to 12mm thick
*High resolution controller
*1 year comprehensive warranty

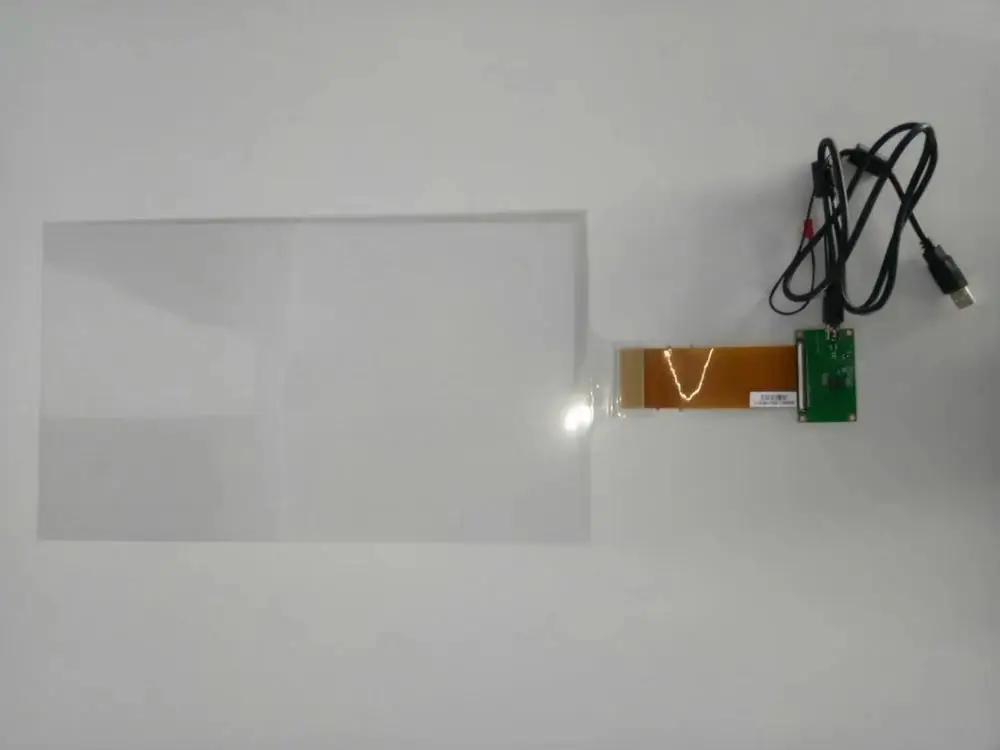

*Includes full installation kit – software, controller board & cable.

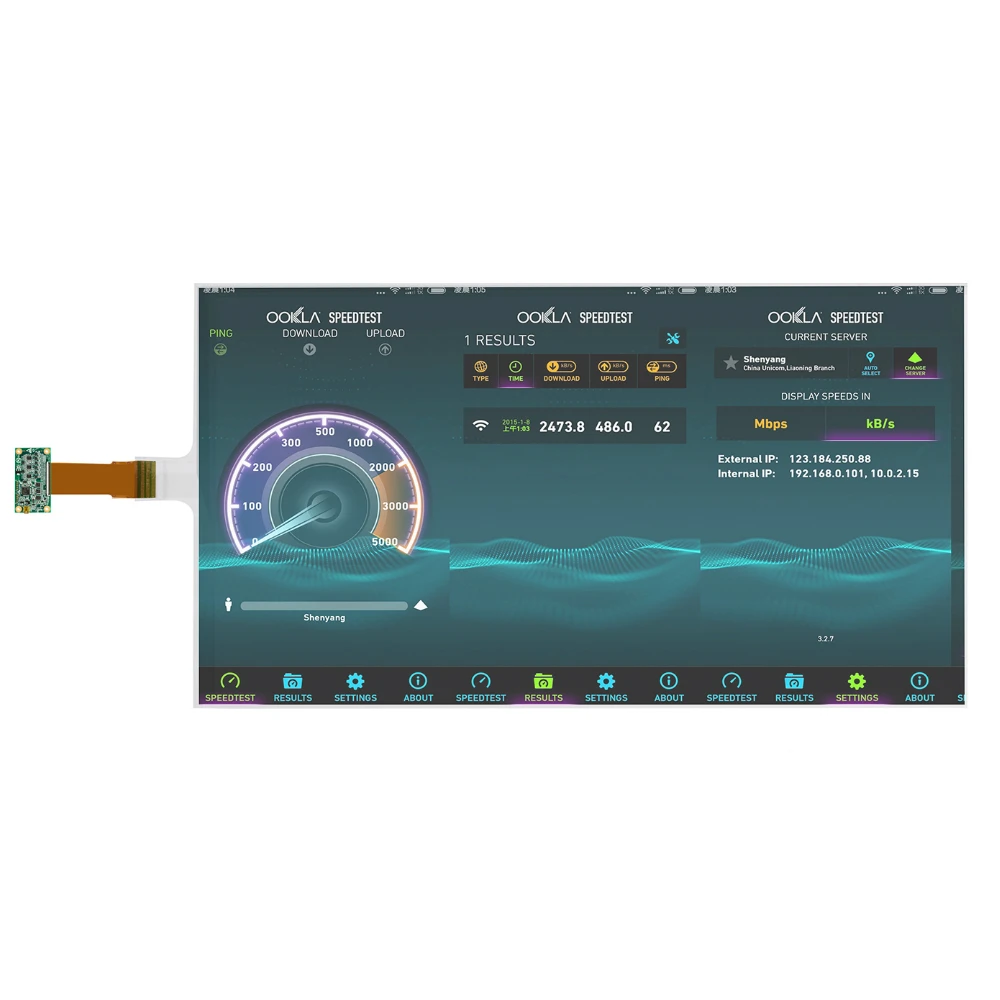

Detailed Images
Specification
I.The Specification Of 10 Points 18.5" 19" Capacitive Touch Foil
| Series | Touch point | Sizes | Deviation | Sensor | FPS | Power Consum |
| XTM | 12 | 10.1"~32" | ≤0.5mm | TX: 24(MAX) RX :48(MAX) | 130 | 1W |
II. Supporting Operated Systems Of 10 Points 18.5" 19" Capacitive Touch Foil
| Driver | No need | |||
| Windows | Win7/8/8.1/10 | |||
| Andriod | Kernel3.10 or higher | |||
| Linux | Kernel3.10 or higher | |||
| Interface | USB2.0,UART | |||
| Power supply | USB(5V+/-5%DC) | |||
| Customize | Customizable | |||
| Waterproof | YES | |||
| Calibration | Software calibration | |||
| Certificates | CE,ilac-MRA,CNAS,CAL,CMA,FCC,ROHS,ISO | |||
| Packing list | touch foil*1 , controller*1 , USB line*1 | |||
| Thickness | ≤200um | |||
| Transmittance | >93% | |||
| Voltage | 5V | |||
| Transmission | USB2.0 | |||
| Transmit distance | ≤50m (Add USB signal amplifier, etc.) | |||
| Safe distance | 2mm(Distance beteween LCD& foil) | |||
| Operating Temperature | -20℃ ~ 70℃ | |||
| Storage temperature | -20℃ ~ 80℃ | |||
| Ambient lightness | Full-angle anti-glare illumination | |||
| Touch gesture | Click,Drag,Zoom,Rotate | |||
| Sensing range | ≤10mm | |||
Our Company
Touch Explorer Photoelectric Co., Ltd is Wholly owned subsidiary of SuZhou TouchPlanet Techonology Co.,ltd.
You May Ask:
What we do!?
1.Capacitive multi-touch foil.

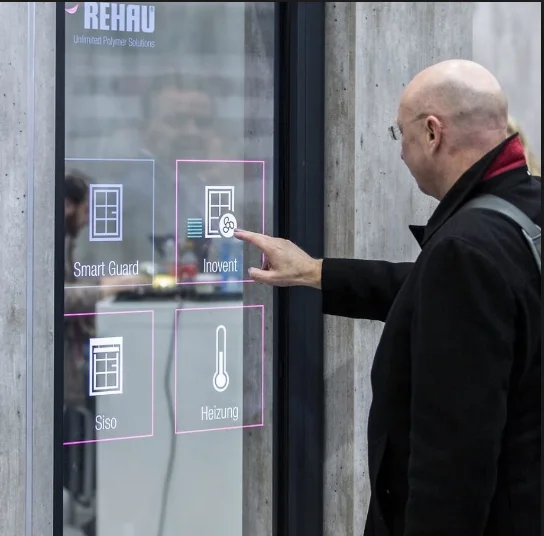

Transforms any glass or store window into an interactive touch screen display.
Size:10''-240''.
2.Control circuit board.
Our independently developed controller board for all sizes of touch foils.Maximum of touch points can reach 50. With advantage of 30% higher speed than others.
Company Advantage?
1.Done quite long and well in touch foil fields.
2.Self developed priting machine with high accuracy and low cost.
3.Raw material import from Japan and Germany.
4.Customise any big size as your requirement.
5.Capacity of 400sets per day.(eg.86'')
6.Easy to debug within 1 minute.
7.Multi touch functionality (50 touch points) is supported on laminate or toughened glass up to 12mm thick.
Application
The Typical Application Of 10 Points 18.5" 19"Capacitive Touch Foil :

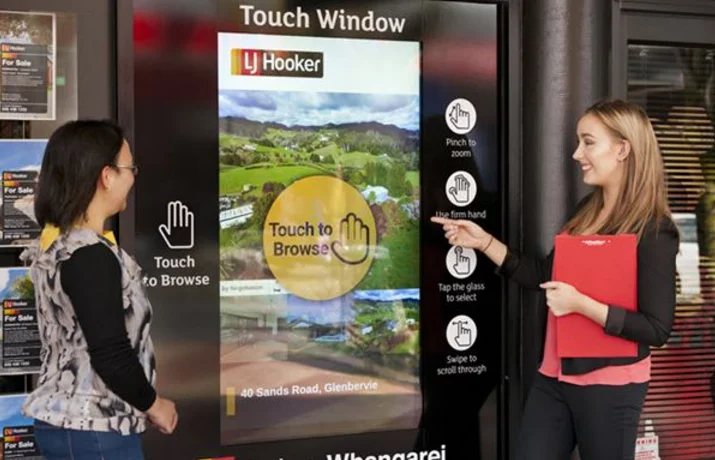

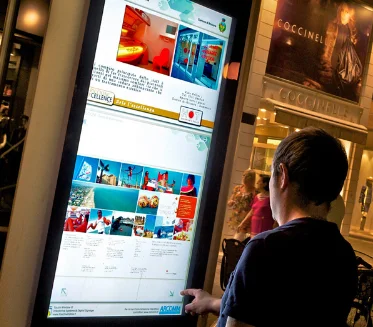

Interactive digital signage
Retail
Entertainment
Multitouch tables
Digital out of home advertising
Industrial
Vending
Related Products
FAQ
Q: What operation system it support ?
A: WIN7 /WIN8 /Linux (Ubuntu 2.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel version>A20->3.3.0,RK3188->3.0.36)
Q: What is your MOQ?
A: 1pcs
Q: Which certificates passed ?
A: CE,FCC,RoHs.
Q: How proceed the order?
A: online or offline
Q: What is your guarantee period?
A: 1year touch foil warranty.
Q: What is your delievey time ?
A: Sample order : within 5 days, 5-12 working days for bulk production after confirmed
Payment terms:
TT, Western Union, PAYPAL, Trade Assurance.
1) For sample order : 100% T/T, Western Union, Paypal.
2) For bulk order more than ten thousand dorllors : 30% T/T in advance. 70% Blance before delivery.
