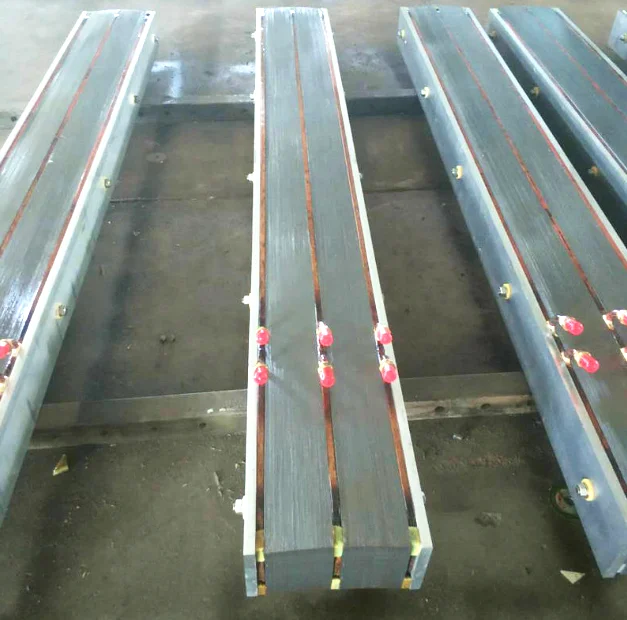

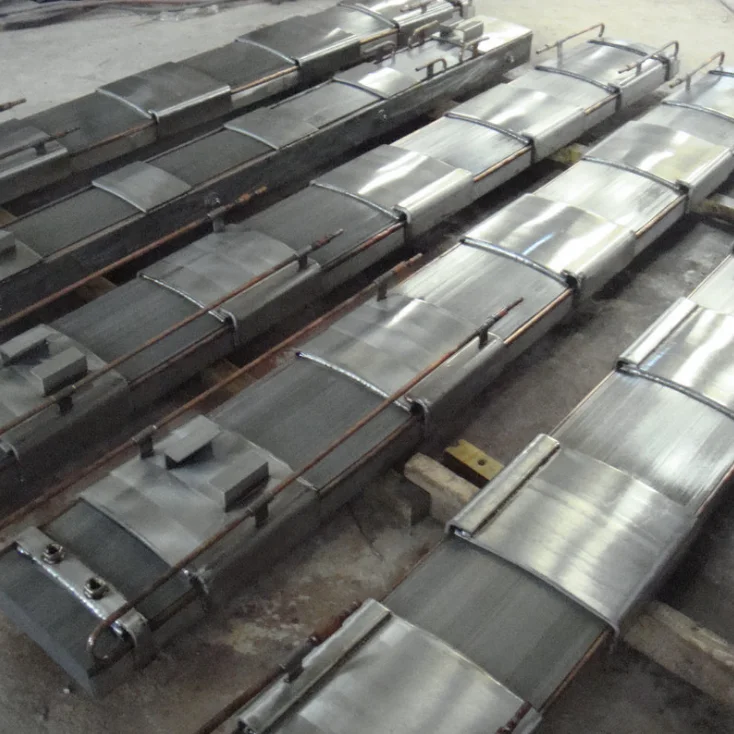

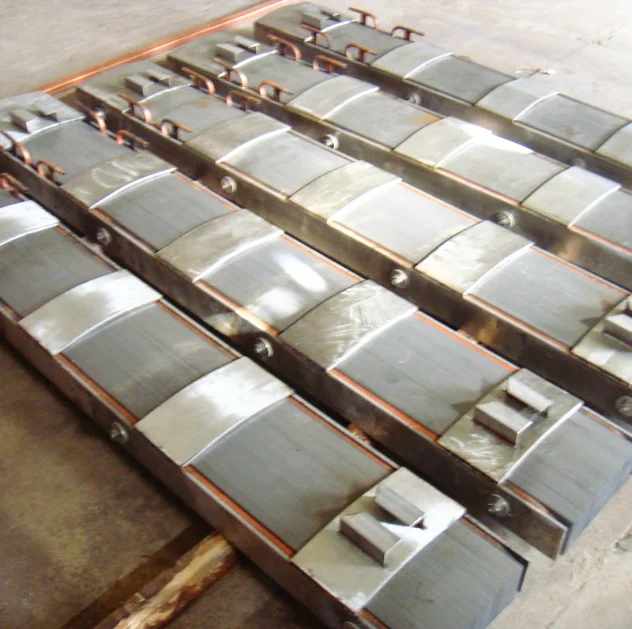

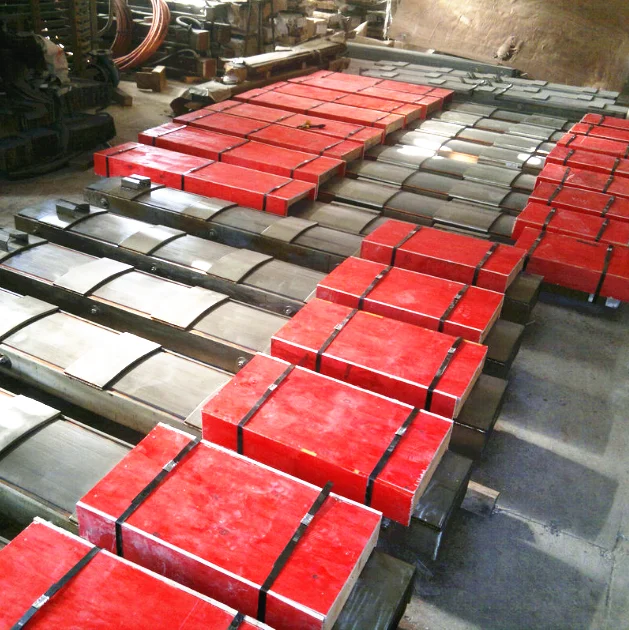

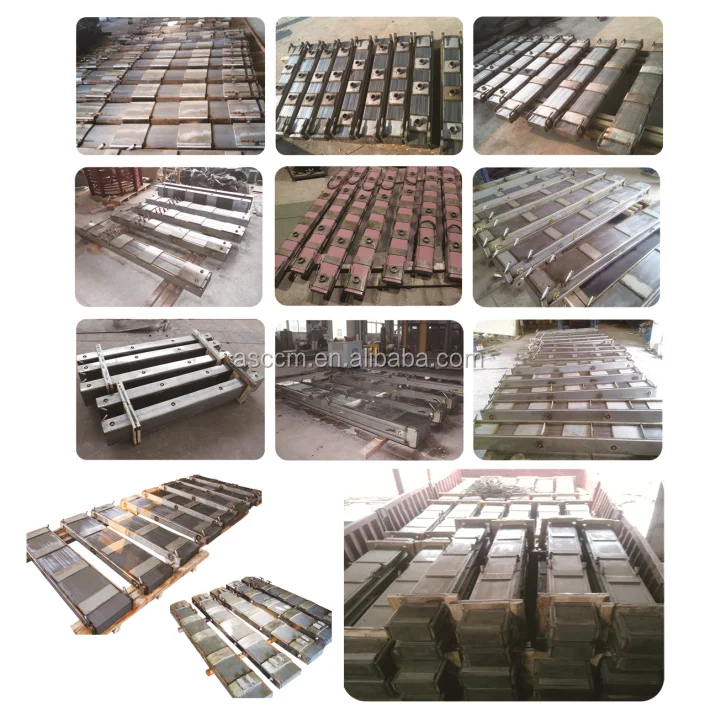

Anshan fenghui factory magnetic yoke for medium and intermediate frequency induction furnace

Brief technical description:

A: Manufactured rectangular cross section. The upper end of the yoke is level with the coil and the lower end is at the bottom of the furnace shell. 0.35mm thick yoke made of high quality silicon steel stack, and the outer surface of the sensor coverage>70%.

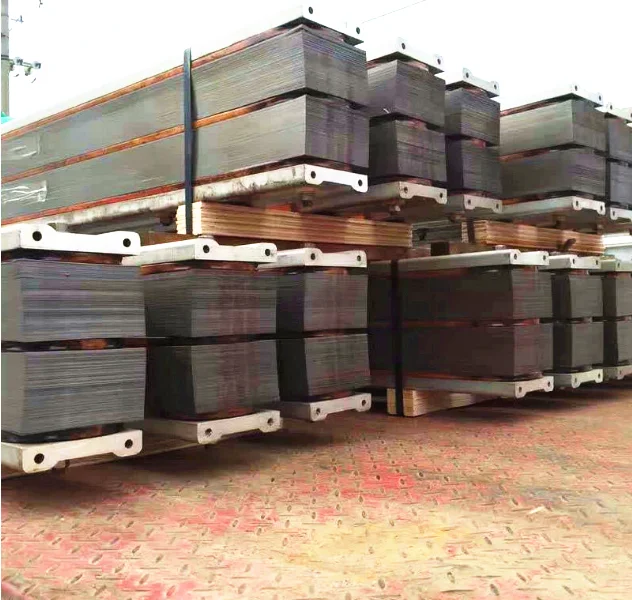

B: Quality cold-rolled silicon sheet, to minimize the magnetic losses, improve the efficiency of electromagnetic coupling.

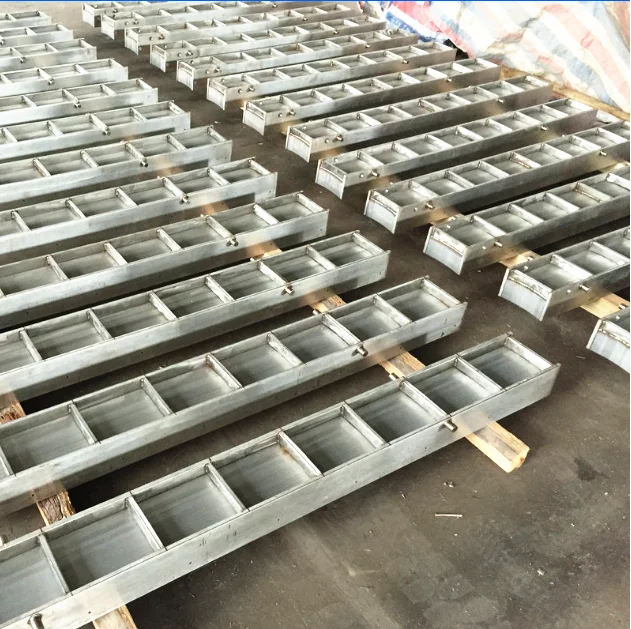

C: By the side of the two magnetic yoke stainless steel plate and stainless steel clip a gripping, perforated the screw. In the two side of the stainless steel welding have cooling water tank ( with argon arc welding technology ), used for cooling magnetic yoke. Cooling water tank can withstand 0.45Mpa pressure without leakage.

Please click the pictures to get the detailed of our recommend products.

a. Reply your inquire in 24 working hour.

b. Technical and professional guidance.

c. Best quality and best price.

We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedbacks on goods and our service.

Packing Details       Standard packing

Delivery Time           Shipped in 5-15 days after payment
