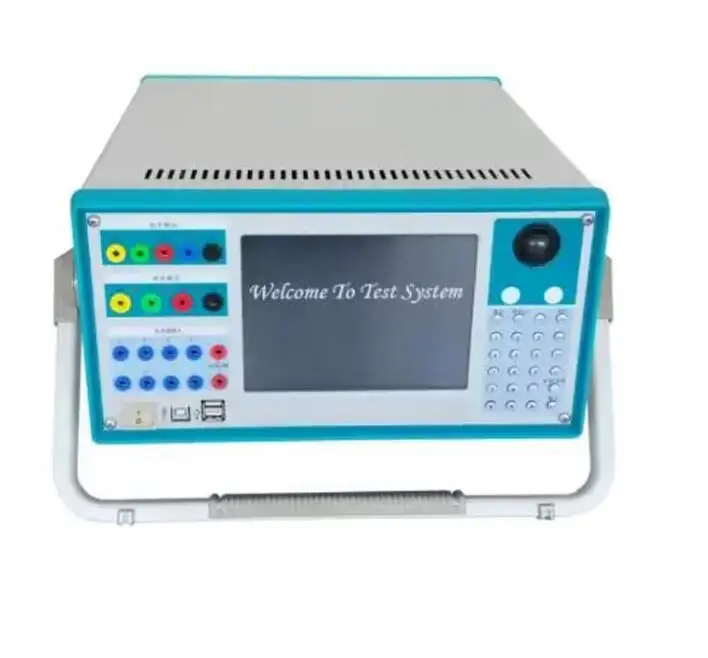

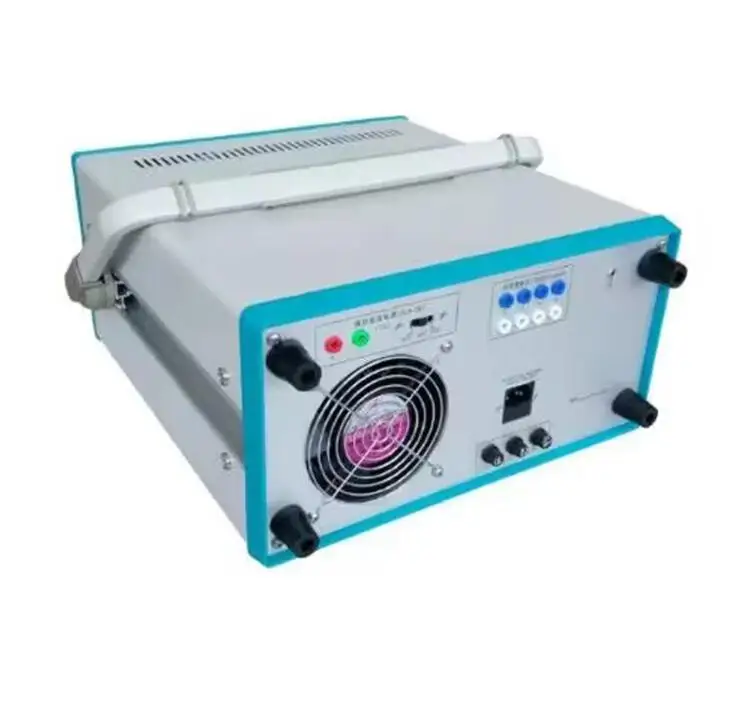

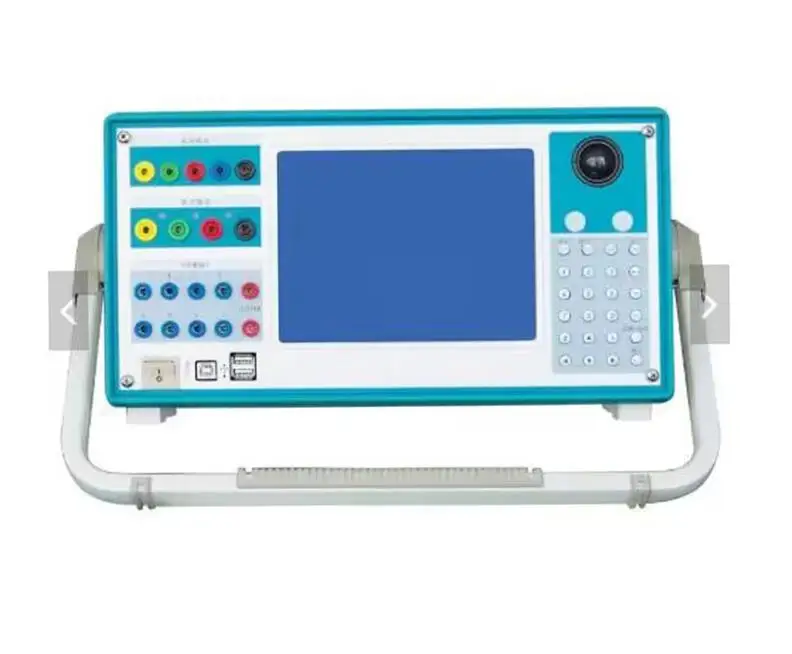

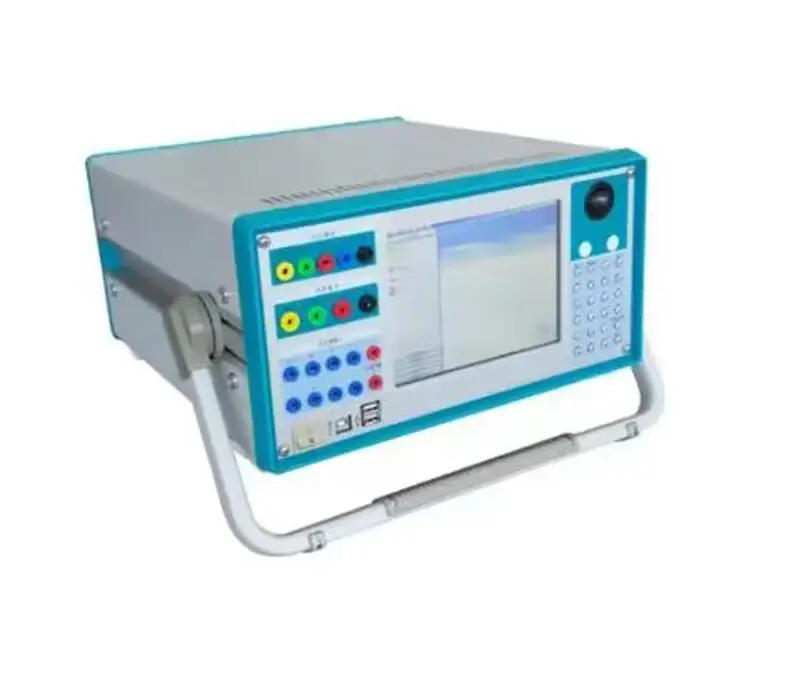

B UHV 802 Secondary Injection Tester Secondary Current Injection Relay Test Set
- Category: >>>
- Supplier: Wuhan Huatian Electric Power Automation Co. Ltd.
Share on (62221677676):
Product Overview
Description
Product Paramenters
Ac current output | ||
Output precision | 0.2 class | |
Phase current output (effective value) | 0～40A | |
Triple current output (effective value) | 0～120A | |
Long-term permissible operating value ofphase current (effective value) | 10A | |
Maximum output power of phase current | 420VA | |
Output power at maximum output of three-phase parallel current | 900VA | |
Three parallel current maximum outputallowable operating time | 10s | |
Frequency range (fundamental wave) | 20～1000Hz | |
Harmonic frequency | 1 ~ 20 times | |
Dc current output | ||
Output precision | 0.2 class | |
Output current | 0 ~ ±10A/ phase, 0 ~ ±30A/ terad | |
Maximum output load voltage | 20V | |
Ac voltage output | ||
Output precision | 0.2 class | |
Phase voltage output (effective value) | 0～120V | |
Line voltage output (effective value) | 0～240V | |
Phase voltage/line voltage output power | 80VA/100VA | |
Frequency range (fundamental wave) | 20～1000Hz | |
Harmonic frequency | 1 ~ 20 times | |
Dc voltage output | ||
Output precision | 0.2 class | |
Phase voltage output amplitude | 0～±160V | |
Line voltage output amplitude | 0～±320V | |
Phase voltage/line voltage output power | 70VA/140VA | |
Switch quantity and time measurement | ||||
three-phase | note | |||
Switching input | 7 road | empty contact: 1 ~ 20mA, 24V | ||
potential contact access："0"：0～ +6V； "1"：+11 V～ +250V | ||||
Switching output | 2 for | DC：220V／0.2A；AC：220V／0.5A | ||
Time measurement | measurement range is 0.1ms ~ 9999s | measurement accuracy is 0.1ms | ||
Volume weight | ||
three-phase | ||
Overall dimensions | 400×300×180mm3 | |
Single weight | 22kg | |
Power supply | AC 220V±10%，50／60Hz | |
Environment temperature | -10℃ ～ +50℃ | |
Function&Characteristics
1. Standard 4-phase voltage and 3-phase current output, with 4-phase voltage and 3-phase current output, can conveniently carry out various combination outputs for various types of protection tests. Single-phase voltage can output up to 120V, single-phase current up to 40A (10 seconds), current three and can output up to 120A, the fourth phase voltage Ux is a multi-function voltage item, can be set as 4 kinds of 3U0 or check the same period voltage, or a certain voltage value of the case output.
2. Single machine is easy to operate. The single machine is operated by a convenient and flexible rotating mouse through a large LCD screen, all of which are displayed in Chinese. It can complete most of the field test verification work, can verify all kinds of relays and microcomputer protection, and can simulate all kinds of complex transient, permanent and transformational faults for the whole group of tests. Boot can be used, easy to operate.
3. Double operation mode, connected to the computer operation, through the Windows platform of the full set of Chinese operating software, can carry out a variety of large complex and higher degree of automation verification work, can be easily tested and scanned a variety of protection fixed value, can be real-time storage test data, display vector diagram, draw fault waveform, online print report, etc.
4. Software is so powerful that can complete all kinds of high degree of automation of large complex check work, such as three phase differential test, auxiliary power fast cutting, prepared from the cast test, line protection inspection period reclosing, etc., can easily test and scanning, protection setting various fault playback, real-time storage test data, show that the vector diagram, online printing report, etc.
5. Switch quantity contact is rich, three - phase for 7 contact input and 2 pairs of empty contact output. The input contacts are compatible with 0 ~ 250V potential contacts and can be identified automatically. Input and output contacts can be expanded according to user needs.
6. Large screen LCD display, microcomputer relay protection tester adopts 320×240 lattice large screen high-resolution graphics LCD display, all the operation process are set on the display screen, the operation interface and test results are displayed in Chinese, the display is intuitive and clear.
7. Self-protection, adopt reasonable design of heat dissipation structure, and have a variety of reliable and perfect protection measures and power soft start, and a certain fault self-diagnosis and locking function.
8. With an independent dedicated dc power output, the device is equipped with one 110V and 220V dedicated dc power output.
9. High cost performance, belongs to the cross - professional joint design products, integrated multi - professional advanced scientific and technological achievements. Both large tester performance, and small tester price, with a high performance ratio.
2. Single machine is easy to operate. The single machine is operated by a convenient and flexible rotating mouse through a large LCD screen, all of which are displayed in Chinese. It can complete most of the field test verification work, can verify all kinds of relays and microcomputer protection, and can simulate all kinds of complex transient, permanent and transformational faults for the whole group of tests. Boot can be used, easy to operate.
3. Double operation mode, connected to the computer operation, through the Windows platform of the full set of Chinese operating software, can carry out a variety of large complex and higher degree of automation verification work, can be easily tested and scanned a variety of protection fixed value, can be real-time storage test data, display vector diagram, draw fault waveform, online print report, etc.
4. Software is so powerful that can complete all kinds of high degree of automation of large complex check work, such as three phase differential test, auxiliary power fast cutting, prepared from the cast test, line protection inspection period reclosing, etc., can easily test and scanning, protection setting various fault playback, real-time storage test data, show that the vector diagram, online printing report, etc.
5. Switch quantity contact is rich, three - phase for 7 contact input and 2 pairs of empty contact output. The input contacts are compatible with 0 ~ 250V potential contacts and can be identified automatically. Input and output contacts can be expanded according to user needs.
6. Large screen LCD display, microcomputer relay protection tester adopts 320×240 lattice large screen high-resolution graphics LCD display, all the operation process are set on the display screen, the operation interface and test results are displayed in Chinese, the display is intuitive and clear.
7. Self-protection, adopt reasonable design of heat dissipation structure, and have a variety of reliable and perfect protection measures and power soft start, and a certain fault self-diagnosis and locking function.
8. With an independent dedicated dc power output, the device is equipped with one 110V and 220V dedicated dc power output.
9. High cost performance, belongs to the cross - professional joint design products, integrated multi - professional advanced scientific and technological achievements. Both large tester performance, and small tester price, with a high performance ratio.
