Fume extractor arms/flexible suction arms with 360 degree pivoting station (62221810125)

Share on:


Price:RUB 15,977.42
Price in USD:Details

Quantity:


Product Overview

Description

Product Description



Factory direct sale smoke suction arm/extraction fume hood/flexible fume extraction arm

Essential feature:

Model NameSupport StructureMaterialHood StypeLengthDiameterResistance temperatureColorApplication
JYB modelFlexible Extraction Arms  built-in stainless steel supportFire-proof material, anti-rust metal structurehat stype     or           hose-hoof stype

2m/3m/4m/5m

Or even longer

from150 to 300mm140-320degreeblue or graywall mounted, connected to Central Fume Extraction System



Essential feature:



Model NameSupport StructureMaterialHood StypeLengthDiameterResistance temperatureColorApplication
JYC modelFlexible Extraction Arms  built-in stainless steel supportFire-proof material, anti-rust metal structurehat stype     or           hose-hoof stype

2m/3m/4m/5m

Or even longer

from150 to 300mm140-320degreeblue or graywall mounted, connected to Central Fume Extraction System





In fact, all directions, dia and lengths according to customer's requests.



General Specifications :



Connection: fixed bracket connection (sealed by the elastic rubber ring )
Cover mouth forms: conical suction mouth (A), Horseshoe suction mouth (L), plate suction mouth(T), hat-type suction mouth (H); Other forms of cover mouth can be ordered.
Cover mouth is installed with wind control valve.
Length: 2m,2.5m,3m,3.5m,4m,5m,(the suction arm more than 4m should be equipped with extended corbel, and the length can be up to 10m)
Diameter: φ150mm, φ175mm, φ200mm (other specifications should be ordered).
External tube material: import PVC steel wire air hose, anti-corrosion, endure high temperature 140C
Skeleton material: the spring steel is galvanized, and other metal components and fasteners are all stainless steel 304#.
External tube use import PVC hose, anti-corrosion, endure acid, and high temperature 1400C . Internal components and cover mouth bracket are all made of stainless steel. it can hover 360 degree arbitrarily with wind control valve for suction mouth.
Its good tensible and hovering feature make it not only can be used with variours welding fume purifier, but also can be installed on the wall or aystem in order to expel the fume and dust with the pipeline togather.
The inner wall of stainless steel cover mouth and the support never rust.It anti-corrosion, endure acid, and high temperature, light weight, high strength, with power device, easy to operate, hover freely. Suction arm is widely used in metal processing,welding fume,workpiece polishing,thermal processing of oil mist treatment, peculiar smell removing, dust removing and other industries.
Optional Accessories: against fire net in cover mouth; spotlights; probe for light, smoke, temperature
Fume extraction arms used in the central extraction system
17 (2)





General Specifications :

1.JYB Model, Bult-in structure support: Dia-150mm/300mm,Length:1.5-8m

slxqb

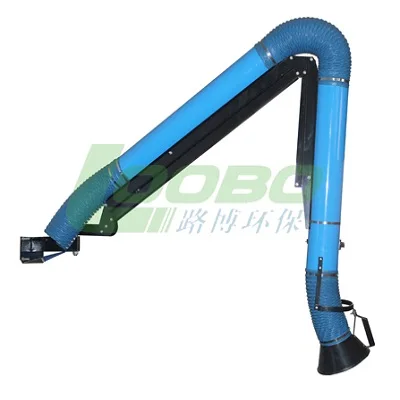

2.JYC Model, External Support stucture: Dia-150mm/300mm, Length:1.5-8m



LB-JYC

3.LB-JC Model, Extension External support structure:  Dia-150mm/300mm, Length:1.5-8m

LB-JC

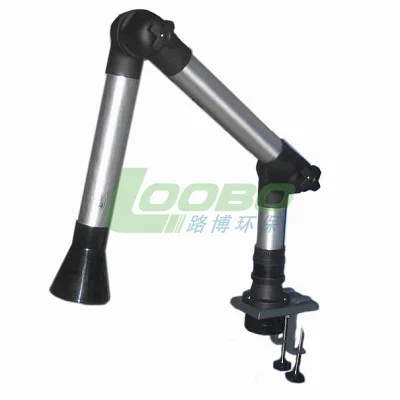

4.LB-QXB Model, Joint Arm: Dia-75mm , length-1.0-1.5m

photobank

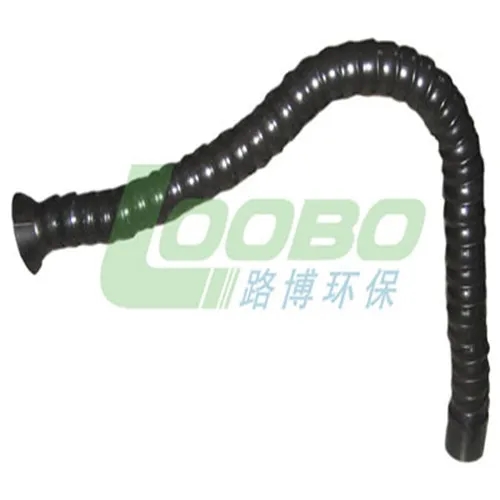

5.LB-JYD Mini Model: 1.0m*50mm

LB-JYD



Other Components :

1.Hood:


2. Soft hose:






Company Information





Qingdao Loobo Environmental Protection Technology Co.,Ltd is one of the biggest enviromental protection products manufacturer, located in Qingdao city of china,specialized in alll kinds of portable fume extractor, downdraft benches(grinding dust removal worktable), central fume purification system, flexible suction arm,etc.



We have more than ten years export experience ,all of our products with the ISO9001 and CE certification, the quality can be guaranteed.



We have our own R&D department , have a variety of style range to meet any of your requirments and had established the economies of scale, so can dilivery fast and provide can beat your competitor's price.
