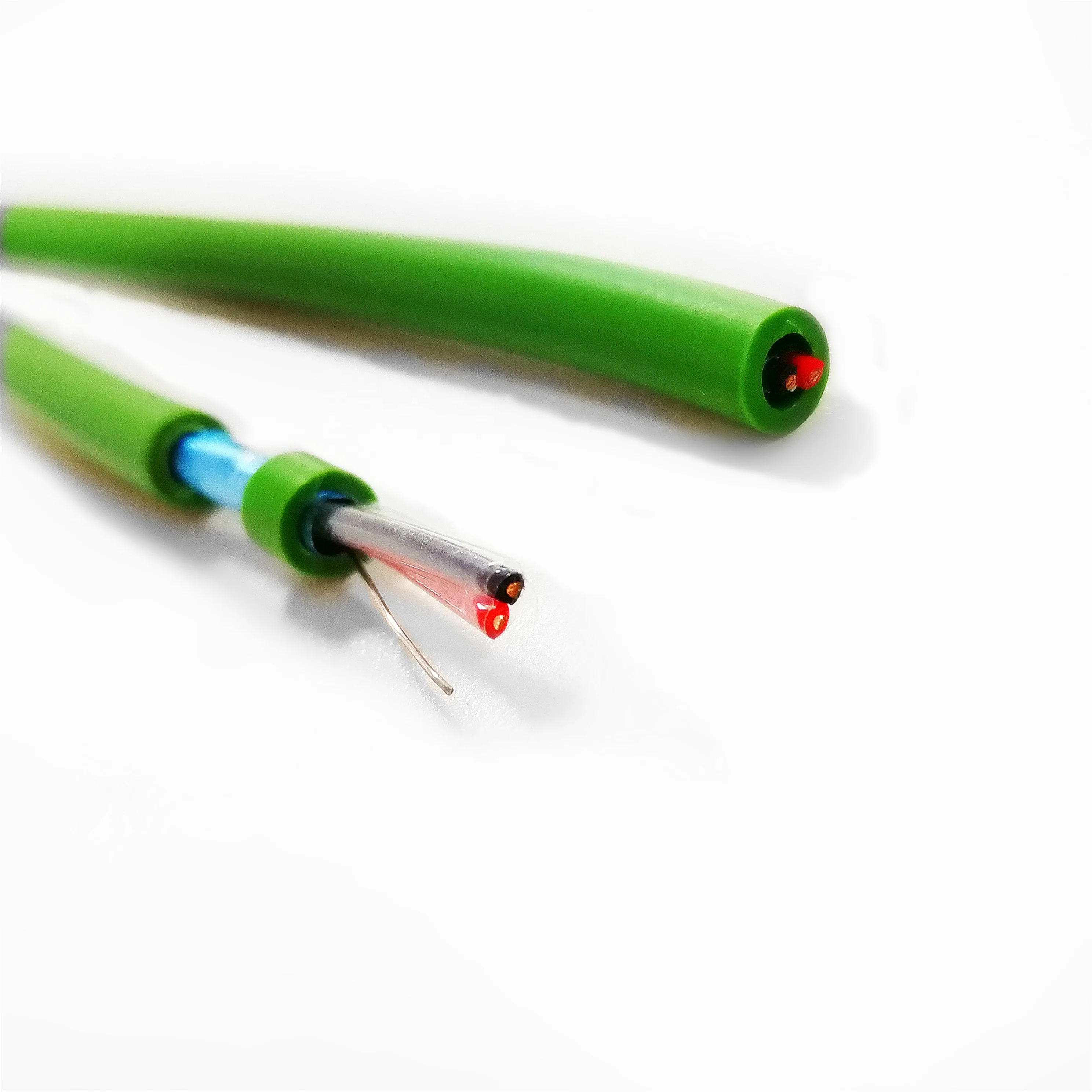

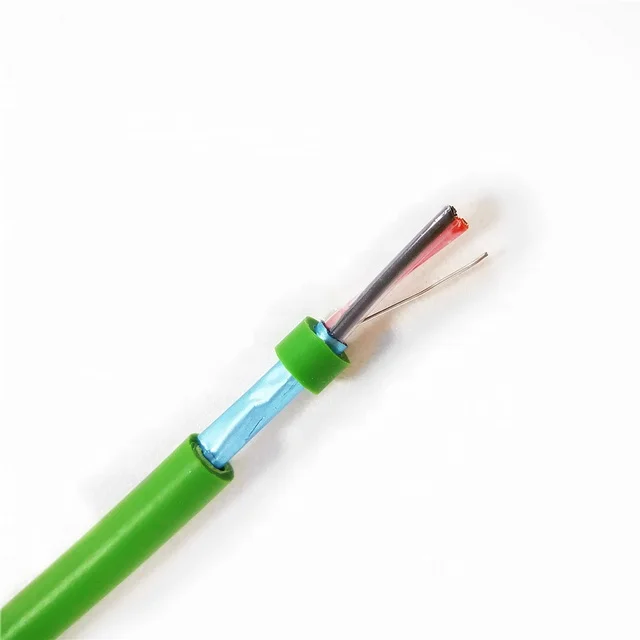

TIANJIE KNX/EIB/EIB bus cable 1pair 1X2X0.8mm communication cable
- Category: >>>
- Supplier: Zhejiang Tianjie Industrial Corp.
Share on (62222064205):
Product Overview
Description
2 Pair(White or Green) KNX cable (also known as TP1 cable)
* Features two twisted pairs of solid conductor with a foil screen and tinned copper drain wire in a green LSHF or PVC jacket.
* In general, 'Green cable' is used for ALL KNX Bus wiring and the White version is useful for running along skirting boards etc. It is also helpful when for example wiring for door communication or anything that requires KNX cable but is not a BUS device.
* Use this cable for ALL installations unless you have a specific requirement that one of the other cables here covers.
1 Pair – (Green)
* Similar in construction to the standard 2 x 2 x 0.8mm, the one pair version features a single twisted solid conductor pair with a foil screen in a green LSHF jacket.
* The cable benefits from being smaller, lighter and offers savings on both space and cost. It is also ideal as a jumper cable where its greater flexibility and reduced diameter makes it more suitable than the 2 pair.
* Flexibility is the key thing here. Use this cable for rack wiring.
* Features two twisted pairs of solid conductor with a foil screen and tinned copper drain wire in a green LSHF or PVC jacket.
* In general, 'Green cable' is used for ALL KNX Bus wiring and the White version is useful for running along skirting boards etc. It is also helpful when for example wiring for door communication or anything that requires KNX cable but is not a BUS device.
* Use this cable for ALL installations unless you have a specific requirement that one of the other cables here covers.
1 Pair – (Green)
* Similar in construction to the standard 2 x 2 x 0.8mm, the one pair version features a single twisted solid conductor pair with a foil screen in a green LSHF jacket.
* The cable benefits from being smaller, lighter and offers savings on both space and cost. It is also ideal as a jumper cable where its greater flexibility and reduced diameter makes it more suitable than the 2 pair.
* Flexibility is the key thing here. Use this cable for rack wiring.
BMS - KNX Cables
KNX is an open standard for commercial and domestic building automation. KNX devices can manage lighting, blinds and shutters, HVAC, security systems, energy management, audio video, white goods, displays, remote control, etc.
KNX evolved from three earlier standards; the European Home Systems Protocol, BatiBUS, and the European Installation Bus. It can use twisted pair, power line, RF, or IP links. On this network, the devices form distributed applications and tight interaction is possible. This is implemented via interworking models with standardised datapoint types and objects, modelling logical device channels.
KNX systems, formerly known as EIB, allow the operation and control of heating, lighting and air condition among others to be aligned with external climate conditions or adjusted by an interface to pre-set levels.
When you are looking to buy KNX cable, look for the KNX logo. All KNX certified equipment has been tested and certified to meet this high standard and only equipment meeting this can carry the logo. This ensures the quality, reliability and guaranteed compatibility of all KNX devices and equipment.
Image representative of product style, product supplied may vary.
Products Description
KNX

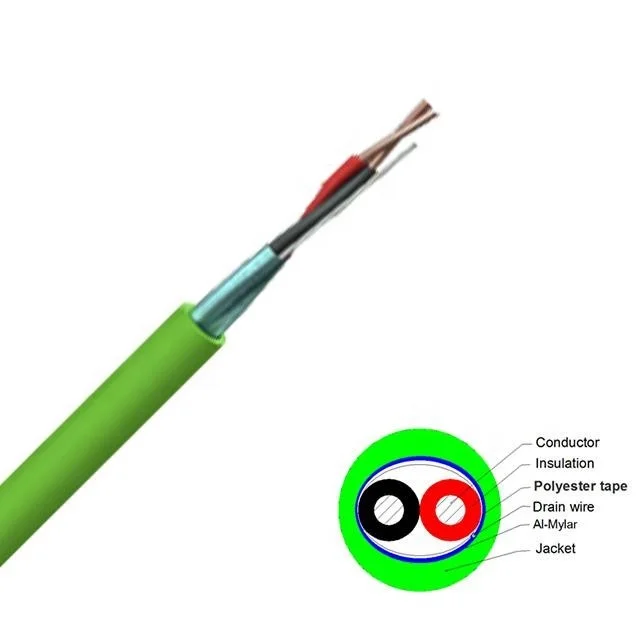

The KNX cable from TIANJIE features two twisted pairs of solid conductor with a foil screen and tinned copper drain wire in a green LSHF jacket.
It has been tested and certified as being suitable for use in KNX systems and bears the KNX logo.
* Certified by the KNX Association, guaranteeing it's compatibility with other KNX certified products;
* White version available for where cable is visible.
KNX cable is mains rated and due to the arrangement of the internal cores, it can be run directly next to mains cabling.
Product Paramenters

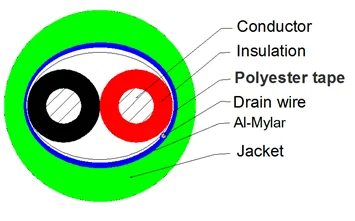

Cable construction | ||||||
Conductor: | 1P | 2P | 4C | |||
Size: | 1*2*0.8±0.003mm | 2*2*0.8±0.003mm | 1*4*0.8±0.003mm | |||
Dielectric: | ||||||
Material: | PE | |||||
Dia.over Dielectric: | 1.4±0.05mm | |||||
Color Code: | Red/Black | Red/Black, White/Yellow | Red/Black/White/Yellow | |||
Screen: | PET tape | |||||
Shield: | AL-Foil | |||||
Drain Wire: | 7/0.16±0.003 TC | |||||
Jacket: | ||||||
Material: | LSZH(Green) | |||||
Dia.over Jacket: | 4.9±0.3mm | 6.8±0.3mm | 5.6±0.3mm | |||
Electrical Properties | ||
Operating Voltage (V) | 300 | |
Flame Retardant | IEC 60332-1 | |
Low Smoke Generation | IEC 61034-1&2 | |
Halogen Gas Emission | IEC 60754-1&2 | |
RoHS compliant | YES | |

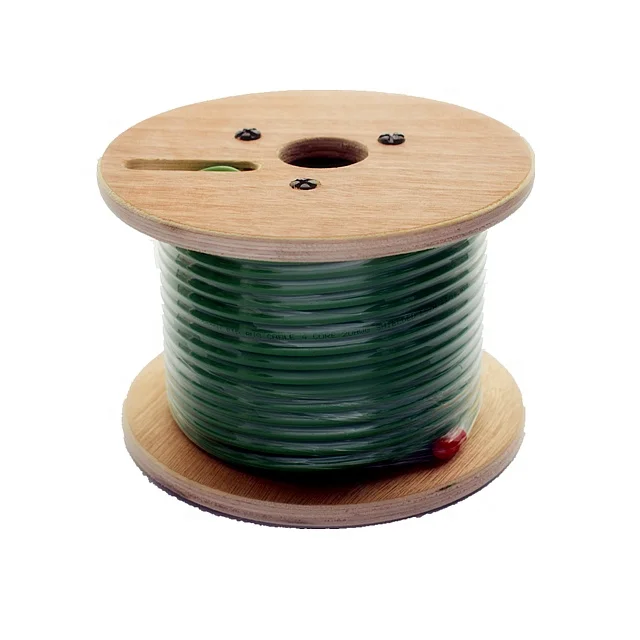

Product packaging
