Modern Led Wall Light up down indoor living room wall bracket Light led acrylic Simplicity Decorative wall light

Product Overview

Description

Modern Led Wall Light up down indoor living room wall bracket Light led acrylic Simplicity Decorative wall light

<<< Free Sample for Testing.

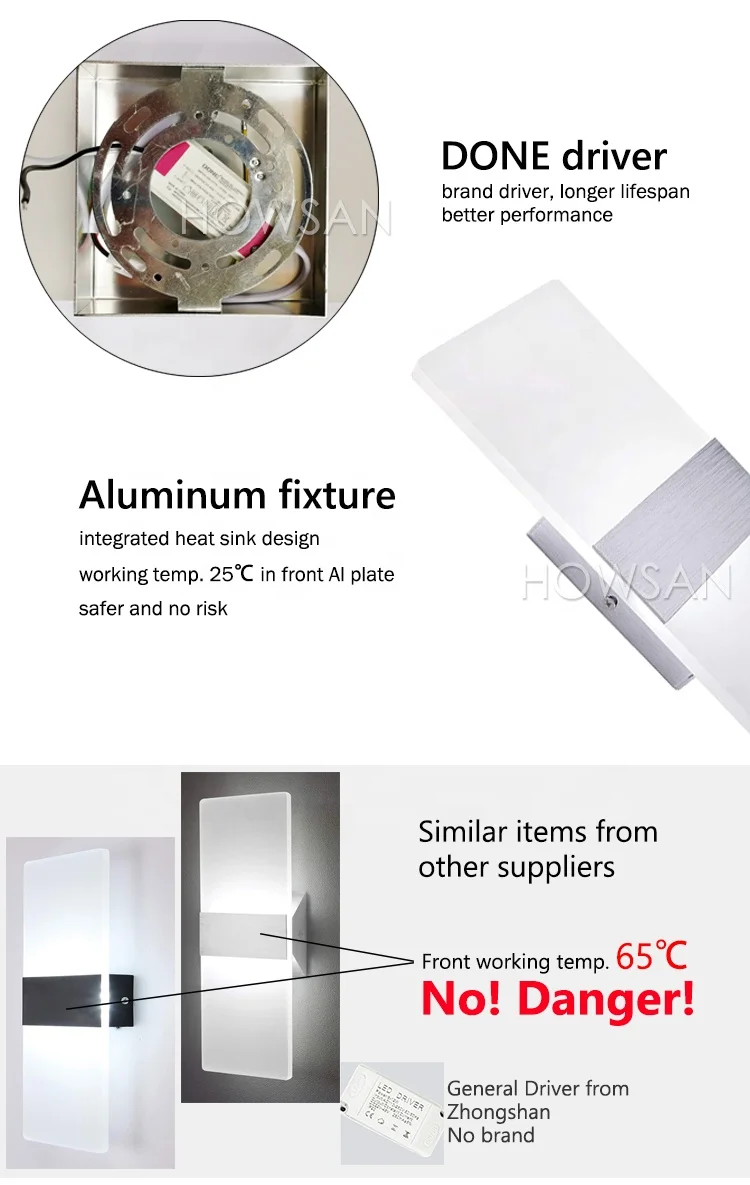

1. Features of Modern Led Wall Light

--High efficiency LED light source, safe and energy-saving,120lm/W;
--New product appearance, novel design style,beautiful and durable.
--Optimized heat dissipation structure, high efficient heat dissipation, LEDs and
power supply low temperature rise, high stability of continuous working, and
long life.
--No UV and infrared radiation.
--Frosted surface, soft light
--120mm hanging plate, easy to install and more beautiful;
--Working temperature: -4℉ to 122℉(-20℃ to 50℃).







2. Parameters(TC=25 ℃) of Modern Led Wall Light



Model	CW1-6W	CW1-12W
Size (mm)	290*120*42mm	290*120*42mm
Power(Max)	6W	12W
Color	3000K / 4000K / 6000K
CRI	>80
Rated Luminous Flux (Max)	720±5% lm	1440±5% lm
Input Voltage	100~240V AC    50/60Hz
Shell Color	Black/White/Silver
Beam Angle	>120°
Average Lifespan Ta25℃	>30,000hours
Operating Temperature	-20℃~+50℃
IP Rating	IP20
Markings	CE, RoHS







3. Dimension (MM) of Modern Led Wall Light

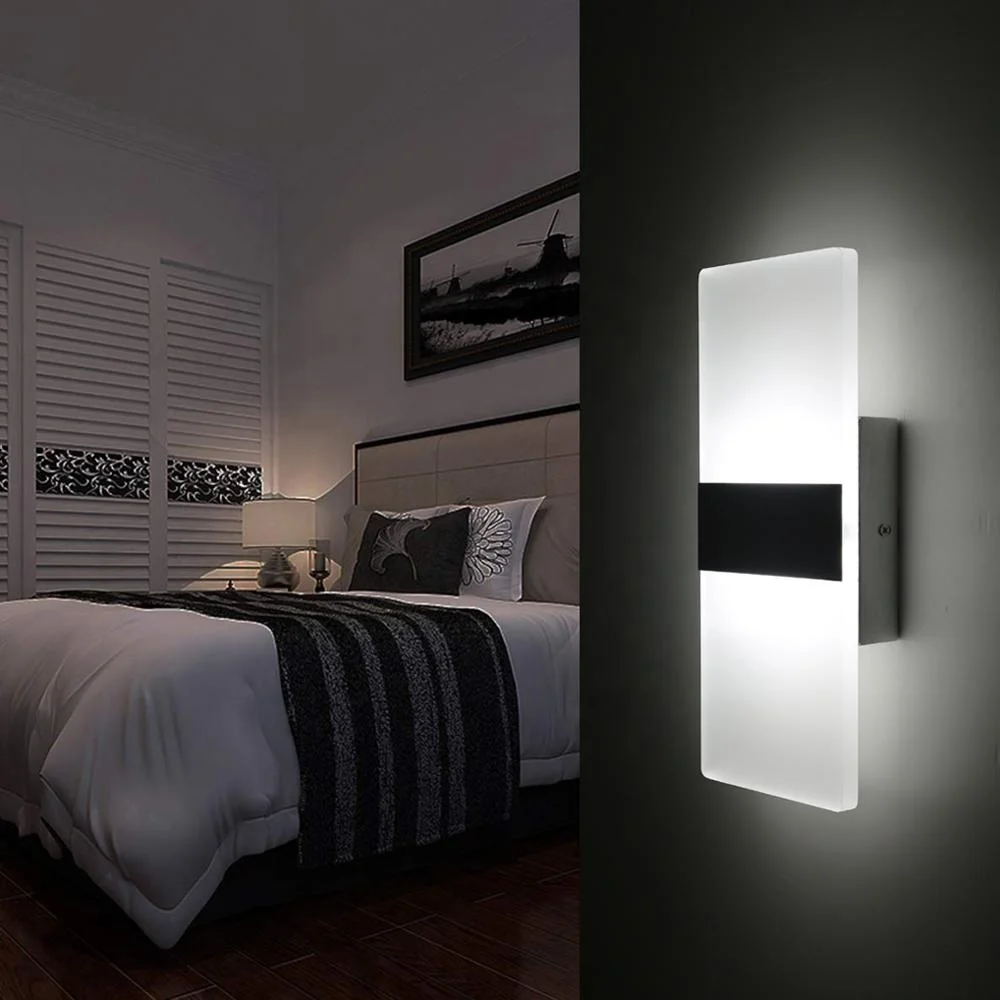

4. Applications of Modern Led Wall Light

The LED Wall Light installs anywhere light is needed, including hall and toilet, balcony, corridor, passageway, living room, bedroom & study room, etc.





5. Installation Introduction of Modern Led Wall Light



Before You Begin
Carefully unpack contents and check to make sure all parts are present. Some
assembly may be required.







 Assembly

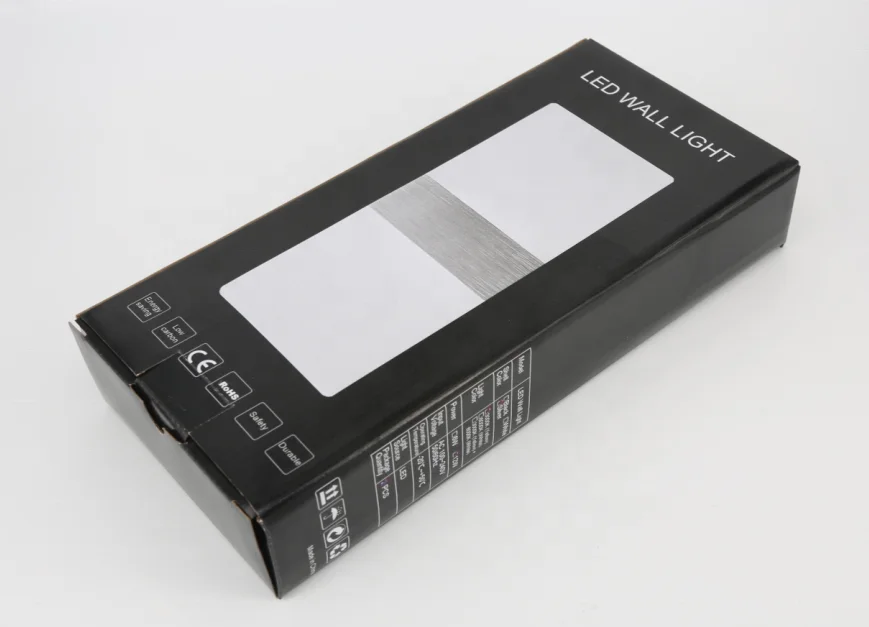

6. Packing and Weight of Modern Led Wall Light



Model	QTY/CTN (PCS)	G.W. (Kg/CTN)	Carton size(mm)
CW1-6W	40	26.5	700*475*325
CW1-12W	40	26.5	700*475*325
