Product Overview

Description

MC-5816 Series 16 Floors Lift Access Control Board





Introduction:

MC-5816 Series of smart card elevator / locker access controller, also known as smart card elevator access control system. MC-5816 Is used to lift hierarchical control, personnel up and down the elevator access control systems products. MC-5816 series of smart card elevator access controller can be used to meet building service management company or management personnel access lift more efficient and safer management needs. The system set up by the addition of all the cardholder to enter the floor, carried out all floors access control.

MC-5816 status for different people, with different floor privileges, you can specify a person can only go to certain floors, certain floor or all floors, each floor through permissions management, there are some who can reach the floor, who You can not reach some floors, and MC-5816 may be authorized in accordance with time management. Without the express elevator access control system authorized to enter the floor management area, and carry out important time periods floor control. MC-5816 series elevator access management system supports offline operation, an independent group of people can store 26,000 data records with 100,000 readers, so that all staff have access to data recorded floor to be found.





 Specification:









About us:



Techcrepower is a professional supplier, who has specialized in Access Control Sytem over 10 years, we has provided hundreds of millions of product, such as access controller, electronic lock, release button, reset switch,etc. in China and worldwide.



We always focus on quality and services firstly. Believe you would be impressed with our products and services !



We will cherish any opportunity to cooperate with you!

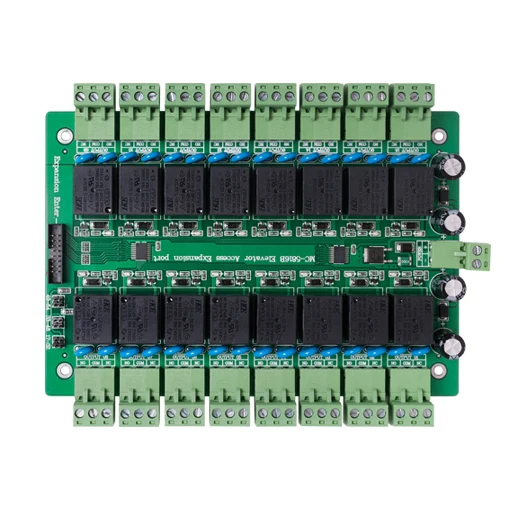

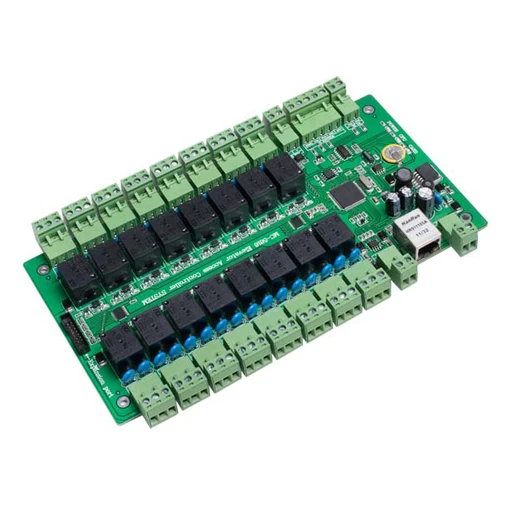

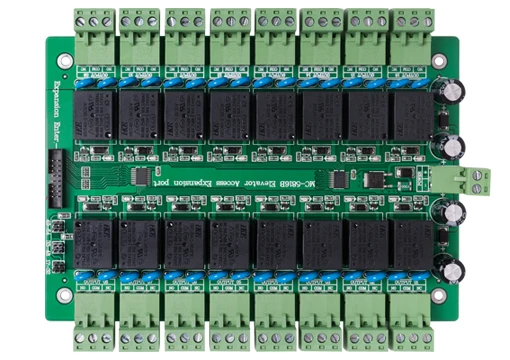

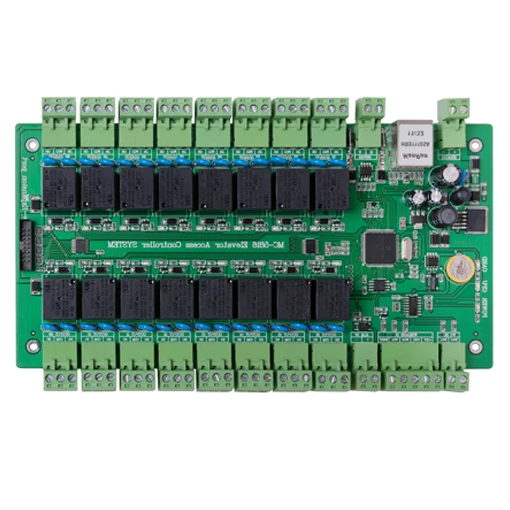

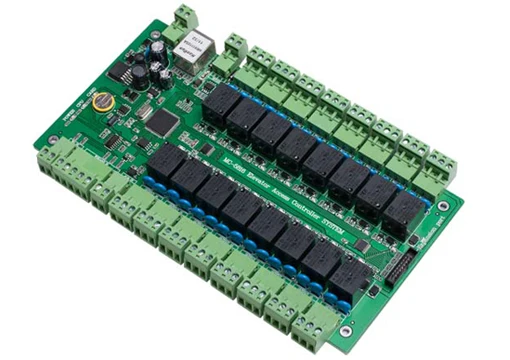

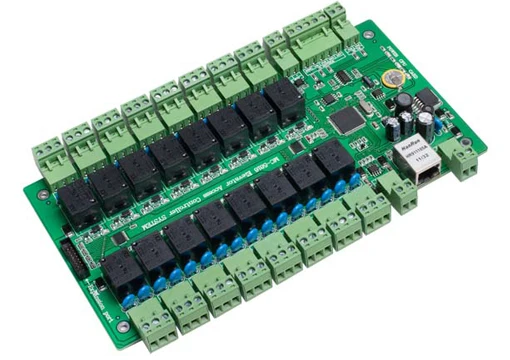

Product Photo

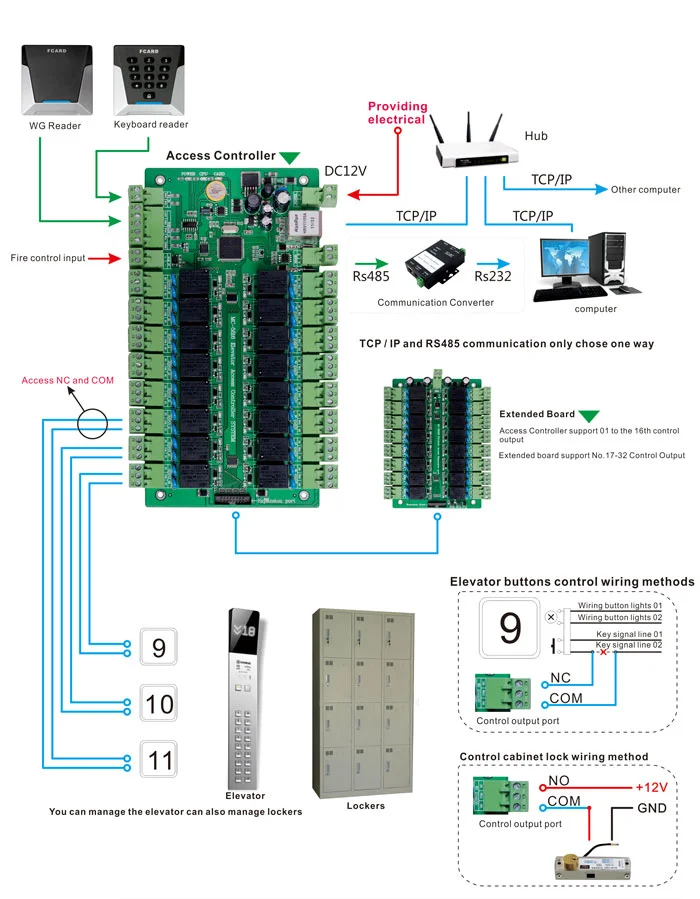

Solution Wiring Diagram
