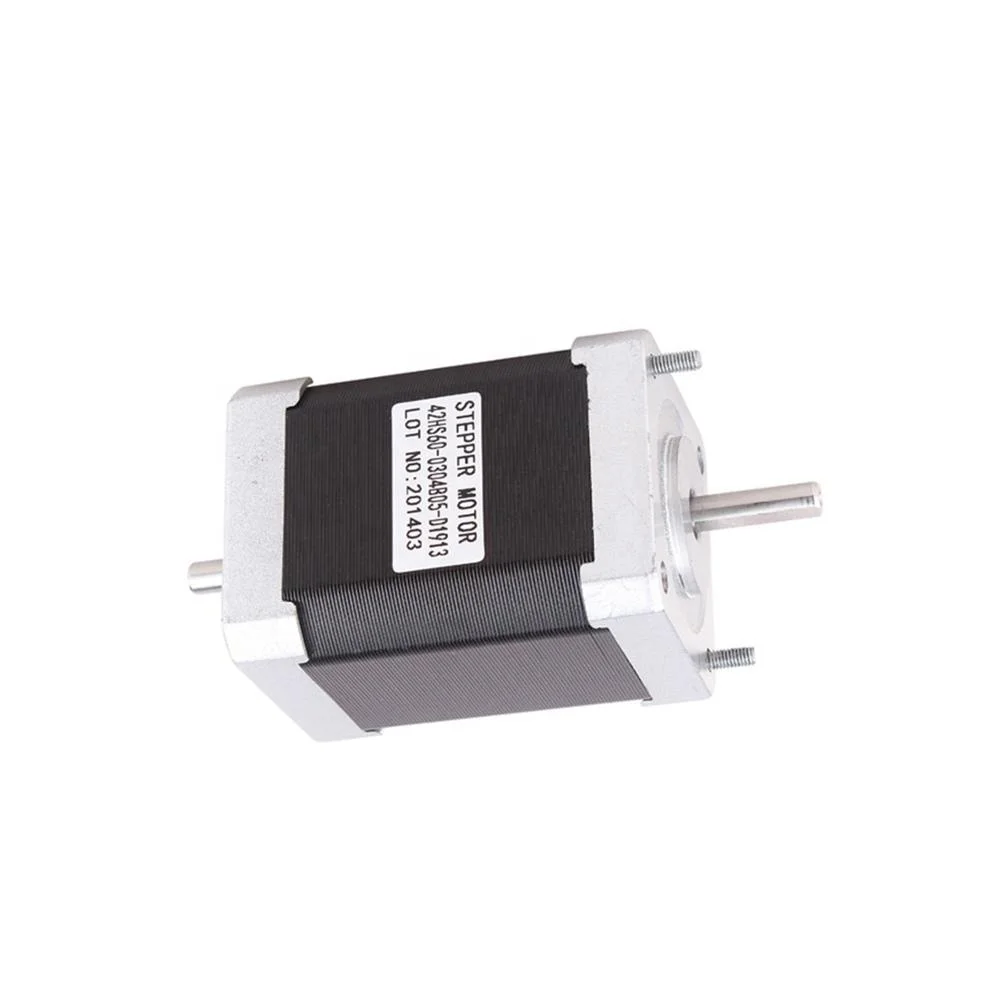

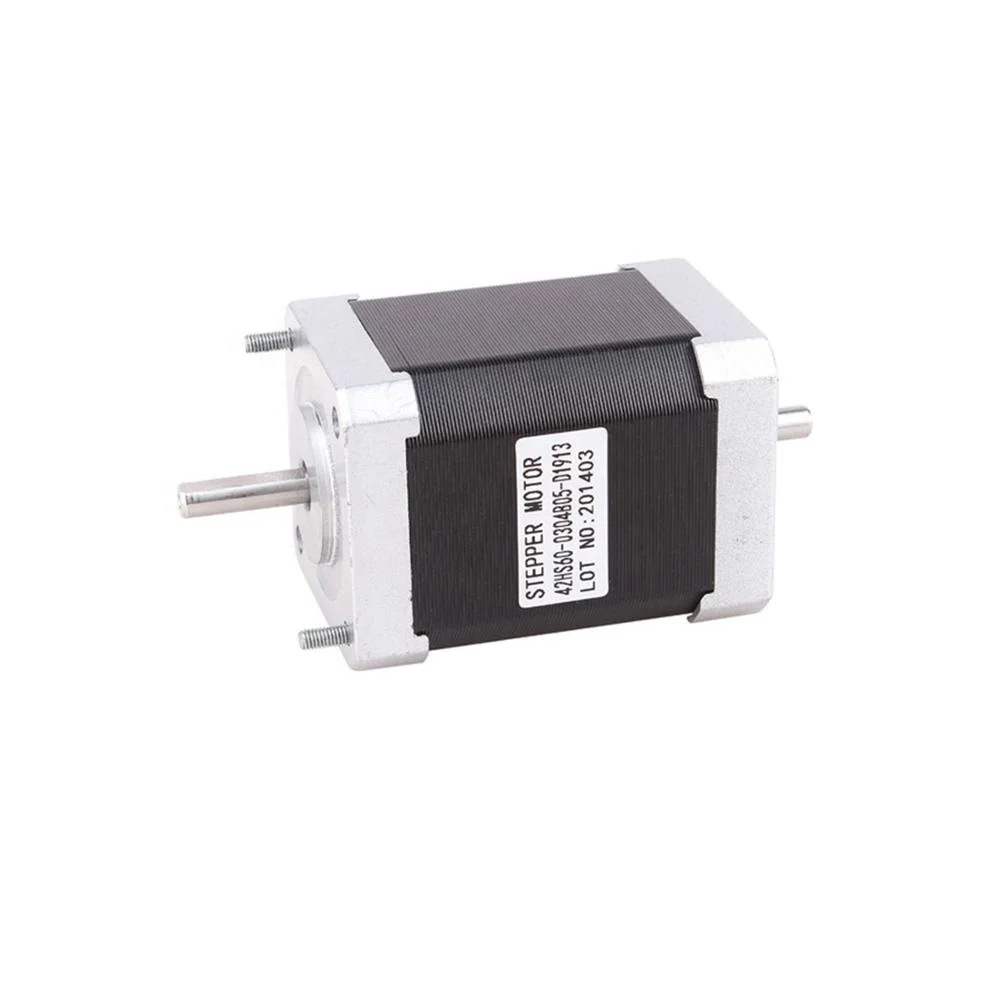

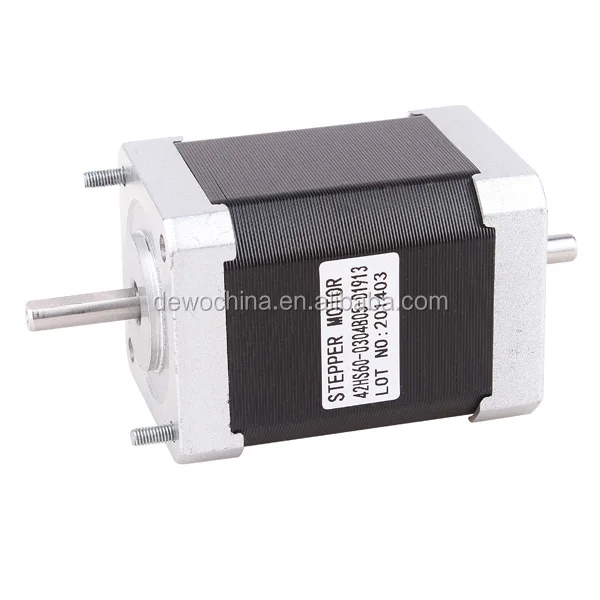

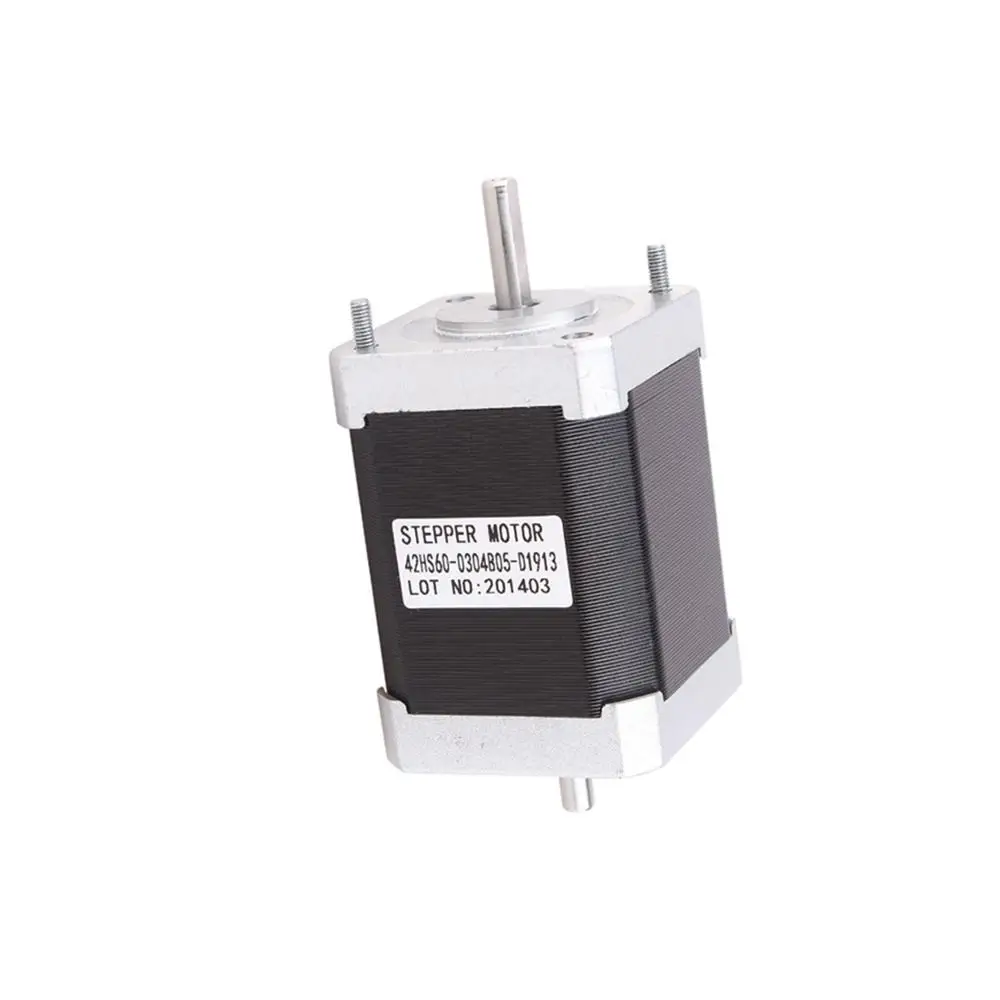

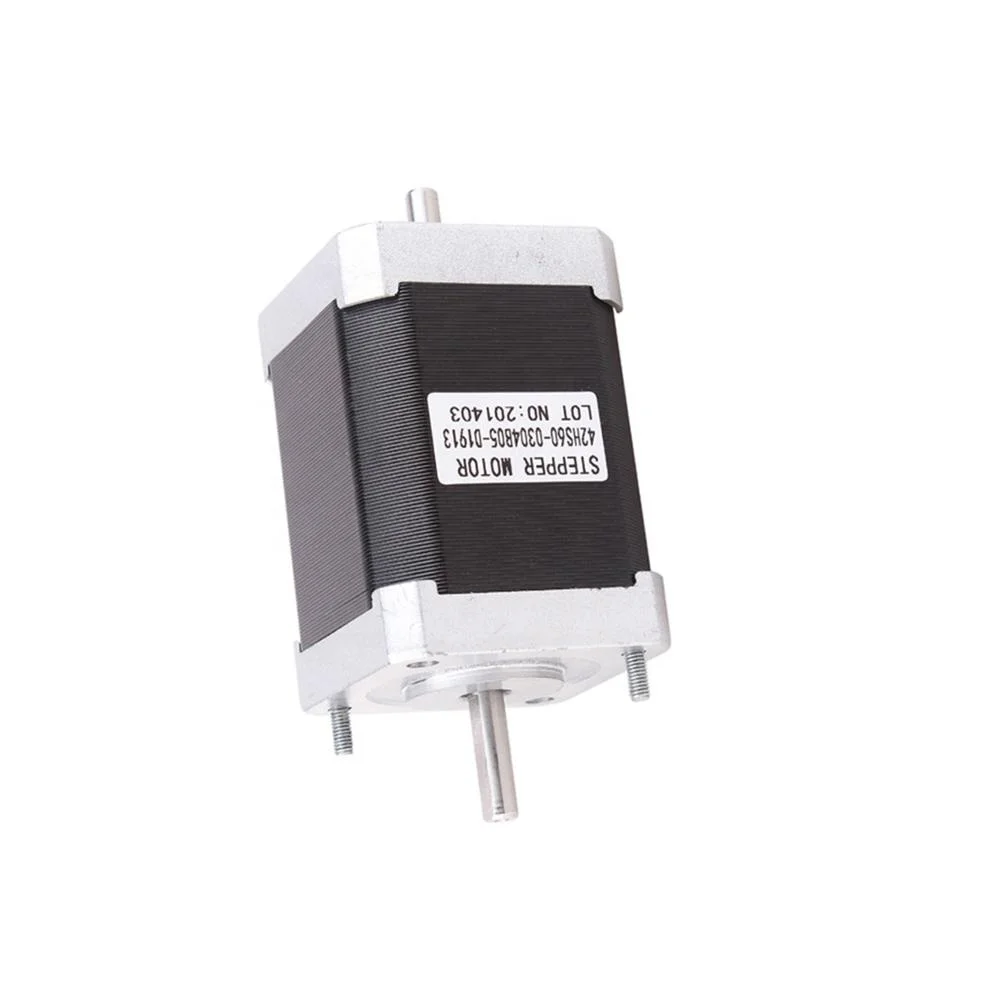

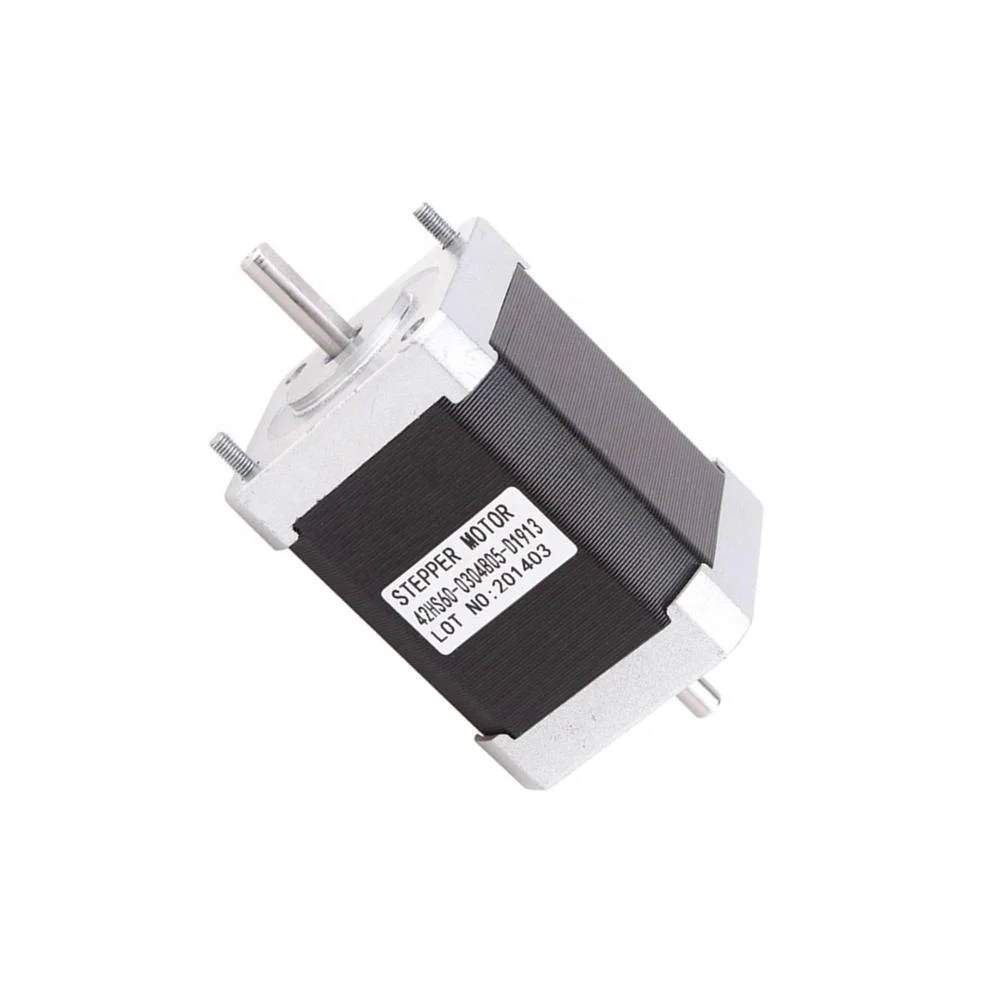

high quality leadshine motor nema 17 double shaft stepper motor

Product Overview

Description

High quality leadshine motor nema 17 double shaft stepper motor

Hybrid stepper motor nema 17 specifications:

Item	Step Angle	Temperature Rise	Ambient Temperature	Insulation Resistance	Dielectric Strength	Shaft Radial Play	Shaft Axial Play	Max.Radial Force	Max.Axial Force
Specifications	1.8°	80°C Max	-20°C Max~+50°C Max	100M ΩMin.,500VDC	500VAC for 1 minute	0.02Max(450g-load)	0.08Max(450g-load)	28N(20mm for the flange)	10N

Hybrid stepper motor nema 17 electrical specifications

Model NO	Step Angle (°)	Rated Voltage (V)	Rated Current (A)	Phase Resistance (Ω)	Phase Indrctance (mH)	Holding Torque (kg.cm)	Detent Torque (g.cm Max)	Rotor Intertia (g.cm²)	Motor Length (mm)	Lead Wires No	Motor Weight (kg)
42HS29	1.8°	2.3	0.8	2.9	3	1.8	180	25	29	4	0.16
42HS40	1.8°	12	0.4	30	60	4.2	220	54	40	4	0.28
42HS48	1.8°	12	0.4	30	45	4.5	280	68	48	4	0.38
42HS52	1.8°	4.5	1.5	3	7	6.8	300	95	52	4	0.45
42HS60	1.8°	3.8	1.5	2.5	6	7	360	95	60	4	0.55

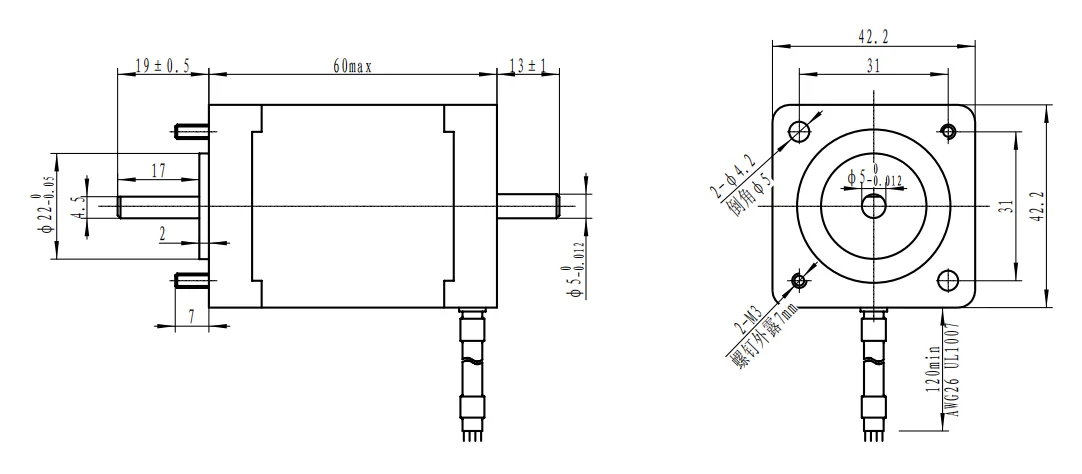

Hybrid stepper motor nema 17 dimensions:

    Changzhou DEWO MOTOR Co.Ltd.is a comprehensive company which specializes in  producing and researching stepper motor and motor driver

     Now we have an excellent group with rich experience in manufacturing and researching We can solve the actual using problems for customers Our products are highly commended by customers because of its easy operation Long using life Stable performance Low failure rate and high technical content

    Our products are widely applied in engraving machine Cutting plotter Textile machine 3D printer Medical instruments Stage light equipment Robot CNC Music fountain And other industrial automatic equipment

    Our main products include from size NEMA 8 NEMA11 NEMA 14 NEMA 16 NEMA 17 NEMA 23 NEMA 24 NEMA 34 NEMA 42 NEMA 52 series hybrid stepper motor And variable sizes linear stepper motor Geared stepper motor Stepper motor with brake And  we have products about easy servo system of NEMA 17 NEMA 23 NEMA 24 and NEMA 34 sizes In addition We can produce suitable drivers for all the motors And we are always researching and developing new products

    We have passed ISO9001:2008 And have got the certification of CE On the way of development The principle of “Efficiency is the life Quality is the fundamental” is always insisted by DEWO people We take the market as guidance Provide high quality products and good service to customers We are expecting the cooperation with more friends from home and aboard in the near future.



Hybrid stepper motor nema 23 package:

Hybrid stepper motor nema 23 shipping:



Q:Where is your factory.

A:Our factory is located in Changzhou only one hour from Shanghai by high –speed railway.

Q:How to choose the suitable stepper motor.

A:There are several important points Size and length of the stepper motor Holding torque Step angle voltage          Current etc. After confirm some of them then told us We can help you to choose the suitable stepper motor Or      you can sent us the model you are using We can help you to find the suitable stepper motor.

Q:When can I receive the drawings of the stepper motor.

A:We will provide the drawings of the stepper motor after you place the order.

Q:How long is the warranty time.

A:12 months And we provide life-long technical service and after sale service.

Q:How can we know the product quality?

A:We suggest you to order a sample Also You can send us email for detail photos for checking if you cannot get    enough information in the product page.
