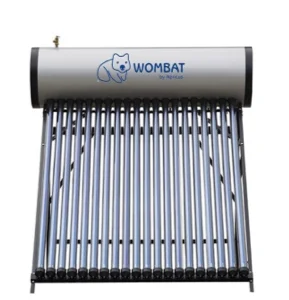

Wombat Thermosiphon heat pipe solar water heaters are an all-in-one solar water heating system. They are ideal for supplying pressurized hot water to residential customers who require a sustainable, easy to install, high efficiency and reliable solar hot water solution. In high solar radiation areas, Wombat solar water heaters can be the sole energy source for hot water supply. In cooler climates Wombat systems can provide pre-heated hot water which saves traditional electric or gas energy costs. The tank has an optional electrical heating element for boosting.
Basic Operation

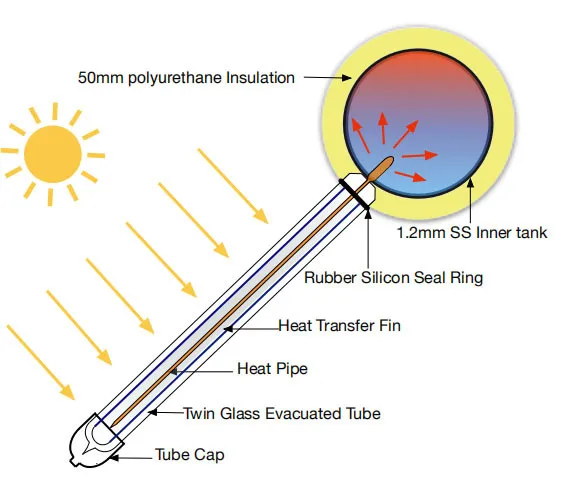

Evacuated tubes absorb sunlight and convert it to usable heat. A vacuum between the two glass layers insulates against heat loss improvement efficiency. The heat transfer fin helps to transfer heat from the evacuated tube to the to the copper heat pipe. The heat pipe contains a small amount liquid which forms steam when heated, rapidly transferring the heat up to the water in the storage tank.Evacuated tubes absorb sunlight and convert it to usable heat. A vacuum between the two glass layers insulates against heat loss improvement efficiency. The heat transfer fin helps to transfer heat from the evacuated tube to the to the copper heat pipe. The heat pipe contains a small amount liquid which forms steam when heated, rapidly transferring the heat up to the water in the storage tank.
Product Details
Features
• Economical solar water heating solution • Food grade 304 stainless steel inner tank • Triple layer absorber evacuated tubes • Well insulated solar storage tank • Reinforced tank welding design • Easy plug-in installation • Low maintenance operation • Colored steel supporting frame • Comprehensive limited warranty • 3 year on for main components, including storage tank, heat pipes, mounting frames & evacuated tubes • 1 year on for spare parts including electric heaters, controller, etc.
