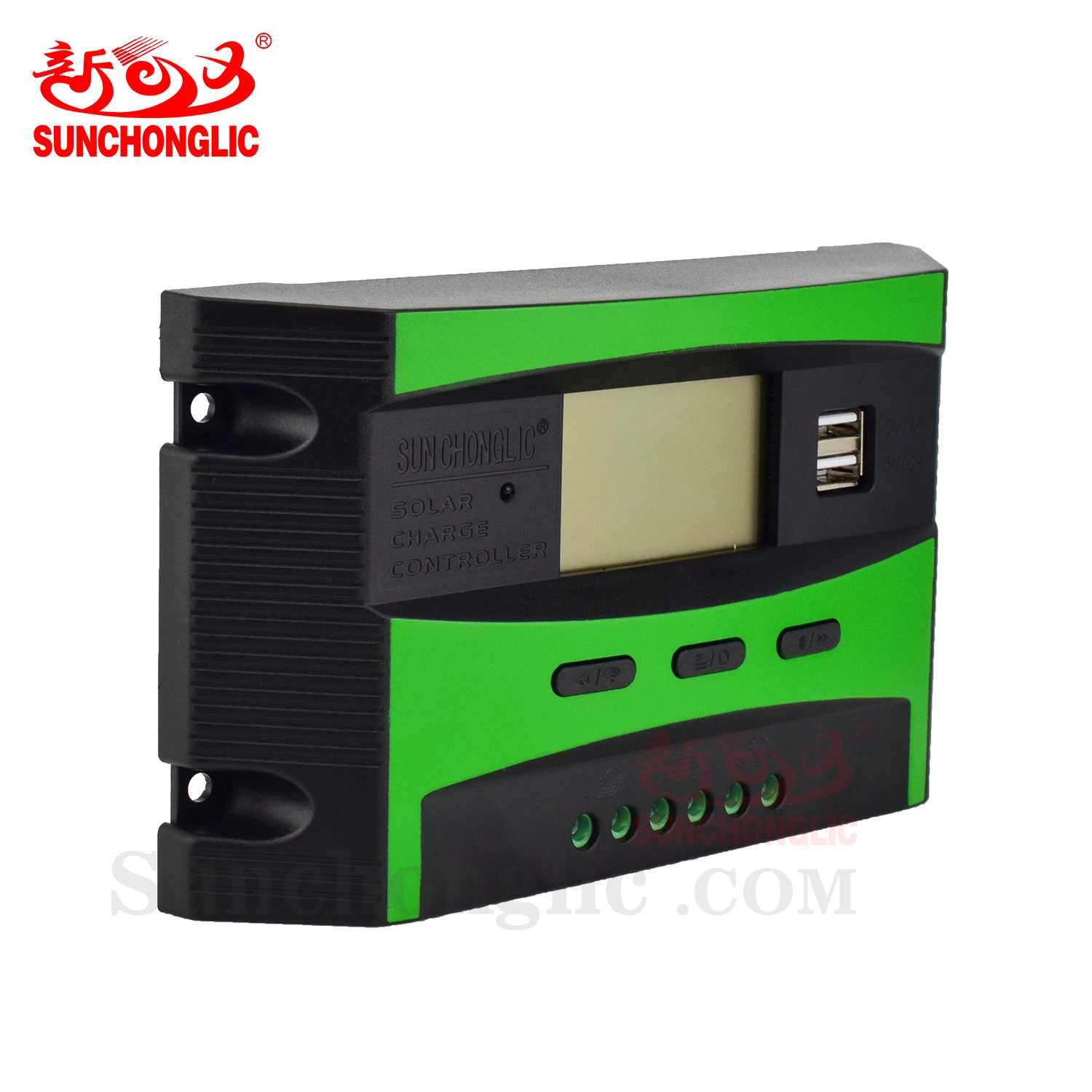

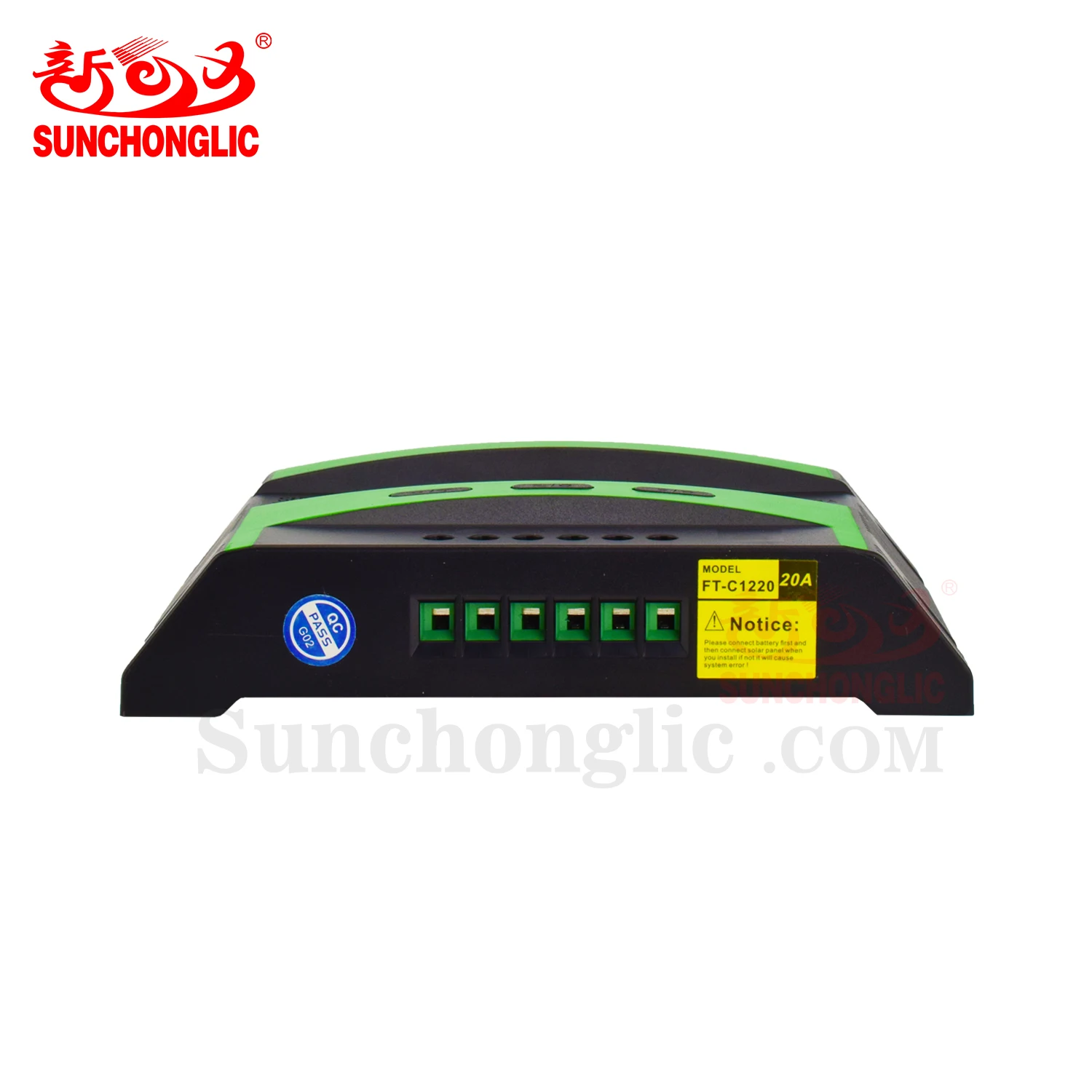

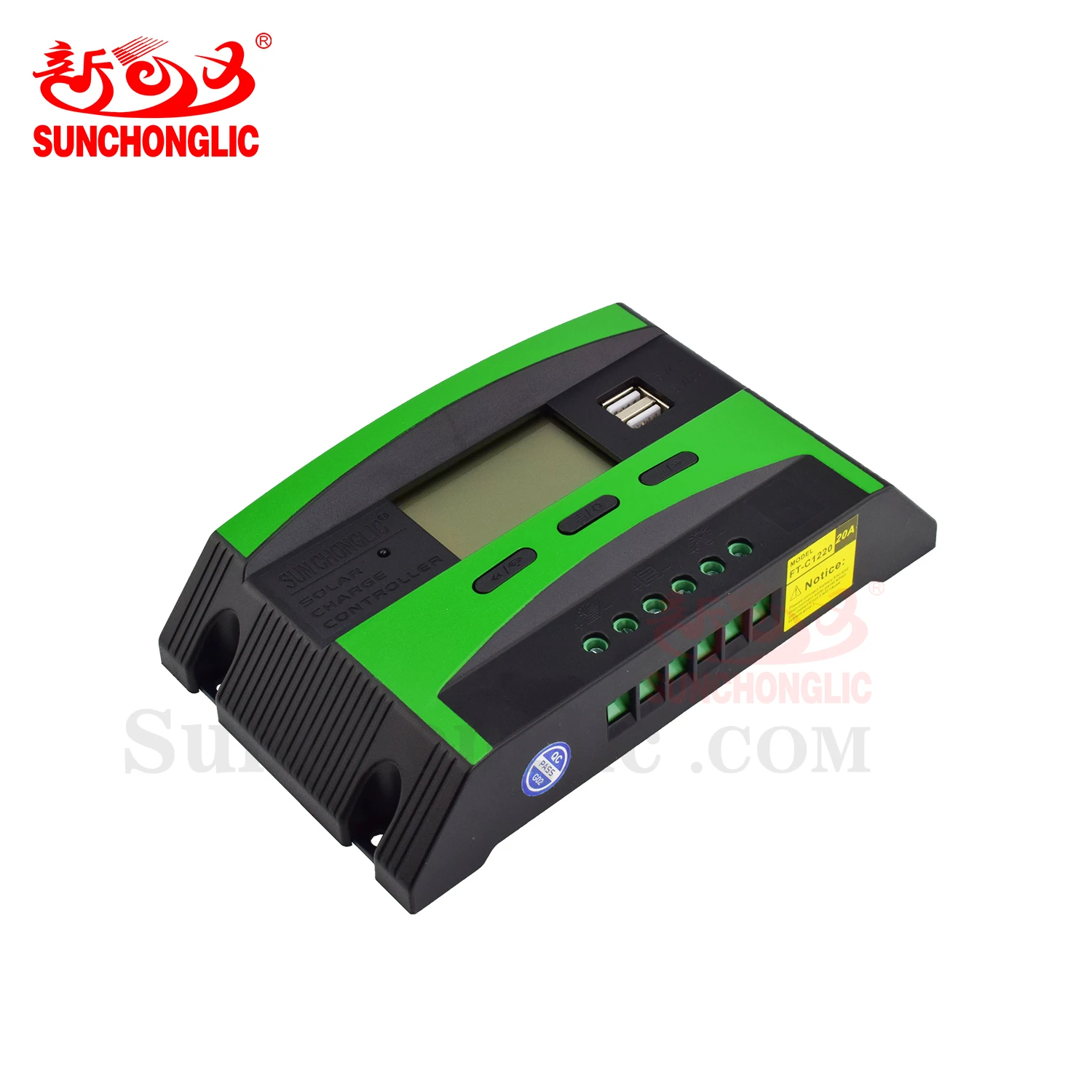

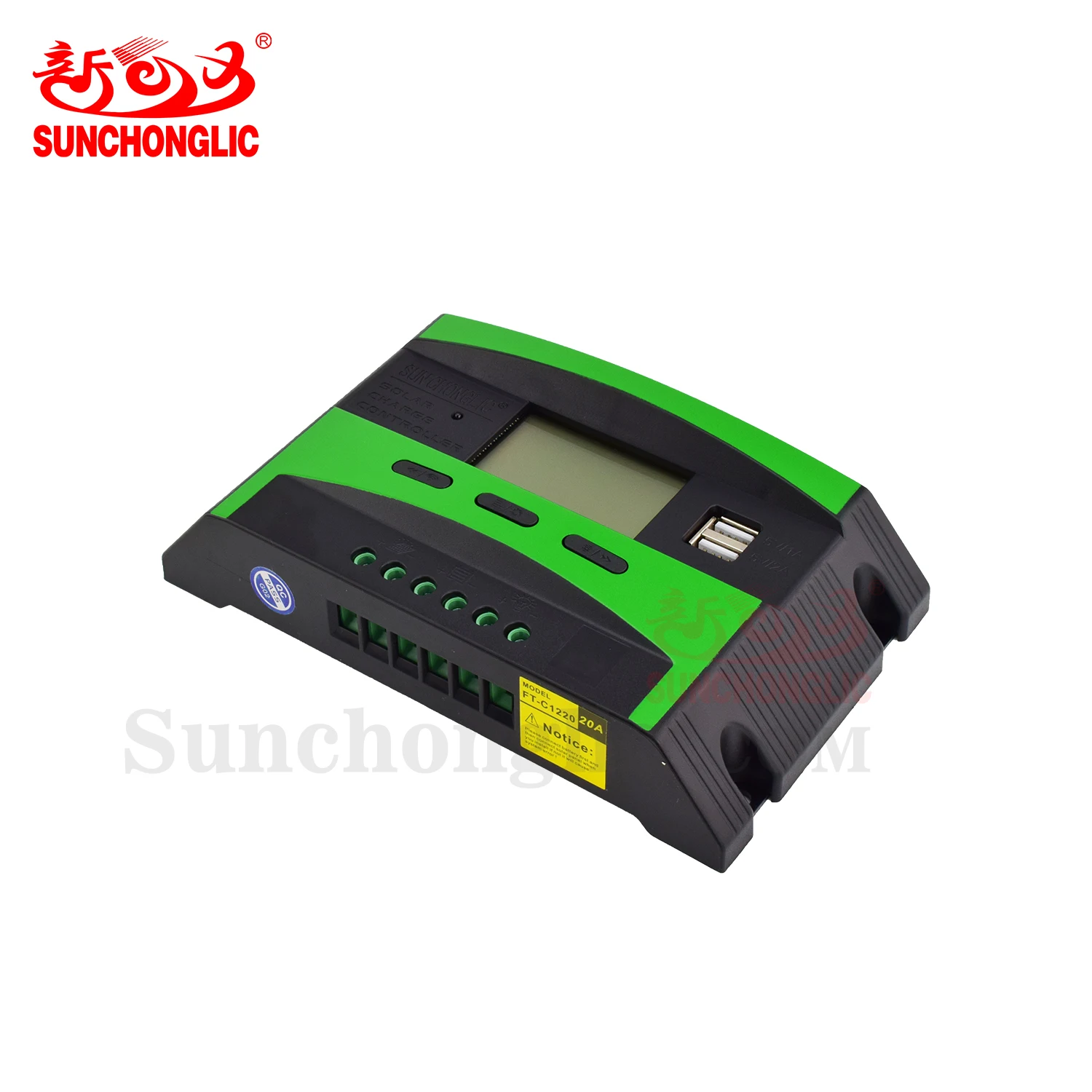

Sunchonglic 12V/24V 20a Manual PWM 20amp Solar Charge Regulator Controller with LCD display

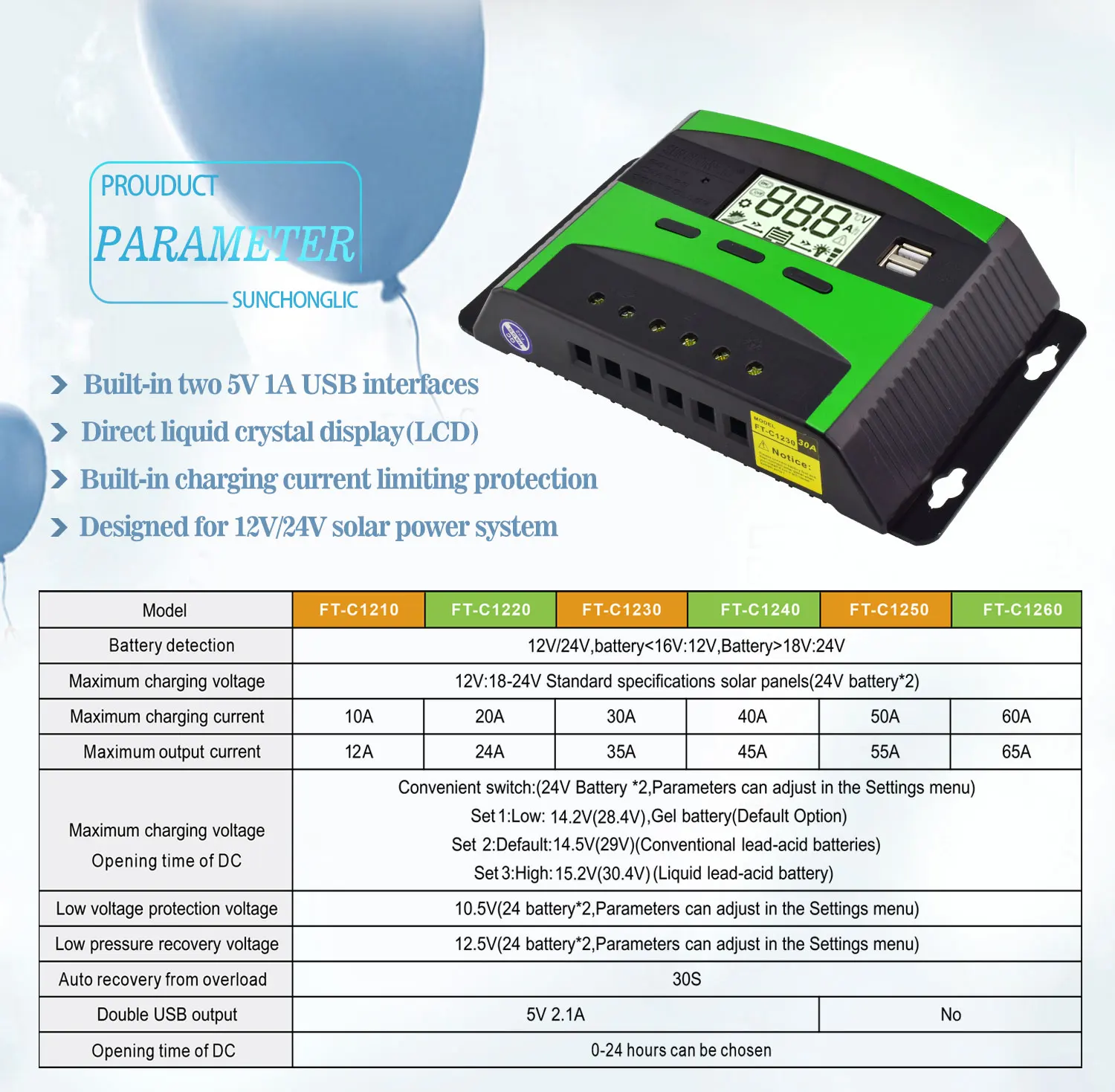

♣ What are the features of this 12V/24V 20A PWM controller?

1. Clock timing function.
2. Built-in two 5V 2A/1A USB interfaces.
3. Extreme Low Power Consumption.
4. Built-in IR self-learning infrared remote control to turn the DC loads on and off.
5. LCD Display with backlight.
6. Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V).
7. Light control mode,Time control mode.
8. Reverse protection,short circuit protection.
9. Designed for 12V/24V solar power system.
10. Hanging style design makes it convenient to install.
11. Available in 10A/20A/30A/40A/50A/60A.
12. Simple options,automatic memory retention of users' settings.
13. Five protection to ensure the safe, including charging overvoltage / charging flow / over-current / load load short circuit / under-voltageprotection.

♦ Note:

Solar charger controller of light and night away less than 10 ma power flow, ideal for small power solar products, such as solar street lamp light, streetlight, DC Load, illumination, solar power system and so on.

We are factory manufacturer of High/Low hybrid solar inverter, Power inverter, AGM/GEL Battery Charger and Solar Charge Controller.
Click the picture into our home page to view more our hot sale items!
(If you have any questions,please feel free to inquiry us! We are service at any time!)

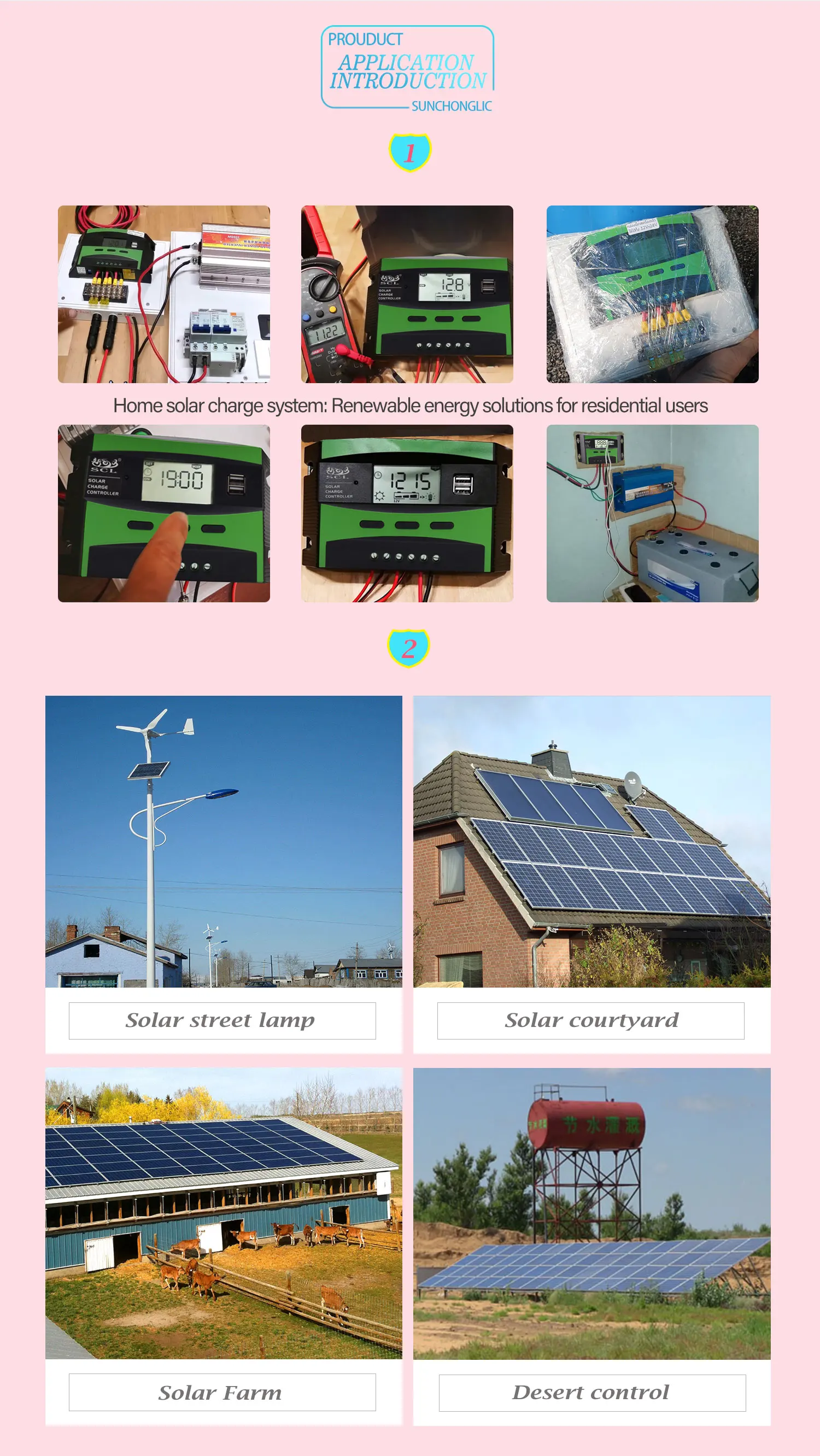

♣ Application scenes

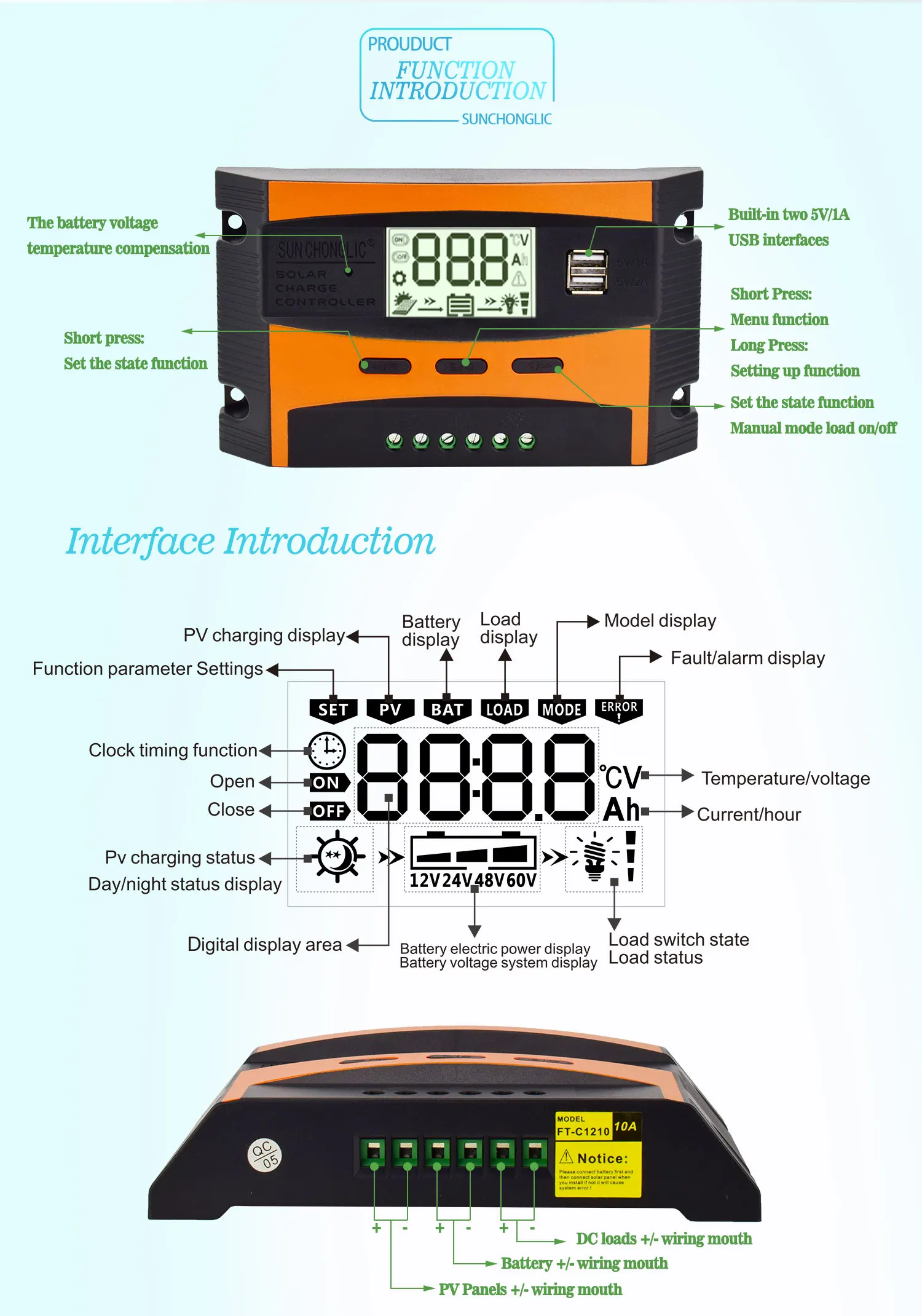

 ♣ Function Introduction

 ♦ Note:

There are several common working mode of waterproof solar controller:
1. Button Mode (Manual switching load)
2. Light Controlled Mode (Load switch is controlled by solar panels photosensitive control and timing control)
3. Light control turn on delay off mode.
4. Circulation model (With Clock Fuction)
5. 0-24 hours optical mode,switch,wireless remote control mode,etc load mode optional

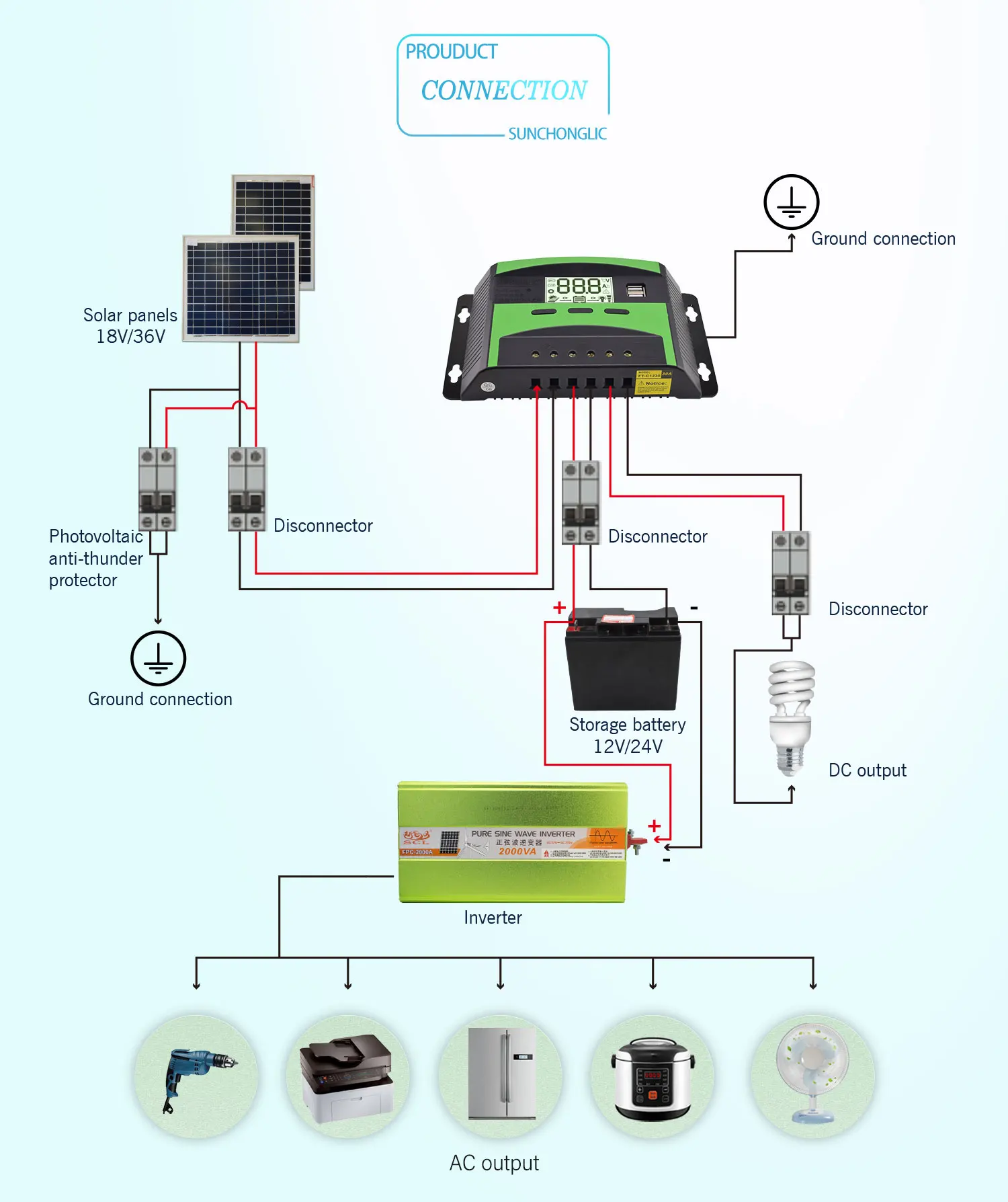

♣ How to connect? (Solar charging system connect diagram)

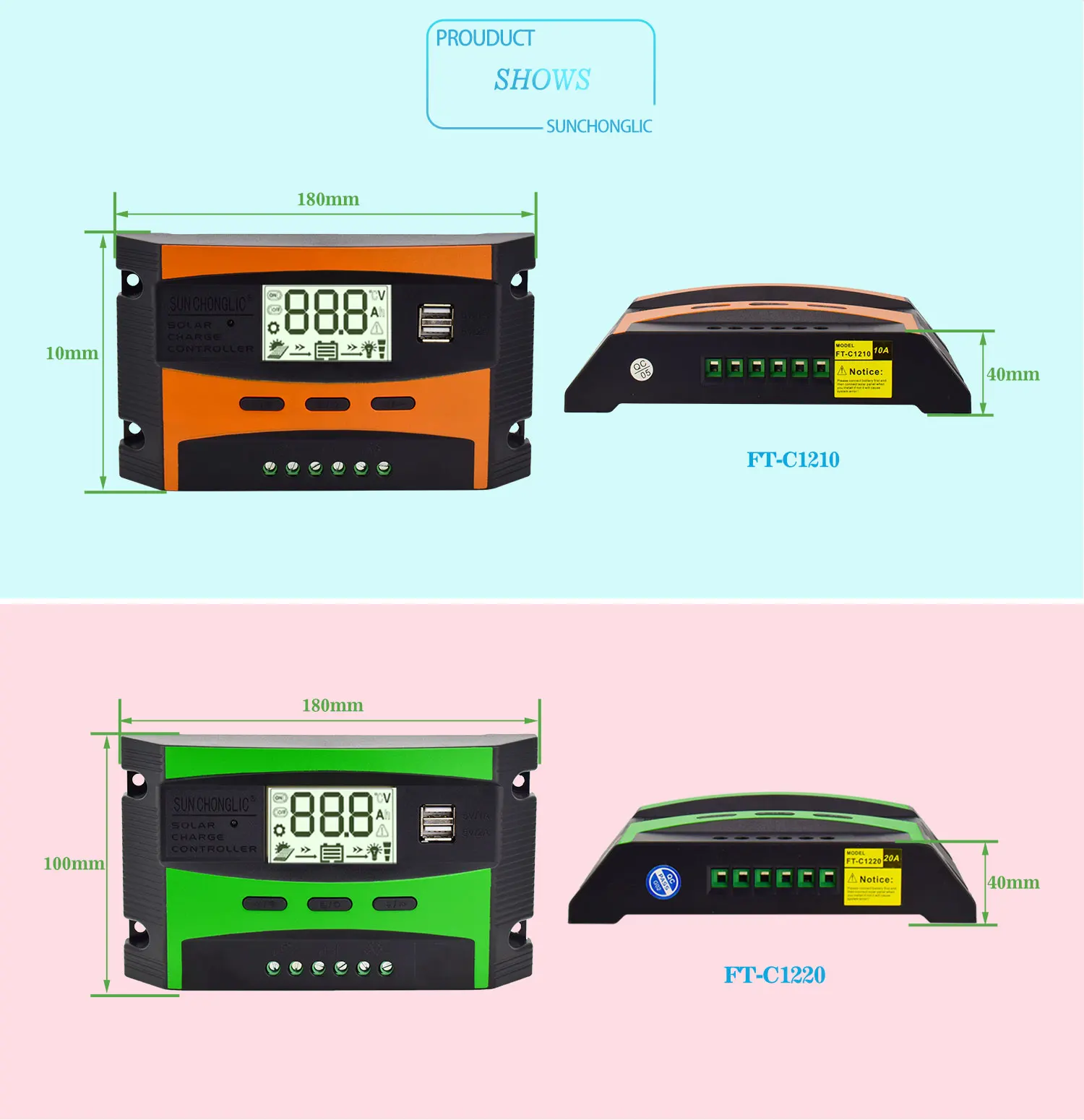

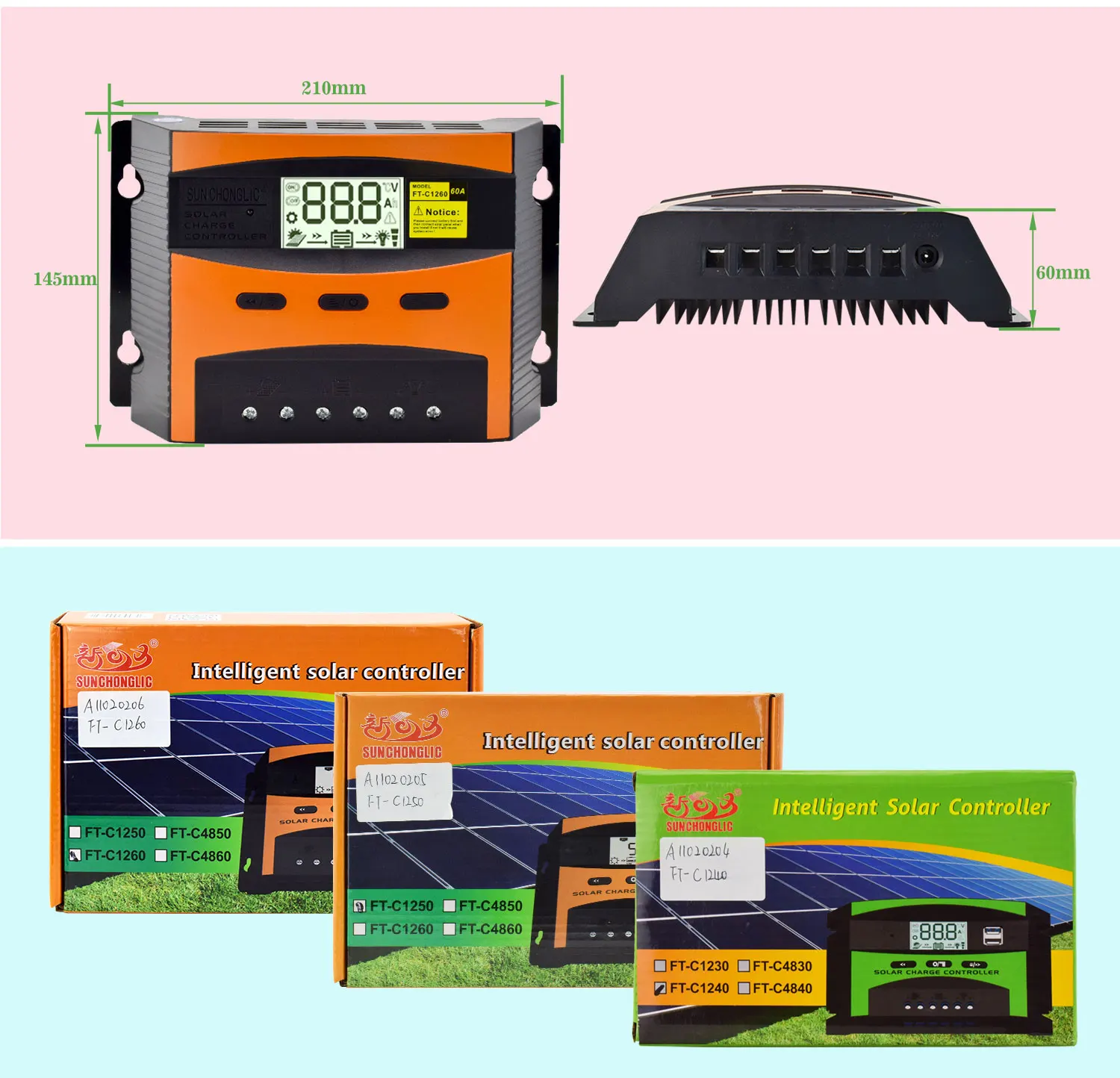

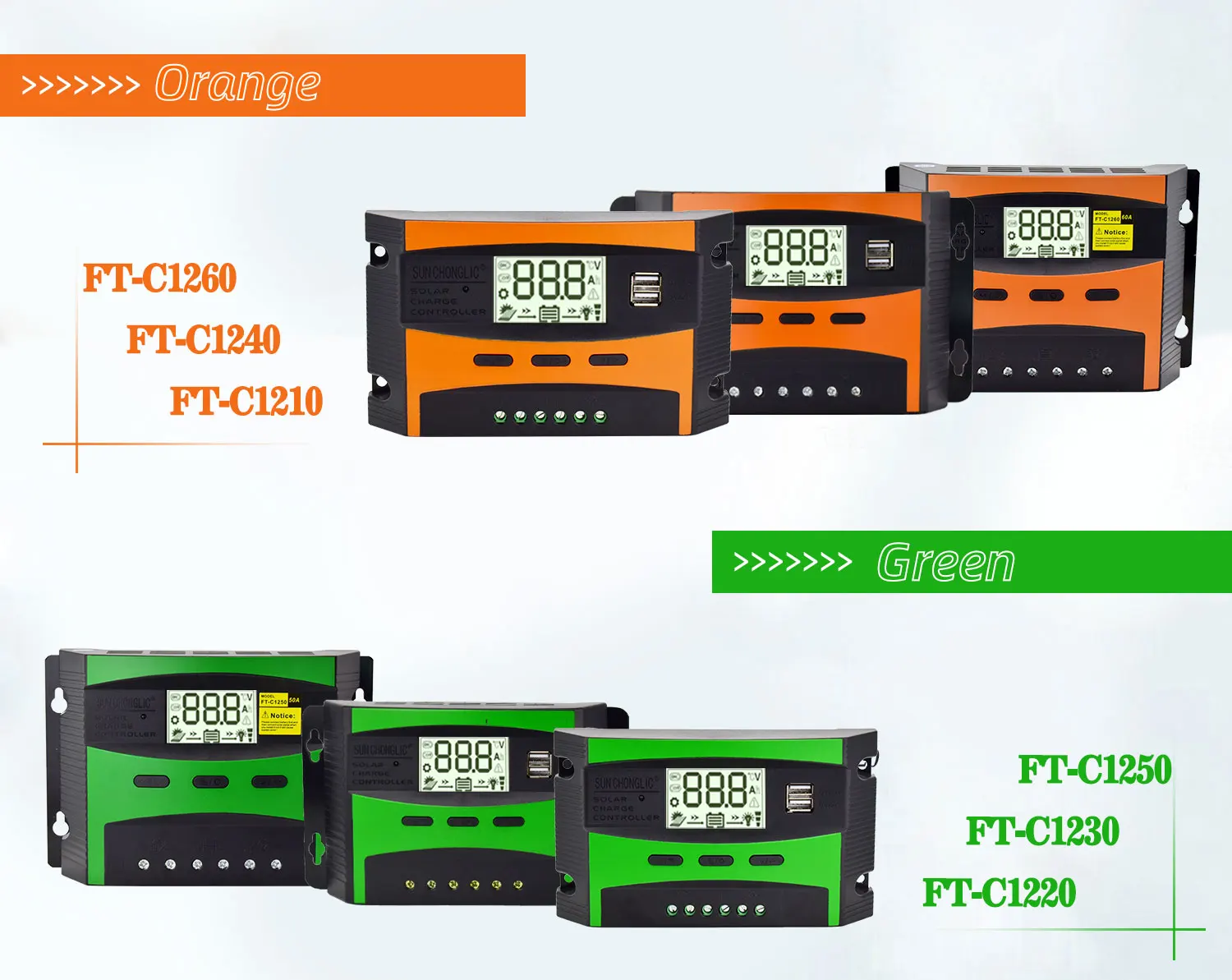

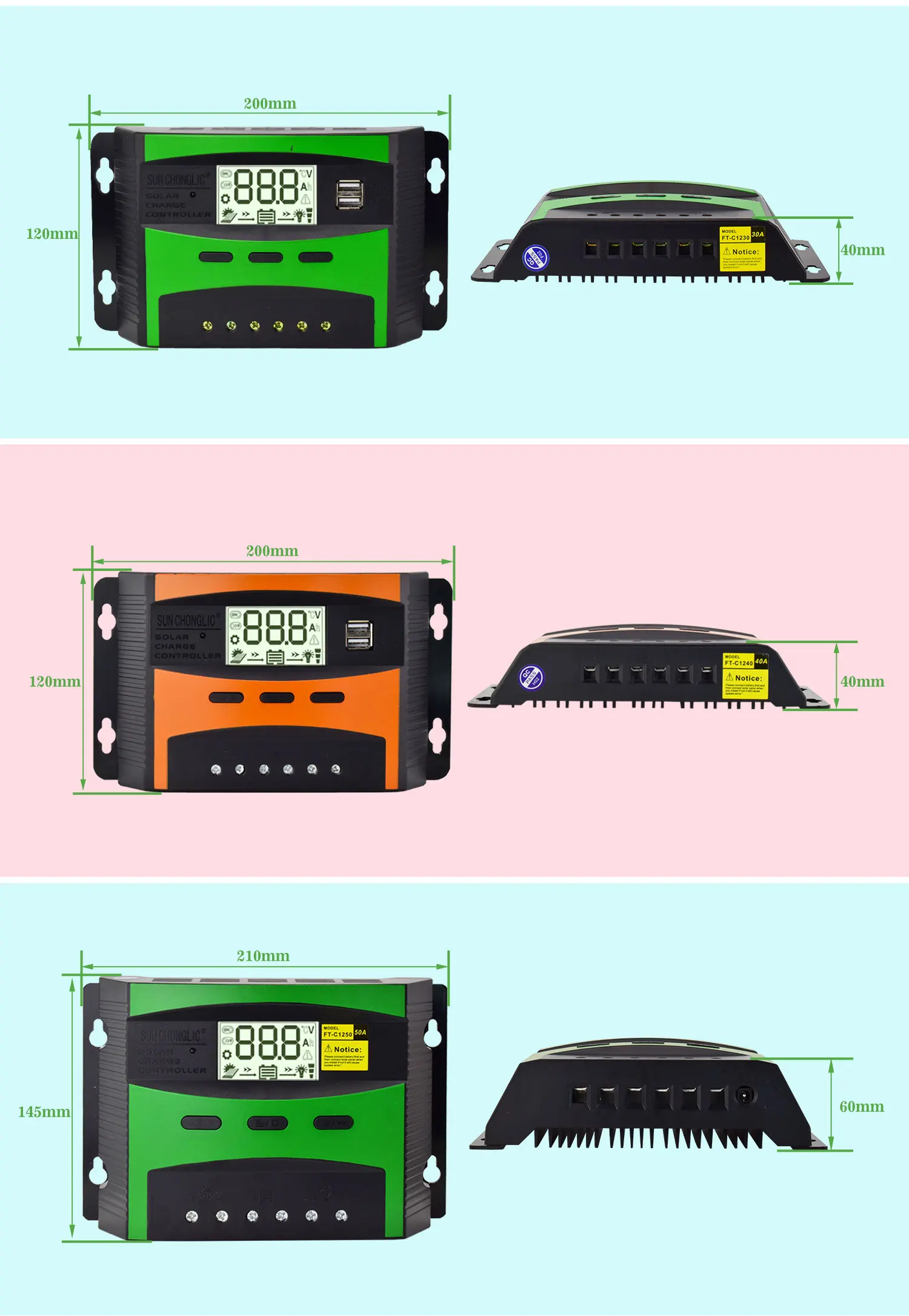

 ♣ Product show of FT-C Series 12V/24V 10A 20A 30A 40A 50A 60A Pwm Controller

Q1. Are you trading company or manufacturer?
A1. Our company is a wholesale company and also manufacturers. We are manufacturer of home appliances spare parts and solar energy products. We welcome you to visit our factory at any time.
Q2. May I take some samples to test before placing the order ?
A2: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.

Q3. How to select a suitable products?

A3. Tell us your demand, we will recommend a suitable one to you.
Q4. How long can you offer the samples?
A4: 1~5 days after the deposit payment is confirmed.
Q5. What's your payment terms for sample?
A5: You can pay via T/T,Trade Assurance,etc.
Q6. What’s the price terms can you offer for us?
A6: We can accept EXW, FOB, CIF and so on.

Q7. Where is your main market for your products?
A7: Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and Mid East etc.
