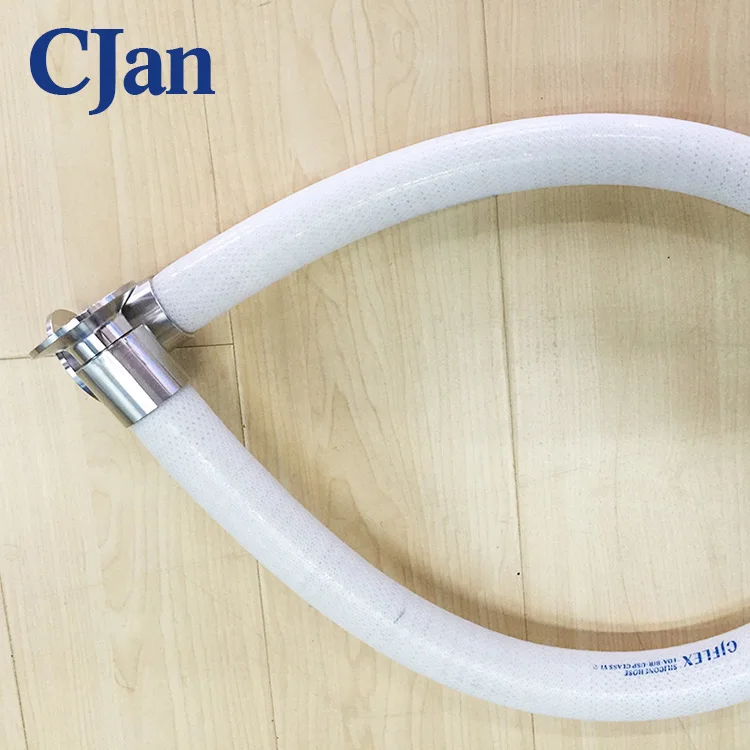

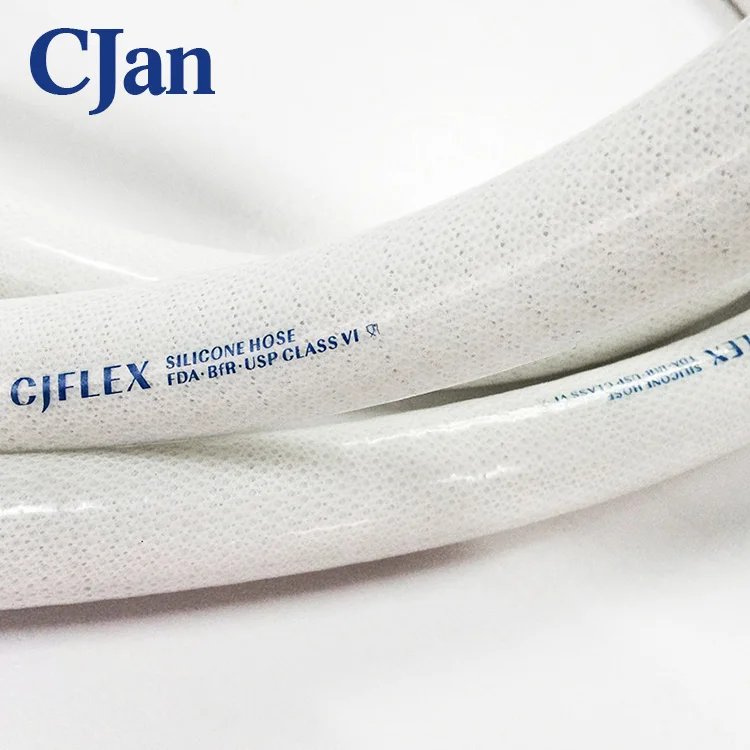

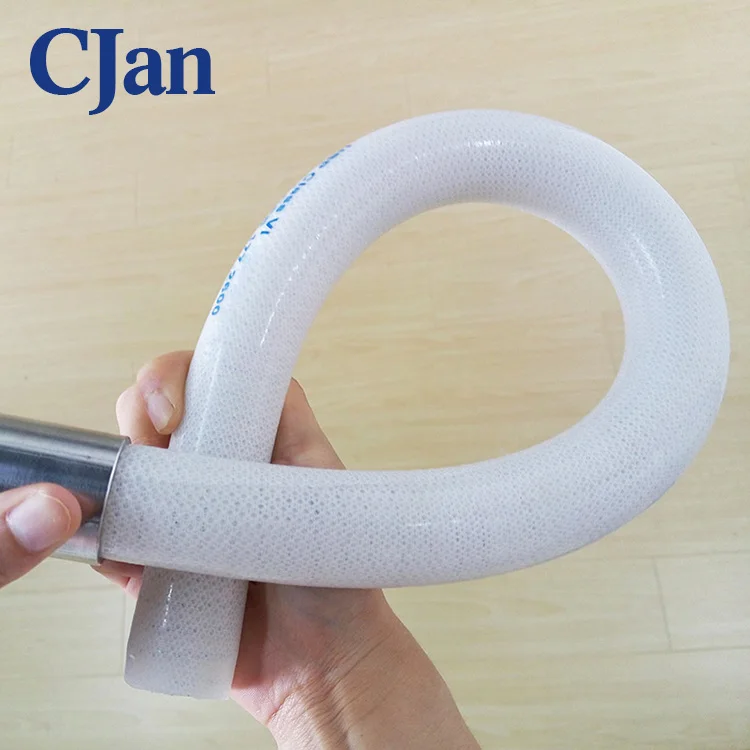

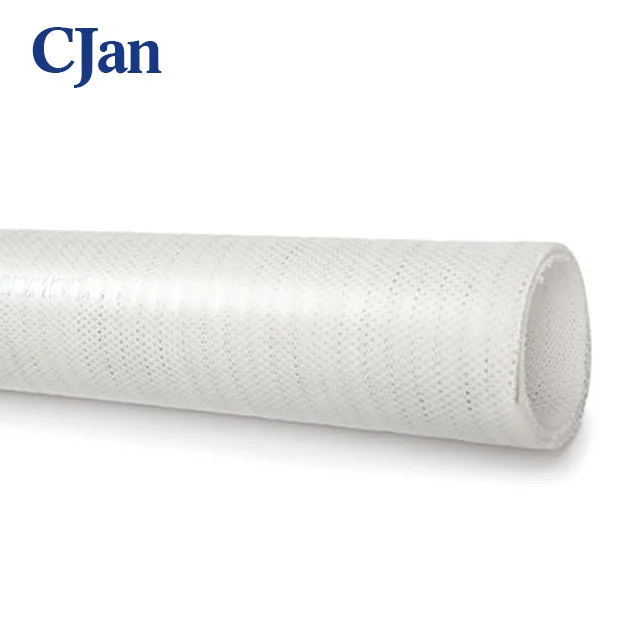

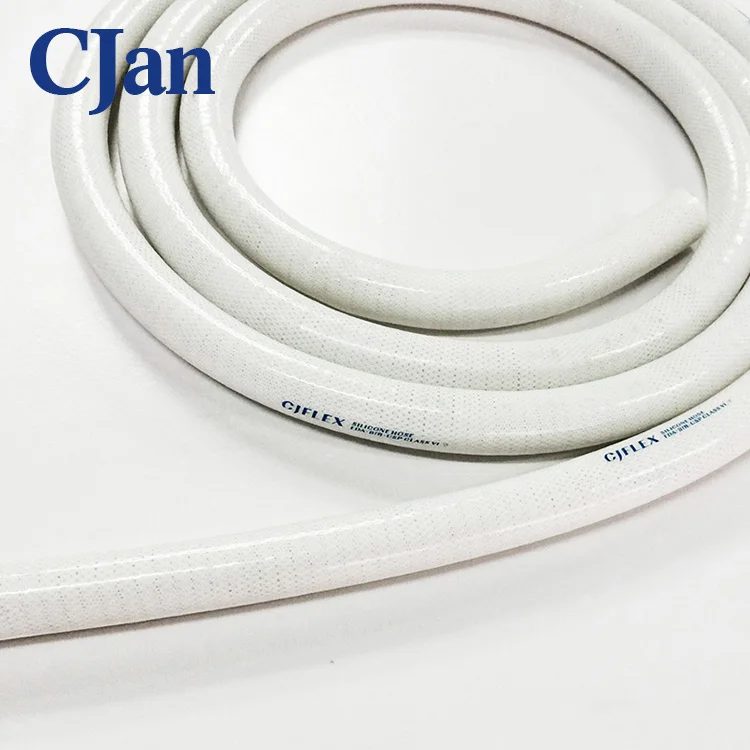

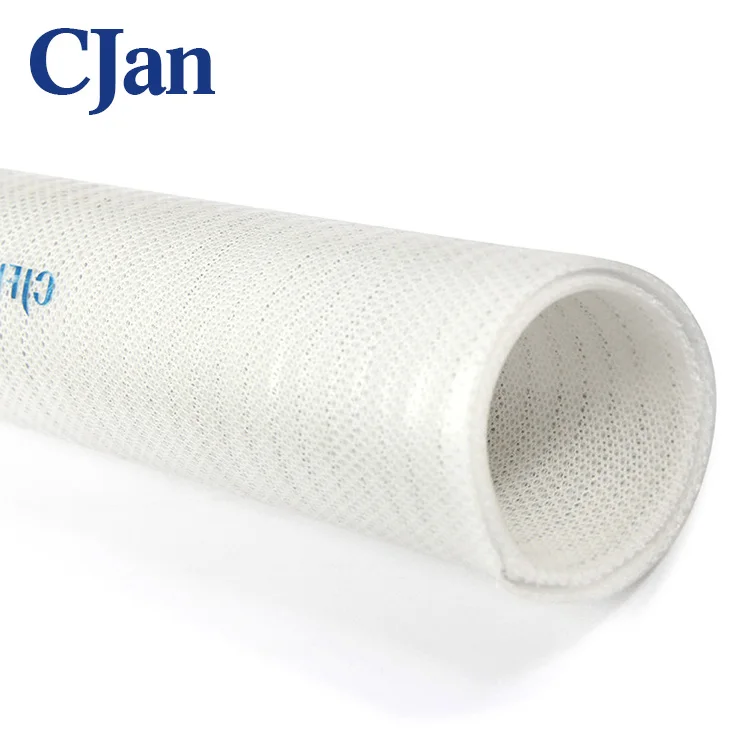

Stainless Steel Helix and Polyester Reinforced Silicone Hose
Construction: Type SQ is manufactured from High purity platinum cured Silicone with single stainless steel helix and 4 layers of polyester reinforcement.
Temp. Range: -60℃ and 200℃. (+260℃ on request)
Colour: Translucent (Colored covers available)
Applications:
Smooth inner and outer surface to resist Material adhesion.
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Certification: F.D.A, USP,BFR, USDA, ISO 10993
Length: Standard length is 4 or 6 meters.
** PRESSURE DECREASE BY 1% FOR EVERY 1℃ ABOVE 100℃.
Part no.
ID
OD
Bending radius
Work pressure
Bursting pressure
Vacuum
in.
mm
mm
mm
bar
bar
bar
SQ006
1/4"
6.4
17.5
29
13
39
0.91
SQ008
5/16"
7.9
19
31
12
36
0.91
SQ010
3/8"
9.5
20.5
35
11
33
0.91
SQ013
1/2"
12.7
24
40
10
30
0.91
SQ016
5/8"
15.9
27
50
9
27
0.91
SQ019
3/4"
19
30
60
8.5
25.5
0.91
SQ022
7/8"
22
33
70
8
24
0.91
SQ025
1"
25.4
36
80
7.5
22.5
0.91
SQ032
1-1/4"
32
43
110
6.5
19.5
0.91
SQ038
1-1/2"
38
49
160
5.5
16.5
0.91
SQ045
1-3/4"
45
56
200
5
15
0.91
SQ050
2"
50.8
62
250
4.5
13.5
0.91
SQ063
2-1/2"
63.5
75
350
4
12
0.91
SQ076
3"
76.2
88
550
3
9
0.91
SQ089
3-1/2"
89
102
700
2.5
7.5
0.91
SQ102
4"
102
114
800
2
6
0.91
