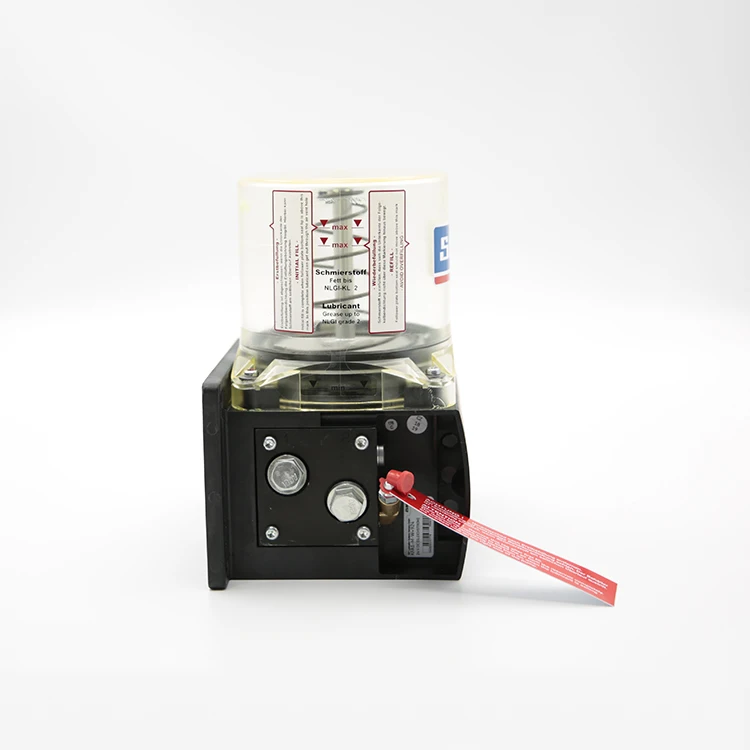

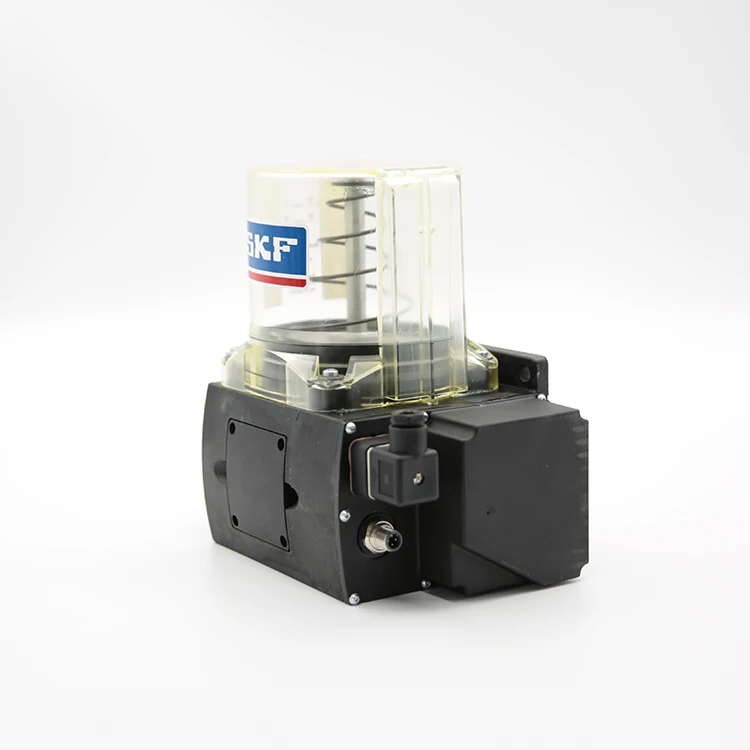

LINCOLN VOGEL KFA pump 24 V DC Automatic Electric Lubrication Piston Pumps LINCOLN VOGEL

Product Overview

Description



Technical data
Model	KFA1M
Operating voltage	24 V DC
Typ. power consumption	0.5 A at 24 V
at max. operating pressure	20° C
Max. back pressure	300 bars
Mode/ON time	S3 – 20 % – 50 minutes
Perm. operating temperature	–25 °C to +75 °C
Models	KFA1M and KFA10
Type of enclosure	DIN EN 60 529 IP 55
Reservoir capacity	1 kg
Number of outlet ports	max. 2 (1.1 and 1.2)
Lubricant	grease up to NLGI grade 2 with EP additives, max. flow pressure 700 mbars
Please note: only use grease that has been approved by Willy Vogel AG. Approved lubricants list “Lubricants for Progressive Systems, NLGI grade 2”, see “www.vogelag.com” or please request from “info@vogel berlin.de”.
Lubricantlevel switch
Type of contact	1 changeover
Max. rated voltage	24 V DC
Max. switching current	0.5 A
Socket box	M12x1 (4PIN





















Shanghai getan Lubrication Tech. Co., Ltd, established in2008,We are located in Shanghai Jinshan District Industrial Zone with convenient transportation access and beautiful environment.
Our company is SKF group's authorized distributor in the field of industrial lubrication, integrating the trade of imported lubrication parts, lubrication system design, technical support and after-sales service. Professional to provide customers with a variety of SKF Lincoln lubrication system and accessories and technical application services. We can also provide customized service and automated lubrication system.

Lubrication system consists of lubrication tools, grease gun, nozzle, such as waste oil collection device, various viscosity of lubricating oil, grease pump, precision plunger pump, gear pump, vane pump, muilt-linegear pump, high pressure pump, etc., large circulation lubrication system, oil mist lubrication system , and various kinds of measuring distributor, flow meter, pressure sensor, liquid level control sensors and different specifications of the various types of joint fittings, can satisfy the lubrication requirements of almost all machinery and equipment and conveyor lubricant flow.

Products are widely used in automobile chassis, engineering machinery, cement equipment, rail vehicles, chain transport, machine cutting, media filtration, cooling equipment, printing machinery, shield equipment, port machinery, metallurgical machinery, lifting machinery, papermaking machinery, glass machinery, food machinery and other industrial equipment.

Our diverse products, rich experience, intimate service, good product quality can meet your precise requirements, for you to save costs, improve efficiency, create a safer and healthier working environment, achieve sustainable development.
