A64/RK3288/RK3399 8 inch touch screen Android mini industrial panel pc
- Category: >>>
- Supplier: Shenzhen Le Hua Display Electronic Technology Co. Ltd.
Share on (62222784690):
Product Overview
Description
WIFI/Blue-tooth VESA wall mount 12V 8 inch Android industrial grade tablet panel pc
Overview
Specification P15
| Sizes | 8 inch |
| Display |
| Panel Type | Industrial A grade LED backlight |
| Aspect Ratio | 4:3 |
| Resolution | 1024*768 |
| Contrast | 800:1 |
| Luminance | 250nits |
| Response time | 5ms |

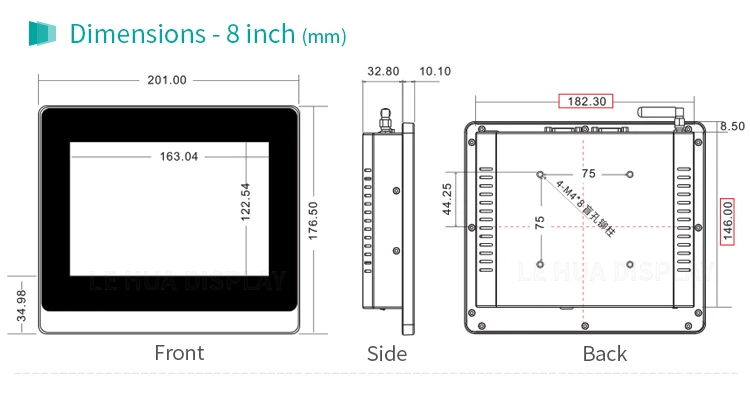

| Active Area (mm) | 163.04*122.54 |
| Display colors | 16.7M(8-bit) |
| PC Configuration |
| CPU | Standard: A64 Quad-core, 1.5GHz, Optional:RK3399 6-core, 1.8GHz Optional:RK3288 Quad-core 1.8GHz |
| GPU | Mail-400 533MHz |
| Inner memory | 2gb DDR3 RAM (4gb RAM customized) |
| Storage | 8gb eMMC (16gb/32gb eMMC customized) |
| WIFI | Built-in wifi module, 802.11a/b/g/n |
| Blue-tooth | Built-in bluetooth module |
| Functions requirements | Built-in 3G/4G/GPS/USB Camera (optional) |
| Operating System | Pre-installed Android6.0, Android5.1/Android7.1 optional |
| Touch Screen | 10-point capacitive touch, non-touch optional |

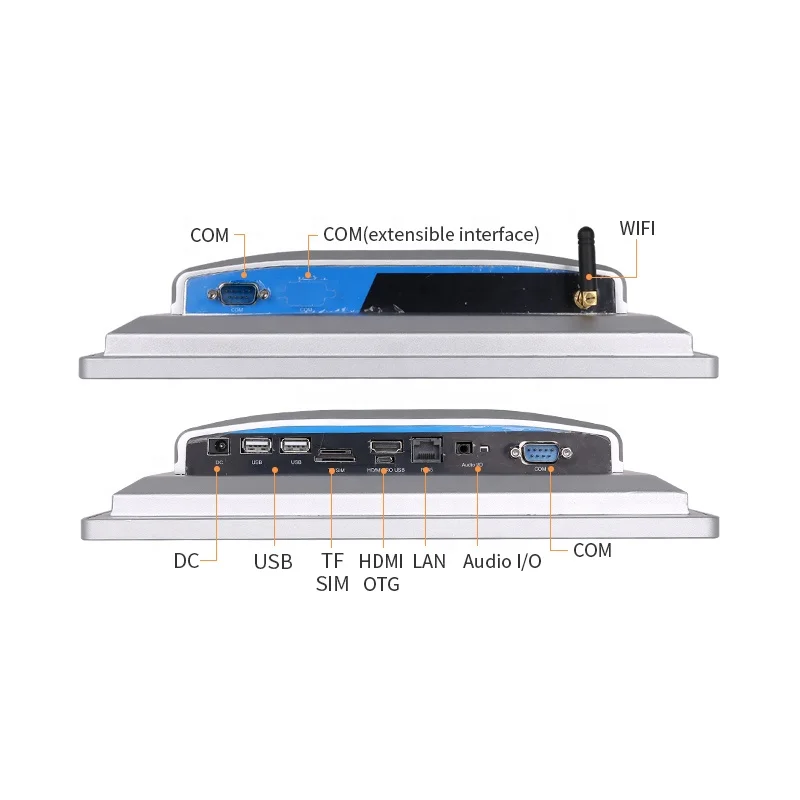

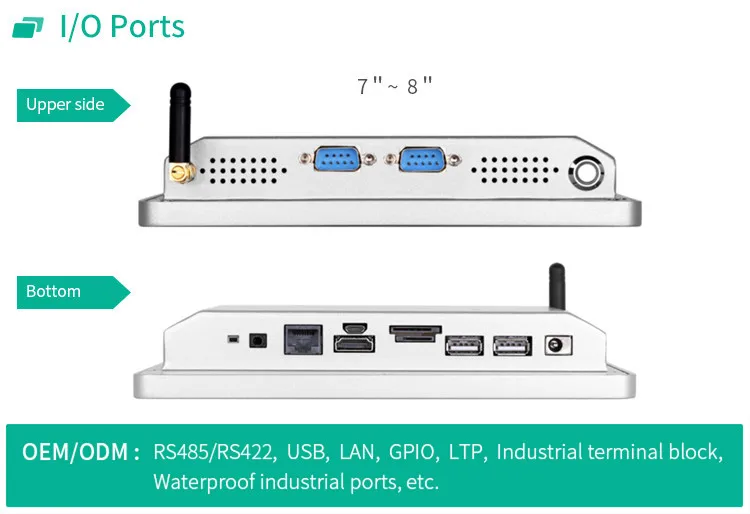

| lI/O Ports | 1*12V ATX input, 1*SIM card slot, 1*TF/SD card slot, 1*HDM-I, 2*USB port, |
1*RJ-45 , 1*Audio I/O , 2*COM (RS232, up to 4*COM) 1*mini USB port for re-flash/upgrading firmware |
| Power Input | AC 110-240V, 50/60Hz |
| Operatiing Temperature | -10°C-50°C |
| Operating Humidity | 10%--80% |
Product Description
Certifications
Company Information
FAQ
Q1: Can we accept sample order ?
A1: Yes, samples are always available and can be dispatched to you very quickly.
Q2: What's the time of delivery ?
A2: Depends on order quantity and our production schedule. 3-5 working days for sample order of standard model ; 12-25 working days for custom sample order & mass production after payment receipt.
Q3: What paying methods do you accept ?
A3: Alibaba Trade Assurance, T/T, Paypal , etc.
Q4: What is our the warranty policy ?
A4: 12 months warranty lifetime free maintainance except the human damage and force majeure factor, can be 24-monthes with extra cost.
