Membrane Bioreactor Elements MBR Membrane Submerged Membrane
- Category: >>>
- Supplier: Jiangsu Feymer Technology Co. Ltd.
Share on (62222803289):
Product Overview
Description
Product Description

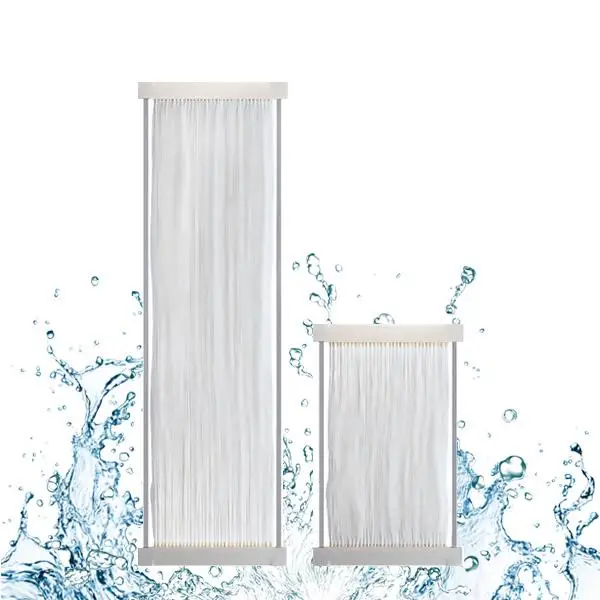

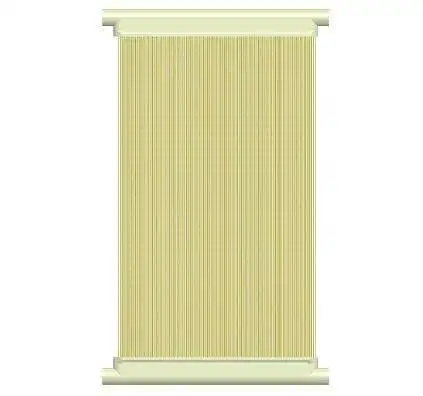

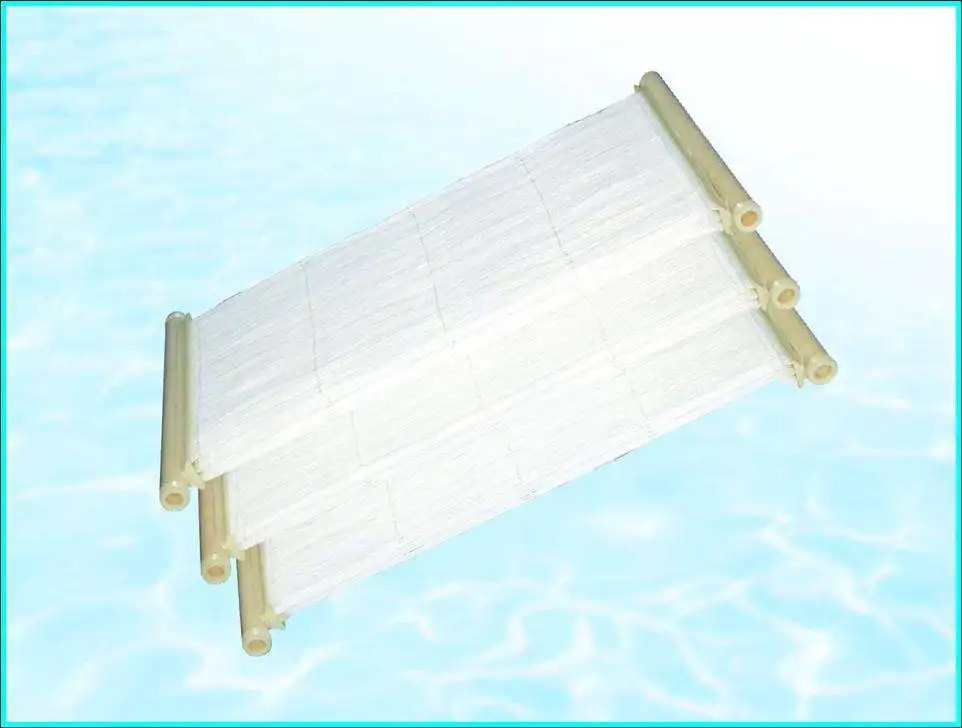

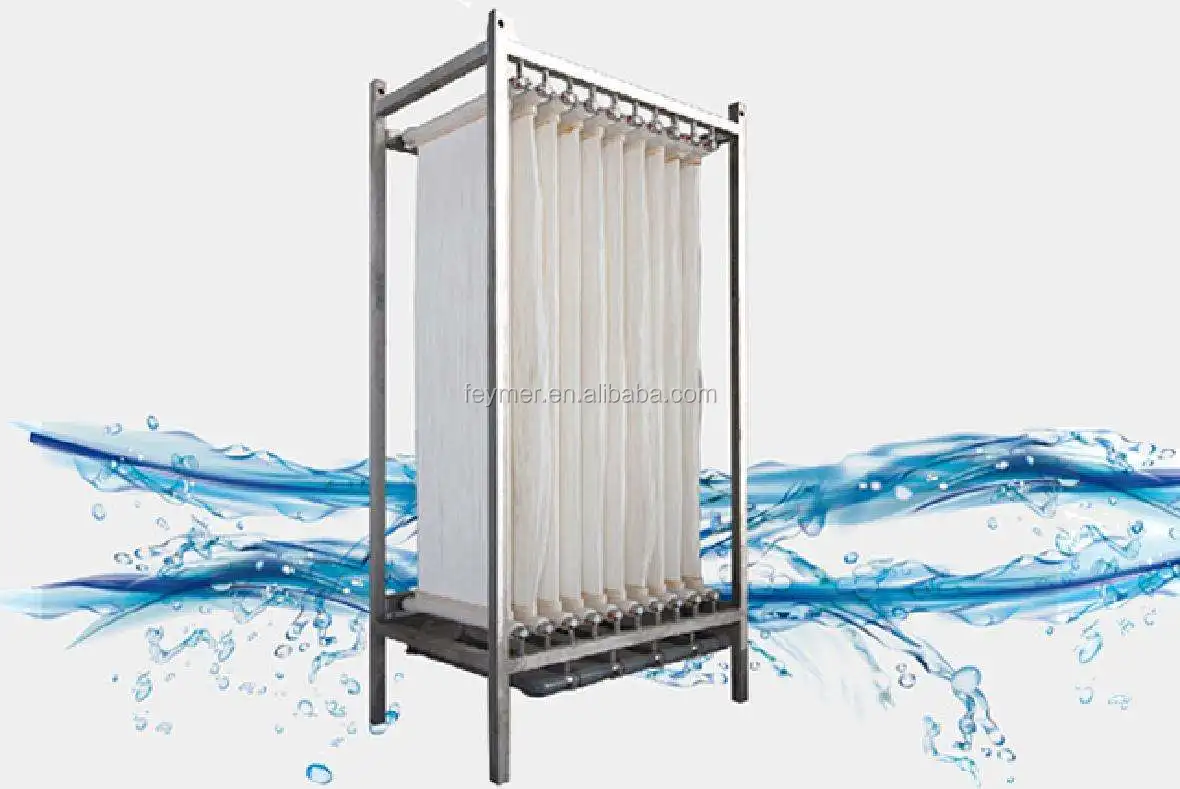

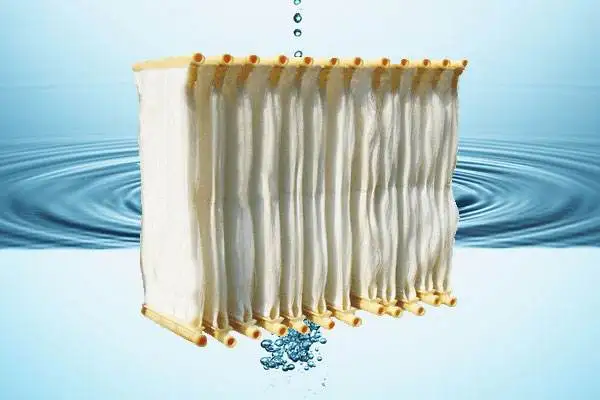

Membrane Bioreactor Elements MBR Membrane Submerged Membrane
MODEL | SIZE(mm) | EFFECTIVE MEMBRANE AREA(m2) | COLLECTOR PIPE | |
LENGTH*WIDTH*HEIGHT | size | MATERIAL | ||
FMU–M10 | 884*42*850 | 10 | DN32 | ABS |
FMU–M20 | 884*42*1510 | 20 | ||
FMU–M30 | 884*42*2180 | 30 | ||
Working Condition
| Working Condition | Operating Temperature | 5-40℃ |
PH range of continuous running | 2~10 | |
Maximum tolerance NaClO | 5000ppm | |
Chemical cleaning PH range | 1~11 | |
Unit projection area of aeration intensity | 60~120(Nm3/m2) | |
Maximum transmembrane pressure difference | 60kpa | |
Filter type | External pressure type (negative pressure suction type) | |
| Filtering Performance | Suspended Solids>2μm | Retention rate 100% |
Microbiology | Retention rate 100% | |
Produced water turbidity | ≤1 NTU |

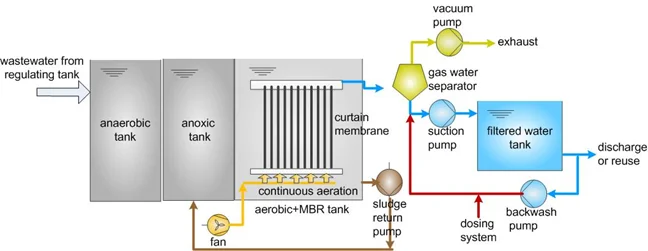

Process Flow Diagram
Application Field
Application field
Municipal sewage treatment
Industrial wastewater treatment
Food processing wastewater treatment
Aquaculture wastewater treatment
Landfill and landfill leachate treatment
