DC24V Voltage 3V210 06 3V210 08 3 Way 2 Position Pilot Solenoid Valve 3V Air 3/2 Vavle AC220V DC12V
- Category: >>>
- Supplier: Chongqing Qibiao Technology Co. Ltd.
Share on (62222940462):
Product Overview
Description
Product Description

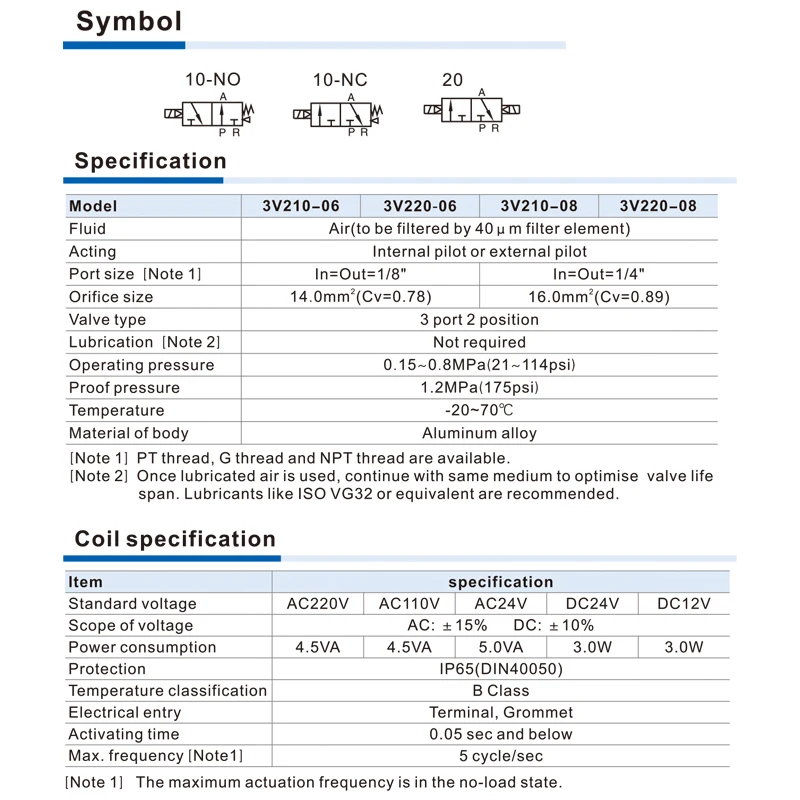

Product parameters:
| Mode | 3V210-06 | 3V210-08 |
| Port size | In=Out=1/8'' | In=Out=1/4'' |
| Working medium | Air(Filtered by 40um filter) | |
| Action mode | Internal pilot or External pilot | |
| Effective Section Area | 14mm2(CV=0.78) | 16mm2(CV=0.89) |
| lubrication | Not required | |
| Voltage range | -15%~10% | |
| Operating pressure | 0.15~0.8MPa(21~114Psi) | |
| Max.proof pressure | 1.2MPa(175Psi) | |
| Valve type | 3 Way 2 Position | |
| Electrical entry | Terminal;Grommet | |
| Power consumption | AC:4.5VA DC:3W | |
| Protection level | IP65(DIN40050) | |
| Heat-resistant grade | B grade | |
| Max.frequency | 5cycle/sec | |
| Working temperature | -20~70 Degree(23~140F) | |
| Excitation time | Below 0.05 times | |
| Body material | Aluminum alloy | |
Packaging & Shipping
Company Information
Certification
FAQ
Q:How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check our product’s quality. If you just need a sample to check the design and quality. Please contact our customer service.
Q:What can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q:What is your term of delivery?
A: We accept EXW, FOB Shenzhen or FOB Guangzhou,and DAP. You can choosethe one which is the most convenient or cost effective for you.
Q:What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
Q: How long is your delivery time?
A: Generally it is 2-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q:Can you customize the product according to our requirements?
A: We can be customized according to customer requirements.
