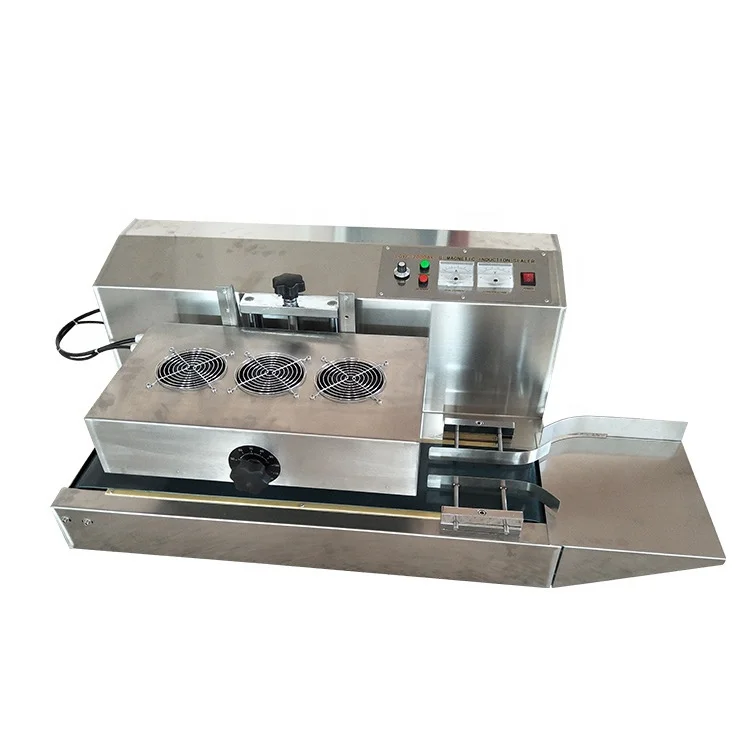

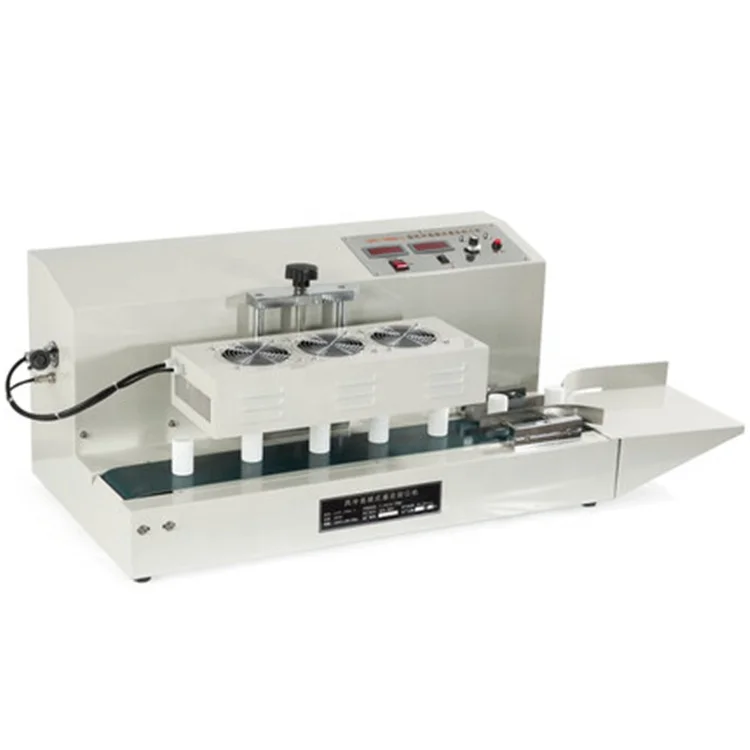

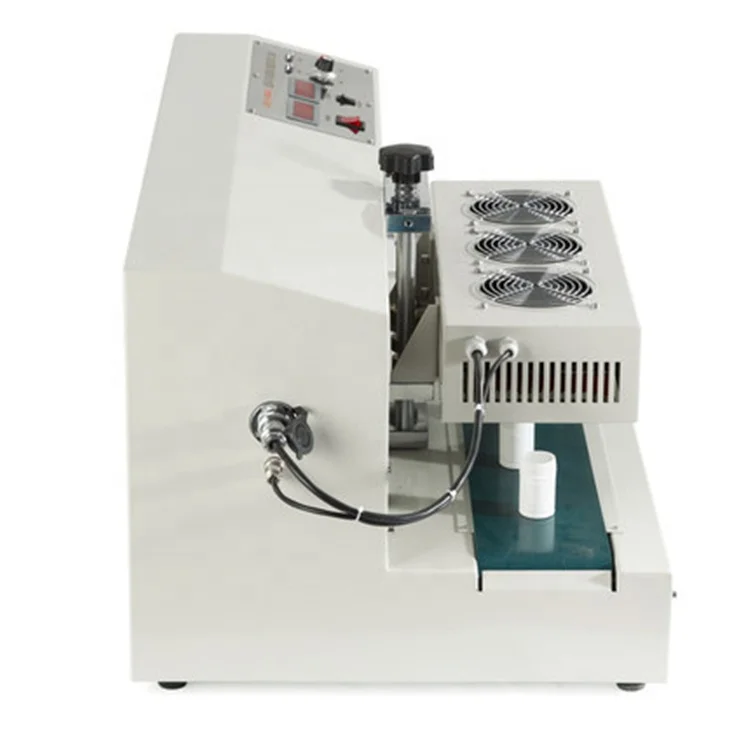

LGYG 1500 LGYF 2000 plastic bottle cap induction foil sealing machine induction sealer aluminum foil
LGYG-1500 LGYF-2000 plastic bottle cap induction foil sealing machine induction sealer aluminum foil
LGYG-1500 LGYF-2000 plastic bottle cap induction foil sealing machine induction sealer aluminum foil
LGYG-1500 LGYF-2000 plastic bottle cap induction foil sealing machine induction sealer aluminum foil
LGYG-1500 LGYF-2000 plastic bottle cap induction foil sealing machine induction sealer aluminum foil
LGYG-1500 LGYF-2000 plastic bottle cap induction foil sealing machine induction sealer aluminum foil
LGYG-1500 LGYF-2000 plastic bottle cap induction foil sealing machine induction sealer aluminum foil

LGYG 1500 LGYF 2000 plastic bottle cap induction foil sealing machine induction sealer aluminum foil

Share on (62223328888):


Price:

Quantity:


Product Overview

Description


Product Description
YTK-1500A YTK-2000AX model transistor air-cooled desktop electromagnetic induction sealing machine has the characteristics of continuous sealing, easy to use, simple operation, crystal conduit and digital circuit.
Product Parameters
\t
Product Model
\t
LGYF-1500A-Ⅰ
\t
LGYF-1500A-Ⅱ
\t
LGYF-2000AX-Ⅰ
\t
LGYF-2000AX-Ⅱ
\t
Voltage
\t
220V 50Hz
\t
220V 50Hz
\t
220V 50Hz
\t
220V 50Hz
\t
Power
\t
1500W
\t
1500W
\t
1800W
\t
\t
Electric current
\t
≤8A
\t
≤8A
\t
≤9A
\t
\t
Control circuit
\t
transistor digital circuit
\t
transistor digital circuit
\t
transistor digital circuit
\t
transistor digital circuit
\t
Working mode
\t
continuous conveying
\t
continuous conveying
\t
continuous conveying
\t
continuous conveying
\t
Cooling method
\t
cooling fan cooling
\t
cooling fan cooling
\t
cooling fan cooling
\t
cooling fan cooling
\t
Model
\t
desktop
\t
desktop
\t
desktop
\t
desktop
\t
Chassis material
\t
cold rolled plate
\t
Aluminum alloy
\t
cold rolled plate
\t
Aluminum alloy
\t
Sealing diameter
\t
φ20~φ50MM
\t
φ20~φ50MM
\t
φ20~φ130MM
\t
φ20~φ130MM
\t
Applicable bottle height
\t
40~200MM
\t
40~200MM
\t
40~300MM
\t
40~300MM
\t
Sealing speed
\t
0~10M/MIN
\t
0~10M/MIN
\t
0~12M/MIN
\t
0~12M/MIN
\t

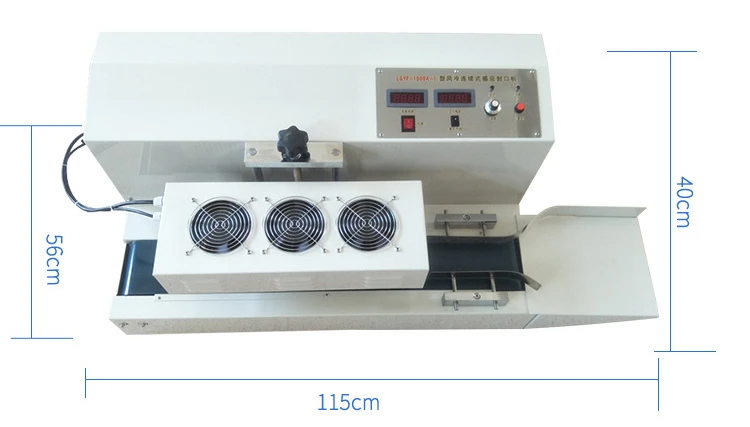

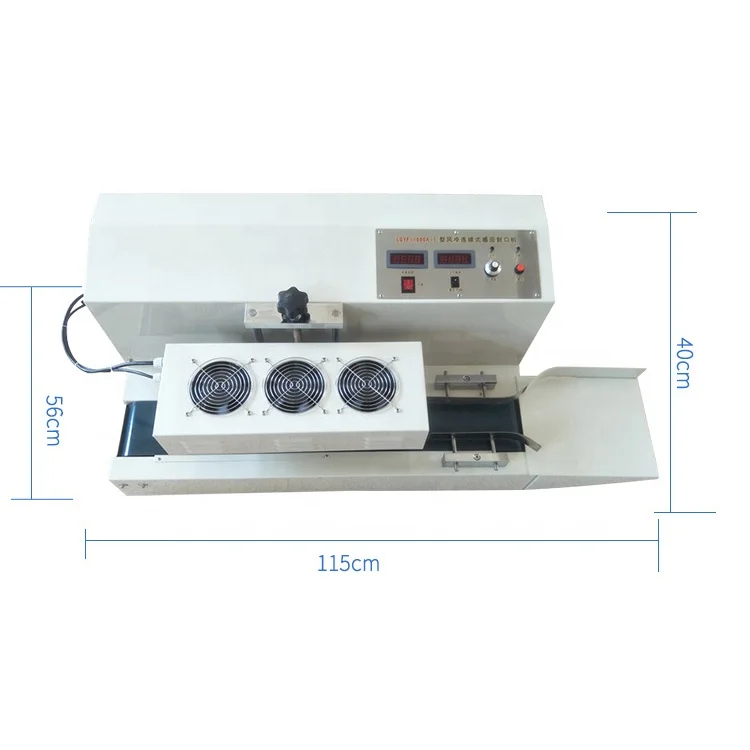

Host size
\t
1150*480*400MM
\t
1150*480*400MM
\t
1150*560*400MM
\t
1150*560*400MM
\t
Host net weight
\t
38KG
\t
45KG
\t
42KG
\t
50KG
Features

1, continuous conveyor, electromagnetic induction.

2, crystal catheter, digital circuit.

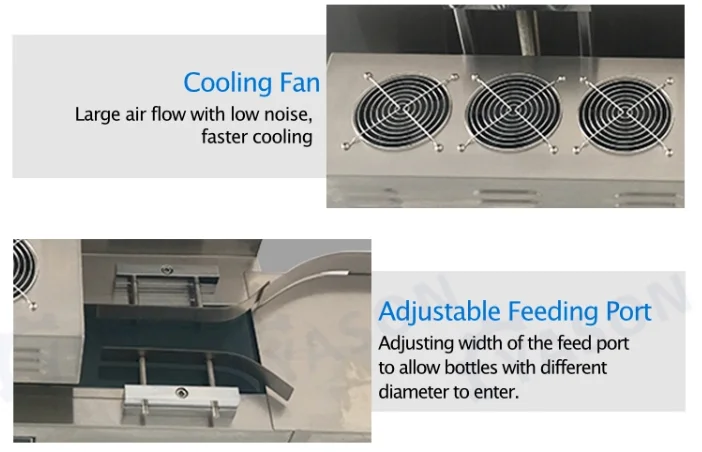

3, air cooling, forced cooling of the fan.

4, pure copper wire heating winding

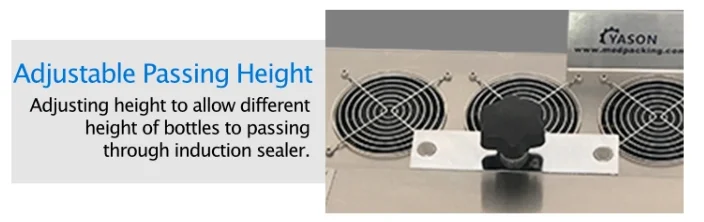

5, the height of the table is freely adjustable

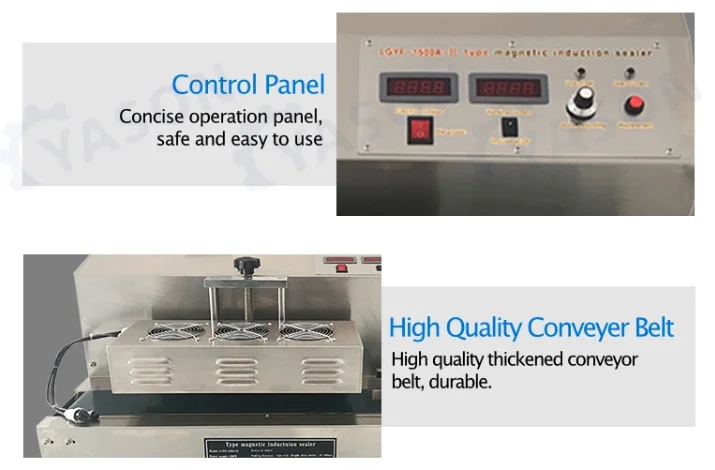

6, the operation panel is simple and clear

Application

It is suitable for bottle mouth induction sealing of non-metallic bottles such as plastic and glass with threads. Suitable for large and medium batch continuous sealing work.
