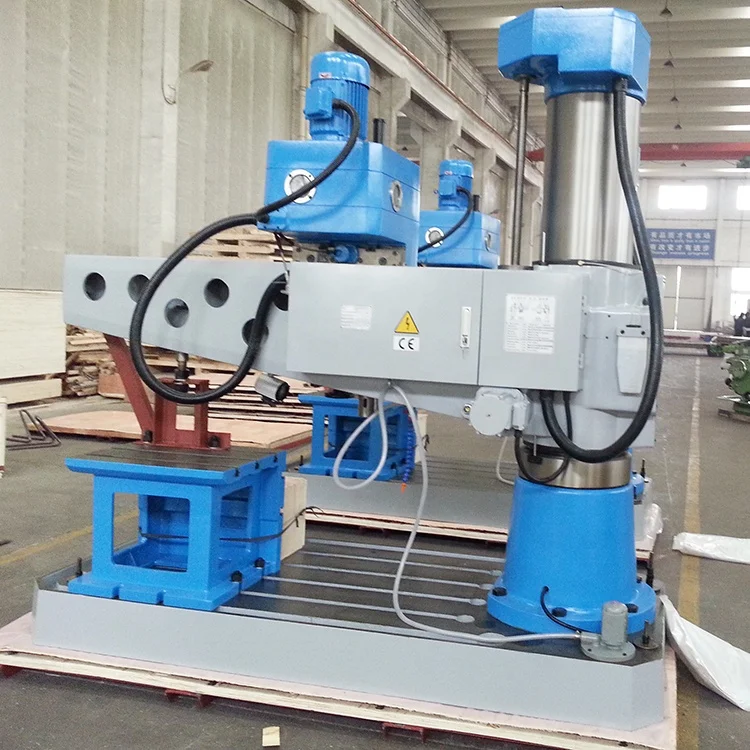

Radial drilling machine Z3050

Model

Z3050×16

Max.drilling diameter

50mm

Distance from spindle axis to column

350-1600mm

Distance from spindle nose to working surface of base

320-1220mm

Horizontal travel of spindle head on arm

1250mm

Swivel angle of arm

±180°

Spindle taper

MT5

Range of spindle speeds

25~2000rpm

Number of spindle speeds

16

Range of spindle feeds

0.04~3.2mm/r

Number of spindle feeds

16

Spindle travel

315mm

Power of the main motor

4kw

Worktable size

630×500×500mm

Overall dimension

2500×1070×2840mm

Machine weight

3500kg
