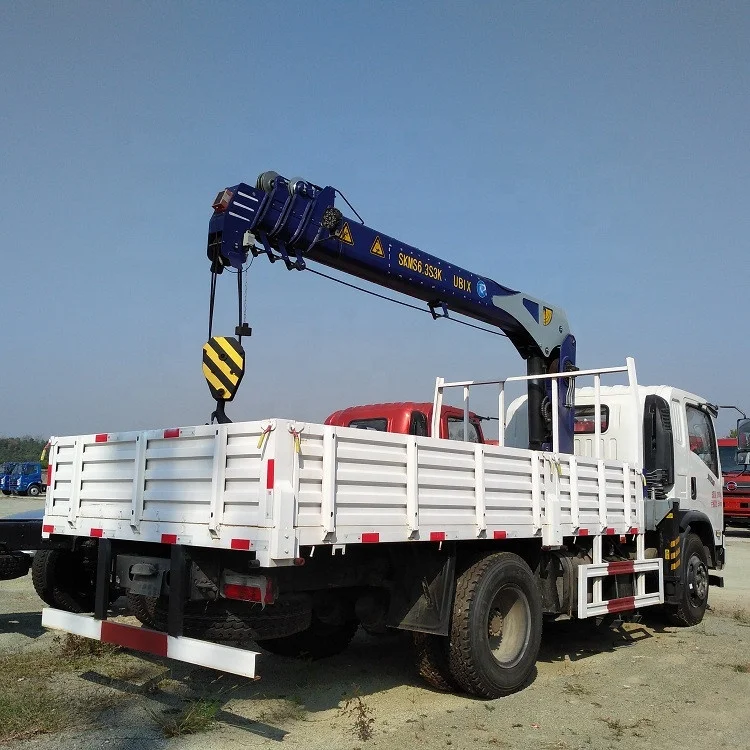

5 Ton 10 Ton Heavy Mobile Crane Hydraulic Truck Crane
- Category: >>>
- Supplier: Hubei Dali Special Automobile Manufacturing Co. Ltd.
Share on (62223569197):
Product Overview
Description
Product Parameter
Truck mounted crane is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes:
- Optional: from 2 ton to 200 ton lifting capacity crane truck
- Optional: straight arm and floding arm truck crane with or without remote control
- Optional: different famous crane brand: HIAB, Shimei, Zoomlion, Sany, Chengli balong, etc.
- Optional: different famous chassis brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, T-king, Dayun, Yuejin, JMC, JAC, etc.
- Factory direct sale, low price and good quality.
| Technical parameter of chassis | |||
| Cargo dimension(LxWxH) | 7500x2294x550mm | Dimension(LxWxH) | 10645x2520x3330mm |
| Front suspension | 1495mm | Rear suspension | 1800mm |
| Front tread | 2040mm | Rear tread | 1860mm |
| Quality parameters | GVW | kg | 25,000 |
| Chassis weight | kg | 9,700 | |
| Front/rear axle loading | kg | 4789/4911*2 | |
| Rated loading | kg | 15,300 | |
| Performace paremeters | Max speed | km/h | 87 |
| Max gradeability | % | 43 | |
| Radius of turning | m | 11 | |
| Cabin | Seat | Air seat | |
| AC | Standard, have | ||
| Heater | Standard, have | ||
| Electronic glass | Standard, have | ||
| MP3 | Standard, have | ||
| Cabin suspension | 2 springs in front and 2 air bags in rear | ||
| Copilot visor | Standard, have | ||
| Engine | Model | WD615.44 | |
| Type | WEICHAII Brand, 6 cylinder , direct injection, turbocharged | ||
| Max output power | 330/2200 (Hp/rpm) | ||
| Max torque | 1250/1400-1600 (N.m/rpm) | ||
| Displacement | 9726 cc | ||
| Clutch | Model | Single, dry plate, diaphragm spring | |
| Specification | ∅430 | ||
| Transmission | Gear position | normal | |
| Gear ratio | 12.65/1.00 | ||
| PTO | Optional QH50 | ||
| Front axle | Model | "I" style brake face | |
| Max capacity | 6,500 kg | ||
| Rear axle | Model | Steyr technology | |
| Ratio | 4.8 | ||
| Max capacity | 13,000 kg | ||
| Drive shaft | Specification | ∅110x6 | |
| Steering | Type | Power steering with ZF/Domesyic steering gear | |
| Oil Tank | Type | Iron material, 400L | |
| Brake | Type | Dual-circuit air brake | |
| ABS | Standard, have | ||
| Tire | Model | 12R22.5 16PR | |
| Suspension | Front axle stabilizer bar | Parpolic leaf spring 10/12 | |
| Electronic system | Batteries | 12 volt-140Ahx2 | |
| Alternator | 28 volt/70 amp | ||
| Starter | 24 volt/ 7.5KW | ||
| Other configuration | With 4kg fire extinguisher , with side fender, with warning lights | ||

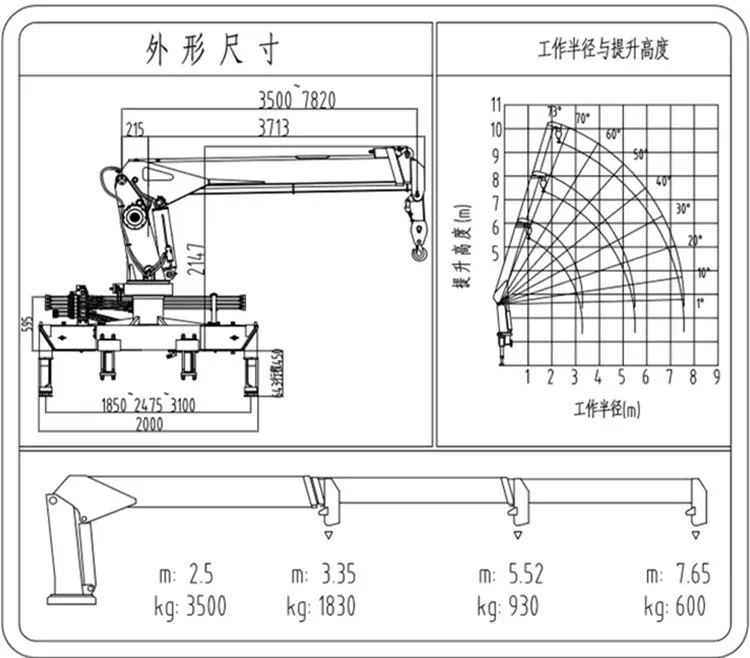

| Technical parameter of crane(10T straight arm) | |||
| Max Lifting Capacity(kg) | 10,000 | ||
| Max Lifting Height(m) | 14 | Max working radius(m) | 12 |
| Max Lifting Moment(T.M) | 25 | Recommend Powe(kw) | 30 |
| Max Oil Flow of Hydraulic System(L/min) | 63 | Max Pressure of Hydraulic System(MPa) | 26 |
| Oil Tank Capacit(L) | 160 | Rotation Angle | all Rotation |
| Crane Weight(kg) | 3800 | Installation Space(mm) | 1150 |
The above information is for reference only. We can produce according to your needs.
Product Description
The truck crane is a type of crane mounted on a common automobile chassis or a special automobile chassis, and its driving cab is separately provided from the hoisting operating room. The advantage of this type of crane is that it is maneuverable and transfer quickly. The disadvantage is that you have to support your legs when you work, you can't load, and you don't work on soft or muddy fields.

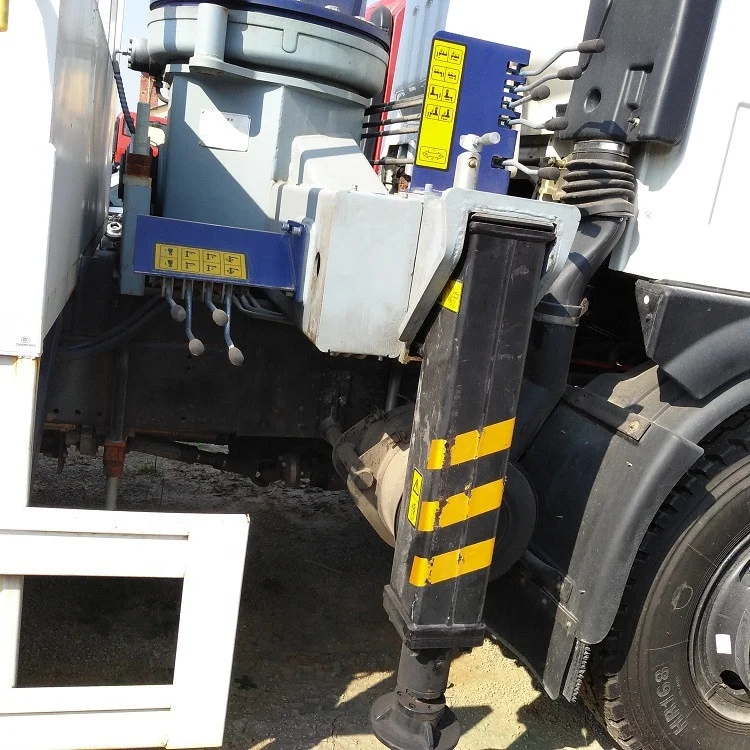

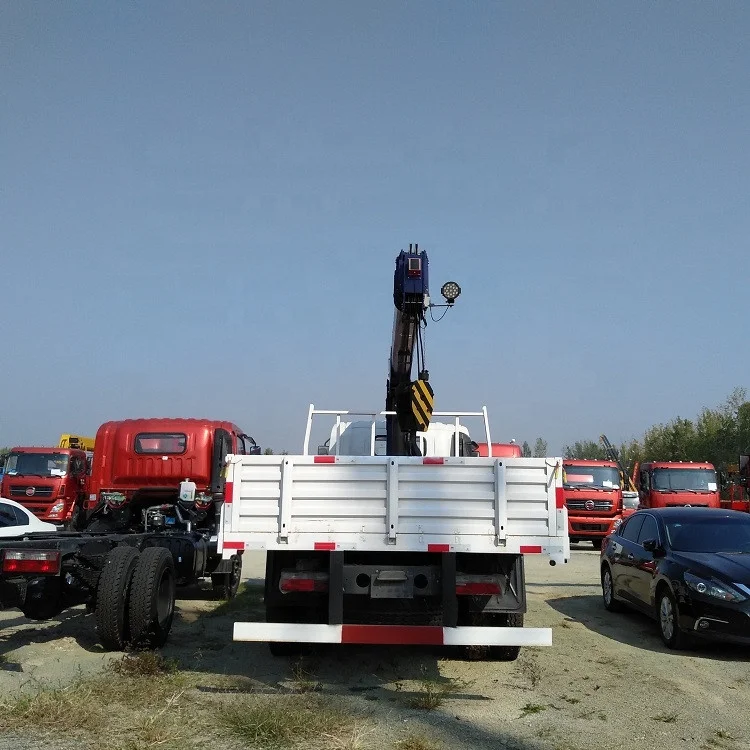

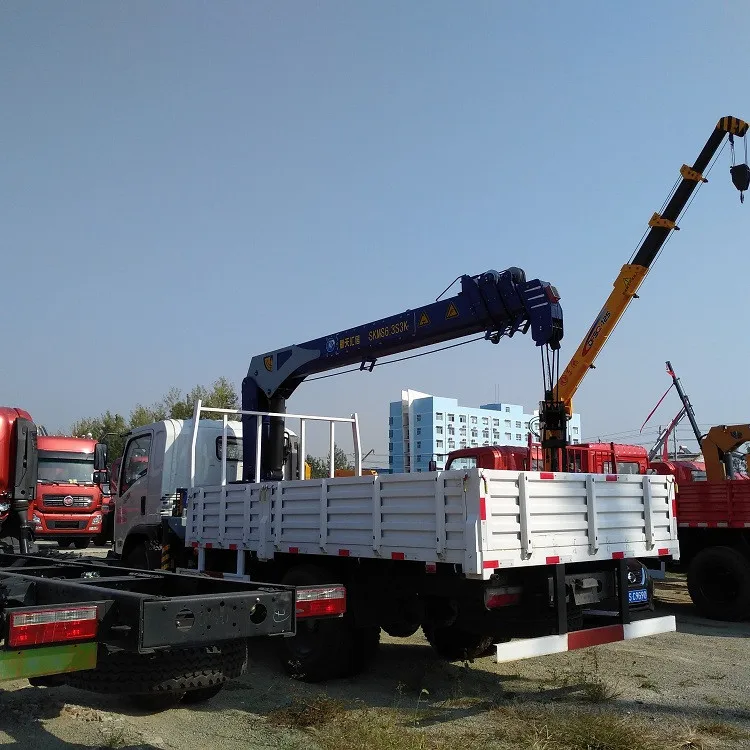

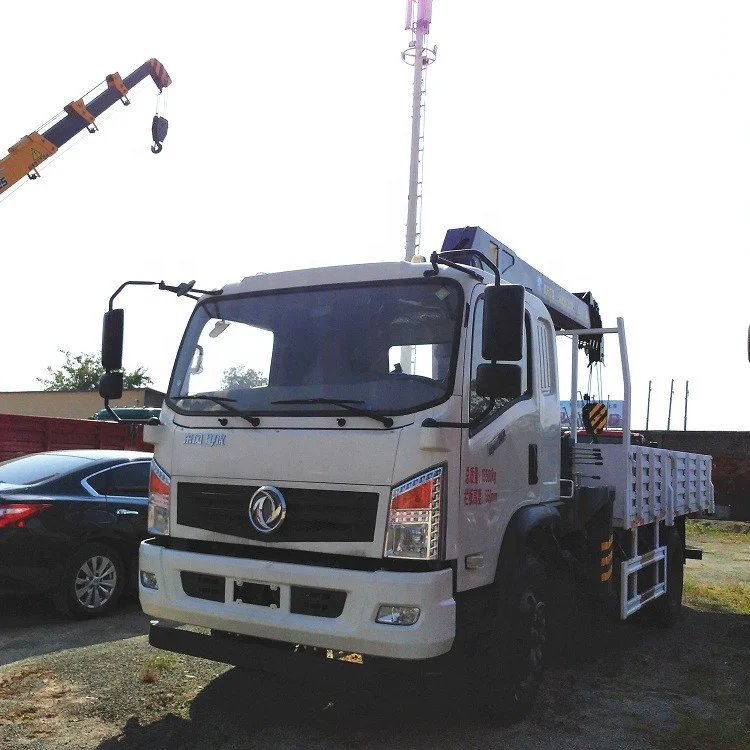

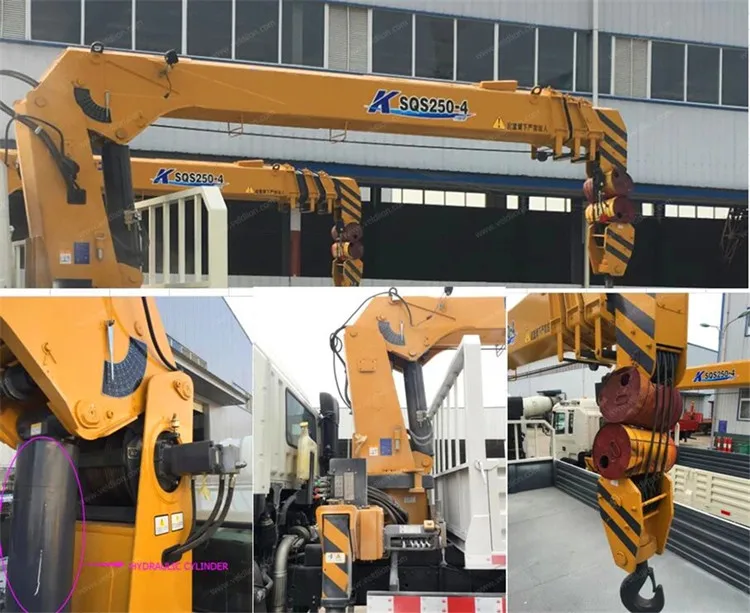

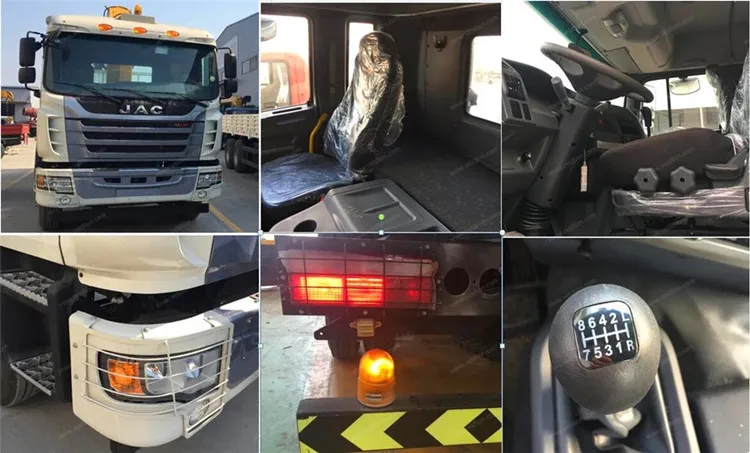

Product Details

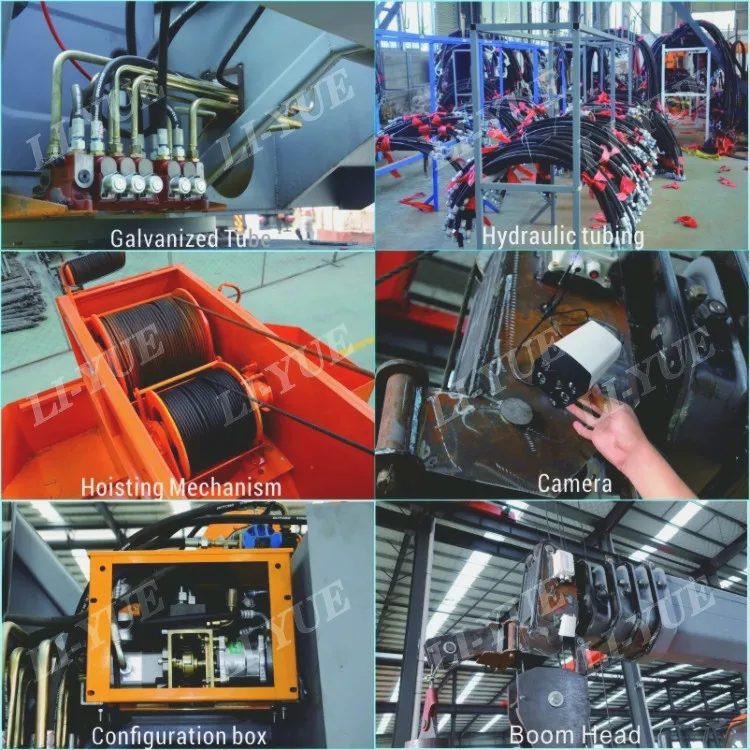

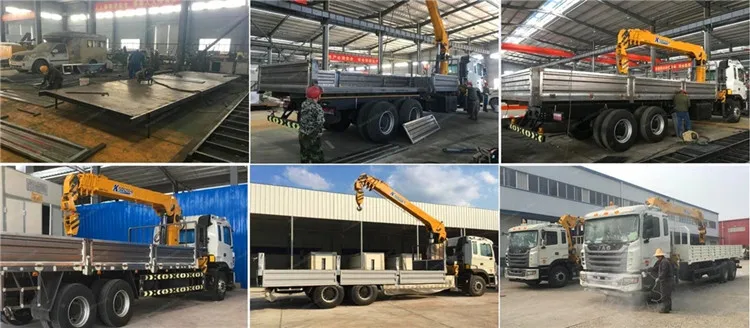

Truck Cane Workshop

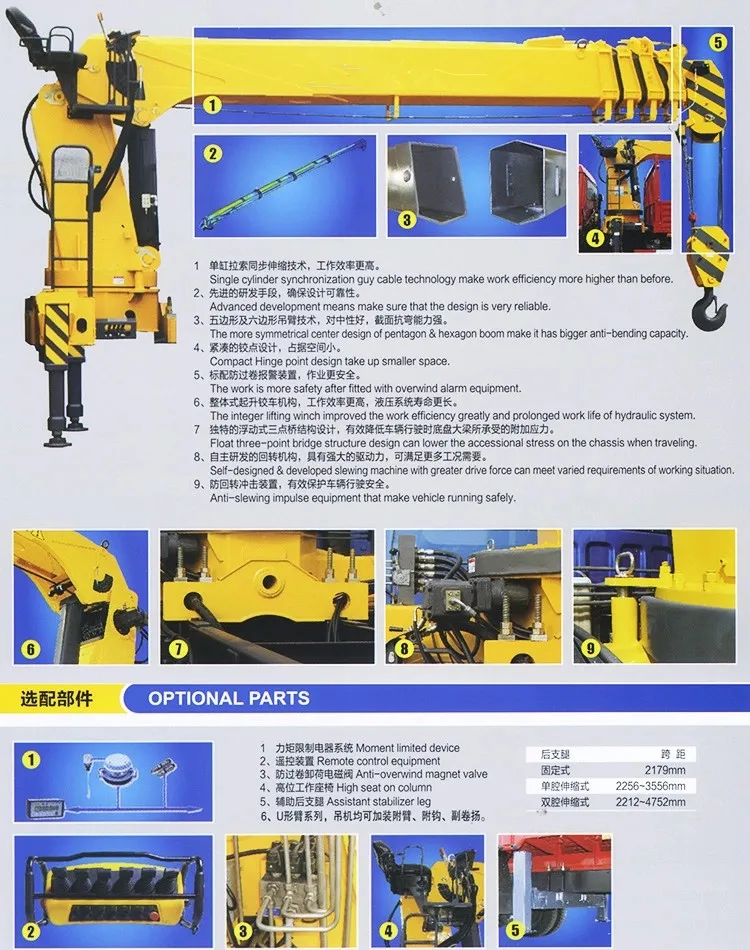

Product Advantages
Main Product
Company Information
Hubei Dali Special Automobile Manufacturing Co.,Ltd locates in Suizhou city, a car city, which is famous as the hometown of ShenLong. Our company has car sale corporations, manufacture management centers and over twenty branches in China, including exploitation, manufacture, sale and service. Its main products , including truck car series, van car series, engineering car series, dust cart series, half hanging car series, fire truck series are than 100 types ,having the D level pressure container manufacturing ability.Nowadays, our company has established its leadership in this field in China by large accumulation, technology and advantages in service. The company dedicates to pursuing technology research and application in safety, environment protection, efficiency, automation and economization on energy. We also pay special attention to the beauty, economization and function of the manufactures. It insists on the purpose of management that it depends on quality to exist and creativity to develop. We have got the certificates of ISO9001 and CCC. Our company is consistent to develop the new product. During the period, we will further extend the joint venture cooperation, usher in the funds with the technique, increase continuously the technique reforms dint degree, and make last scale in current product, top level. The company is extending the production of the annual products 10000 appropriations car and the annual more than 1000 sets of mobile pressure container. We will usher in the advanced production in abroad equipments, making the technique level of the appropriation car contain a quality leap.
Packaging & Shipping
FAQ
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.
5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
