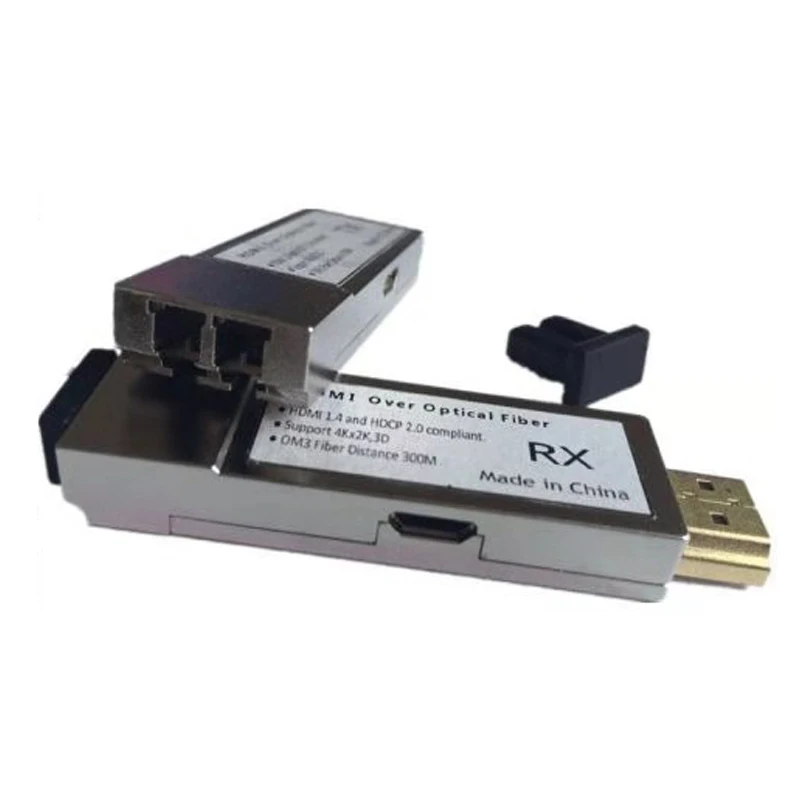

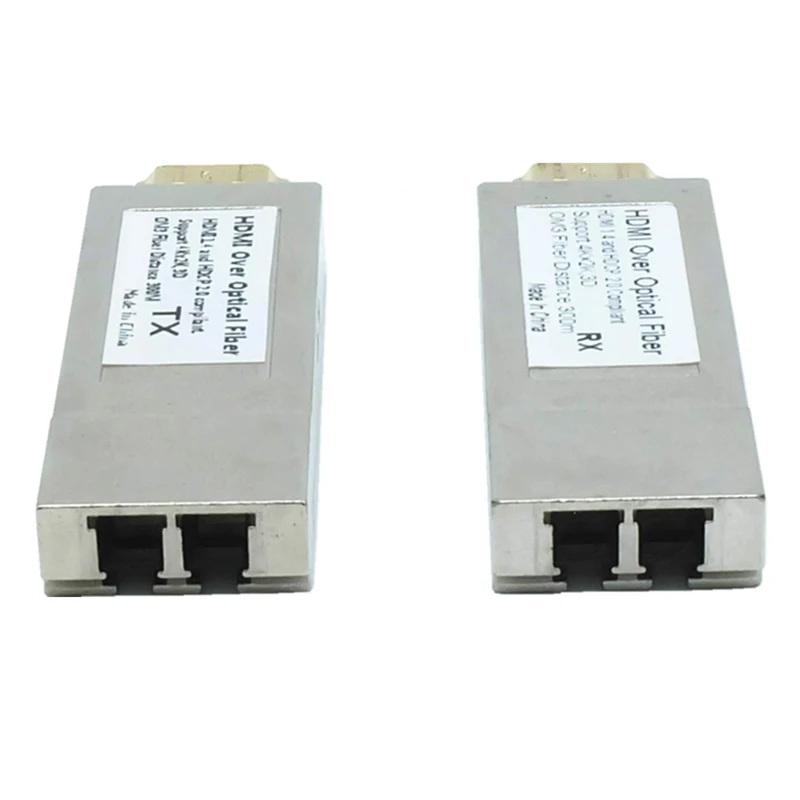

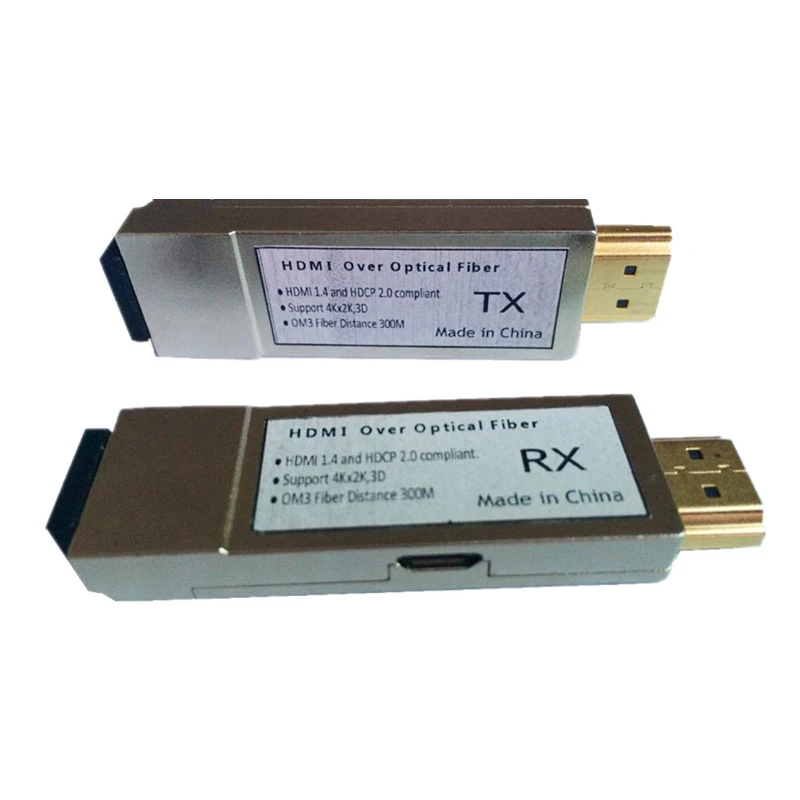

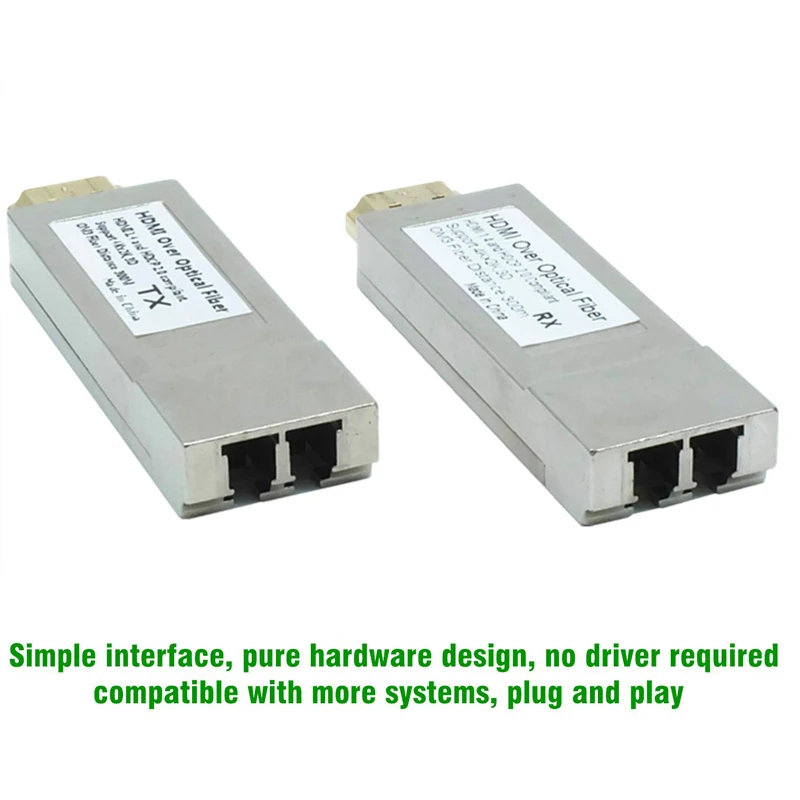

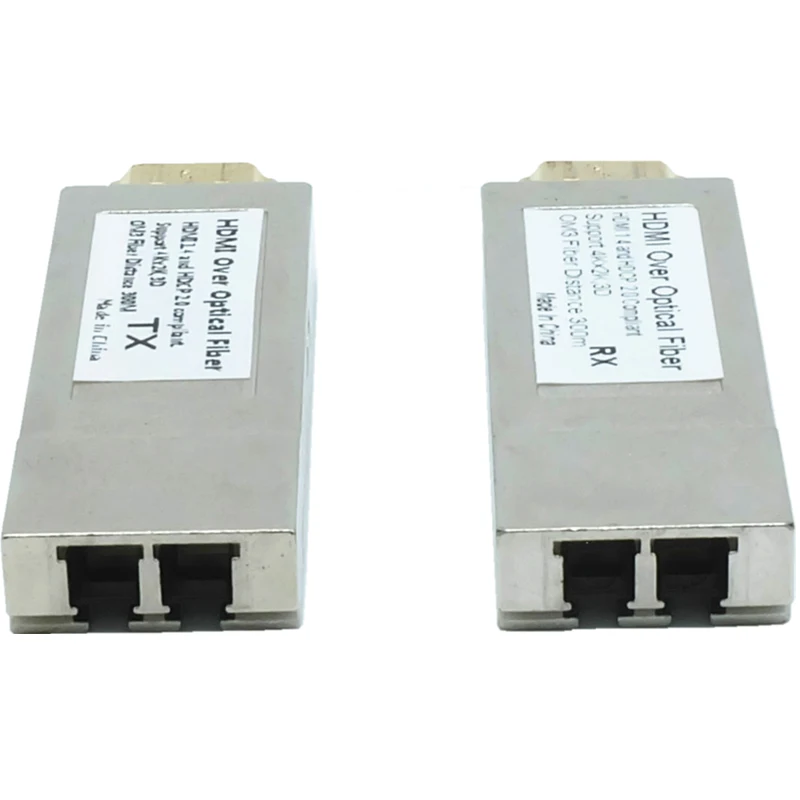

Full HD Mini HDMI Fiber 4K Extender Kit

 1. Introduction

 HDMI Optical Transceiver extension module consists of transmitter module and receiver module, each of which has two LC connectors and a HDMI plug. Users could decide extension length at their discretion by choosing the length of fibre-optic cables with LC ferrules at the ends. It offers graphic TMDS signals to be extensible up to the limits of modal bandwidth of selected OM3 multi-mode glass fibers .

The communication between the HDMI fiber sender TX and HDMI fiber optic receiver RX is bidirectional ,the data rate from the –T to –R is 10.2Gb/s with 1310nm, and from the –R to –T is 250Mb/s with1550nm, the 1310nm and 1550nm optical signals are multiplexed to two fiber with a 1310/1550nm WDM filter insider the HDMI extender.

The HDMI Fiber Extender compliant HDMI 1.4 standard, It Support resolution is up to 3840*2016/30Hz (YUV 4:4:4) or 3840*2016/60Hz (YUV 4:2:0). It support distance up to 300m over OM3 MMF and SMF.

 2. Features

1)Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4);

2)Support resolution 3840*2160/30Hz(Y:U:V 4:2:0)

3)Extned the HDMI data up to 300 meters over OM3 MMF or SMF Fiber;

4)Support HDCP;

5)Detachable feature with 2x LC OM3 MM Fiber or SM Fiber;

6)The modules are compact enough to directly plug to graphic sources and displays by adopting HDMI plugs;

7)Includes two (2) +5V DC power adapters for the transmitter and receiver ;

8)Micro USB-B power connector;

9)Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present ;

3. Package Contents

 HDMI optical fiber transmitter ………. 1 pcs

 HDMI optical fiber receiver ……………. 1 pcs

 Power adapter …………………………………2 pcs

User manual ……………………………….….. 1 pcs

4. Specifications

  5. Operation Controls and Functions

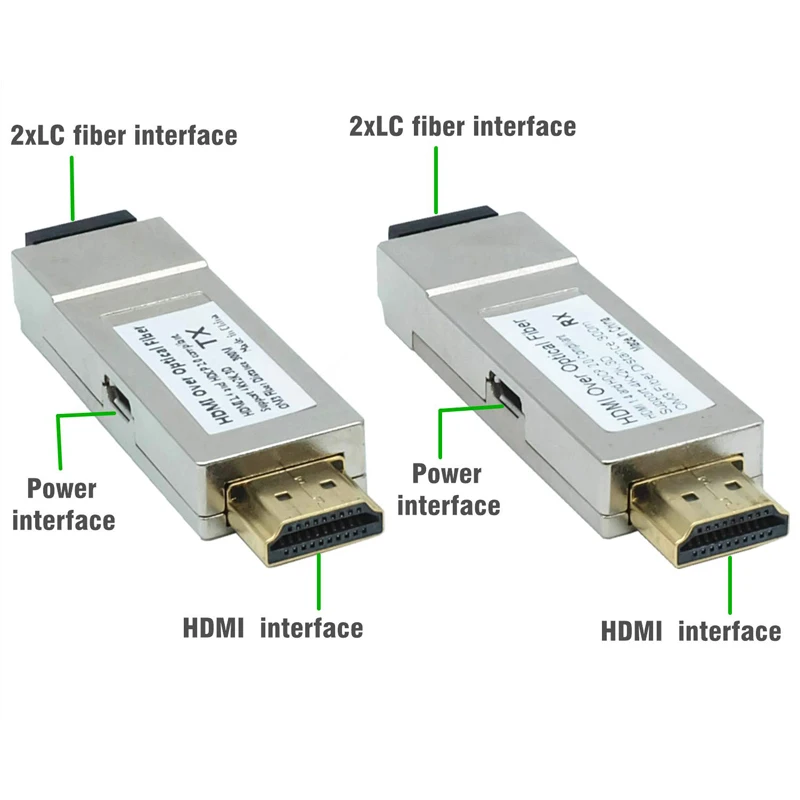

5.1 Front Panel

  6. Connection Diagram

 Q1: What about the lead time?

A1:Sample needs 3-5 days,mass production time needs 1-2 weeks for order quantity more than 100 PC.

Q2:How about the payment terms?

A2:We accept T/T, paypal or cash as payment .

Q3:What are your strengths?

A3:Our biggest advantage is the ODM service.

Q4:If we I am not clear about the how to use the products, what should I do?

A4:Each of our products has a manual, you can read it or you may contact with us.
