6 Ports SATA3 Sata 3.0 to PCI Express PCI E 1x PCIe X1 Expansion Riser Card 6Gbps
- Category: Other Computer Accessories >>>
- Supplier: Shenzhen,Bojiada,Technology,Co.,Ltd
Share on:
Product Overview
Description
| 6 Ports SATA3 Sata 3.0 to PCI-Express PCI-E 1x PCIe X1 Expansion Riser Card 6Gbps |
Specification:
Name: 6-port SATA3.0 expansion card
Model: PCE6SAT-M01
Support Max 20TB Hard Disk

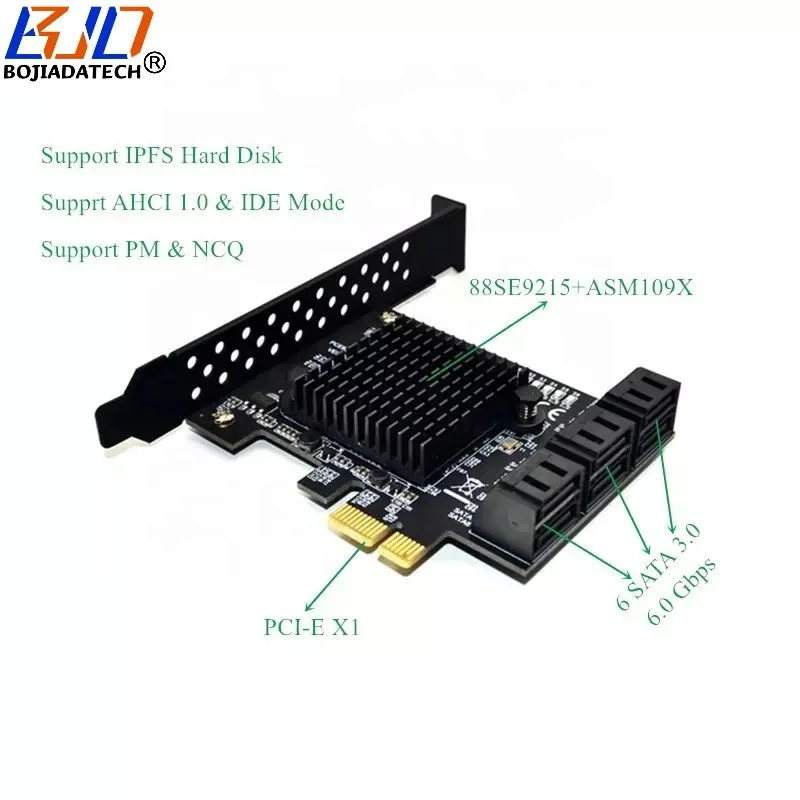

Master control: for marvell 88SE92xx+109X
Interface: PCI-E 1x, 2x, 4x, 8x, 16x
Master control: for marvell 88SE92xx+109X
Interface: PCI-E 1x, 2x, 4x, 8x, 16x
Support communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps
Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Support Native command queue (NCQ)
Support for FIS port multiplier switch or command switch.
Support hot swap and hot swap.
Compatible with SATA6G, 3G and 1.5g hard disk drives
Support system: for WINXP / WIN7 / WIN8 / WIN10 / LINUX
Bus interface: PCI-Express x1 slot
Expansion interface: 6 SATA3.0 interfaces
Product size: approx. 12 * 10 * 2cm / 4.7 * 3.9 * 0.8inch
Support system: for WINXP / WIN7 / WIN8 / WIN10 / LINUX
Bus interface: PCI-Express x1 slot
Expansion interface: 6 SATA3.0 interfaces
Product size: approx. 12 * 10 * 2cm / 4.7 * 3.9 * 0.8inch
Original chip:
Original imported chip
High speed data transmission rate
Good stability, compatibility
Plug and play, convenient to use
The PCIE to SATA3.0 riser card is used as follows:
First, the system disk and PCIE to SATA3.0 riser card connection conditions and solutions:
1. The SATA interface mode of PCIE to SATA3.0 is AHCI mode. If you want to plug in the system disk on our card, the premise is that your system disk must be installed in AHCI mode when installing the system on the motherboard. Otherwise, the system cannot be started through our transfer card.
2. If it is determined that the SATA interface installation system of the system disk inserted in the motherboard is AHCI mode, then you can directly insert the hard disk into our card, and then enter the motherboard BIOS to set the system disk as the first boot.
3. If the above two conditions are met, if the hard disk interface of the motherboard still fails to start, or restarts repeatedly, it may be caused by the conflict between the hard disk interface of the motherboard and our transfer card. The solution is to enter the motherboard BIOS and set the hard disk interface option of the motherboard to Disabled, then save and restart to start the system.

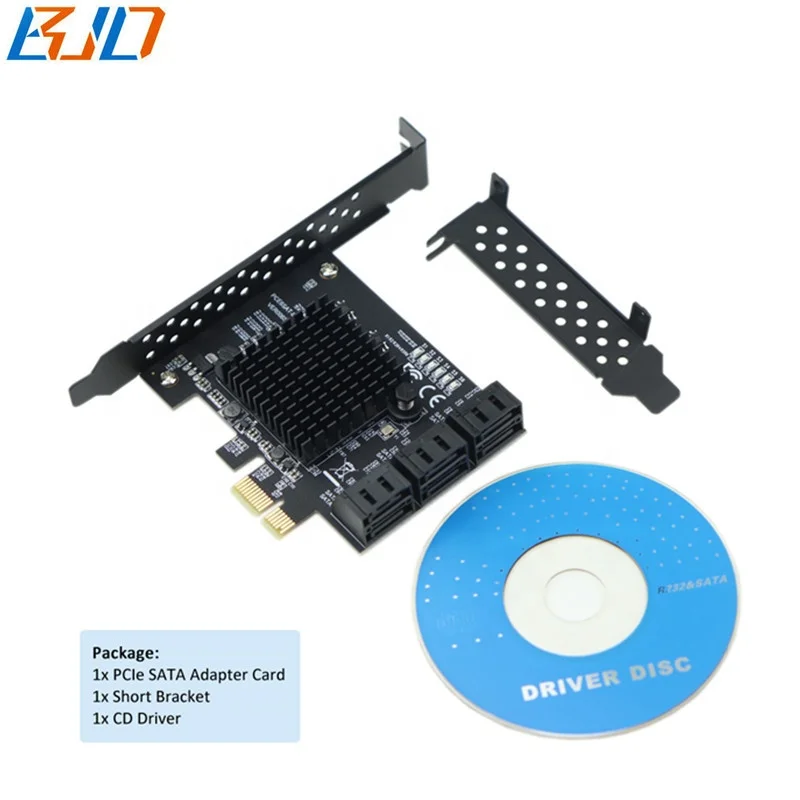

Package List:
1 x SATA III (6Gbps) 6-port PCI-Express Controller Card
1 x CD Driver
1 x Low Profile Bracket
Original imported chip
High speed data transmission rate
Good stability, compatibility
Plug and play, convenient to use
The PCIE to SATA3.0 riser card is used as follows:
First, the system disk and PCIE to SATA3.0 riser card connection conditions and solutions:
1. The SATA interface mode of PCIE to SATA3.0 is AHCI mode. If you want to plug in the system disk on our card, the premise is that your system disk must be installed in AHCI mode when installing the system on the motherboard. Otherwise, the system cannot be started through our transfer card.
2. If it is determined that the SATA interface installation system of the system disk inserted in the motherboard is AHCI mode, then you can directly insert the hard disk into our card, and then enter the motherboard BIOS to set the system disk as the first boot.
3. If the above two conditions are met, if the hard disk interface of the motherboard still fails to start, or restarts repeatedly, it may be caused by the conflict between the hard disk interface of the motherboard and our transfer card. The solution is to enter the motherboard BIOS and set the hard disk interface option of the motherboard to Disabled, then save and restart to start the system.

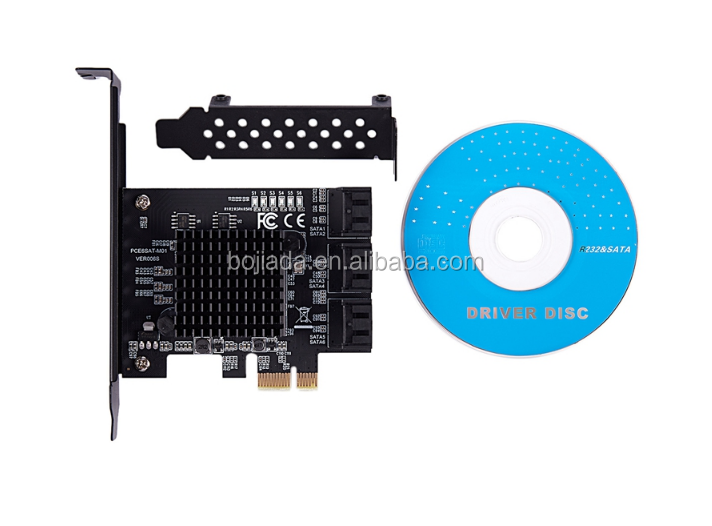

Package List:
1 x SATA III (6Gbps) 6-port PCI-Express Controller Card
1 x CD Driver
1 x Low Profile Bracket
![FR[K0[I]FCQN3PQA}QL71S](http://sc02.alicdn.com/kf/H304d7dd35f6147d9b752442a8361a04bL/230060621/H304d7dd35f6147d9b752442a8361a04bL.png)

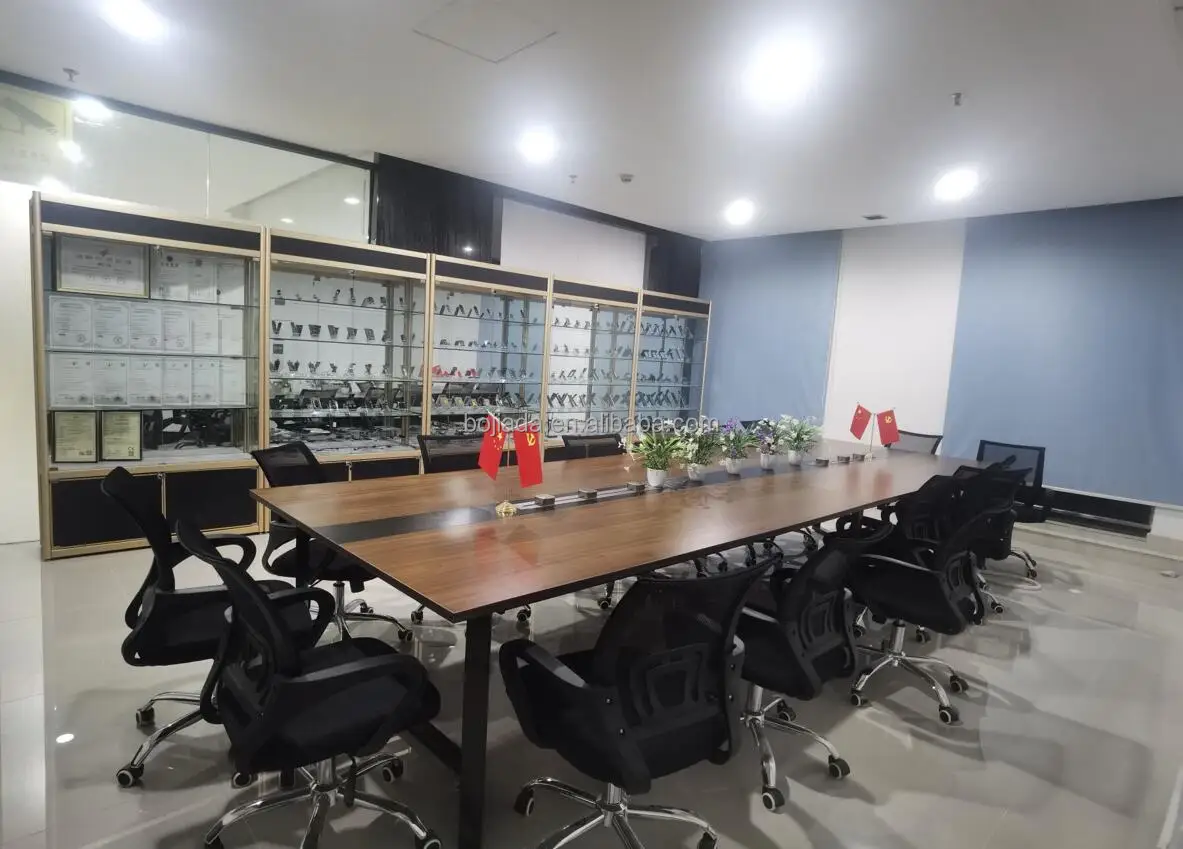

Factory show
