Precision endless diamond wire saw for lab cutting
- Category: Cut Off Machine >>>
- Supplier: Zhengzhou Protech Technology Co. Ltd.
Share on (62223792501):
Product Overview
Description
Brief introduction

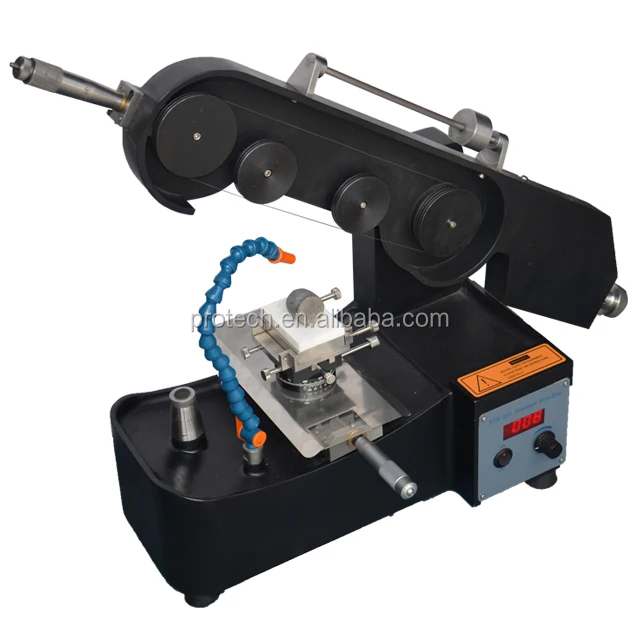

STX-201 is a CE Certified precision endless wire saw, designed to provide a very smooth cutting for almost all kinds of materials by using either a diamond impregnated or a plain wire blade with an abrasive slurry. It is an ideal tool suitable for cutting valuable delicate and fragile crystals such as SrTiO3, YVO4, and GaAs etc.
Product details
Power | 220V 50/60 Hz |
Stage travel distance | Max. 50.8 mm (2") travel length 360 degree horizontal rotating and 30 degrees tilt stage |
Traveling position accuracy | 2'' Digital Micrometer Head with accuracy of +/- 0.005 mm ( 5 microns) |
Emergency stop | Emergency stop possible |
Size of sample stage | 80 x 51 mm |
Wire traveling speed | 0~5mm/sec |
Rotate speed | 50-900rpm |
Diamond Wire | One piece loop type diamond wire (840 mm long, 0.3mm Dia. Diamond coated) is included for immediate use. A Diamond Blade Dressing Stone is included for keeping the wire sharp. |
Cutting thickness | Up to 50 mm |
| Product dimension | With saw closed: 81Lx 43Wx 37H cm |
Package dimension | 1020*640*770mm |
Shipping Weight | 70Kg |
Company Information
Zhengzhou Protech Technology Co., Ltd-owned by Protech(China) Holdings Limited, is founded by a group of technology enthusiastic people who are devoted to the newest technology and innovation in thermal field, and serving various clients worldwide for different high temperature processing applications.
Our key profession is designing, and manufacturing different types of furnace and kiln , products include muffle furnace, tube furnace, vacuum furnace, atmosphere furnace, dental furnace, hot press furnace, CVD system, polishing machine, grinidng machine, coating machine, press machine etc.
We have our own manufacturing base in Zhengzhou City of China, which enable us a reliable manufacturing ability and quality control system.
"Profession, Quick Response, Hard Work, and Sincerity" is the strength of our team, which earning us a sound reputation among our clients.
Protech welcome your visit !
