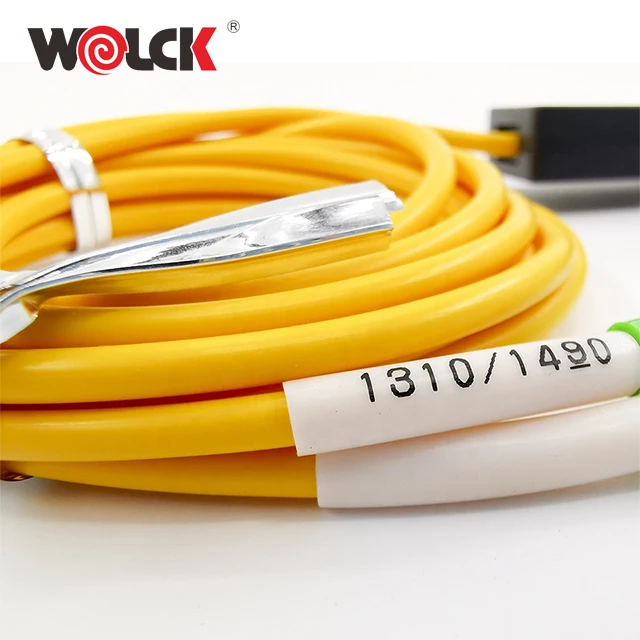

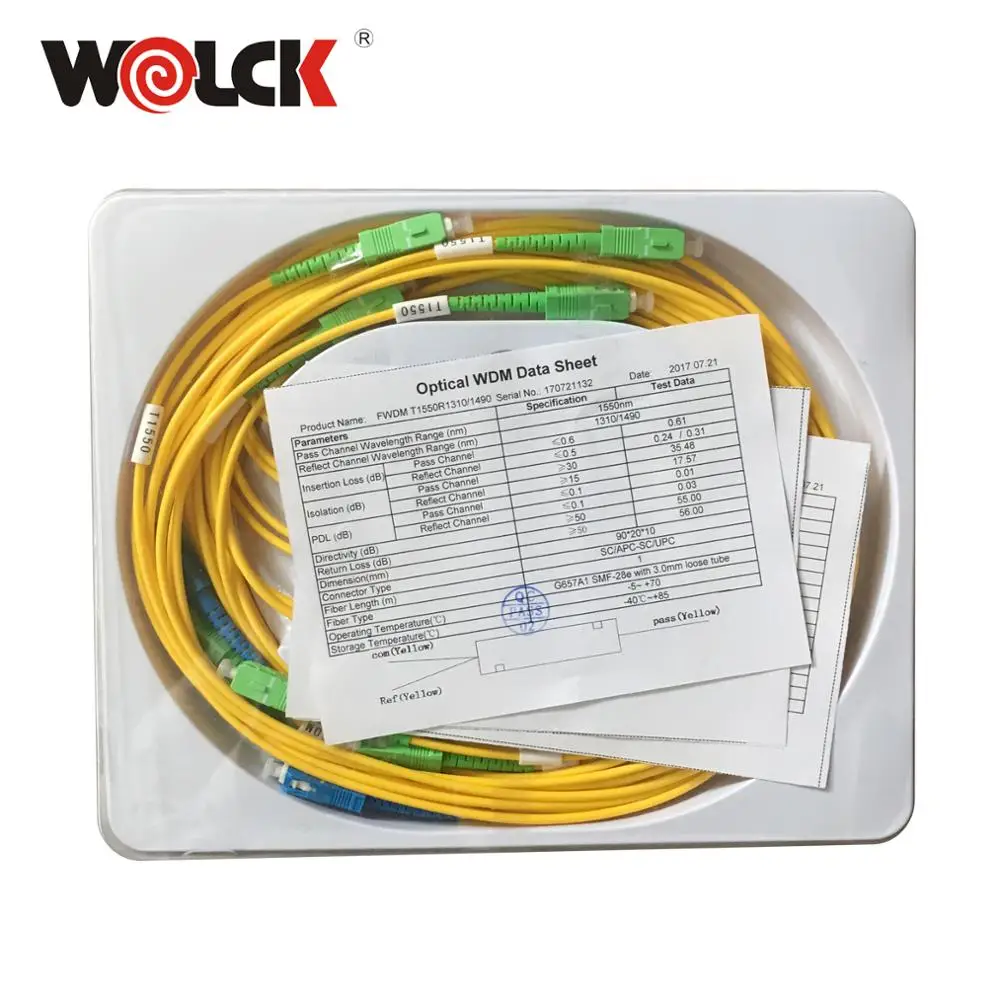

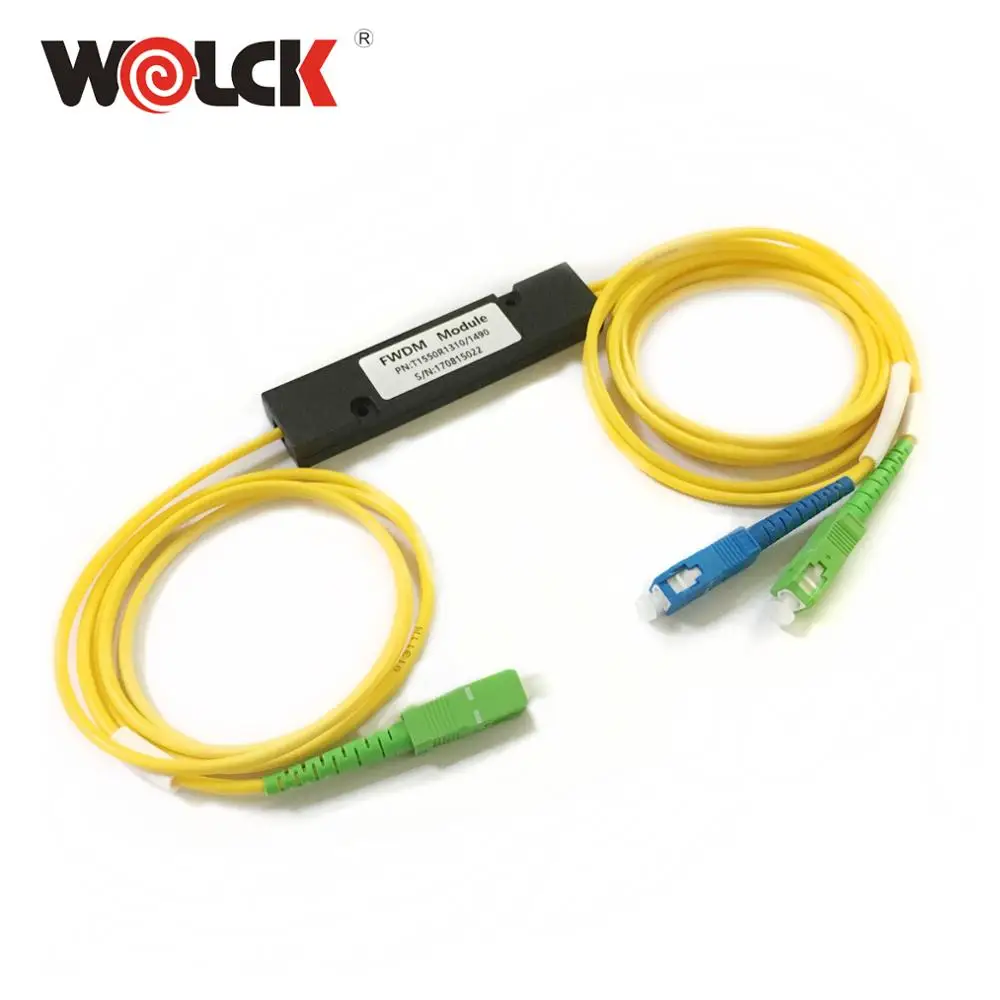

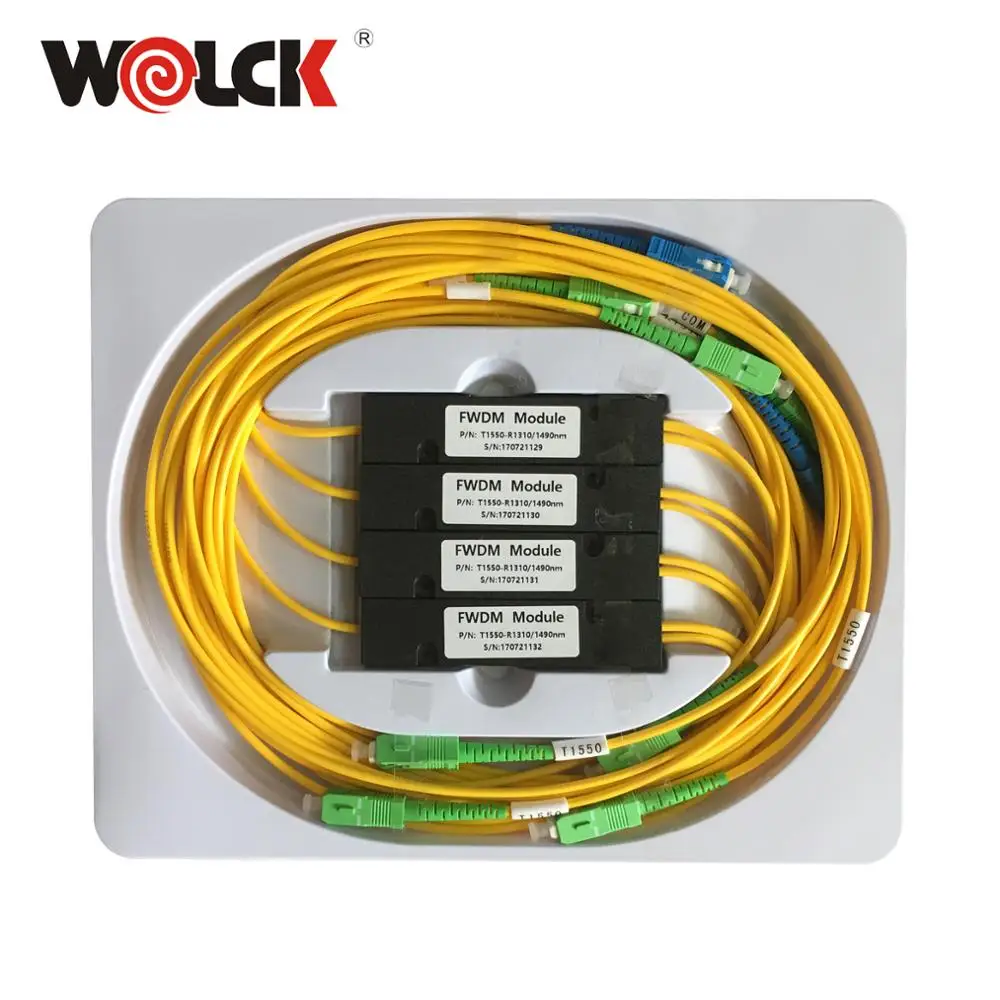

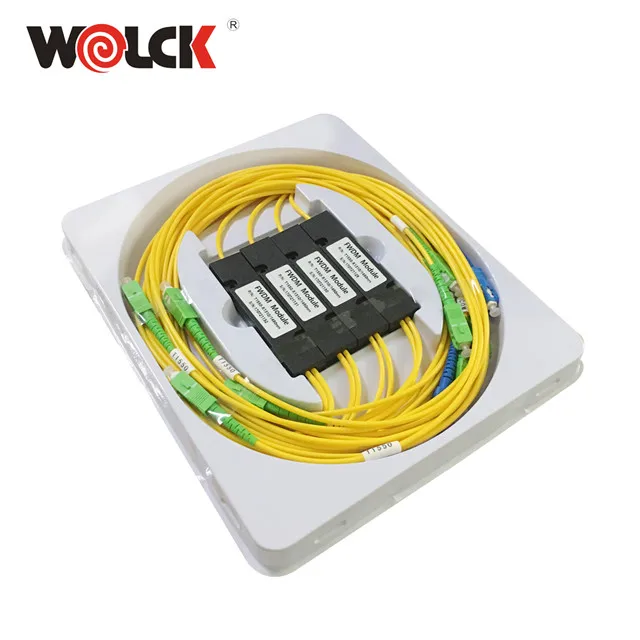

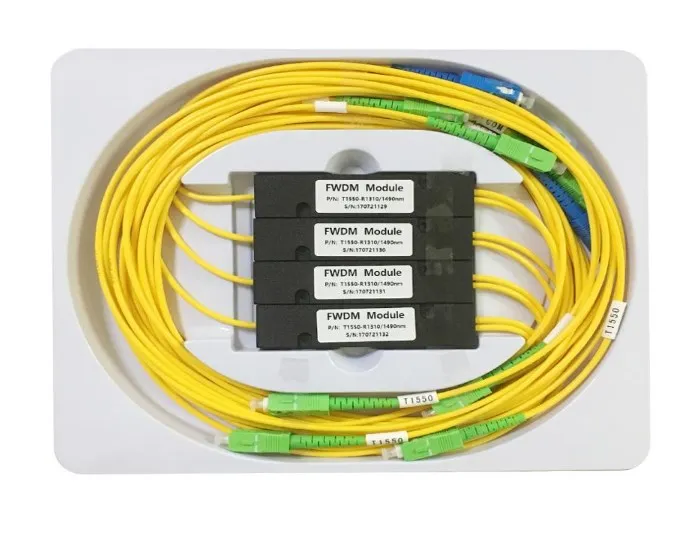

SC UPC FWDM Optical Filter 1310nm 1490nm 1550nm FWDM
- Category: >>>
- Supplier: SHENZHEN WOLCK NETWORK PRODUCT CO. LIMITED
Share on (62223828628):
Product Overview
Description
Products Description

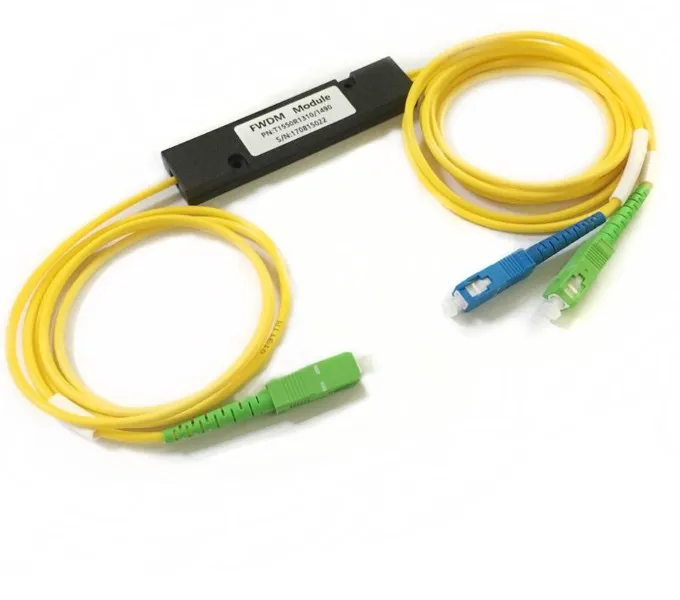

SC UPC FWDM Optical Filter 1310nm 1490nm 1550nm FWDM
Dense wavelength division multiplexer(DWDM) is based on the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, within ITU wavelengths to achieve uplink and downlink. It provides ITU channel center wavelength, low insertion loss, high channel isolation, low power consumption, wide passband characteristics, no glue loop, excellent thermal stability and reliability and so on. In a telecommunications network system, it can be used for uplink or downlink optical signal.Specification
Features
*Low Insertion Loss
*High Channel Isolation
*Optical path epoxy free
*Excellent thermal stability and reliability
*Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard
*High Channel Isolation
*Optical path epoxy free
*Excellent thermal stability and reliability
*Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard
Application
*DWDM Network
*Add/Drop System
*CATV Fiberoptic System
*Metro/Access Network
*CATV Fiberoptic System
*Metro/Access Network

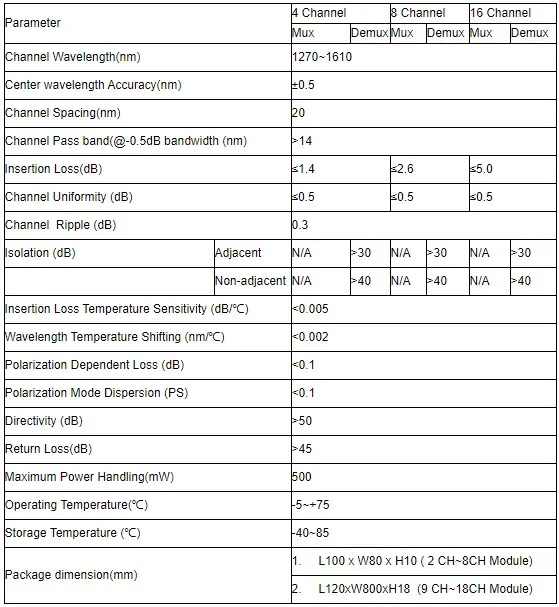

Technical Specifications
*Remark: Above is without connectors,if with connectors,add more 0.2dB.
Configuration | Channel No. | Channel | Pigtail Type | Fiber length | Dimensio(mm) | Connector |
M=Mux D=Demux | 04=4 Channel 08=8 Channel 16=16 Channel N=N Channel …… | 27=1270nm 47=1470nm 49=1490nm …… 61=1610nm SS=special… | 0=250um 1=900um 2=2.0mm 3=3.0mm | 1=1m 2=1.5m 3=others | 1=L100 x W80 xH10 2=L120xW80xH18 3=19 1U Rack | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=other |
