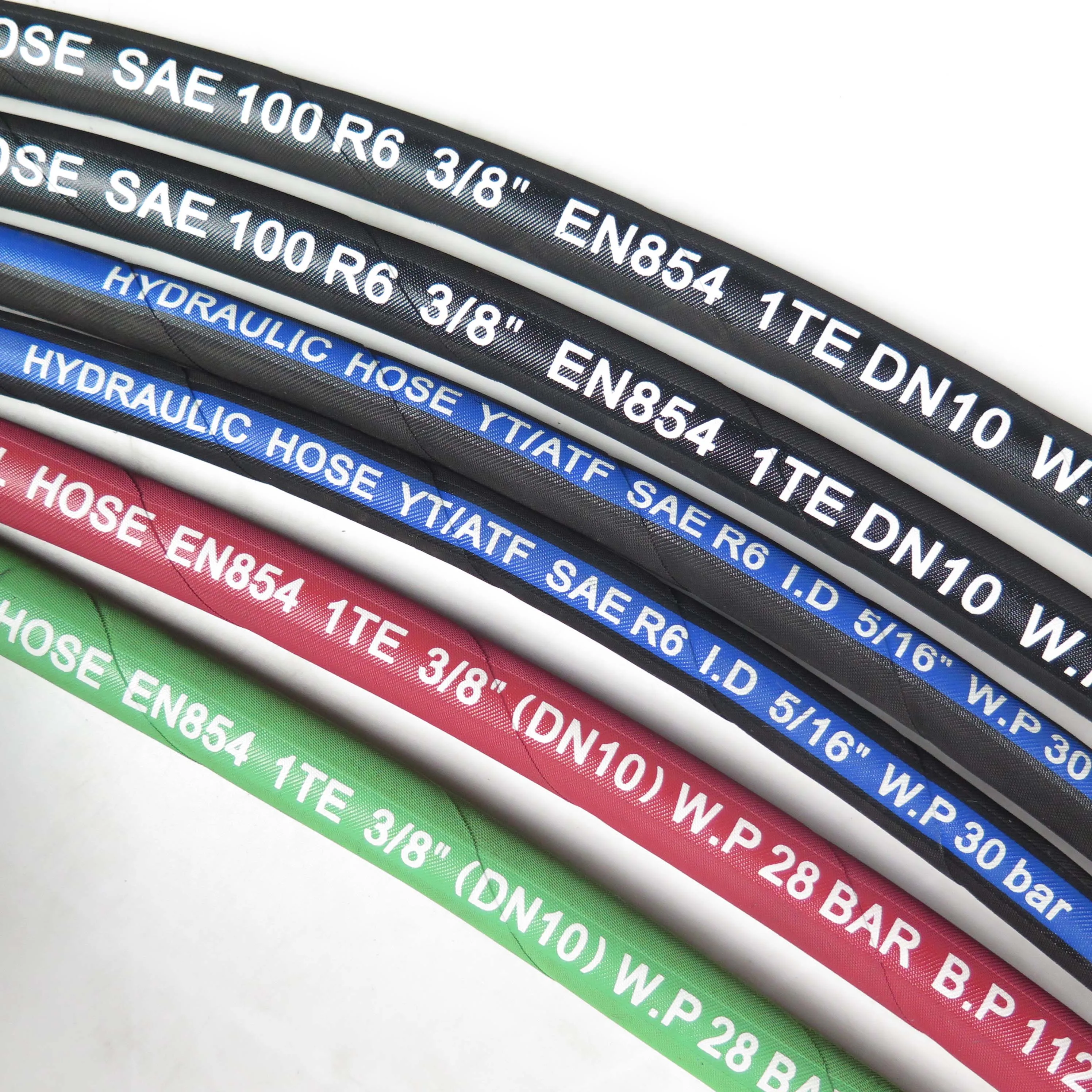

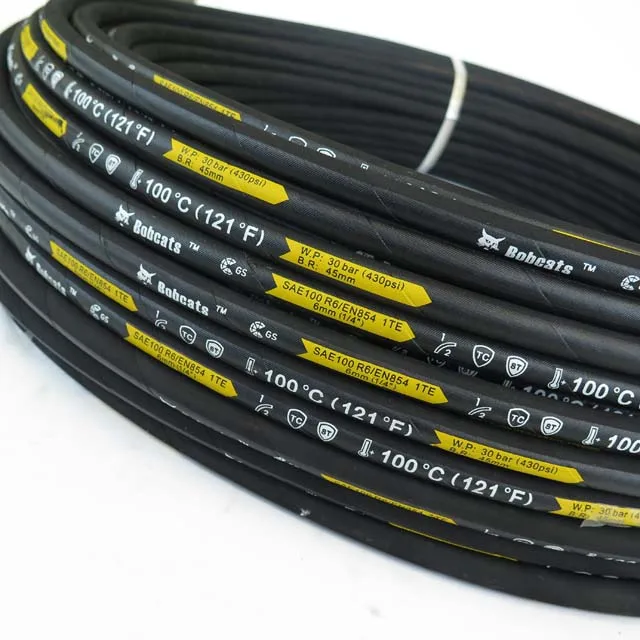

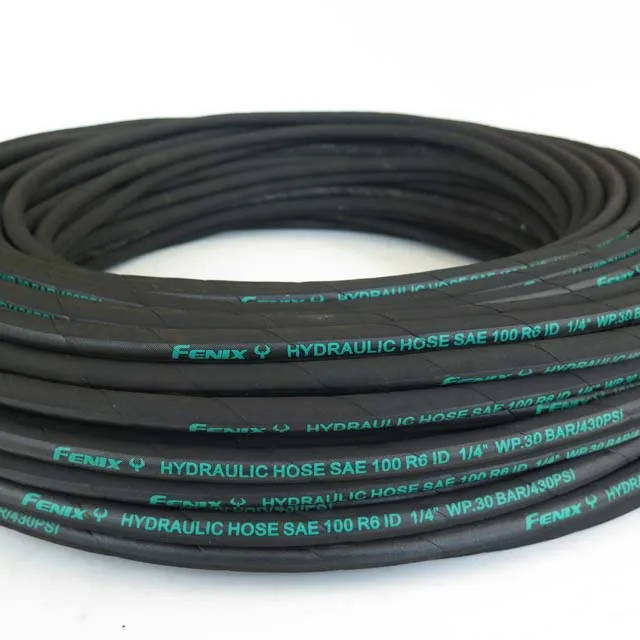

1 1/4 inch gray wrap surface SAE 100 R6 fiber reinforced hose

Product Overview

Description

1-1/4 inch gray wrap surface SAE 100 R6  fiber reinforced hose

APPLICATIONS

Low pressure lines, return lines, drain lines

Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water



HOSE MARKING:YATAI HYDRAULIC HOSE SAE 100 R6 1/4″ EN854 1TE DN6 W.P.28BAR 410PSI

YATAI PART.REF.	HOSE SIZE  I.D			R.O.D	O.D	MAX W.P		MIN B.P		MIN B.R	W.T
	DN	dash	inch	mm	mm	bar	psi	bar	psi	mm	Kg/m
TB R6 5	5	-3	3/16"	-	11.1	34	493	110	1972	51	0.10
TB R6 6	6	-4	1/4"	-	12.7	28	406	110	1624	64	0.13
TB R6 8	8	-5	5/16"	-	14.3	28	406	110	1624	76	0.15
TB R6 10	10	-6	3/8"	-	15.9	28	406	110	1624	76	0.18
TB R6 12	12	-8	1/2"	-	19.8	28	406	112	1624	102	0.26
TB R6 16	16	-10	5/8"	-	23.0	24	348	100	1392	125	0.31
TB R6 19	19	-12	3/4"	-	26.6	17	247	85	988	140	0.47
TB R6 25	25	-16	1"	-	35.2	17	247	85	988	150	0.71



• CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +250°F; -40°C / +121°C

• INSERT: SHF TYPE

• TUBE: OIL RESISTANT SYNTHETIC RUBBER

• REINFORCEMENT: ONE HIGH RESISTANCE TEXTILE BRAID

• COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER

• APPLICABLE SPECS: SAE 100 R6 - EN 854 R6/1TE - ISO 4079-1 R6/1TE

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
