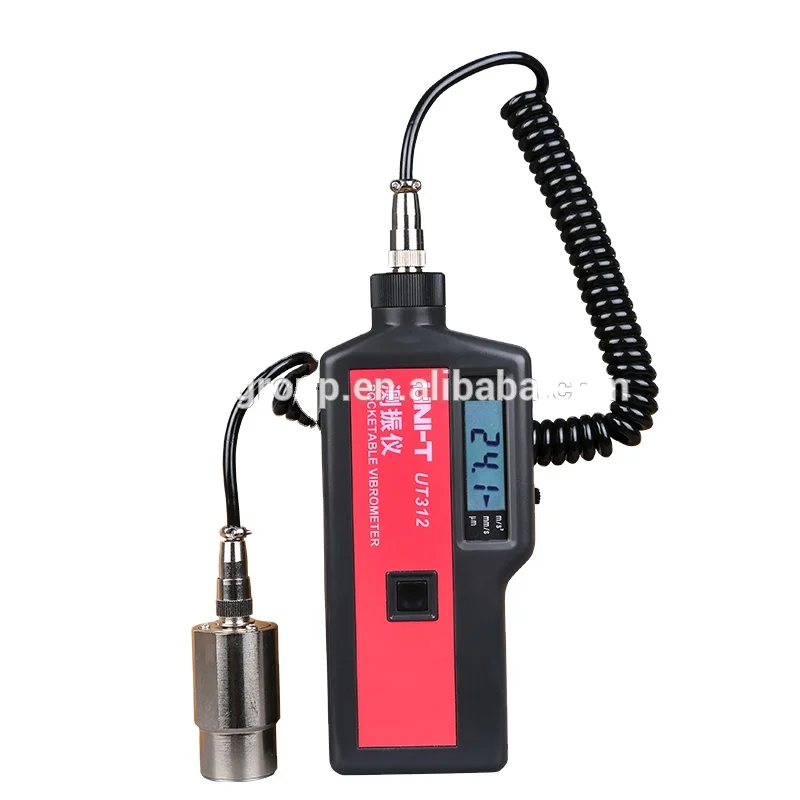

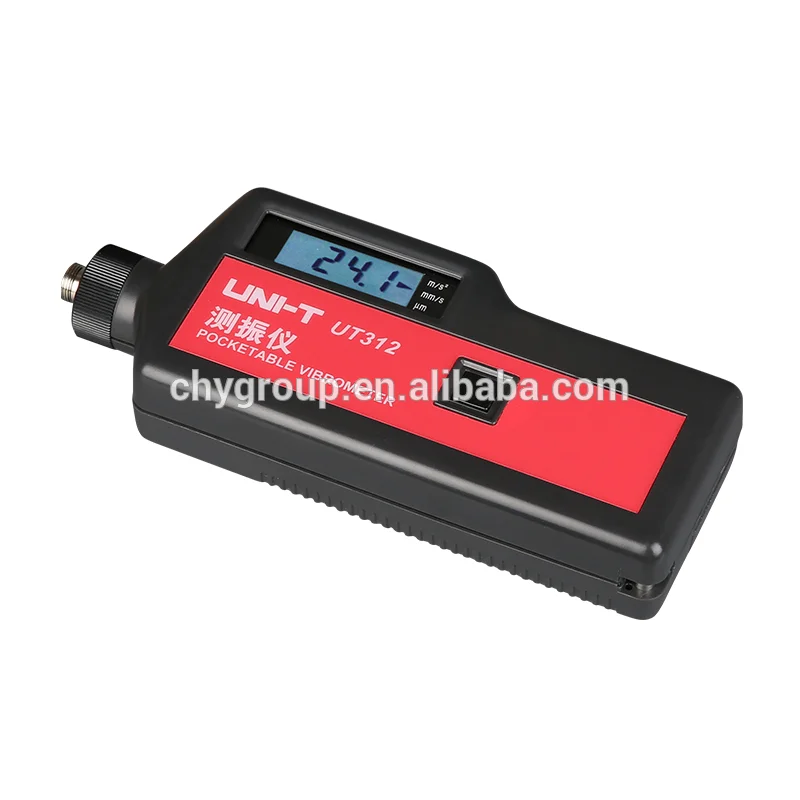

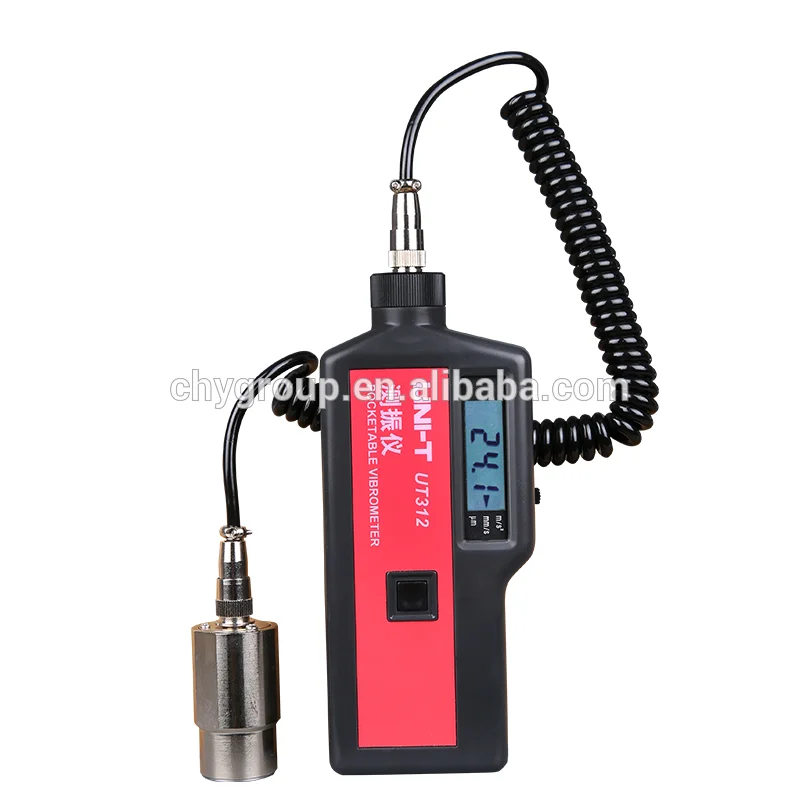

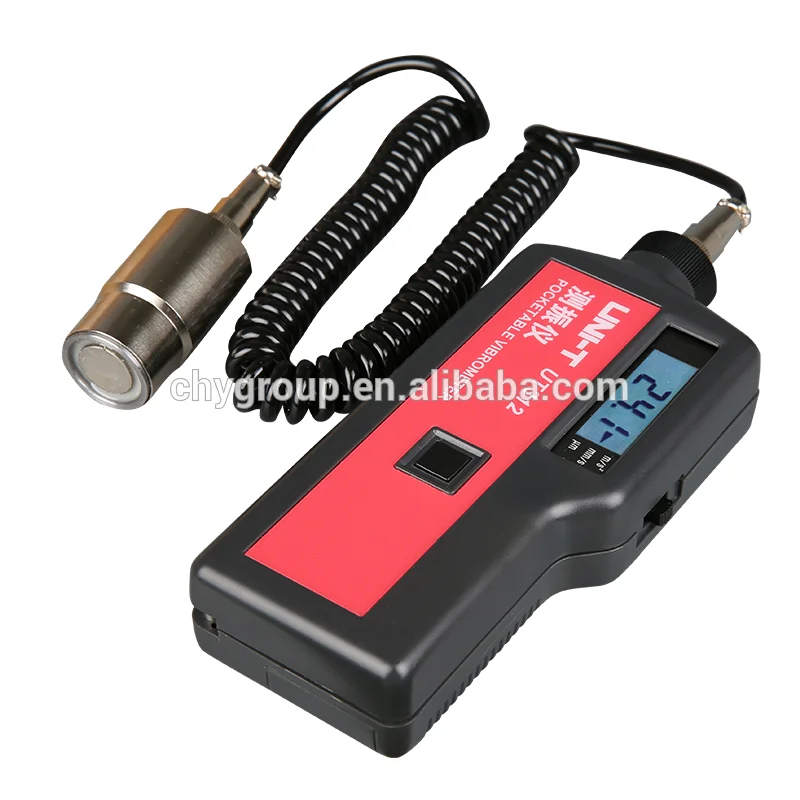

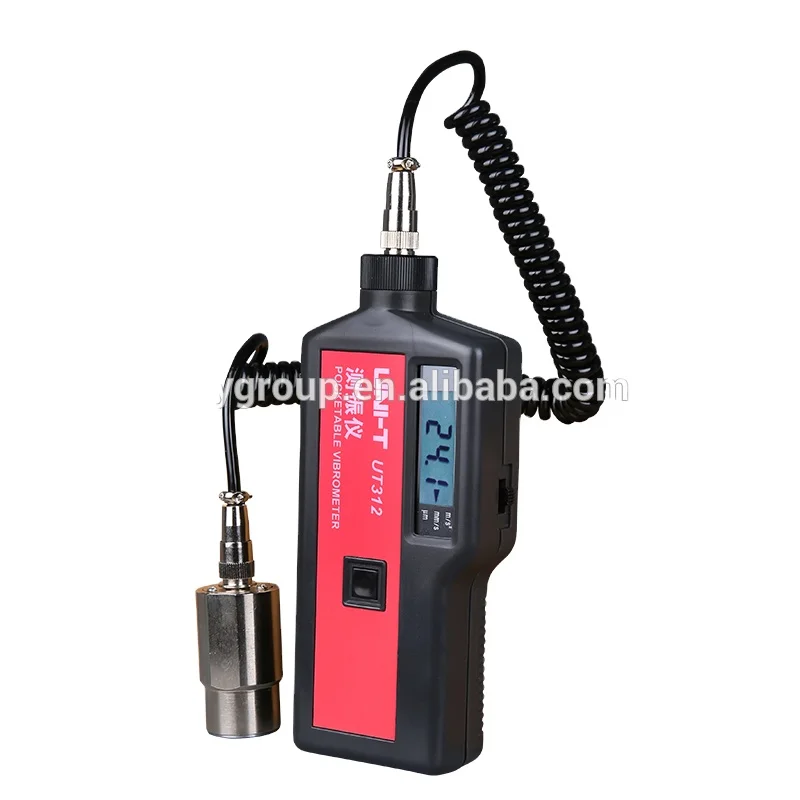

UT310 series is a professional seismograph. Handheld design, easy to carry. Artificial polarized piezoelectric
effect designed for the measurement of mechanical vibrations conventional equipment, particularly rotating
and reciprocating machinery vibration measurements. Widely used in machinery manufacturing, electric power and metallurgical industrial measurement.

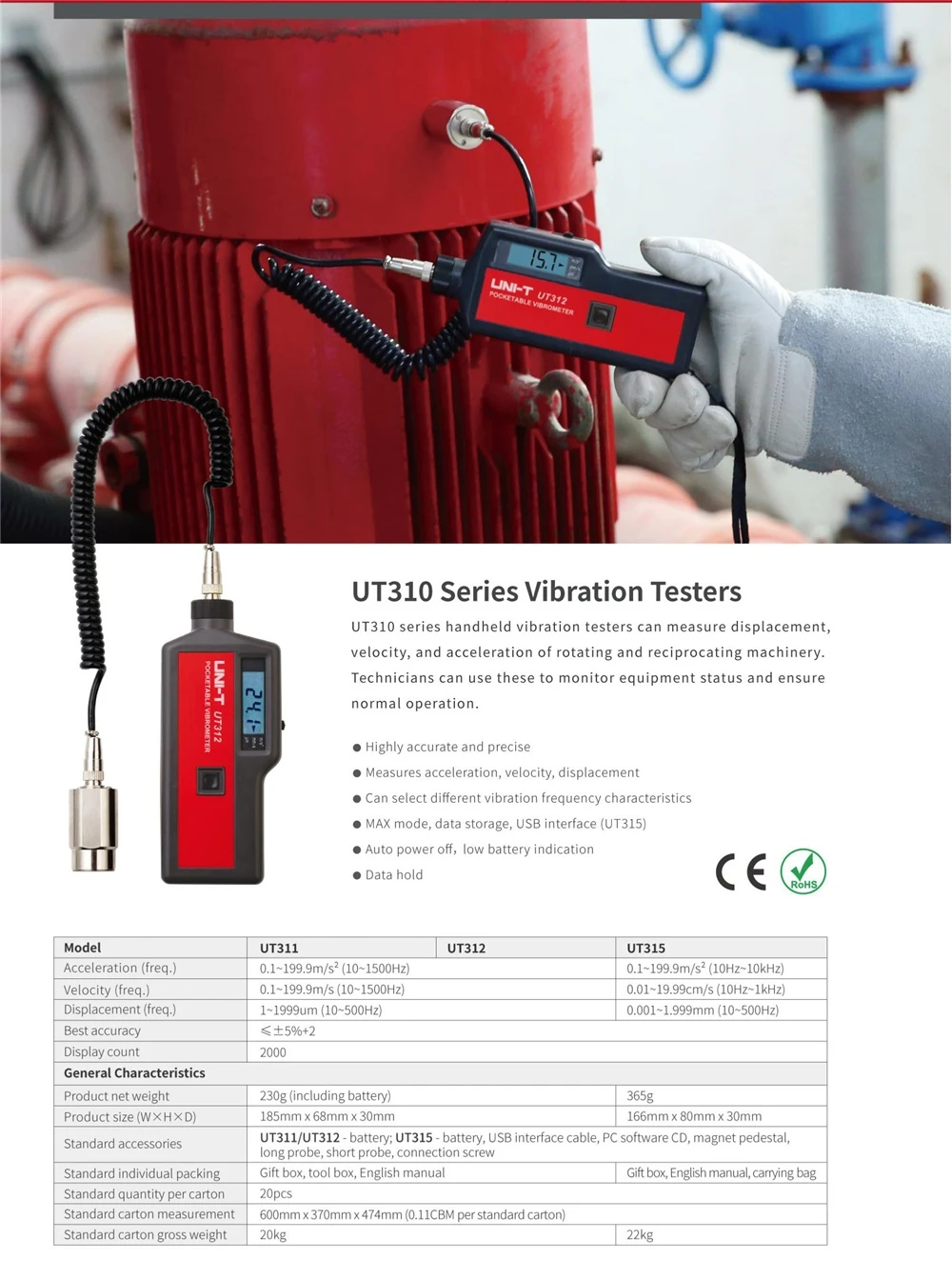

Specifications
nt Range
Best Accuracy
Model
UT312 Split style
Vibration Acceleration(O-P)
0.1~199.9m/s²
Frequency response:10~1500Hz,Amplitude error:≤±5%
Amplitude linear error:≤2.0m/s²,≤±10%; >2.0m/s²,≤±5%
Vibration Velocity(RMS)
0.1~199.9mm/s
Frequency response:10~1500Hz , Amplitude error:≤±5%
Amplitude linear error:≤2.0mm/s,≤±10%; >2.0mm/s,≤±5%
Vibration displacement(P-P)
1 ~ 1999μm
Frequency response:10~500Hz, Amplitude error:≤±5%
Amplitude linear error:≤20um,≤±10%; >20um, ≤±5%
Functions
Data Hold
√ (auto data hold when releasing the measure key)
Low battery indication
√
Auto Power Off
√ (auto power off 1 minutes after releasing the measure key)
Display Modes
Digital display
Battery Life
Continuous measuring time > 20 hours
Maximum Display
1999
General Characteristics
Battery
6F22 9V battery
Product Colour
Red and Grey
Product Net weight
230g (including battery)
Product Size
185mm x 68mm x 30 mm

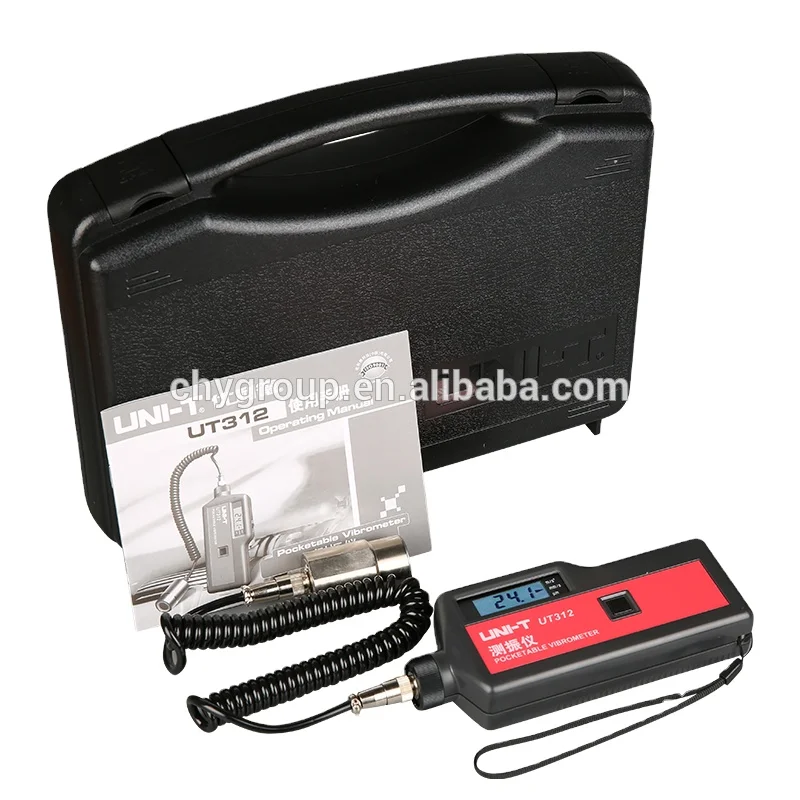

Standard Accessories
Battery,Holster
Standard Individual Packing
Gift Box,English Manual ,Warranty Card.
Standard Quantity Per Carton
20 Pcs
Standard Carton Measurement
600mm×370mm×474mm
Standard Carton Gross Weight
About 5 Kg
Advantages
Certifications
Packaging & Shipping
Our Services
We provide 30 days warranty counting from the arrival date of the item.
If the parts you purchased from us are not of perfected quality or they don't work, please simply return them to us for replacement or refund.
If the part is defective, please notify us within 3 days after arrival.
Any parts must be returned in their original condition to qualify for a refund or replacement.
