Wide scope working temperature,3M super 33 PVC electrical tape
- Category: Electronic Accessories & Supplies >>>
- Supplier: Wuxi Wontion Communications Equipment Co. Ltd.
Share on (62223999034):
Product Overview
Description
Wide scope working temperature,3M super 33+ PVC electrical tape
1.3M super 33+ viny electrical tape:
size :0.18mm*19mm*20.1m (Thickness*width*length),100 rolls per carton.
3M Super 33+ Vinyl Electrical Tape is a premium grade, 7 mil thick, all–weather vinyl-insulating tape. It is designed to perform continuously in ambient temperatures up to 105°C (220°F). The tape is conformable for cold weather application down to –18°C (0°F).It has excellent resistance to abrasion, moisture, alkalizes, acids, corrosion and varying weather conditions (including ultraviolet exposure).
2.Feature:
mechanical features | Typical value |
working temperature: | -18°C(CSA) ~ 105°C(CSA) |
Color: | black |
Thickness: | 7 mils (0.18mm) |
Maximum tensile: | 250% |
Breaking strength: | 151bs/in |
Viscosity to the steel: | 28oz./in(22°C, 72°F); 60 oz./in(-18°C, 0°F) |
Viscosity to the base: | 25oz./in(22°C, 72°F); 60 oz./in(-18°C, 0°F) |
FR: | 1 sec Max(UL510) |
Thermal shock: | pass 168hrs.113°C, non-crackle, non- corrosion afer thermal shock |
Cold shock: | pass 2hr,-10°C, non-crackle. non-corrosion after cold shock |
|
|
Electrical Specification | Typical value |
Voltage level: | 600V(UL510) |
Dielectric strength: | 1150v/mm |
Dielectric resistence | >10 12 Ω |

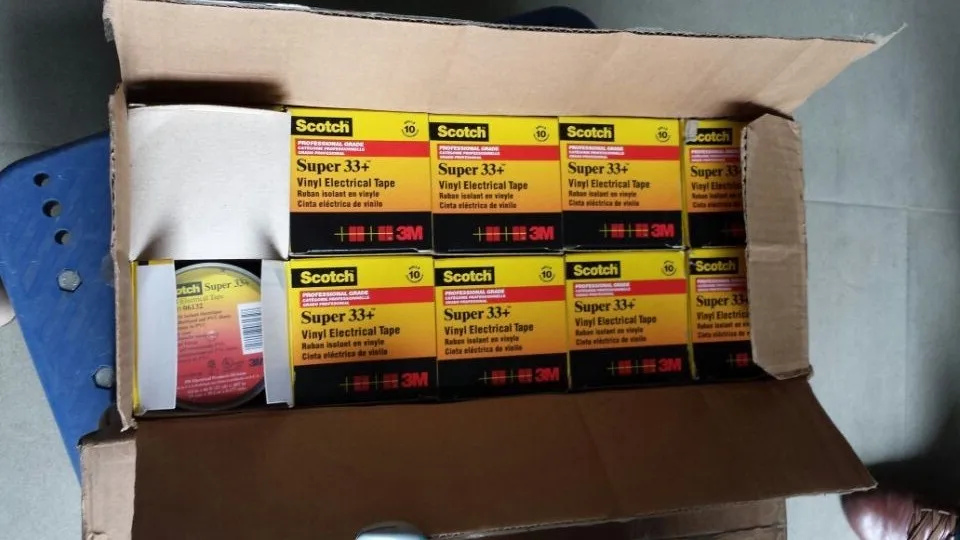

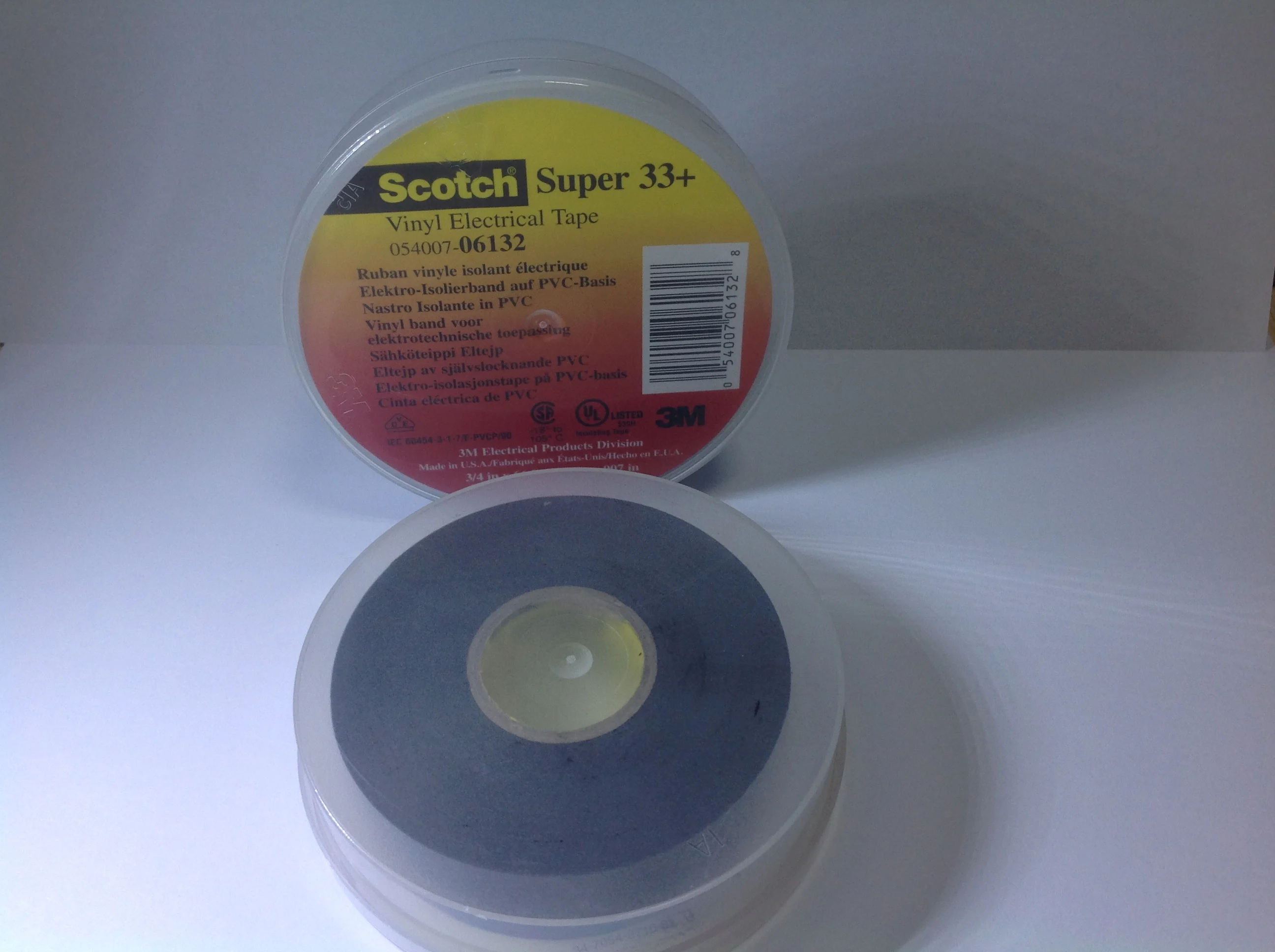

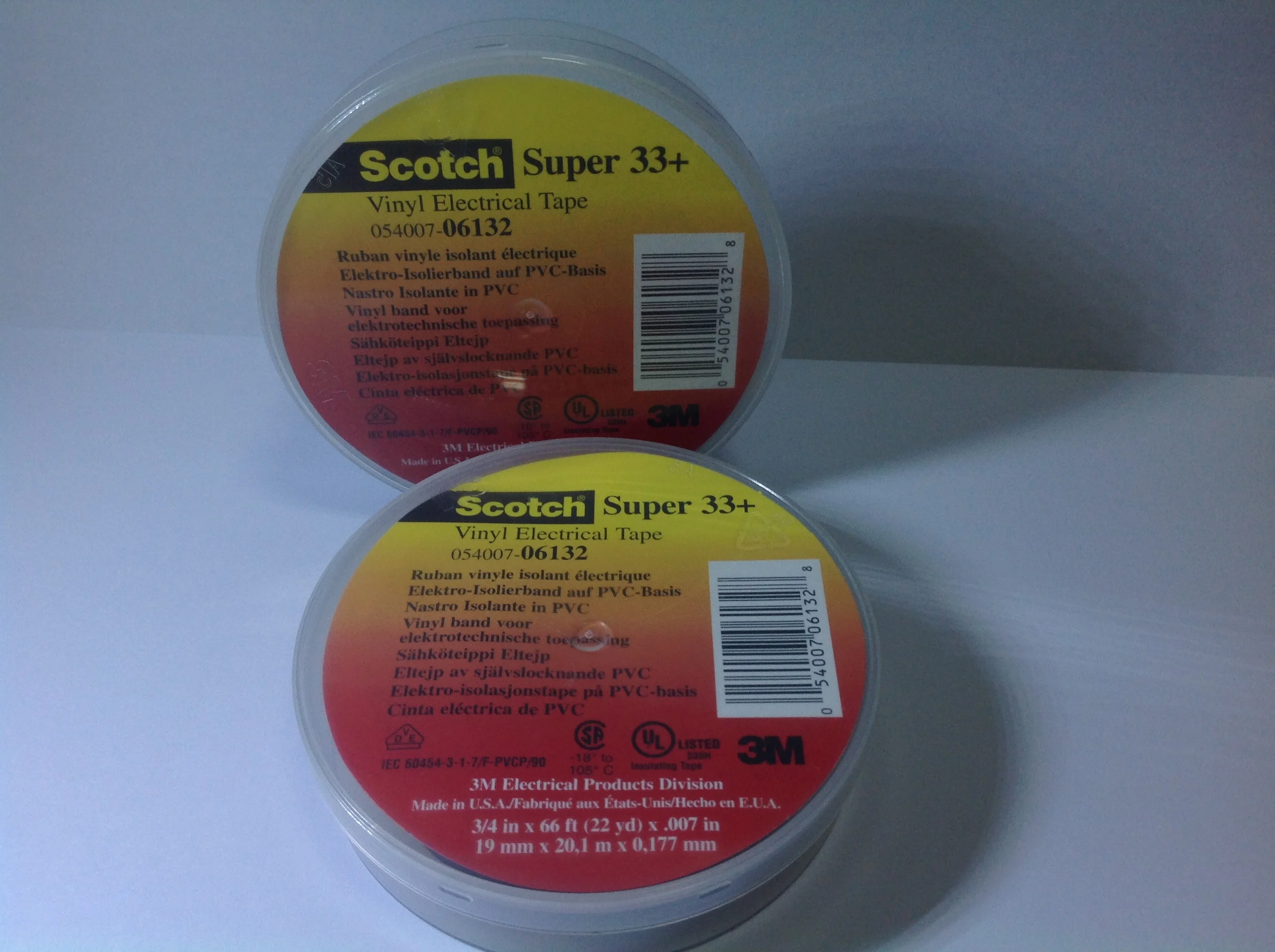

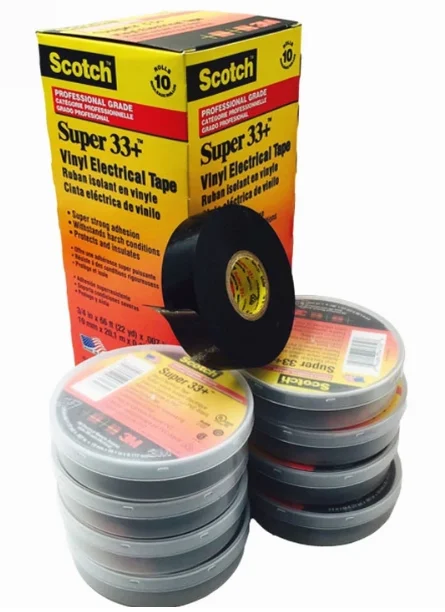

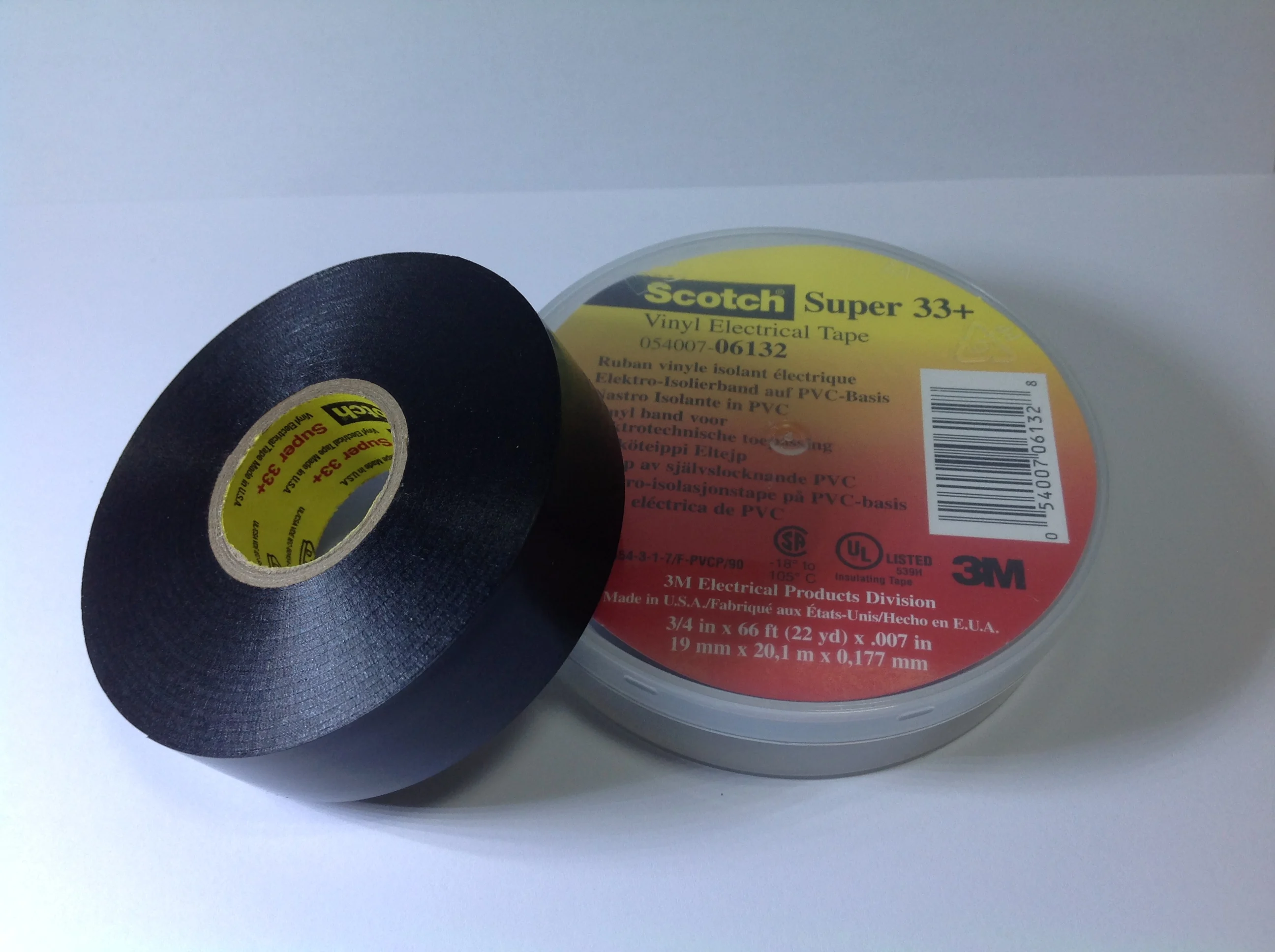

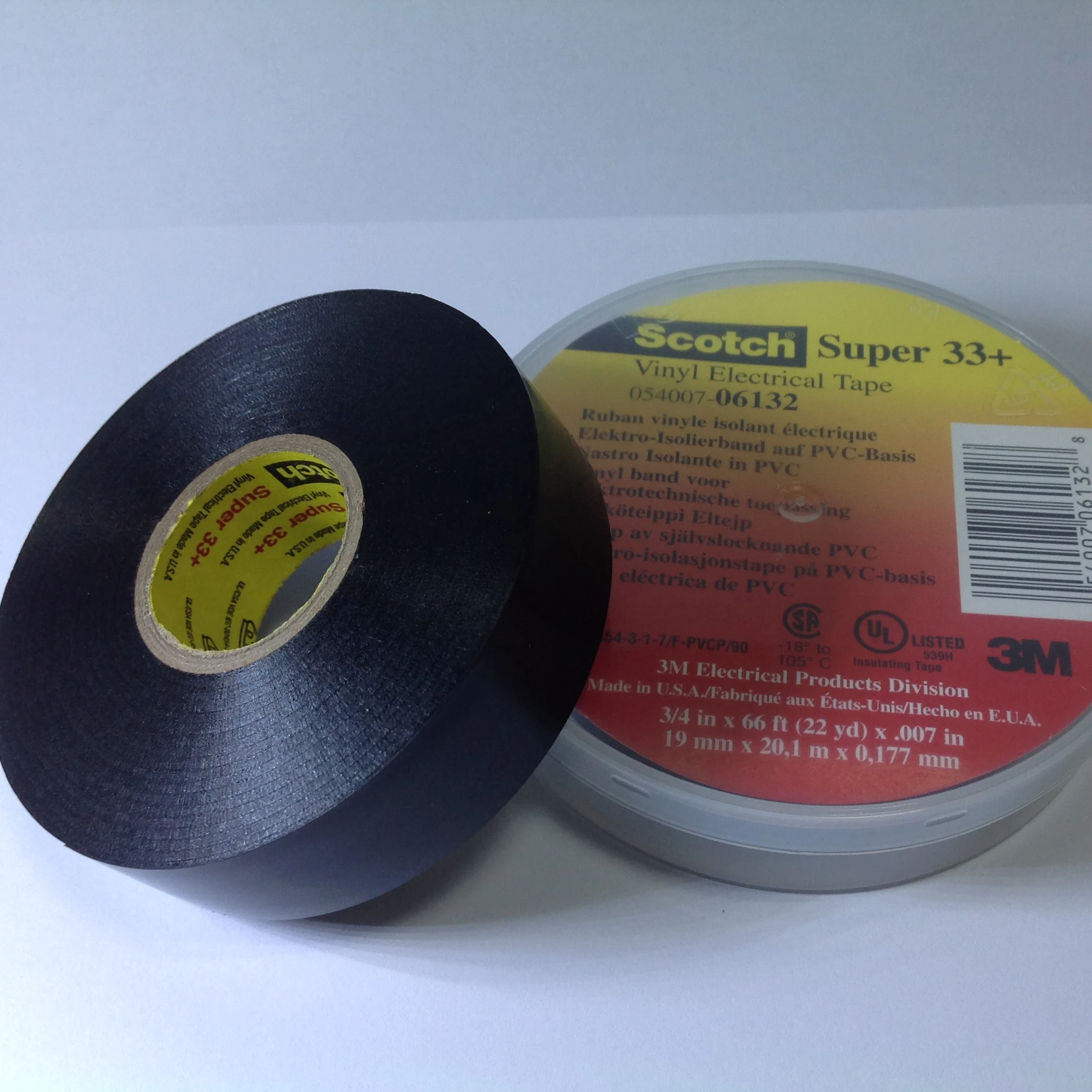

3.Pictures:
4.Company show:
5.Certificate:
6.Contact information online always:
