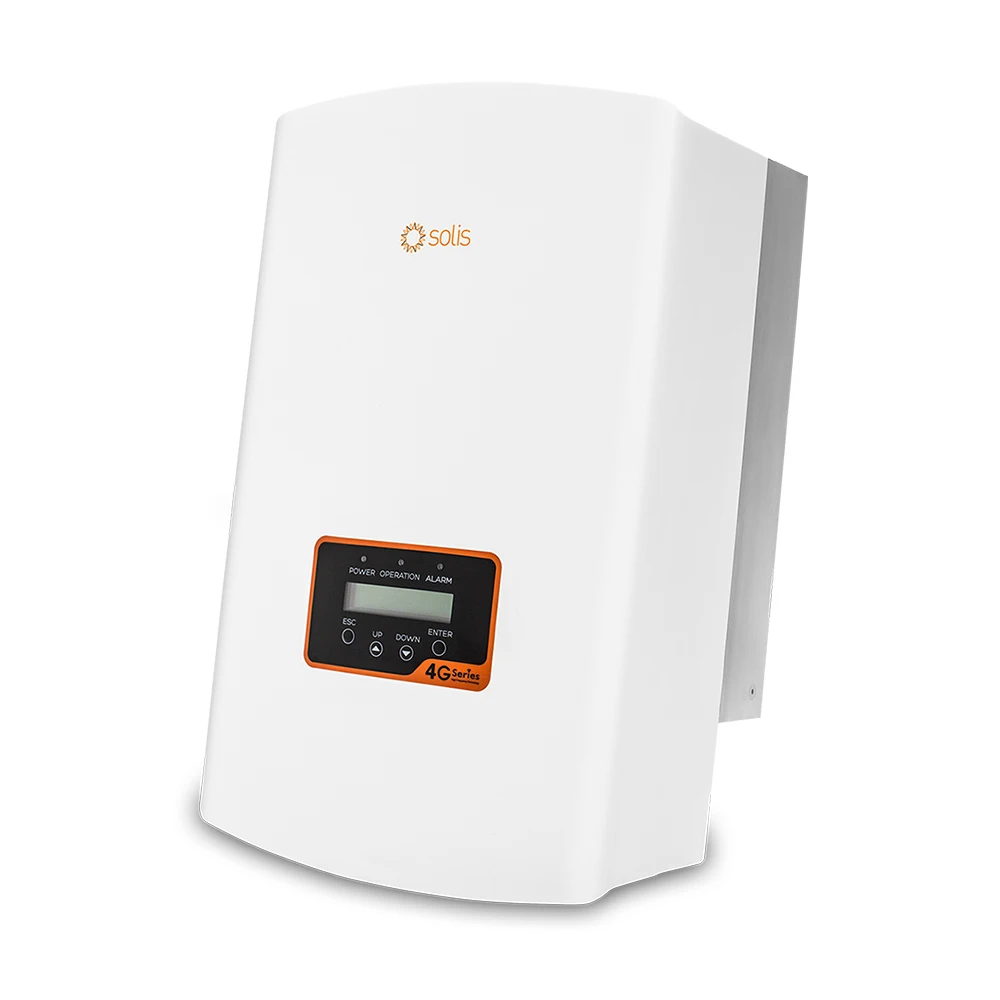

Solis 1P5K 4G Grid Tie Inverter 10Kw Grid Tie Inverter 5000W
Solis-1P5K-4G Grid Tie Inverter 10Kw Grid Tie Inverter 5000W
Solis-1P5K-4G Grid Tie Inverter 10Kw Grid Tie Inverter 5000W
Solis-1P5K-4G Grid Tie Inverter 10Kw Grid Tie Inverter 5000W
Solis-1P5K-4G Grid Tie Inverter 10Kw Grid Tie Inverter 5000W
Solis-1P5K-4G Grid Tie Inverter 10Kw Grid Tie Inverter 5000W
Solis-1P5K-4G Grid Tie Inverter 10Kw Grid Tie Inverter 5000W

Solis 1P5K 4G Grid Tie Inverter 10Kw Grid Tie Inverter 5000W

Share on (62224029893):


Price:RUB 22,669.59 - RUB 90,905.79

Quantity:


Product Overview

Description

Smart Monitoring System
Technical specifications
Model
Solis-1P2.5K-4G
Solis-1P3K-4G
Solis-1P3.6K-4G
Solis-1P4K-4G
Input DC
Max. DC input power(kW):
3
3.5
4.2
4.6
Max. DC input voltage(V):
550
600
600
600
Start-up voltage(V):
60
120
120
120
MPPT voltage range(V):
50-450
90-520
90-520
90-520
Max. input current(A/B):
11A+11A
11A+11A
11A+11A
11A+11A
MPPT number:
2
2
2
2
Max input strings number:
A:1; B:1
A:1; B:1
A:1; B:1
A:1; B:1
Max. Short Circuit current for each MPPT:
17.2A+17.2A
17.2A+17.2A
17.2A+17.2A
17.2A+17.2A
Output AC
Rated output power(kW):
2.5
3
3.6
4
Max. apparent output power(kVA):
2.8
3.3
4
4.4
Max. output power(kW):
2.8
3.3
4
4.4
Rated grid voltage(V):
220/230
220/230
220/230
220/230
Rated grid frequency(Hz):
50/60
50/60
50/60
50/60
Grid frequency range(Hz):
47-52 or 57-62
47-52 or 57-62
47-52 or 57-62
47-52 or 57-62
Operation phase:
Single
Single
Single
Single
Rated grid output current(A):
11.4/10.9
13.6/13
16/15.7
16/15.7
Max. output current(A):
13.3
15.7
16
21
THDi (at rated output power):
<3%
<3%
<3%
<3%
DC injection current(mA):
<0.5%In
<0.5%In
<0.5%In
<0.5%In
Power Factor (at rated output power):
0.8leading ... 0.8lagging
Efficiency
Max.efficiency:
97.8%
97.8%
97.8%
98.1%
EU efficiency:
97.1%
97.1%
97.1%
97.3%
MPPT efficiency:
>99.5%
>99.5%
>99.5%
>99.5%
Protection
DC reverse-polarity protection:
Yes
Yes
Yes
Yes
Short circuit protection:
Yes
Yes
Yes
Yes
Output over current protection:
Yes
Yes
Yes
Yes
Output over voltage protection:
Yes
Yes
Yes
Yes
Insulation resistance monitoring:
Yes
Yes
Yes
Yes
Residual current detection:
Yes
Yes
Yes
Yes
Surge protection:
Yes
Yes
Yes
Yes
Islanding protection:
Yes
Yes
Yes
Yes
Temperature protection:
Yes
Yes
Yes
Yes
Integrated DC switch:
Optional
Optional
Optional
Optional
General Data
Dimensions(mm):
310W*543H*160D (mm)
Weight(kg):
11.5
Topology:
Transformerless
Self consumption (night):
<1W(Night)
Ingress protection:
Ip65
Noise emission(typical):
<20 dBA
Cooling concept:
Natural convection
Max.operation altitude::
4000m
Designed lifetime:
>20years
Relative humidity:
0~100%
Operating ambient temperature range:
-25~60℃
Grid connection standard:
EN50438, G98, G99, AS4777.2:2015, VDE0126-1-1, IEC61727, VDE N4105
Safty/EMC standard:
IEC62109-1/-2, NB/T 32004, EN61000-6-1, EN61000-6-3
IEC62109-1/-2 ,NB/T 32004
IEC62109-1/-2 ,NB/T 32004
IEC62109-1/-2, NB/T 32004, EN61000-6-1, EN61000-6-3
Features
DC connection:
MC4
AC connection:
IP67rated plug
Display:
LCD,2*20 Z.
Communication connections:
4 pins RS485 connector
Monitoring:
WiFi or GPRS
Warranty:
5/10/15/20 Years
Technical specifications
Model
Solis-1P4.6K-4G
Solis-1P5K-4G
Solis-1P6K-4G
Input DC
Max. DC input power(kW):
5.3
5.8
6.6
Max. DC input voltage(V) :
600
600
600
Start-up voltage(V) :
120
120
120
MPPT voltage range(V) :
90-520
90-520
90-520
Max. input current(A/B) :
11A+11A
11A+11A
11A+11A
MPPT number :
2
2
2
Max input strings number :
A:1; B:1
A:1; B:1
A:1; B:1
Max. Short Circuit current for each MPPT :
17.2A+17.2A
17.2A+17.2A
17.2A+17.2A
Output AC
Rated output power(kW):
4.6
5
6
Max. apparent output power(kVA) :
5
5
6
Max. output power(kW) :
5
5
6
Rated grid voltage(V) :
220/230
220/230
220/230
Rated grid frequency(Hz) :
50/60
50/60
50/60
Grid frequency range(Hz) :
47-52 or 57-62
47-52 or 57-62
47-52 or 57-62
Operation phase :
Single
Single
Single
Rated grid output current(A) :
20.9/20
22.7/21.7
27.3
Max. output current(A) :
23.8(21.7 for AUS)
25(21.7for AUS)
27.3
THDi (at rated output power) :
<3%
<3%
<3%
DC injection current(mA) :
<0.5%In
<0.5%In
<0.5%In
Power Factor (at rated output power) :
0.8leading ... 0.8lagging
Efficiency
Max.efficiency:
98.1%
98.1%
98.1%
EU efficiency:
97.3%
97.3%
97.3%
MPPT efficiency :
>99.5%
>99.5%
>99.5%
Protection
DC reverse-polarity protection:
Yes
Yes
Yes
Short circuit protection :
Yes
Yes
Yes
Output over current protection :
Yes
Yes
Yes
Output over voltage protection :
Yes
Yes
Yes
Insulation resistance monitoring :
Yes
Yes
Yes
Residual current detection :
Yes
Yes
Yes
Surge protection :
Yes
Yes
Yes
Islanding protection :
Yes
Yes
Yes
Temperature protection :
Yes
Yes
Yes
Integrated DC switch :
Optional
Yes
Yes
General Data
Dimensions(mm):
310W*543H*160D (mm)
Weight(kg) :
11.5
Topology :
Transformerless
Self consumption (night) :
<1W(Night)
Ingress protection :
Ip65
Noise emission{typical} :
<20 dBA
Cooling concept :
Natural convection
Max.operation altitude :
4000m
Designed lifetime :
>20years
Relative humidity :
0~100%
Operating ambient temperature range :
-25~60℃
Grid connection standard :
EN50438, AS4777.2:2015, VDE0126-1-1, IEC61727, VDE N4105, G98, G99
Safty/EMC standard:
IEC62109-1/-2, NB/T 32004, EN61000-6-1, EN61000-6-3
IEC62109-1/-2, NB/T 32004
Features
DC connection:
MC4
AC connection :
Ip67 rated plug
Display :
LCD,2×20 Z.
Communication connections :
4 pins RS485 connector
Monitoring :
WiFi or GPRS
Warranty :
5/10/15/20 Years
Technical specifications
Model
Solis-1P7K-4G
Solis-1P8K-4G
Solis-1P9K-4G
Solis-1P10K-4G
Input DC
Max. DC input power(kW):
8
9.2
10.8
11.5
Max. DC input voltage(V):
600
600
600
600
Start-up voltage(V):
120
120
120
120
MPPT voltage range(V):
100-500
100-500
100-500
100-500
Max. input current(A/B/C):
10A+10A+10A
10A+10A+10A
10A+10A+10A
10A+10A+10A
MPPT number:
3
3
3
3
Max input strings number:
A:1; B:1; C:1
A:1; B:1; C:1
A:1; B:1; C:1
A:1; B:1; C:1
Max. Short Circuit current for each MPPT:
15.6A+15.6A+15.6A
15.6A+15.6A+15.6A
15.6A+15.6A+15.6A
15.6A+15.6A+15.6A
Output AC
Rated output power(kW):
7
8
9
10
Max. apparent output power(kVA):
7.7
8.8
9.9
10
Max. output power(kW):
7.7
8.8
9.9
10
Rated grid voltage(V):
220/230
220/230
220/230
220/230
Rated grid frequency(Hz):
50/60
50/60
50/60
50/60
Grid frequency range(Hz):
47-52 or 57-62
47-52 or 57-62
47-52 or 57-62
47-52 or 57-62
Operation phase:
Single
Single
Single
Single
Rated grid output current(A):
31.8/30.4
36.4/34.8
40.9/39.1
45.5/43.5
Max. output current(A):
33.7
36.6
41.3
45.9
THDi (at rated output power):
<3%
<3%
<3%
<3%
DC injection current(mA):
<0.5%In
<0.5%In
<0.5%In
<0.5%In
Power Factor (at rated output power):
0.8leading ... 0.8lagging
Efficiency
Max.efficiency:
98.1%
98.1%
98.1%
98.1%
EU efficiency:
97.6%
97.6%
97.6%
97.6%
MPPT efficiency:
>99.5%
>99.5%
>99.5%
>99.5%
Protection
DC reverse-polarity protection:
Yes
Yes
Yes
Yes
Short circuit protection:
Yes
Yes
Yes
Yes
Output over current protection:
Yes
Yes
Yes
Yes
Output over voltage protection:
Yes
Yes
Yes
Yes
Insulation resistance monitoring:
Yes
Yes
Yes
Yes
Residual current detection:
Yes
Yes
Yes
Yes
Surge protection:
Yes
Yes
Yes
Yes
Islanding protection:
Yes
Yes
Yes
Yes
Temperature protection:
Yes
Yes
Yes
Yes
Integrated DC switch:
Optional
Optional
Optional
Optional
General Data
Dimensions(mm):
333W*573H*249D (mm)
Weight(kg):
18
Topology:
Transformerless
Self consumption (night):
<1W(Night)
Ingress protection:
Ip65
Noise emission(typical):
<30 dBA
Cooling concept:
Natural convection
Max.operation altitude::
4000m
Designed lifetime:
>20years
Relative humidity:
0~100%
Operating ambient temperature range:
-25~60℃
Grid connection standard:
EN50438, G98, G99, AS4777.2:2015, VDE0126-1-1, IEC61727, VDE N4105
Safty/EMC standard:
IEC62109-1/-2, NB/T 32004, EN61000-6-1, EN61000-6-3
IEC62109-1/-2 ,NB/T 32004
IEC62109-1/-2 ,NB/T 32004
IEC62109-1/-2, NB/T 32004, EN61000-6-1, EN61000-6-3
Features
DC connection:
MC4
AC connection:
IP67rated plug
Display:
LCD,2*20 Z.
Communication connections:
4 pins RS485 connector
Monitoring:
WiFi or GPRS
Warranty:
5/10/15/20 Years

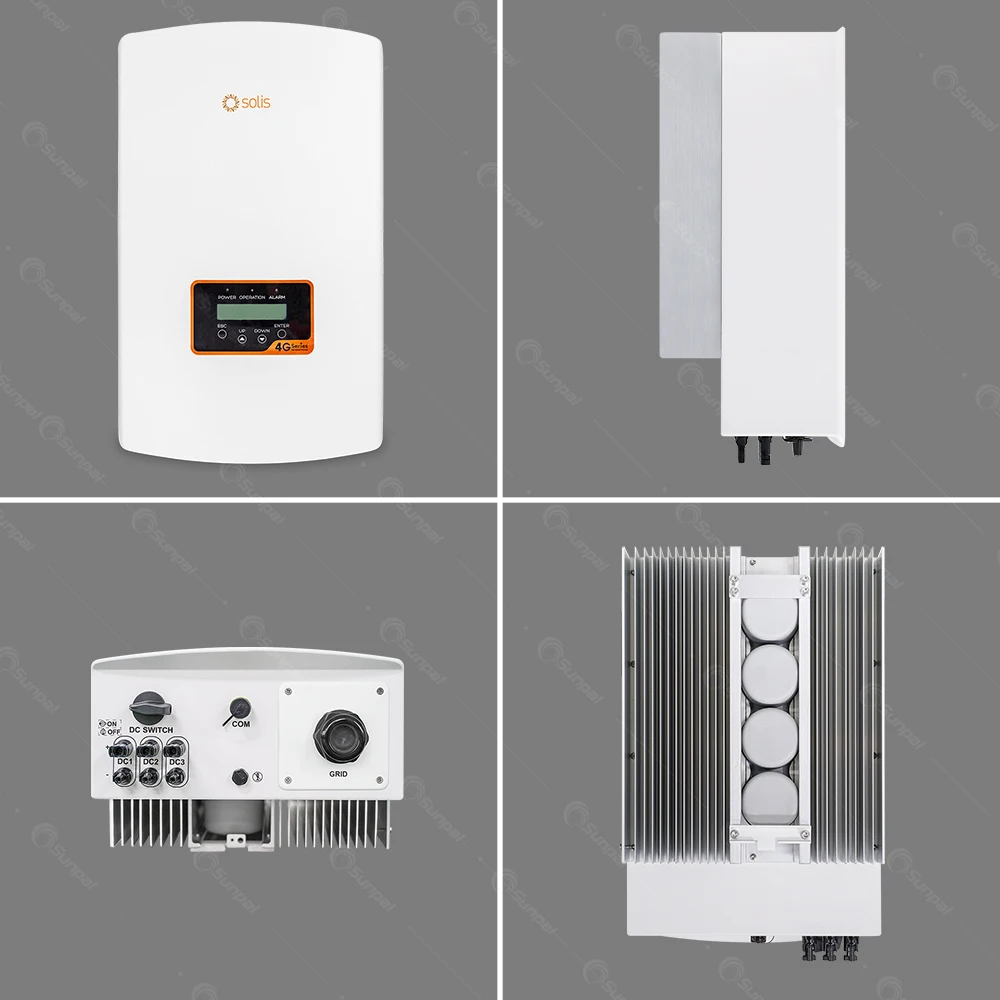

Details Images & Packing

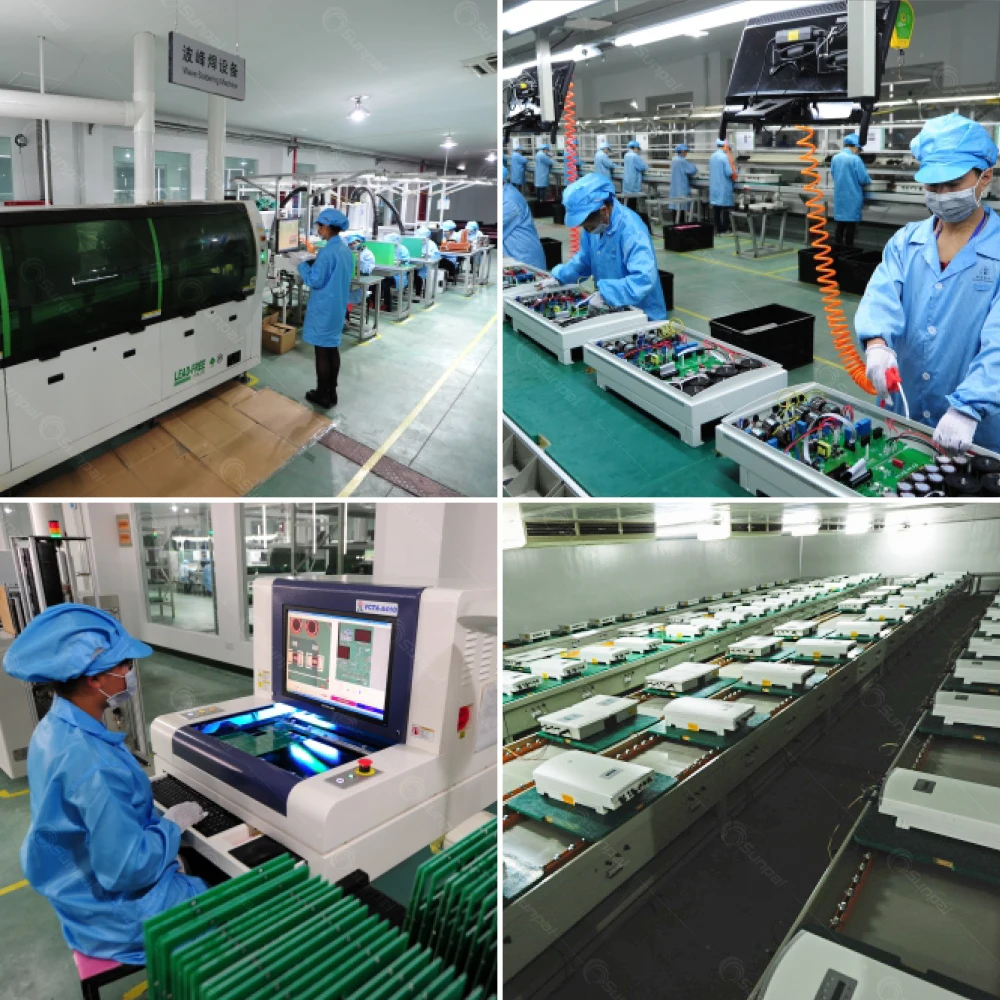

Our Factory

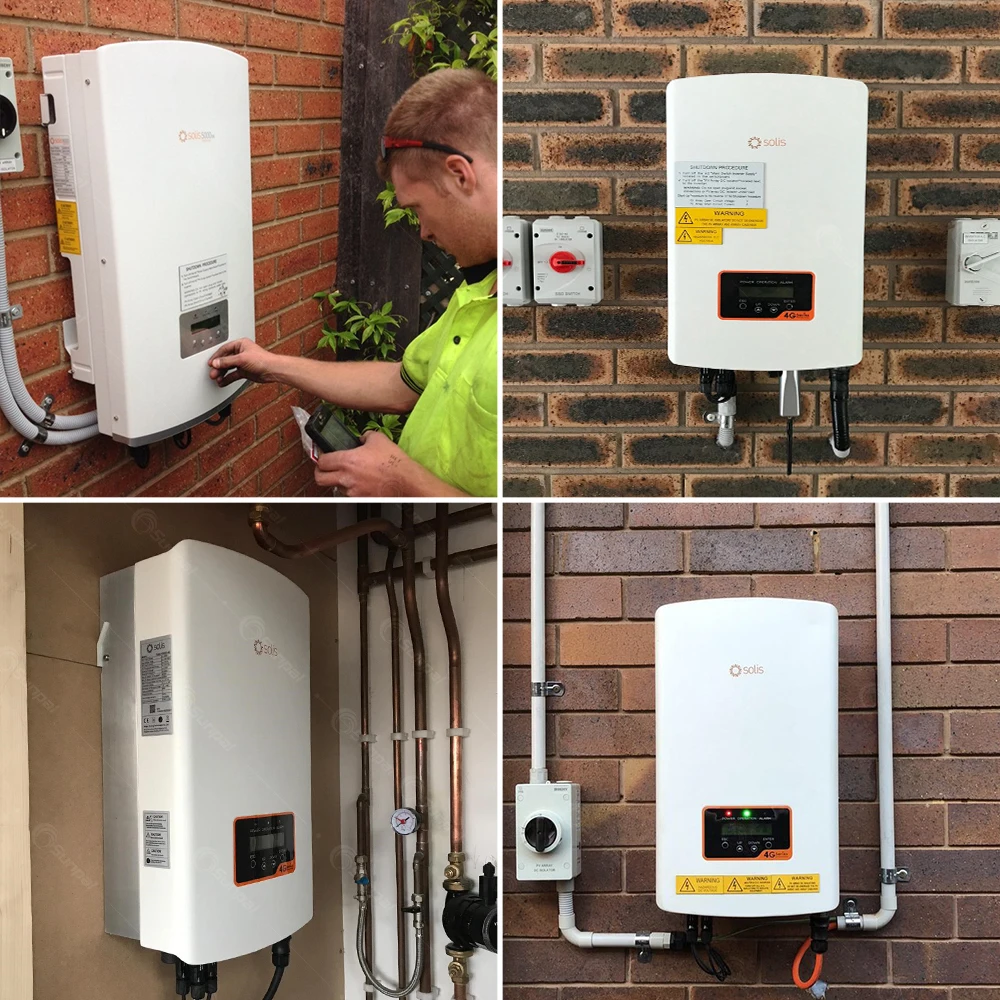

Our Projects

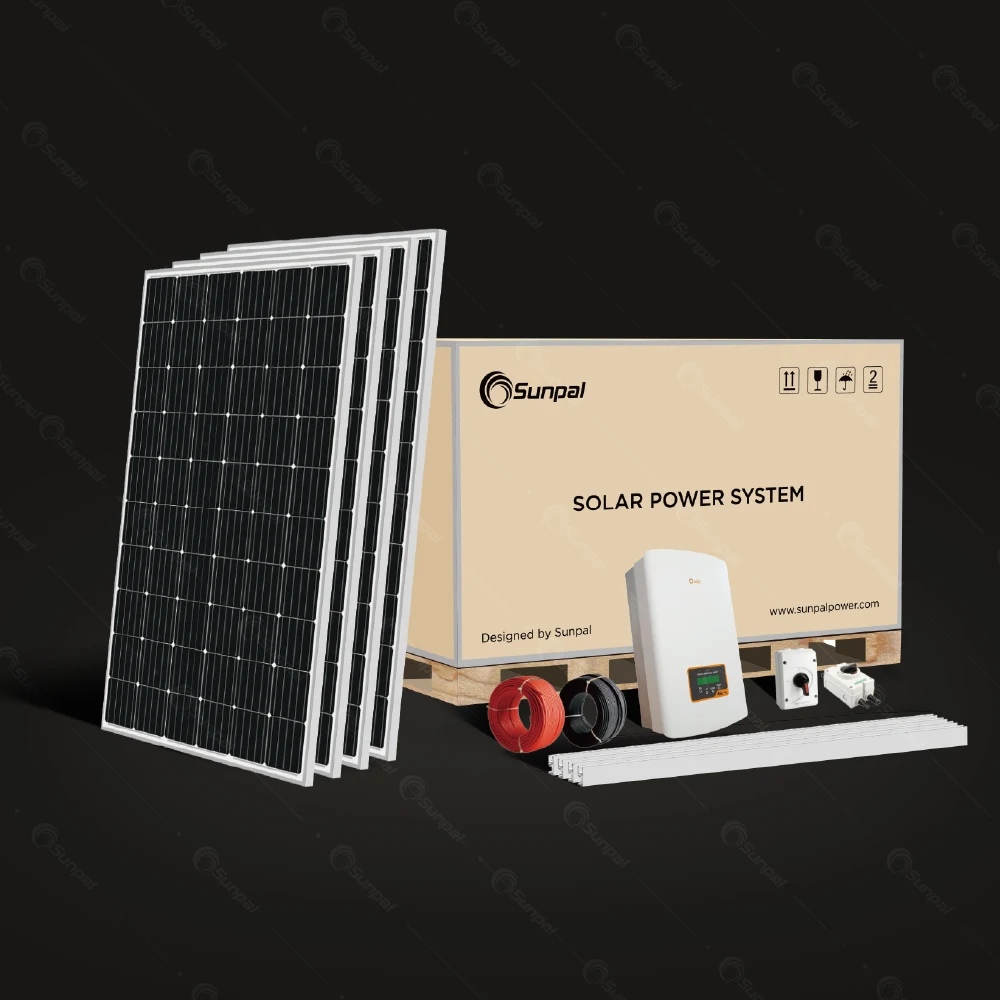

Request Complete System
