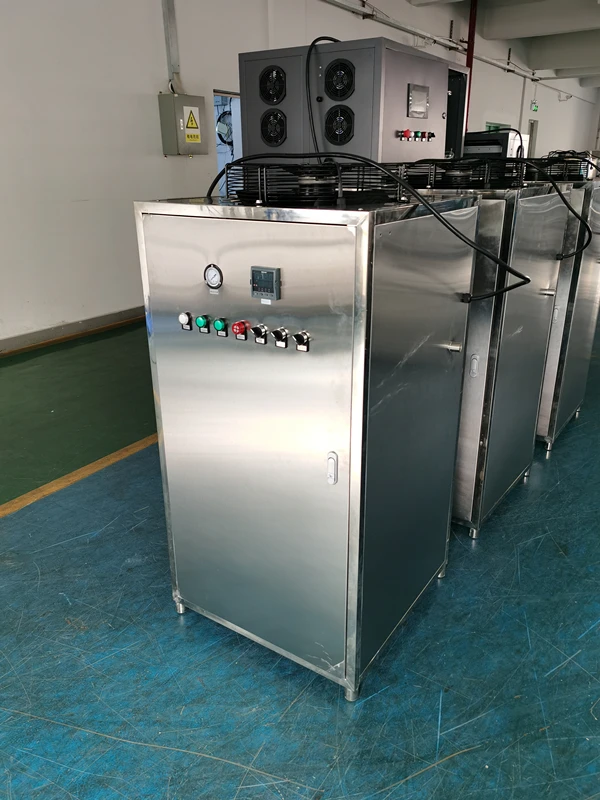

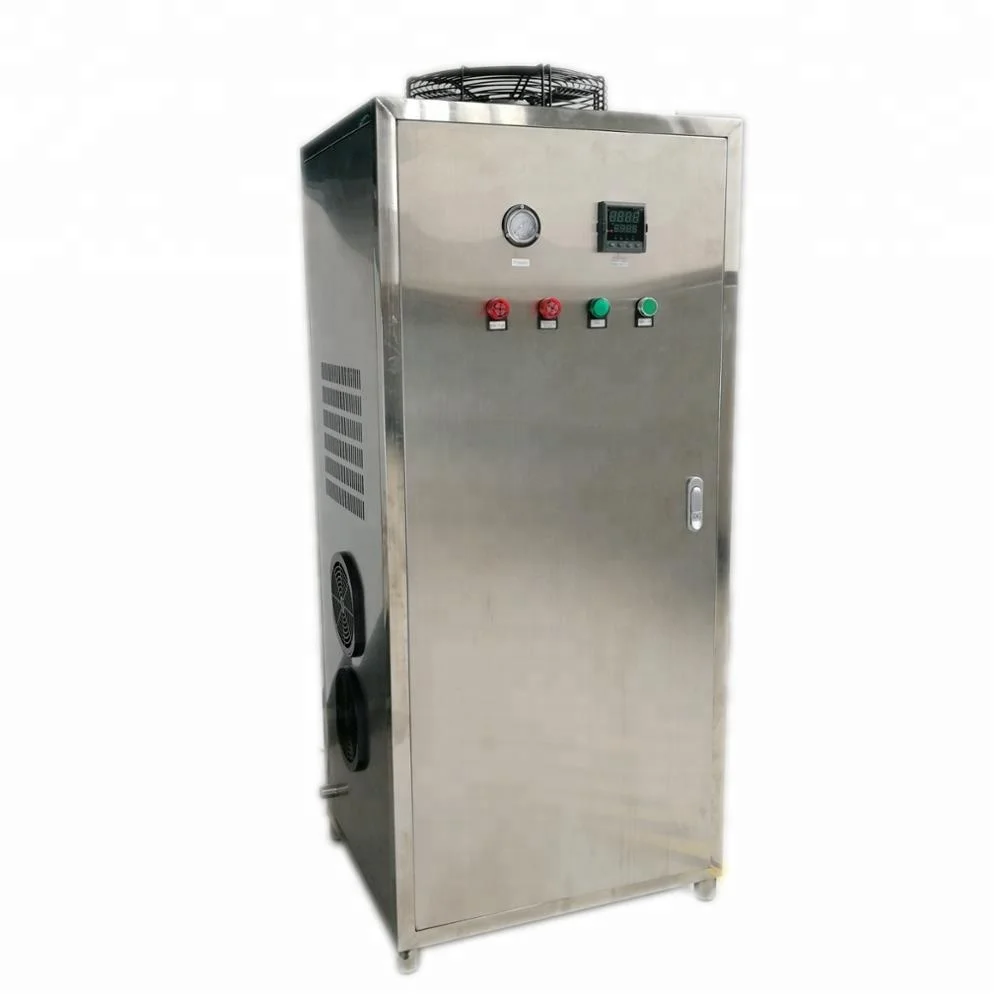

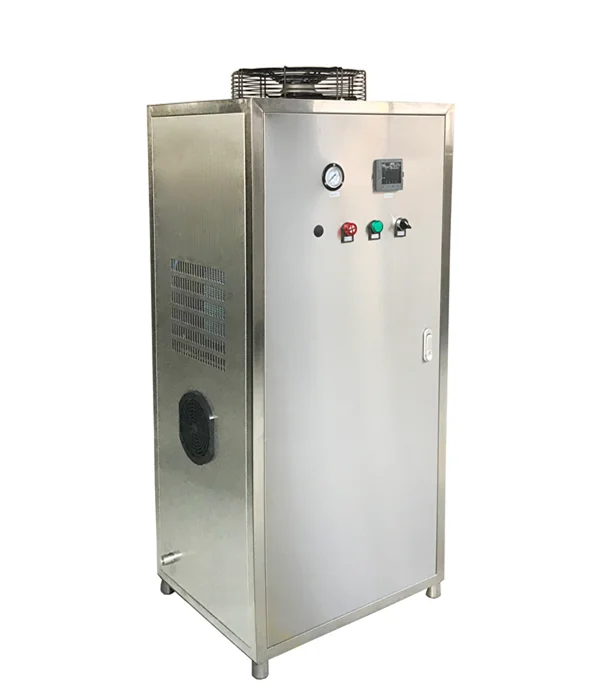

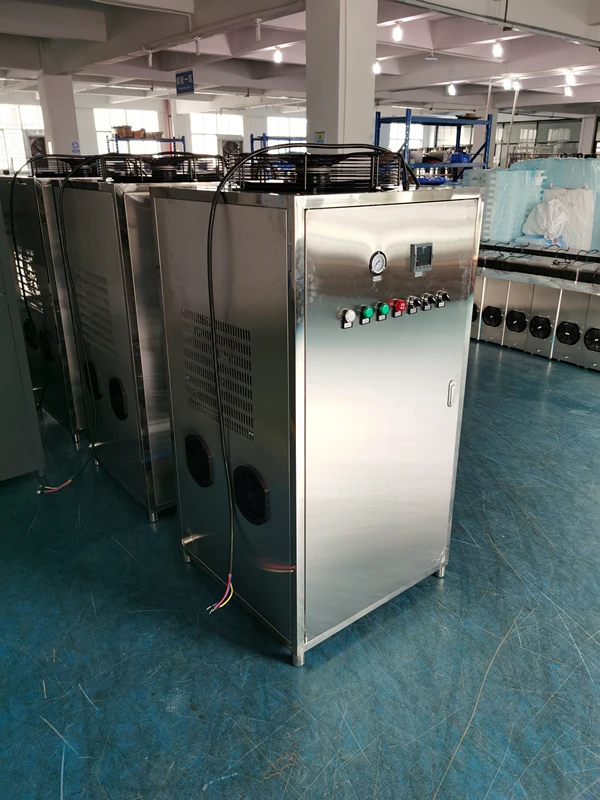

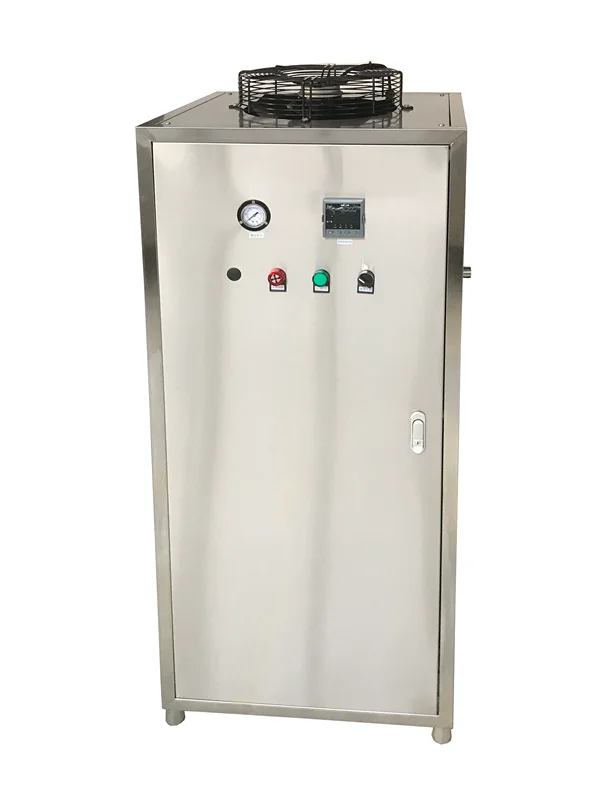

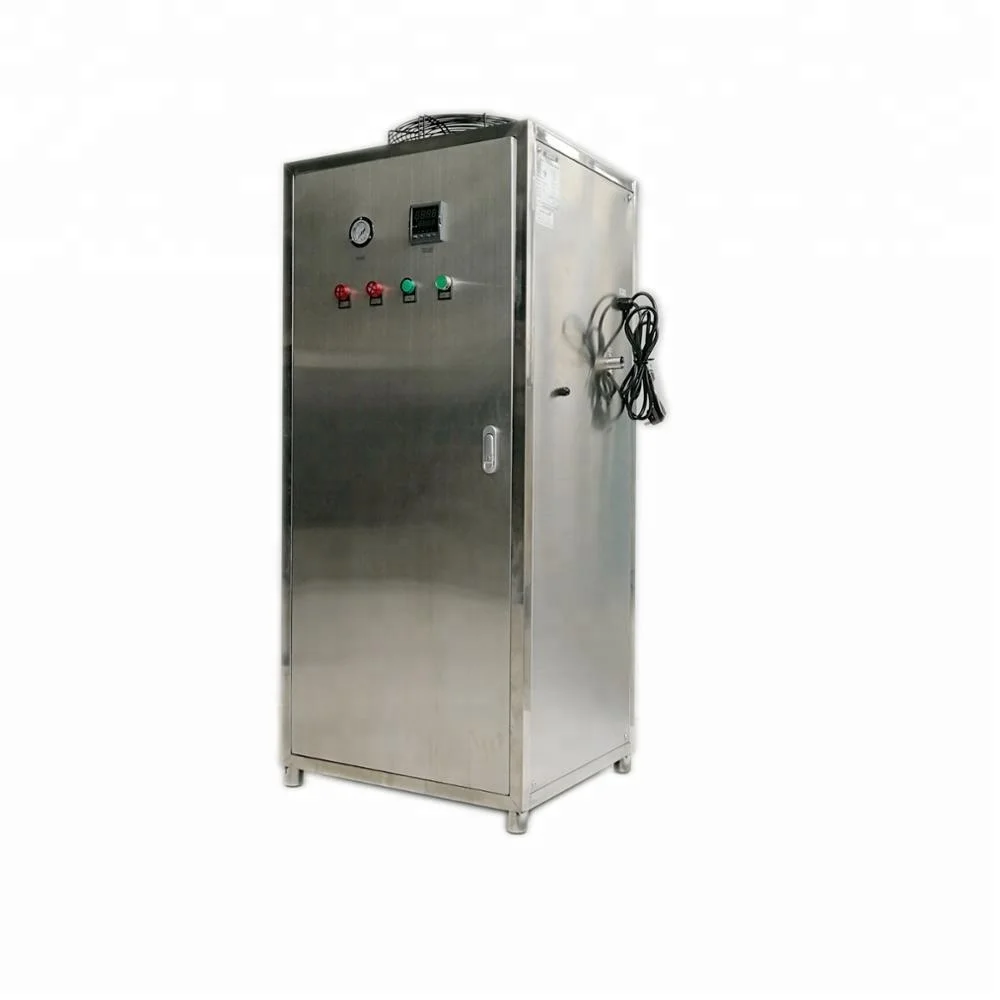

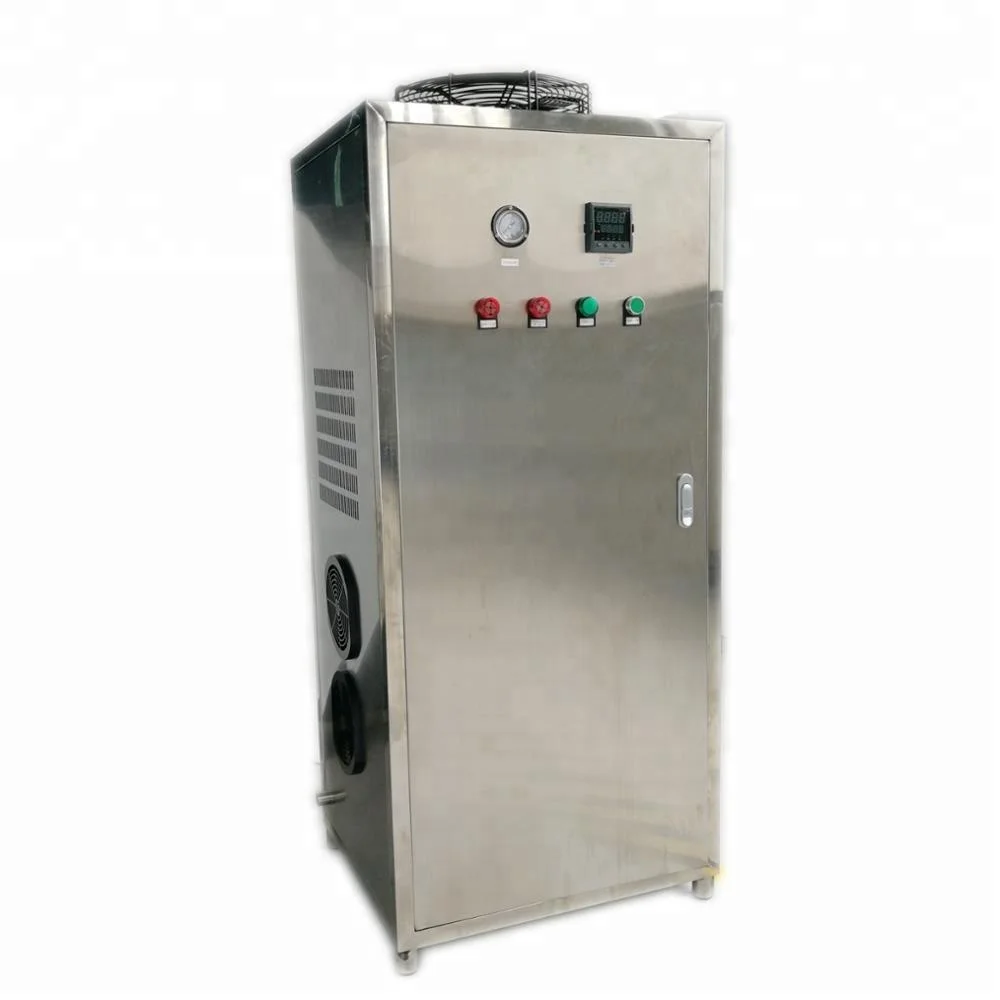

BNP DH-1500B DH-3000B DH-6000B DH-9000B series air compressor
BNP DH-1500B DH-3000B DH-6000B DH-9000B series air compressor
The product utilize high quality, high flow swinging piston compressor as power source, providing stable oil-free air source which avoids contaminated oil getting into human body, or damaging the machine. The components are all of high quality, and the complete air compressor is designed to match the oxygen generator: high air flow, low noise level, dry and clean gas source, stable operation and automatic control. When the internal pressure of the air cylinder reach the lower limit or upper limit, the air compressor will start or shutdown automatically. The product is suitable for the air source of oxygen generator or air feed ozone generator.
The output gas is oil-free,dry and clean.It can be used in food,pharmeceutical,medical etc.Low noise level.Automatic output pressure control.Automatic water drainage control.Containing freezing dryer inside.
Model Item | DH-3000B | DH-6000B | DH-9000B |
Exhaust gas capability | 0.2Nm3/min | 0.4Nm3/min | 0.6Nm3/min |
Exhaust gas pressure | <0.4Mpa | ||
Exhaust gas temperature | <35℃ | ||
Power supply | 220V/50Hz | 220V/50Hz | 3*380V/50Hz |
Power | 2.2KW | 3.5KW | 4.5KW |
Outlet size | 1/2“inner thread | ||
Auto-drainage outlet size | 1/2“inner thread | ||
Ambient temperature | <37℃ | ||
Ambient humidity | <70% | ||
Connection cable size(mm2) | 3*1.0 | 3*2.5 | 5*1.5 |
Dimension(mm) | 580*500*1300 | 680*680*1300 | 600*900*1300 |
Net weight(kg) | 65 | 108 | 122 |
BNP DH-1500B DH-3000B DH-6000B DH-9000B series air compressor
