Alsafe high pressure mri COMPATIBLE cylinder D size medical oxygen cylinder

Product Overview

Description

Product Name: Aluminum medical oxygen cylinder Manufacturer: Liaoning Alsafe Technology Co., Ltd. Specification: ML6 Standard: ISO7866 or DOT 3AL Certificate: CE, TS Third party Inspectors: TUV, CSEI, SGS Filling content: oxygen for aluminum medical portable oxygen cylinder Color: green head or customed Outside surface treatment:  Transparent painting Thread: 3/4-16UNF Valve: CGA870, CGA870-1, CGA870-2 Form A, Form E avaliable. Ideal choice of aluminum medical portable oxygen cylinder Features: ·Made by aluminum 6061; ·40% lighter than steel portable oxygen cylinders; ·No magnetism; ·High corrosion resist and special inner surface treatment, ensure medical oxygen clean and smelless, ideal for medical oxygen storage; ·Stable performance; ·Widely used in hospitals, rescue stations, home oxygen therapy, etc.  ·Choice of worldwide top brands and enterprises.













Model↓Item→			Water Capacity		Outside Diameter		Length		Weight		Working Pressure
			Lts / Cu in		mm / in		mm / in		kg / lbs		bar / psi
M2			0.3	0.6	63.5	2.5	145	5.7	0.3	0.6	153	2216
M4			0.7	1.5	81.5	3.2	221	8.7	0.7	1.5	153	2216
M6			1	2.3	81.5	3.2	300	11.8	1	2.3	153	2216
ML6			1.2	2.5	111	4.4	198	7.8	1.3	2.9	139	2015
ML7			1.4	3	111	4.4	231	9.1	1.5	3.2	139	2015
M9			1.7	3.8	111	4.4	277	10.9	1.7	3.7	139	2015
MD			2.9	6.4	111	4.4	424	16.7	2.4	5.4	139	2015
M22			3.9	8.5	133	5.2	414	16.3	3.7	8	153	2216
ME			4.6	10.2	111	4.4	645	25.4	3.6	7.8	139	2015
M60			10.5	23.2	184	7.25	582	22.9	10.1	22.3	153	2216
M90			15.7	34.7	184	7.25	828	32.6	13.7	30.3	153	2216
M122			21.4	47.1	203.2	8	919	36.2	17.9	39.5	153	2216
M150			28.9	63.7	203.2	8	1194	47	22.1	48.8	139	2015



Note: The specifications above are popularly used in medical oxygen storage as per DOT standard. However, if you need other size or specifications, please visit Alsafe aluminum cylinders overall collection (volume limitation from 0.5L~50L) or contact us directly. We always offer friendly service and knowledgeable advice.

Medical portable oxygen cylinder | Medical portable oxygen cylinder |Medical portable oxygen cylinder |Medical portable oxygen cylinder |Medical portable oxygen cylinder |Medical portable oxygen cylinder |portable oxygen cylinder |portable oxygen cylinder | portable oxygen cylinder |portable oxygen cylinder| oxygen cylinder | oxygen cylinder | oxygen cylinder

Quality & safety



1. Liaoning Alsafe Technology Co., Ltd. has esteablished the quality guarantee system according to the Requirements for Boiler and Pressure Vessel Manufacturing Licencsing of China and abtained the certificate issued by General Administration of Quality Supervision, Inspection and Quarantine of the P.R.C (AQSIQ), qualified to manufacture B1 and B3 grade pressure vessels.

 portable oxygen cylinder

2. Each new type of oxygen cylinders before mass production has to pass type tests held in qualified laboratories approved by third party inspector (TUV, CSEI for example), including bend test, drop test, hydrostatic test, etc. according to relevant standards.

 portable oxygen cylinder

3. Every batch of cylinders (200 pieces as one batch normally) are manufactured and tested under supervision of local special equipment inspection and research institute and then issued batch test report.

 portable oxygen cylinder

4. Each finished cylinder before delivery to customers has to pass leakage test to ensure no leakage occurs.

 portable oxygen cylinder

5. Alsafe are honored to supply quality products to worldwide top brands and enterprises, and sets long term and stable cooperation due to quality products, friendly service and knowledgeable advice, which help us to gain good reputation among home and overseas customers.

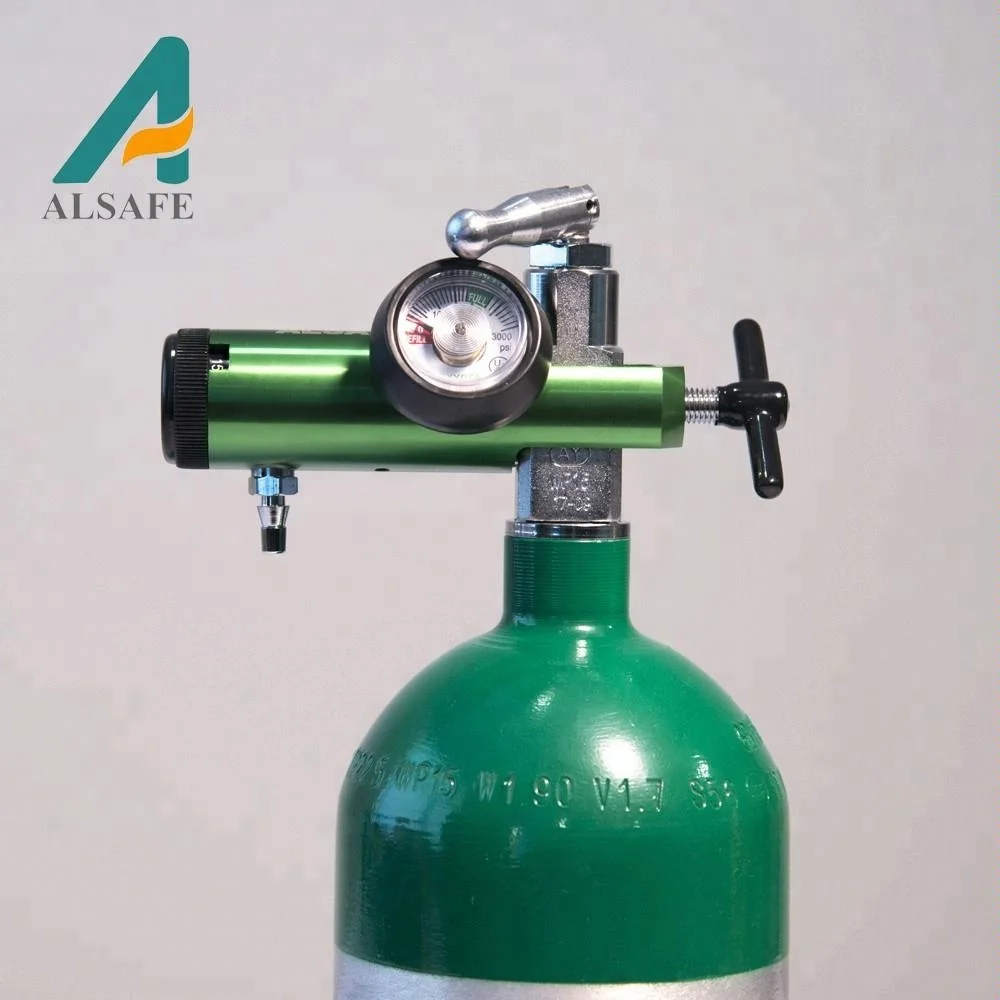

Valves and regulators are supplied together with aluminum medical portable oxygen cylinders if needed. We offer free assembling and free leakage testing to assure safety.   Product name: CGA standard cylinder valve Type: CGA870 Matrial: Brass Medium : O2 Certificate: CE,API Nominal working pressure: 2015psi DN mm: 1.6 Inlet thread:3/4-16UNF Outlet thread: Post type Safety device temperature or pressure: 3360psi & 165 °F Frame modality: Axial connection type













All of our products have been strictly inspected before shipment. CE/DOT/TUV/MSDS/ISO9001 certification, our products have attained, and they're based on ISO7866 or DOT 3AL.
