FJL 400A PS/PET/PVC AutomaticPlastic Lids Thermoforming Machine
- Category: >>>
- Supplier: Zhengjiang Fuxinlong Packaging Machinery Co. Ltd
Share on (62224377755):
Product Overview
Description
FJL-400A PS/PET/PVC High Quality Plastic Lids Forming Machine,Thermoforming Machine
Product Description
Major Construction Features
1, The achievement of GMP/QS double standard p clean production, improve product
hygiene and safety, meanwhile,resolve cross-contamination.
2, Roll Film Loading, Forming, Hole Punching, Transmitting, Roll Film Winding Six-Station Synchronous Production. Manipulator Feeder, Compact Structure & Stable
Performance, Easy Operations.
3, Journey is Adjustable, easy to change mold, suitable for different specifications.
4, The operation is controlled by PLC with PC Circult Control Board for Touch Screen
Note: Special specification and configuration of products can be designed according to customers’ demand.
| Model | FJL-400A |
| Used Material | HIPS,PS,PVC,PET, and ETC |
| Cutting Frequency | 8-32times/min |
| Travel Range | 50-160mm |
| Max.Forming Depth | 35mm |
| Max.Forming Area | 400X160mm |
| Mould Cooling | Tap Water of Circulating Water 60L/S |
| Total Power | 4.6kw |
| Air Consumptions | >0.3M/Min |
| Air pressure | 0.6-0.8Mpa |
| Overall Dimensions | 2700 x 830 x 1450mm |
| Weight(kg) | 800kg |

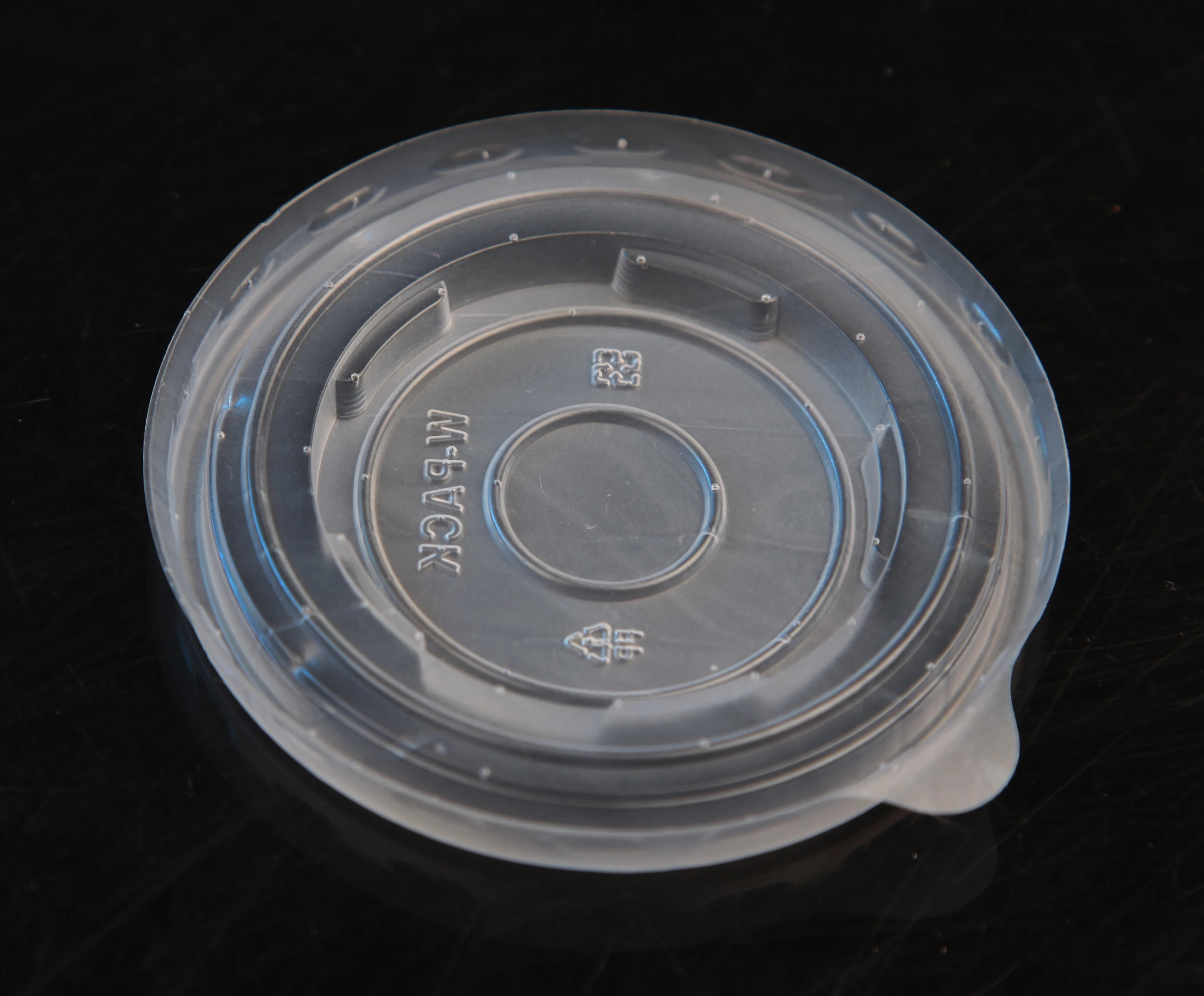

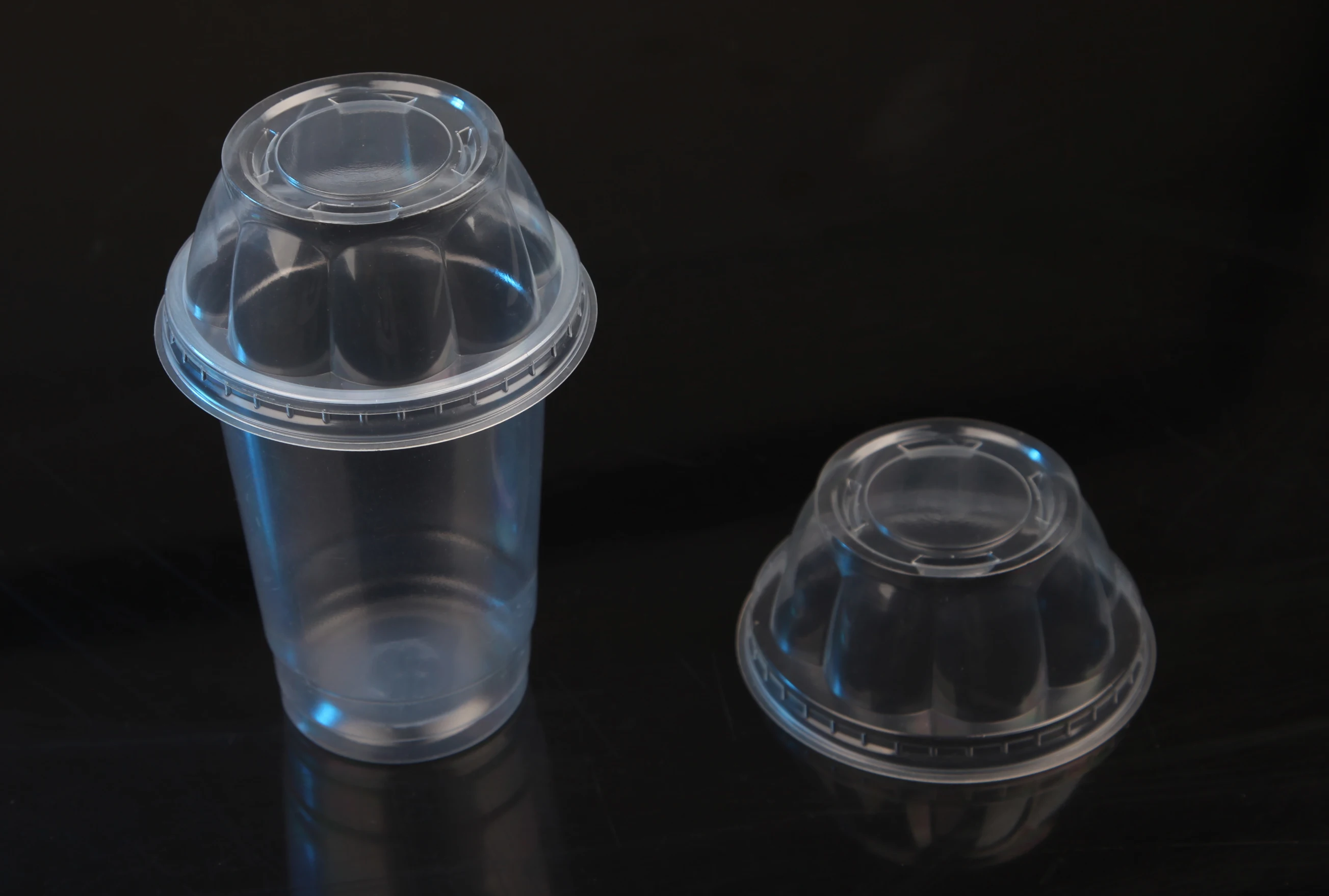

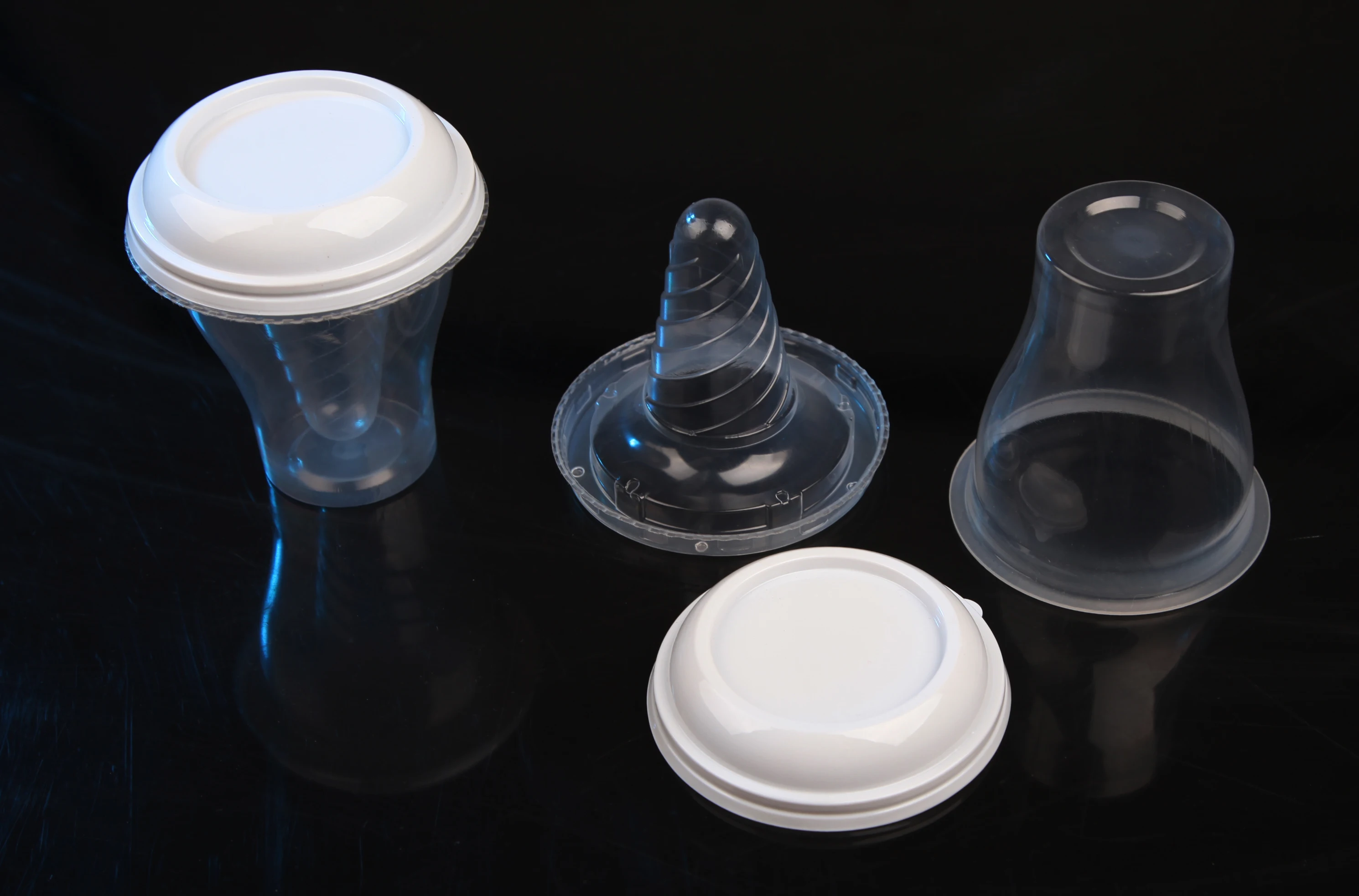

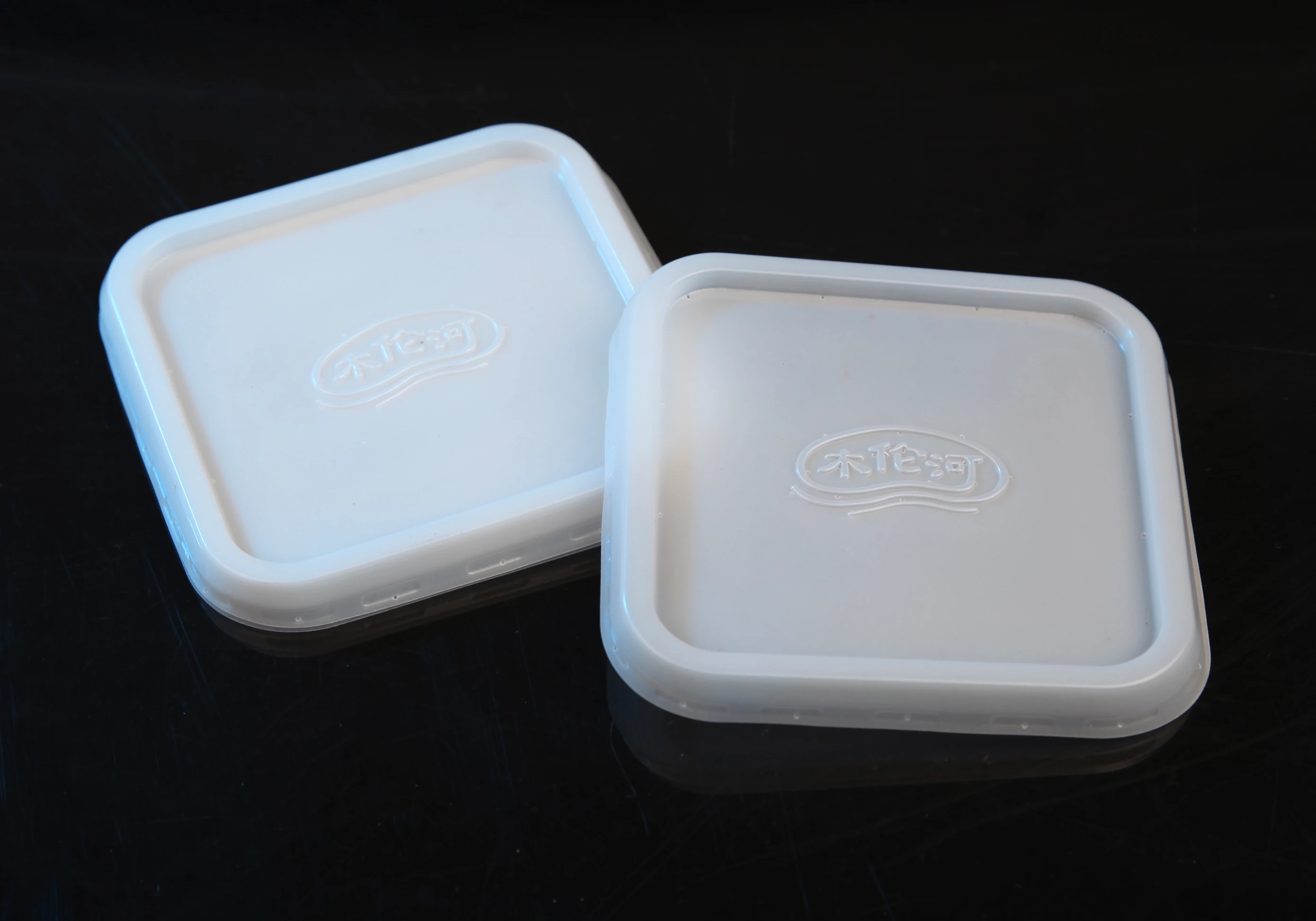

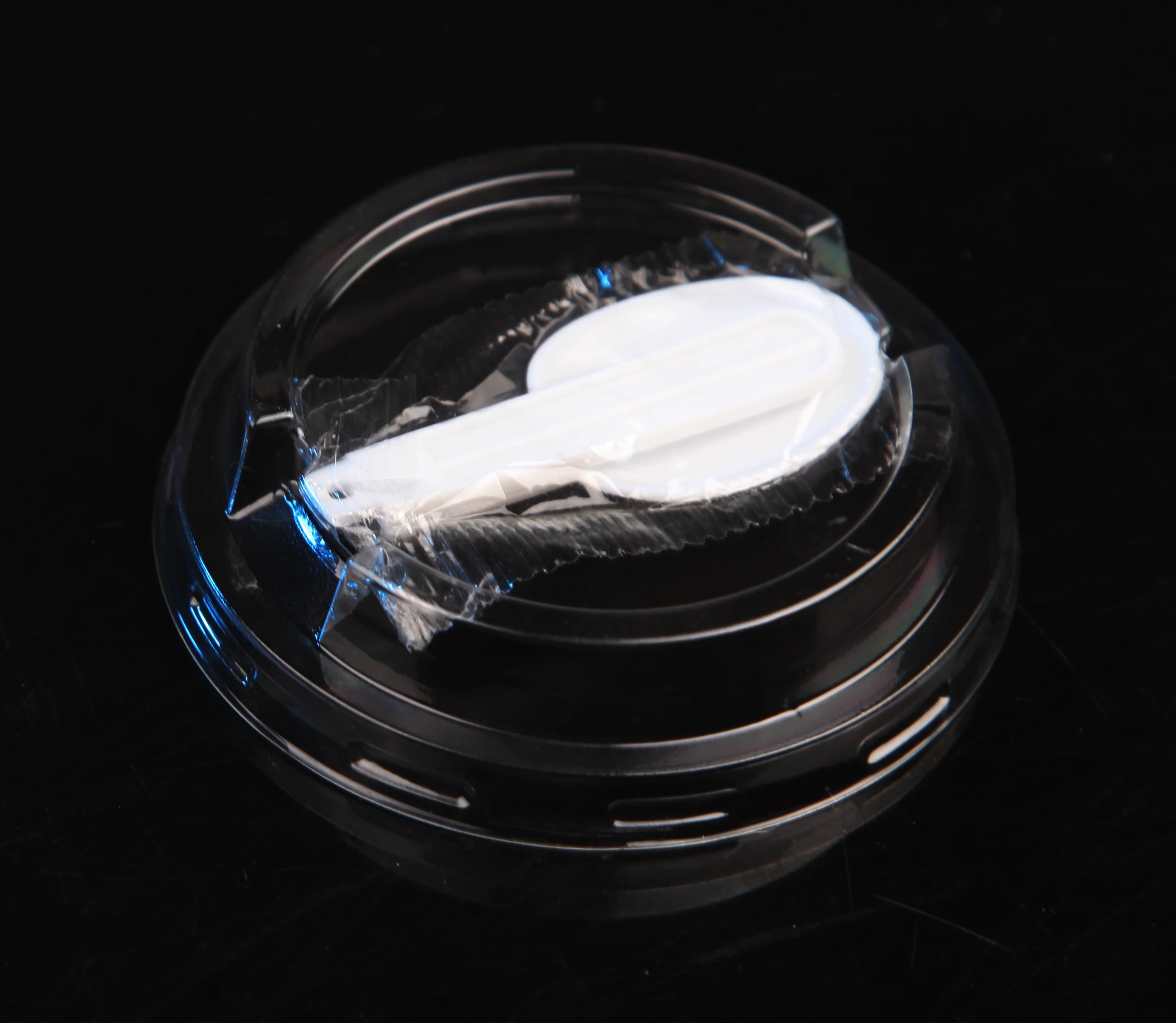

Samples as below:
Some machine pictures:
