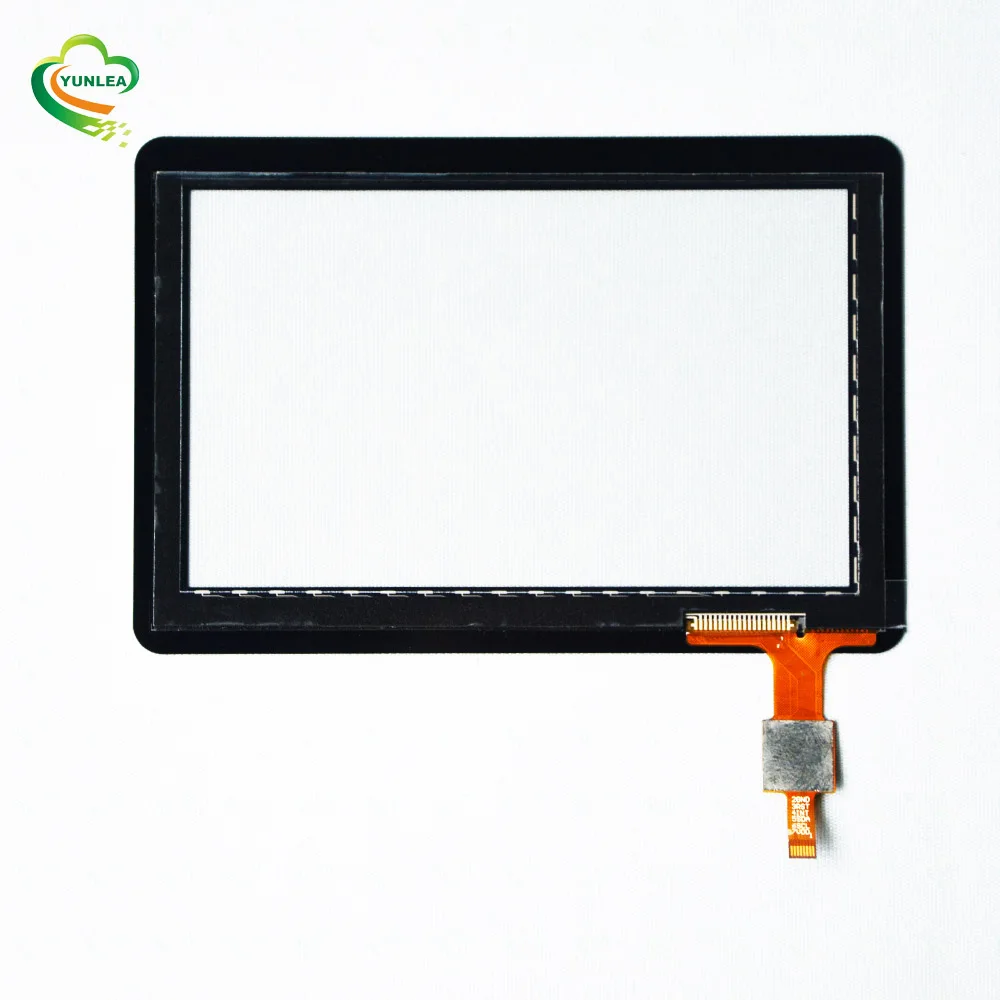

PCAP touch screen lcd 5 inch capacitive touch screen panel
- Category: Touch Screen Monitors >>>
- Supplier: Shenzhen,Yunlea,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
You can choose:
1. 3.5 to 65 inch standard touch screen panel,
2. 1.4 to 10.1 inch touch display,
3. custom available:Size/shape/logo/transparency hole/real hole/silk-printing color/Anti glare/Anti fingerprint/Anti reflective/touch with water/gloves touch
Product Description
| Type | 5''Capacitive touch screen | Structure | G+G |
| Lens OD | 127.00x85.80mm | Surface Hardness | 6H |
| Sensor OD | 120.70x75.80mm | Transparency | 86%min |
| Window VA | 109.00x65.80mm | Interface of CTP | USB/I2C/RS232 |
| Cover Glass Thickness | 0.70mm | Touch Points | 5points |
| Sensor Thickness | 0.55mm | Storage Temp | -30 to 80 degree |
| Total Thickness | 1.43mm | Operating Temp | -20 to 70 degree |
| Touch Controller | FT5436 | Touch Solution | COF |
| Silk-print Color | Black | Customized | Available |
| Supported Os | Windows, Linux, Android, Mac, QNX | ||
| MOQ | 1 piece | Trade Terms | EXW or FOB |
| Warranty | 12 months | Lead Time | Samples in stocks,2~4 weeks for mass production |
| Payment | 100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production | ||

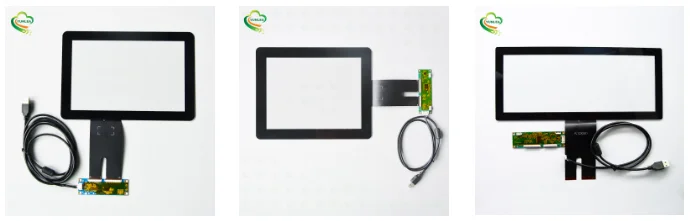

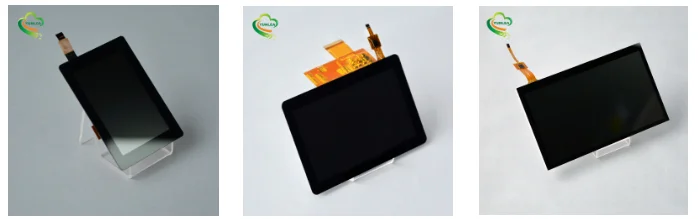

In addition to the 5 inch touch screen,we have the standard products as below,please skim them,hope you find what you want.
Hot Selling Products
click3.5 inch touch display 5 inch touch display 7 inch touch display
10.1 inch touch screen 10.4 inch touch screen 12.3 inch touch screen
15 inch touch screen 15.6 inch touch screen 27 inch touch screen
Product Catalog
| Size | Part No. | Sensor OD | Sensor (T) | Lens OD | Cover glass(T) | Window VA | Touchcontroller | |
| 3.5 | YL035CY03 | 82.34X56.86 | 0.4 | 94.94X66.86 | 0.7 | 74.94X50.36 | Mstar 2133A | click |
| 4.3 | S82327H | 103.10x85.40 | 0.7 | 114x77 | 0.7 | 96.04x53.86 | FT5346 | click |
| 5 | YL050CY01 | 120.7X75.8 | 0.55 | 127X85.80 | 0.7 | 109x65.8 | FT5436 | click |
| 7 | YL070CY01 | 159.70X94.10 | 0.55 | 164.90X100 | 0.7 | 154.08X85.92 | FT5436 | click |
| 8.4 | 8333084V01 | 182X140.2 | 0.7 | 207X166 | 1.1 | 170.4x127.8 | EETI/ILITEK | click |
| 10.1 | 8154101V02 | 239.6x158.20 | 0.7 | 254.96x172.6 | 1.1 | 217.96X136.6 | EETI/ILITEK | click |
| PET+Glass | 248.1x151.5 | 1.1 | 257x159.5 | 0.25 | GT928 | click | ||
| 10.4 | 8334104V01 | 233.4X177.9 | 0.7 | 259.10X206.3 | 1.1 | 213.1X160.3 | EETI/ILITEK | click |
| 12.1 | 8335121V01 | 259.6X201.1 | 0.7 | 293X237 | 1.1 | 246X184.5 | EETI/ILITEK | click |
| 12.3 | 8424G123 | 306x127.5 | 0.7 | 322x139.5 | 1.1 | 292.03x109.51 | EXC80H83 | click |
| 13.3 | 1338500V03 | 310.52x183.57 | 0.7 | 330.92x215.89 | 1.1 | 294.92x166.46 | ILITEK | click |
| 15 | 8001150V03 | 319X244 | 0.7 | 339.9X263.9 | 3 | 304X228 | ILITEK | click |
| 8278150V02 | 329X245 | 0.7 | 339.9X263.9 | 3 | 304X228 | EETI/ILITEK | click | |
| 15.6 | 8002150V03 | 358X210 | 1.1 | 387X231 | 3 | 344X194 | ILITEK | click |
| 8156156V01 | 362X222 | 0.7 | 387X231 | 1.1 | 344X194 | EETI/ILITEK | click | |
| 1568825 | 360.9x212.2 | 0.55 | 379x225 | 3 | 343.8x192.5 | ILITEK | click | |
| 17 | 8003170V03 | 356.92x290.34 | 0.7 | 377x309 | 3 | 338.92x271.34 | ILITEK | click |
| 8273170V02 | 366.58X299 | 0.7 | 377X309 | 3 | 338.92X271.34 | EETI/ILITEK | click | |
| 17.3 | 8562173V01 | 399.7x235.9 | 0.7 | 402x239 | 1.1 | 383X216 | EETI | click |
| 18.5 | 8005185V03 | 429.8X249.9 | 0.7 | 458X283 | 3 | 410.8X231.4 | ILITEK | click |
| 8163185V01 | 430.8X261.4 | 0.7 | 440.8X271.4 | 1.1 | 410.80X231.4 | EETI/ILITEK | click | |
| 19 | 8006190V03 | 395.32x321.06 | 0.7 | 421X346 | 3 | 377.32X302.06 | ILITEK | click |
| 19.5 | 8007195V02 | 450.5X259.76 | 1.1 | 473.5X281.26 | 3 | 433.5X241.26 | ILITEK | click |
| 21.5 | 8888215V01 | 496.42X287.43 | 0.7 | 524X321.8 | 3 | 477.6X269.10 | ILITEK | click |
| 8160215V02 | 500X297.65 | 0.7 | 524X321.8 | 1.8 | 477.6X269.10 | EETI/ILITEK | click | |
| 23.6 | 9001236V01 | 543.84x316 | 0.7 | 537X349 | 3 | 523.3x295.2 | ILITEK | click |
| 23.8 | 9002238V01 | 544.03x315.5 | 1.1 | 573x349 | 3 | 525.5X297 | ILITEK | click |
| 27 | 8014270V02 | 618X355.7 | 1.1 | 646X384 | 3 | 598X336 | ILITEK | click |
| 8245270v01 | 619x362 | 1.1 | 646x384 | 3 | 598X336 | EETI/ILITEK | click | |
| 32 | 8016320V02 | 719.7X414.3 | 1.1 | 746.7X441.3 | 3 | 698.7X393.3 | ILITEK | click |
| 8246320V01 | 720.7X420.3 | 1.1 | 746.7X441.3 | 3 | 698.7X393.3 | EETI/ILITEK | click | |
| 43 | 8018430V02 | 973X561.5 | 1.1 | 994.2X587.3 | 4 | 943.2X531.4 | ILITEK | click |
| 55 | 8021550V01 | 1254.6X716.417 | 1.8 | 1287.6X758.4 | 4 | 1209.6X680.4 | ITLITEK |
Customized Solution
We have standard 3.5-55 inch Touch screen.And if our standard one can't fit with your project.We are welcome you to customized own touch screen,we have rich professional customization experience.So if you have any demand ,pls don't hesitate to contact with me.
We can according to your demand to customized cover glass's shape,size,logo,silk-printing color and so on.Also can do touch screen touch with water and touch with gloves.if you are interested in it,please click on the video to watch.
Company Information
Shenzhen Yunlea Electronics Co., Ltd.
YUNLEA is is a leading designer and manufacturer of Capacitive Touch Panel, And we have rich experiences in medical & industrial & home automation& products supply.
Our strength lies in understanding the special needs of clients, to provide the most suitable products and professional technical supports.
We have:
- 1. About 5000 m2 factory area
- 2. 10+ yrs experience in producing touch screen.
- 3. Cost-effective touch solution
- 4. Fast delivery of 2-4 weeks for mass production
- 5. From 1.44'' to 55'' PCAP touch screen with up to 10 points
- 6. Individual customization of size, style, logo print, AG, AR, AF
- 7. Optical bonding of TFT and touch panel by OCA
- 8. Touch with water/glove
- 9. Individual cover glass design
If you come to China, welcome to visit our factory. We will show you how touch screen is made.
Package&Feedback
FAQ
1. What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5. What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.

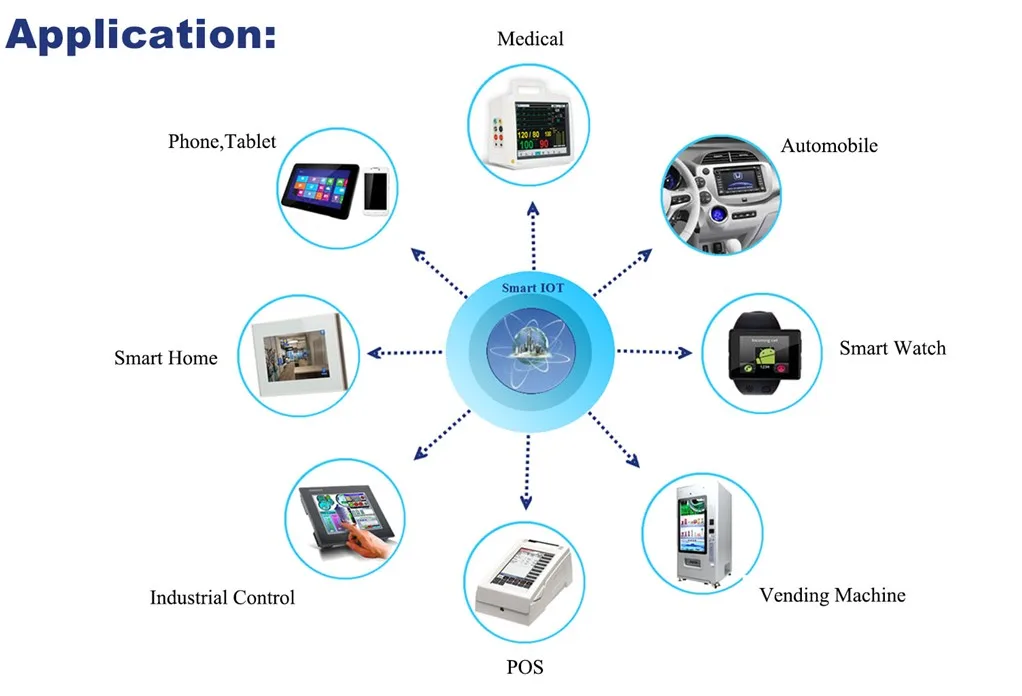

6. What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
