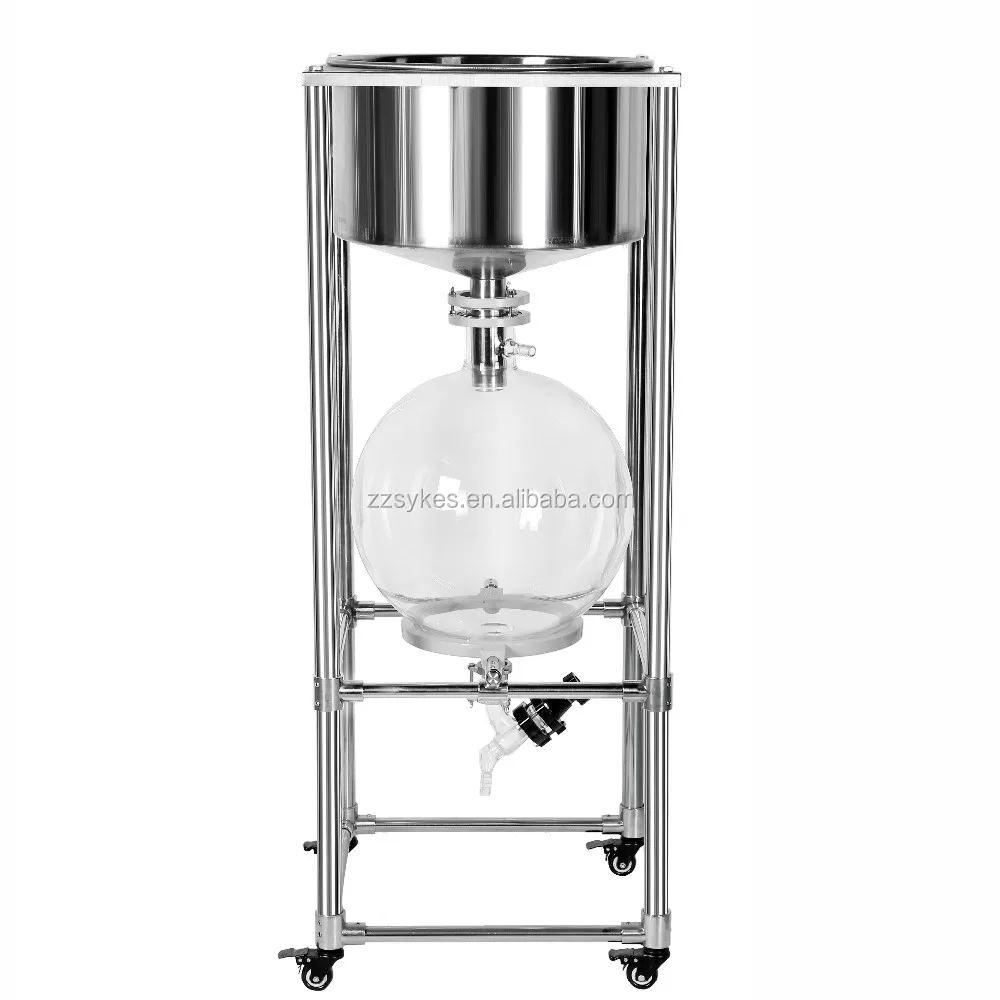

Vacuum suction filter is also know as vacuum filter, according to the actual needs of the majority of bio pharmaceutical development companies, it is the derivative product on the basis of the existing single-layer glass reactor, mainly used for solid-liquid separation products. It can also be used for reaction at room temperature. With superior performance, it received consistent favourable comment from experts and professor of Chinese Academy of Sciences and the users of new drug research and development. It acquires wide use at present .
Technical Data
Product
Vacuum Filter
Model
VF-10
VF-20
VF-30
VF-50
Funnel capacity
10L
20L
30L
50L
Funnel type
Buchner funnel
Buchner funnel
Buchner funnel
Buchner funnel
Filter bottle capacity
10L
20L
30L
50L
Filter bottle type
Spherical
Spherical
Spherical
Spherical
Glass part material
High borosilicate glass 3.3
High borosilicate glass 3.3
High borosilicate glass 3.3
High borosilicate glass 3.3
Filter bottle inlet( mm )
95
95
95
95
Filter bottle outlet( mm )
50
50
50
50
Size of filter bottle ( mm )
297
370
404
460
Funnel size( mm )
300 x 200
350 x 220
350 x 220
500 x 250
Sealing type
Silicone gasket sealing
Silicone gasket sealing
Silicone gasket sealing
Silicone gasket sealing
Dimension of complete machine ( mm )
400 x 400 x 1200
500 x 500 x 1300
500 x 500 x 1400
600 x 600 x 1500
Main Features
1. The 3.3 high borosilicate glass suction flask has excellent chemical and physical properties
2. Stainless steel buchner funnel has excellent physical and chemical properties.
3. PTFE Zero dead space draining valve can be disassembled. It is convenient to remove the solid materials.
4. The whole machine has perfect sealing performance, under static state negative pressure can reach 0.095MPa.
5. The structure of the whole machine is scientific, visual features, practical and innovative.
6. Equipped with lockable casters.

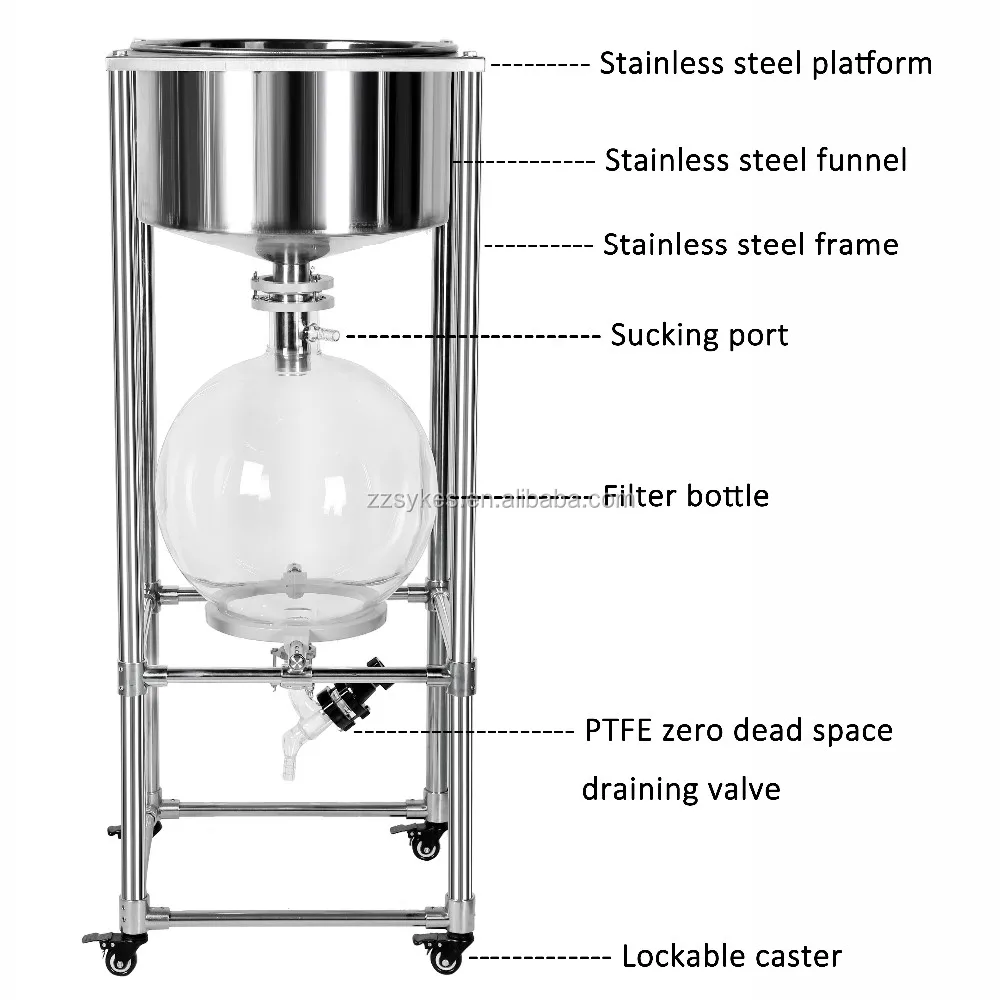

Configuration
Certifications
Detailed Images

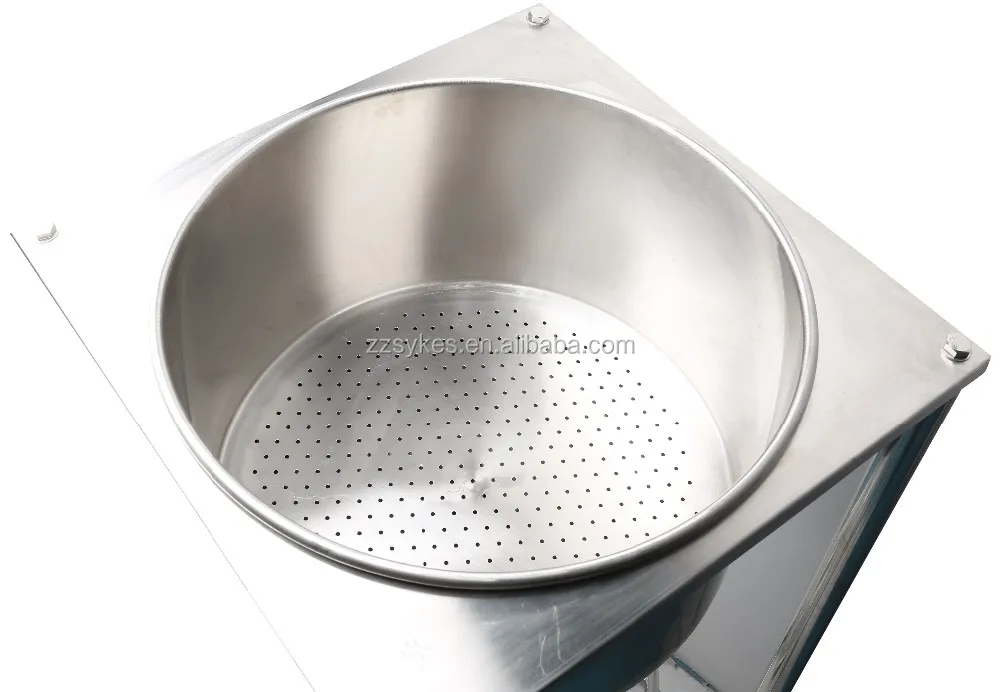

Stainless steel funnel
Stainless steel frame
.
Sucking port
High borosilicate glass 3.3 filter bottle
Draining valve
Corollary Equipment
Anti-corrosive PTFE Water Circulating Vacuum Pump SHZ-IIIG
Spray Paint Teflon Water Circulating Vacuum Pump SHB-B95T
