Mining Stone Industry Ceramic Industry Membrane Filter Press Plate
US $20.00-$80.00
Фильтрующий пресс для пищевой промышленности кокосового масла
- Category: Filter Press Equipment >>>
- Supplier: Yuzhou Dazhang Filter Equipment Co. Ltd.
Share on (62224608115):
Product Overview
Description
Products Description

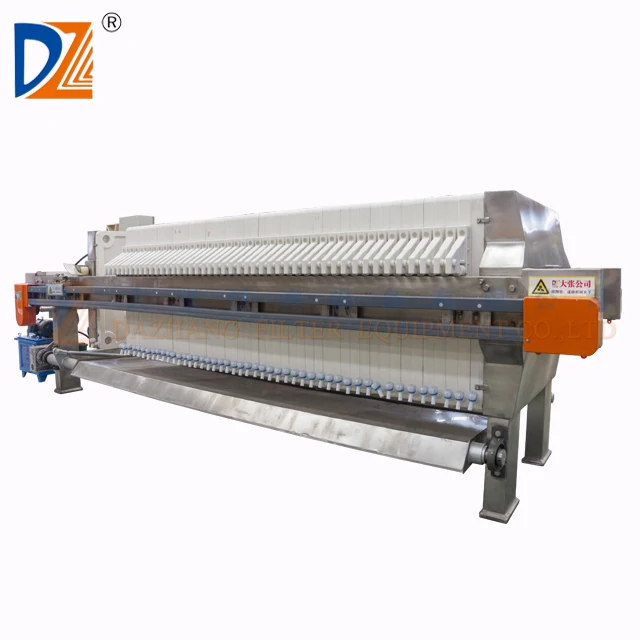

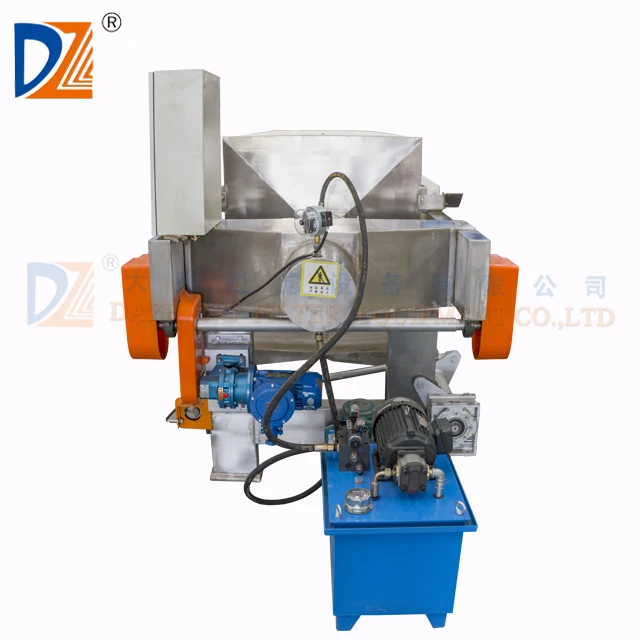

Filter Press for Food Industry of Coconut Oil
Structure and operating principle
1.Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
2.Frame consists of base , push plate and girder and supports the pressing device and filter plates .
3.Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.

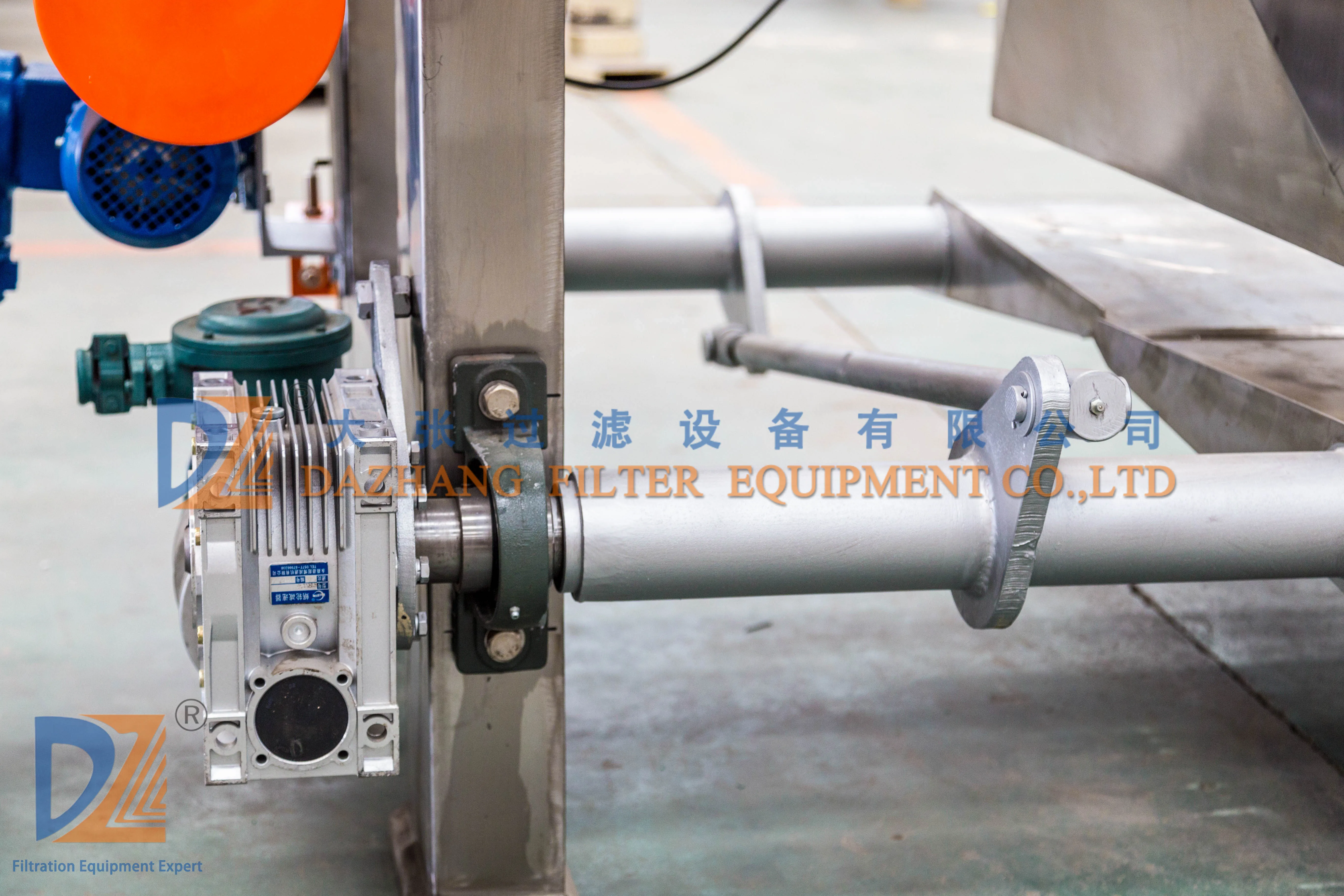

4.In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter
cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The
filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while
liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced
through the washing port .
5.Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that
consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
6.Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the
filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter
plate is collected before being discharged out of the filtrate port .
1.Filter press consist of frame ,filter plate ,pressing system(manual , mechanical or hydraulic ) and electric control cabinet .
2.Frame consists of base , push plate and girder and supports the pressing device and filter plates .
3.Filter plates are installed on girder between tail plate and push plate , with filter cloth sandwiched in them.
4.In operation , the pressing device(cylinder piston rod or screw ) drives the push plate to press the filter plates and filter
cloth between push plate and tail plate . Filter chambers are formed between pressed filter plates and material get in to The
filter chambers through the feeding port in tail plate . Solid particles are trapped in filter chambers form into cakes , while
liquid is discharged out of the tail Plate . In similar manner ,to drying the press cakes , compressed air can be introduced
through the washing port .
5.Plate and frame type filter-Press is the same as recessed plate filter press in structure ,except the filtering part that
consists of one plate , one frame and filter cloth ,with filter chamber between plate and frame.
6.Liquid stream of filter press can be divided into exeternal stream and internal stream . exeternal streamrefers to that the
filtrate is discharged directly from outlet port of filter plate; internal stream refers to that the filtrate from various filter
plate is collected before being discharged out of the filtrate port .

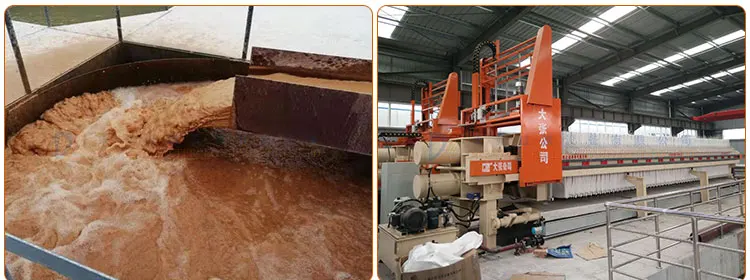

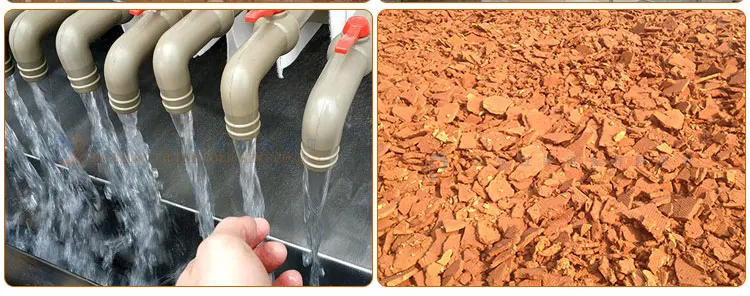

Product Case

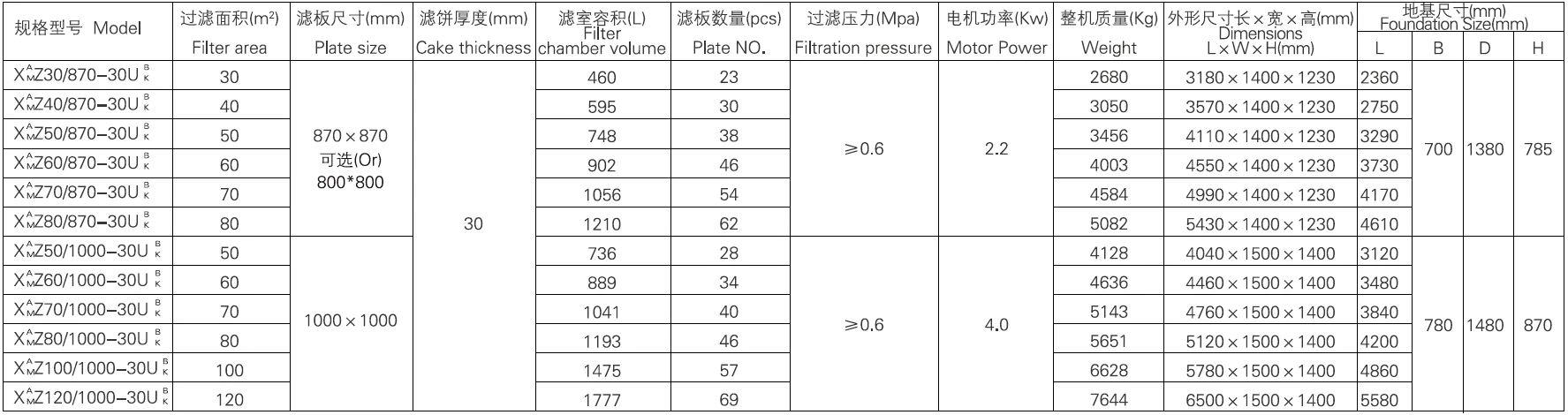

Product Paramenters
