MPPT qty/The connectable group bunch number of every group of MPPT (A)
1/10
1/12
1/14
1/14
Maximum input current of every group of MPPT (A)×MPPT qty
74*1
90*1
120*1
120*1
DC switch
Integrated
AC Output Parameter
Rated power (W)
40000
50000
60000
66000
Maximum AC output current (A)
64
80
96
96
Power grid voltage range
3/N/PE,230/400V,(310~480Vac);
Power grid frequency range
50Hz(47-51.5Hz)/60Hz(57~61.5Hz)
Power factor
-0.8~+0.8(Adjustable)
Harmonic distortion
<3%(Load Power)
AC Output
Three phase(L1,L2,L3,N,PE)or(L1,L2,L3,PE)
System
Cooling method
Intelligent wind
Highest efficiency
98.90%
98.90%
99.00%
99.00%
European efficiency
98.50%
98.50%
98.50%
98.50%
MPPT efficiency
99.90%
Level of protection
IP65
Night loss(W)
<0.5
Operating ambient temperature
-25℃~+60℃
Topology
NO Transformer
Relative temperature
0~95%,No Condensation
Noise(dB)
<50
Display and Communication
Display
3.5 inch LCD Display,Support backlight display
LCD language
Chinese,English,German,Dutch
Operation method
Integrated
Communication method
RS485,WIFi,Ethernet,PLC carrier communication
Mechanical Parameter
Volume (mm)
810*654*235
Weight (kg)
53KG
Installation method
Wall mounting
Safety Certificate
VDE-AR-N4105,AS4777/3100,CQC New Energy
Warranty
5years

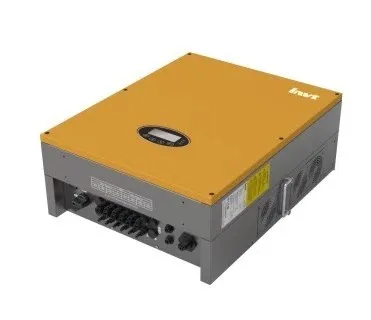

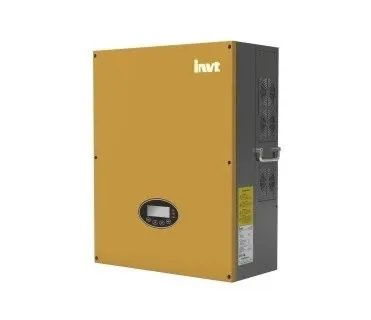

Detailed Images
Payment & Delivery
Payment terms
T/T
EXW
30% TT in advance, paid the balance before shipment
FOB
CFR(C&F)
30% TT in advance, paid the balance before shipment
CIF
L/C
L/C amount above 50,000usd, we can accept L/C at sight
Western Union
Amount lower than 5000 usd
Trade Assurance
Delivery time
7-10 working days after receiving payment
Related Products

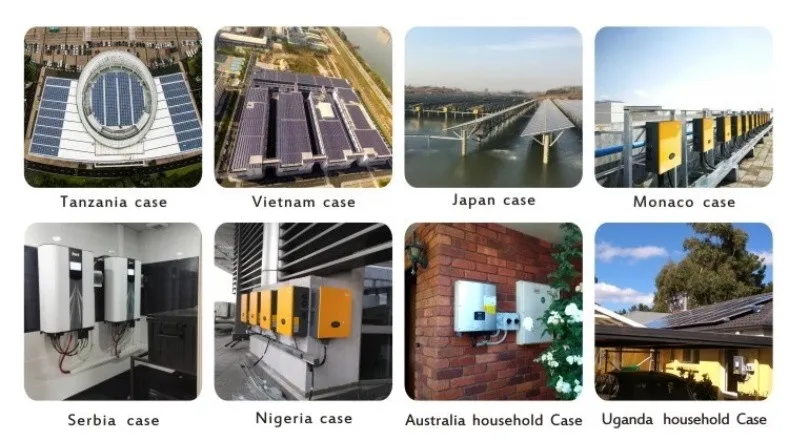

Success Cases
Our Company

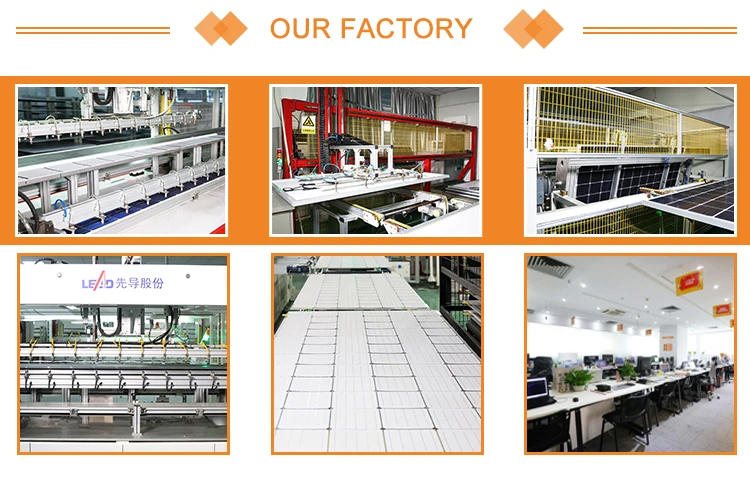

Our Factory
