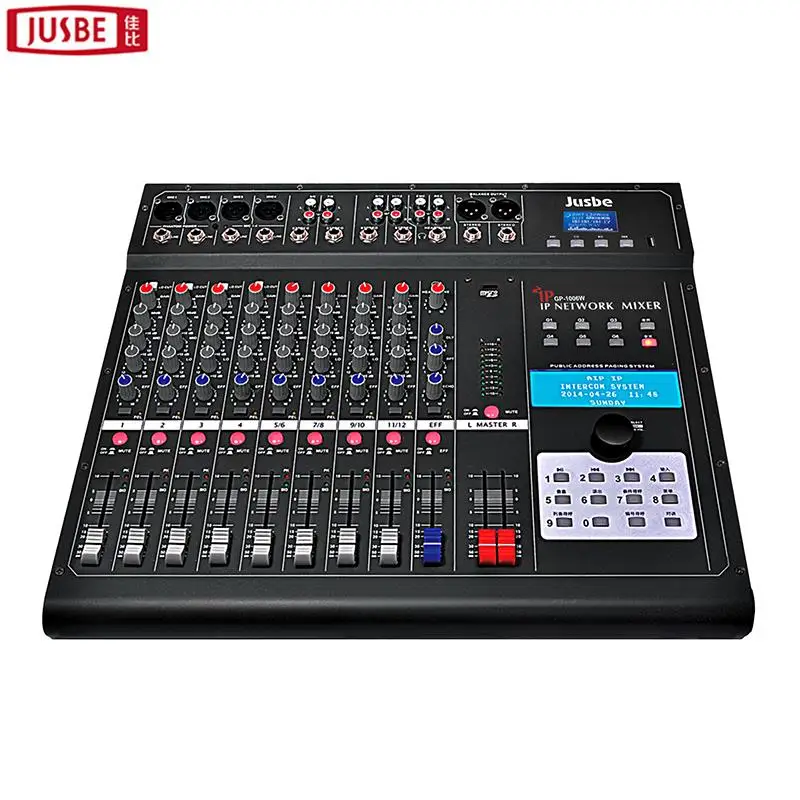

Jusbe GP 1006W pa sound system built in digital reverberation effect IP network mixer broadcast

Model

GP-1006W

Network interface

2*RJ45, 10M/100M

Supporting protocol

TCP/IP,UDP,IGMP,FTP,ICMP,ARP,SUPPORTS CROSS-GATEWAY,CROSS-ROUTER CONFIGURATION, WITH OUT-OF-SERVER FUNCTION.

TCP / IP, UDP, IGMP, FTP, ICMP, ARP,Supports cross-gateway cross-routing configuration,with OUT-OF-SERVER function

Audio format

MP3,WAV,OGG,PCM,ADPCM

Sampling bit rate

Talkback: 24K, paging: 87K

Memory card

TF card (MICRO SD), standard 4G

Recording time

Microphone and line recording, the file is stored in the SD card, 120 hours (for 4G TF card)

audio interface

4

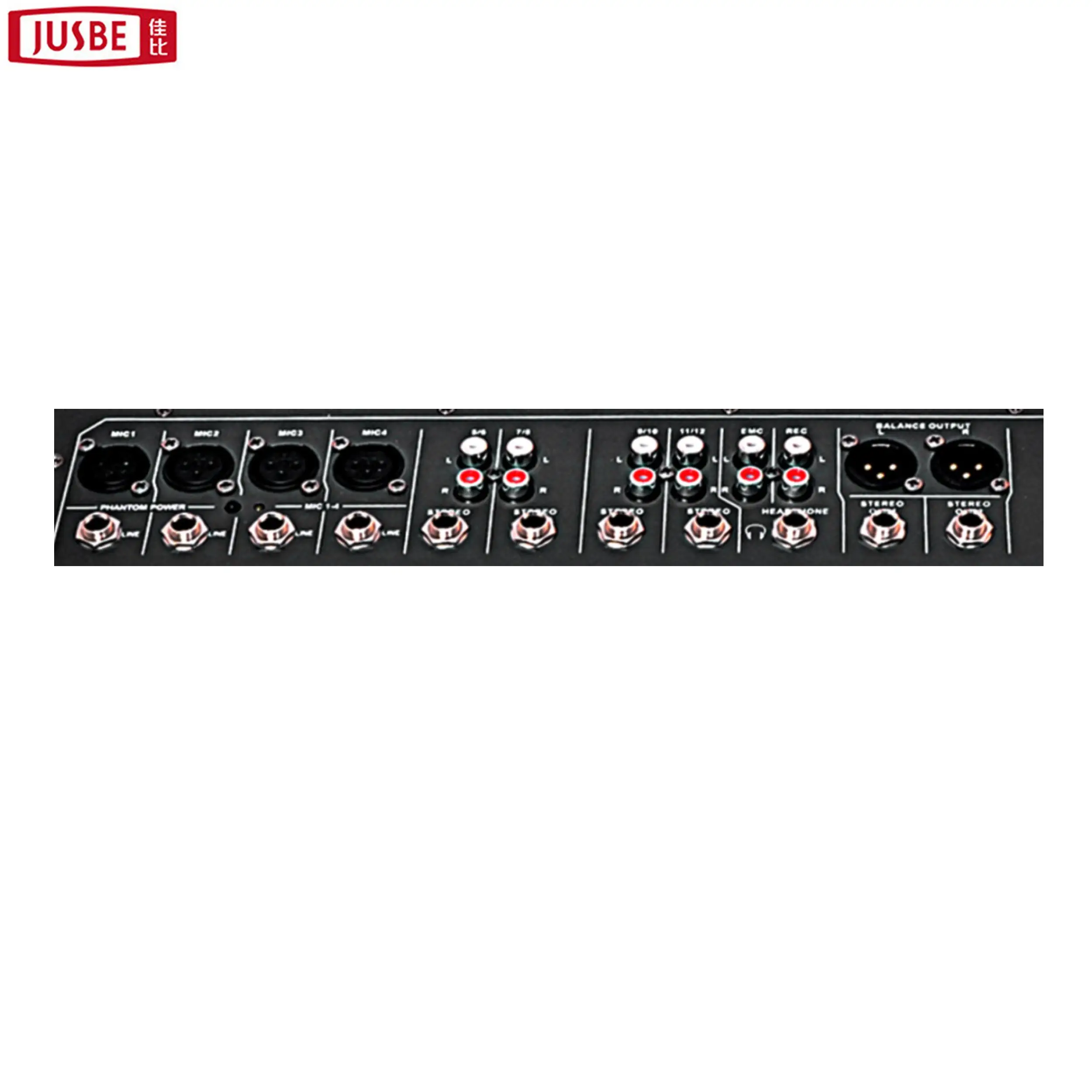

4 mono inputs, 4 stereo inputs, 1 emergency input, 2 line outputs, 1 headphone monitor output

Network delay

Audio delay

Text broadcast: <50ms, paging broadcast < 10ms, two-way intercom< 20ms, with automatic cache function

Power off, network failure restart recovery time

17Less than 1 second

Recording level

Line: 250mV, microphone: 10mV, with recording volume control

Line: 250mV, microphone: 10mV, recording level is adjustable

Transmission rate

10/100Mbps

Audio mode

Network packets, CD quality

Frequency response

20Hz~16KHz

THD

≤0.3%

SNR

>75dB

AUX input sensitivity

Line input level and interface

250mV, RCA

Internal speaker output impedance and rated power

8Ω,1W

Line output level and interface

775mV,RCA

Line output impedance

1KΩ

Microphone input sensitivity

10mV

Working temperature

-20℃~+70℃

Working humidity

10%~90%

Power consumption

≤20W

Power supply

AC220V/50Hz

Diamention(WxDxH)

433 (W)×400(D)×120(H)(MM)

Net weight

6.9Kg
