PP straw Extruder Machine for PP mat Weaving Production Line and woven mat making machine

Product Overview

Description

PP straw Extruder Machine for PP mat Weaving Production Line and woven mat making machine

We Supply complete line of PP straw Extruder Machine with Cutter,PP straw Extruder Machine for PP mat,PP straw Extruder Machine for PP woven mat,Straw Extruder Machine with Cutter

Straw Extruder Machine for PP mat,Extruder for PP mat,Straw Extruder for PP mat

PP woven mat machines,PP weaving Mat Machine,PP woven mat machine,PP weaving mat machine,PP woven mat making machine,PP weaving mat making machine,PP mat making machine,PP mat machine,Jacquard Weaving Machine,Jacquard Weaving Machine for woven mat

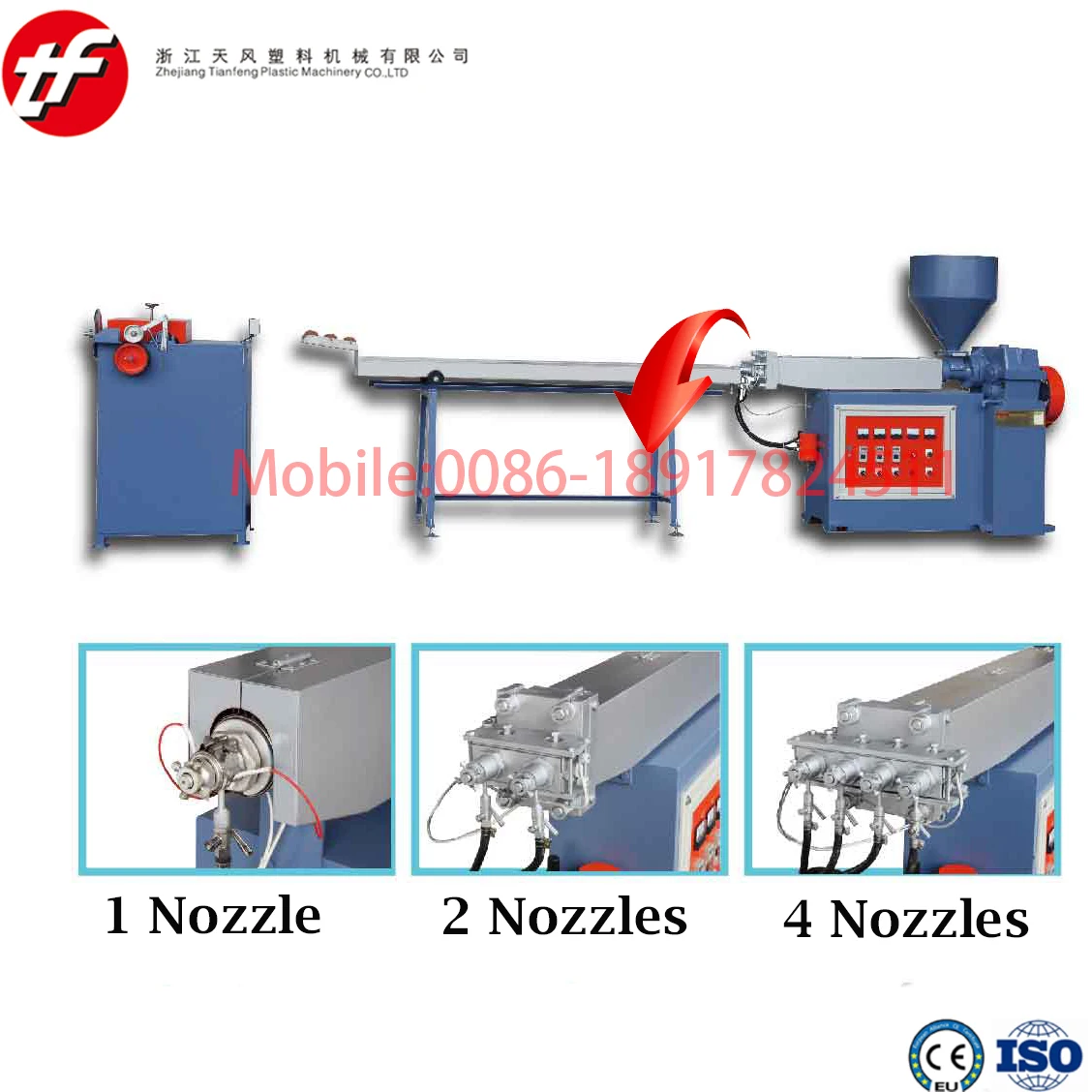

PP straw Extruder Machine with cutter

Special design for adjustable length of PP straw cutting is available upon request

Main Technical Parameters

Model	TF-50M
A.Extruder Unit
Screw Diameter	55 mm Ø
R.P.M.	30 ~ 80
Extruding Capacity	10 – 20 kg/hr.
Driving Motor	7.5 HP A.C. + Inverter
Screw L/D	25:1
Heating Capacity	10 KW
Auto Temp. Controller	3 sets

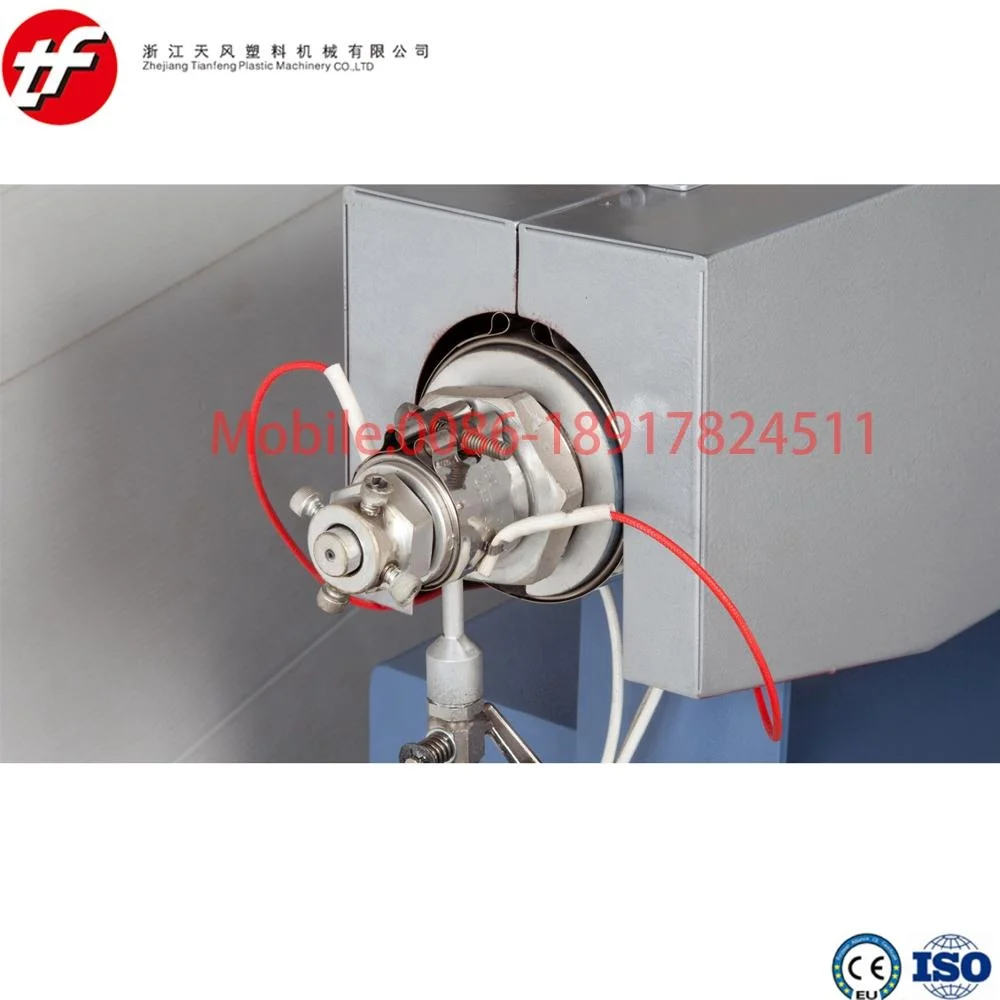

Die.	2 Nozzles
Machine Dimension (mm)	2000 x 550 x 1680
B. Cooling System
Machine Dimension (mm)	1560 x 200 x 100
Water Consumption	4 L/min.
C. P.P. Straw Cutter
Motor	1/4 HP x 1 set
Cutter Blade	1 set
Range of Adjustable Length	75 - 260 cm
Operation Scale	8.5 M x 2 M
N.W.	900 kg
