high borosilicate glass laboratory chemical glass reactor system
- Category: >>>
- Supplier: Nantong Sanjing Chemglass Co. Ltd.
Share on (62224891241):
Product Overview
Description
Product Description
Product Application
The standard jacketed glass reactor is made by 3.3 borosilicate glass ,and there are 2 layers. The reaction solvent can be put into inner layer for stirring reaction.The middle layer can be connected with different sources (water or oil) for cyclic heating or cooling reaction by heating and cooling circulator.Under the condition of constant temperature , the stirring reaction can be carried out under normal pressure or negative pressure according to the requirements. The glass reactor can also be used for reflux and distillation,which is an ideal experiment and production equipment for modern fine chemical plant, biological pharmacy and new material synthesis.
There are 2 models you can choose, with or with explosion-proof motor.
Product Attribute | ||||||||||
Product Modle | FPGR-50 | FPGR-80 | FPGR-100 | FPGR-150 | FPGR-200 | |||||
Volume(L) | 50 | 80 | 100 | 150 | 200 | |||||
Neck No.on Cover | 6 | 6 | 6 | 6 | 6 | |||||
External Diameter of Inner Vessel(mm) | 365 | 410 | 460 | 550 | 600 | |||||
External Diameter of Outer Vessel(mm) | 410 | 460 | 500 | 600 | 650 | |||||
Cover Diameter(mm) | 265 | 340 | 340 | 340 | 340 | |||||
Vessel Height(mm) | 850 | 950 | 950 | 980 | 1200 | |||||
Motor Power(W) | 180 | 370 | 370 | 750 | 750 | |||||
Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | |||||
Rotation Speed(rpm) | 50-600 | 50-600 | (50-600) | (50-600) | (50-600) | |||||
Torque(Nm) | 2.86 | 5.89 | 5.89 | 11.9 | 11.9 | |||||
Power(V) | 220 | 220 | 220 | 220 | 220 | |||||
Diamension(mm) | 700x500x2300 | 1000x700x2500 | 1000x700x2700 | 1200x900x3000 | 1200x900x3200 | |||||
Main Features
1) The whole stainless steel frame structure (the connection part of the three-way and four-way exquisite connection) is compact and firm, and it's easy to move.

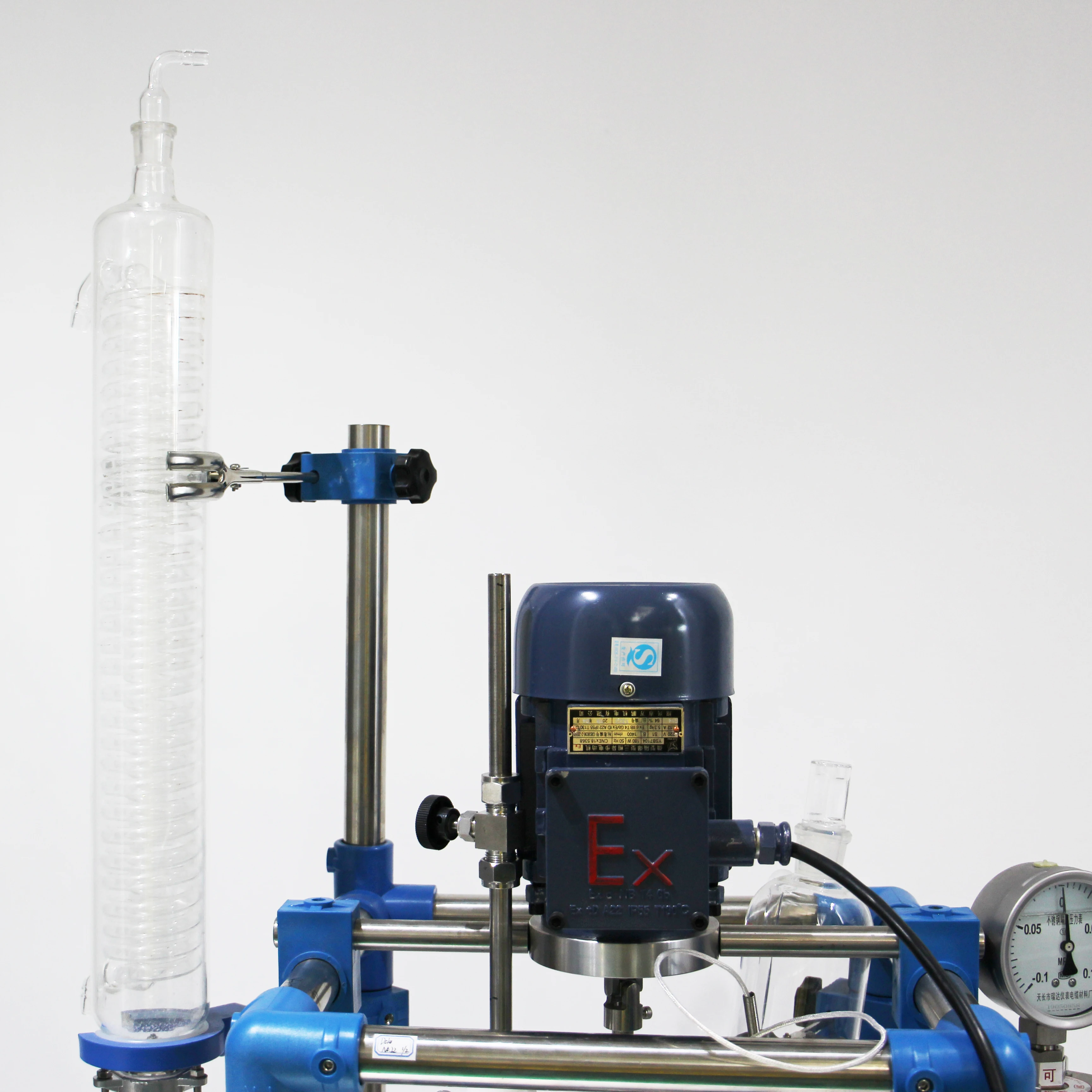

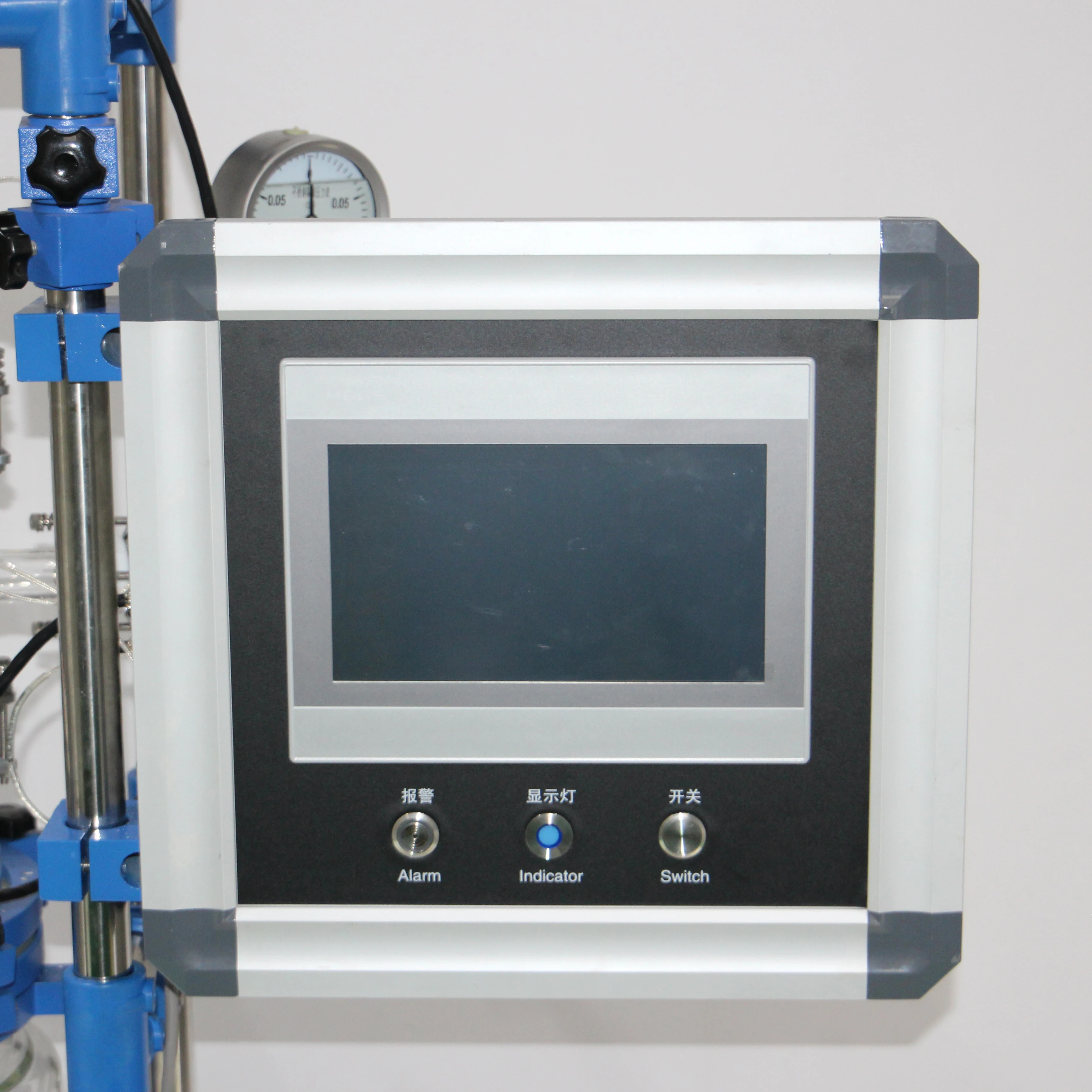

2) VFD(variable-frequency drive) motor controller can realize high-medium-low-speed operation,which is accurate and operable. And fully explosion-proof system is feasible.
3)The kettle chamber and jacket are designed without dead angle, and the special solid feeding port on the cover is convenient for cleaning without disassembly.
4)The lower discharge part is easy to release concentrated liquid and residuum.
5)The heating (cooling) solution in the sandwich layer will be completely eliminated after the reaction.
Certifications
Detailed Images
VESSEL
Brand:NTSJ
Original: China
Jacketed glass vessel is made by borosilicate 3.3 glass,which is good for both chemical and physical experiment.

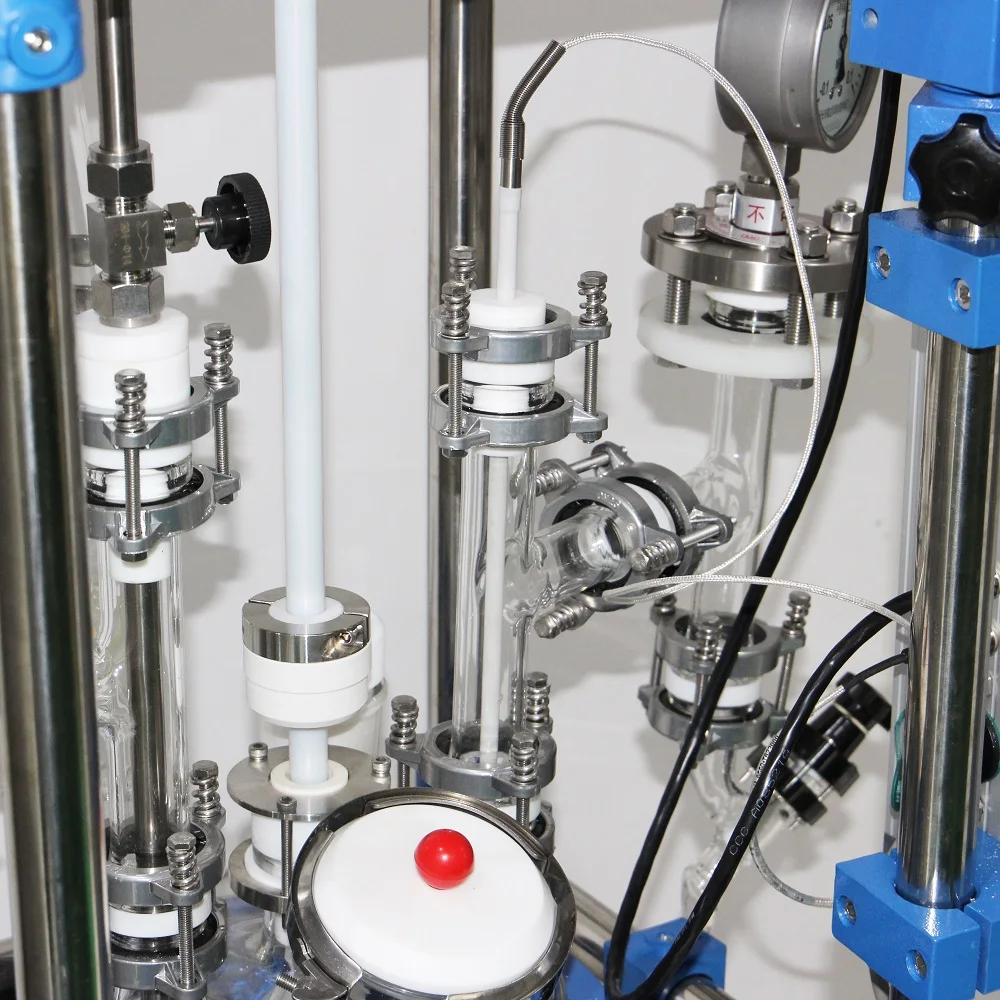

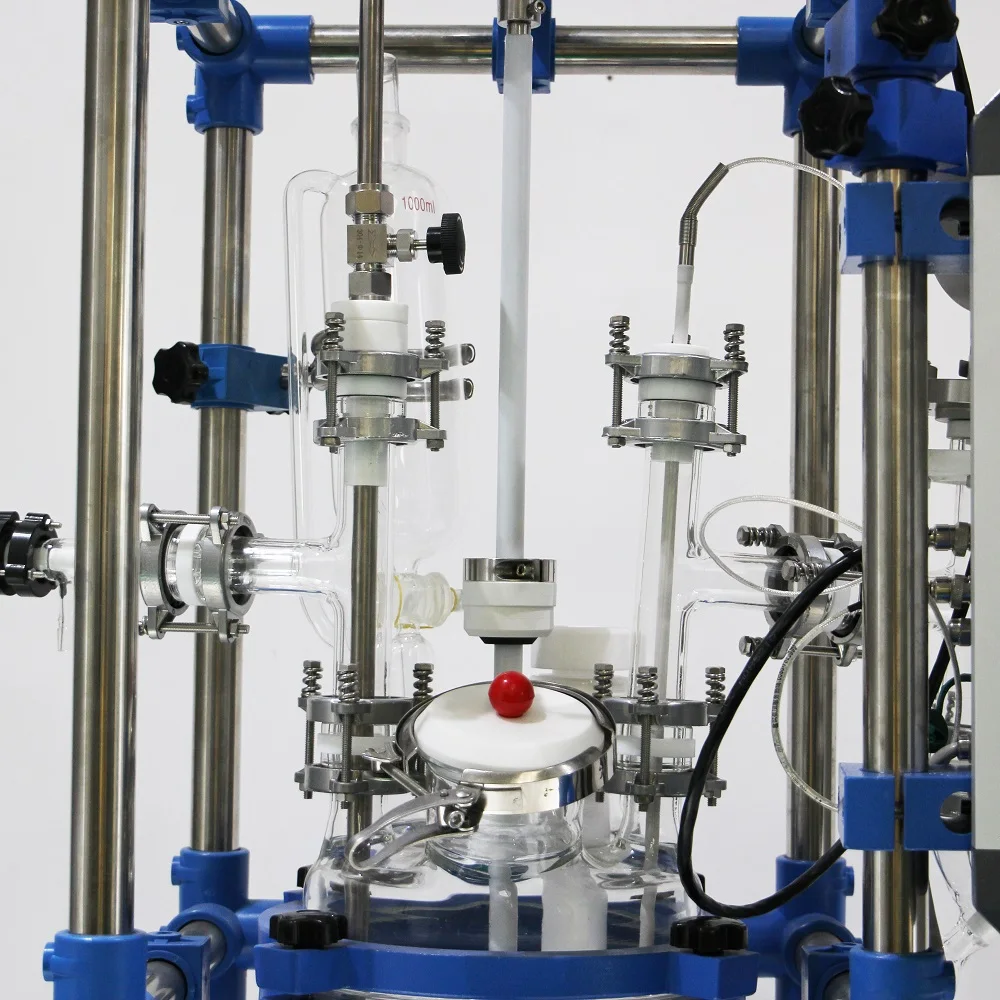

REACTOR COVER
Brand: NTSJ
Original: China
There are 6 ports for different use.( port for mechnical seal,thermowell,funnel,condenser,solid feeding inlet and liquid feeding inlet.
CONDENSER
Brand: NTSJ
Original: China
One layer condenser for 1L jacketed glass reactor that is effective during distillation or reflux.
COLLECTION FLASK
Brand: NTSJ
Original: China
The final reactant liquid will be received in the flask.
Packing & Delivery
Packaging | ||
Size | ||
Weight | ||
Packaging Details | The normal package is wooden box If export to by air , heavy-duty card board box will be used or pack it according to customers special request. | |
Packaging | ||
Size | ||
Weight | ||
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
