High Frequency Pwm Signal 4 Channel Dmx 512 4ch Dmx512 Amplifier

Product Overview

Description

High Frequency Pwm Signal 4 Channel Dmx 512 4ch Dmx512 Amplifier

DMX 512 Amplifier

Features of 4CH DMX 512 Amplifier:

1, RE2504H digital signal distributor is used to DMX512 digital lighting control signal for amplification and 4 channels distribution output, each input/output interface adopts high voltage isolation technology, applied to DMX512 signal via remote transmission attenuation after the plastic amplification processing, as well as various distribution output interface, between input interface and the distribution between output interface to complete electrical isolation use occasion. As a result of each interface between independent isolation, and it can be avoided by controlling circuit, scanner, silicon box problems and burned precision digital light console, to ensure the safe operation of digital light console, at the same time also guarantee DMX signal can normal transfer to all kinds of lighting equipment, so as to improve the whole digital lighting control system reliability.

2, Signal types: DMX512, and the RS-485 interface of various digital signal transmission.

3, Signals connected socket: RJ45, and 3 PIN pressure buckle terminals.

4, Output RJ45, 3 PIN pressure buckle terminals.

5, Input to output, output to output electrical isolation pressure: > 1000V.

Model NO.	Channels	Input Voltage	Max  Load	Input Signal	DMX512/PWM Socket
RE2000	2CH	100~240AC	DMX512/1999*2CH	DMX512/1999	RJ45/Screwless Terminal
RE2501	1CH	12V~24VDC	DMX512/1999*1CH	DMX512/1999	RJ45/Screwless Terminal
RE2504H	4CH	90~250VAC	DMX512/1999*4CH	DMX512/1999	RJ45/Screwless Terminal
RE2508H	8CH	90~250VAC	DMX512/1999*8CH	DMX512/1999	RJ45/Screwless Terminal



Details of 4CH DMX 512 Amplifier:





The Product of Operation

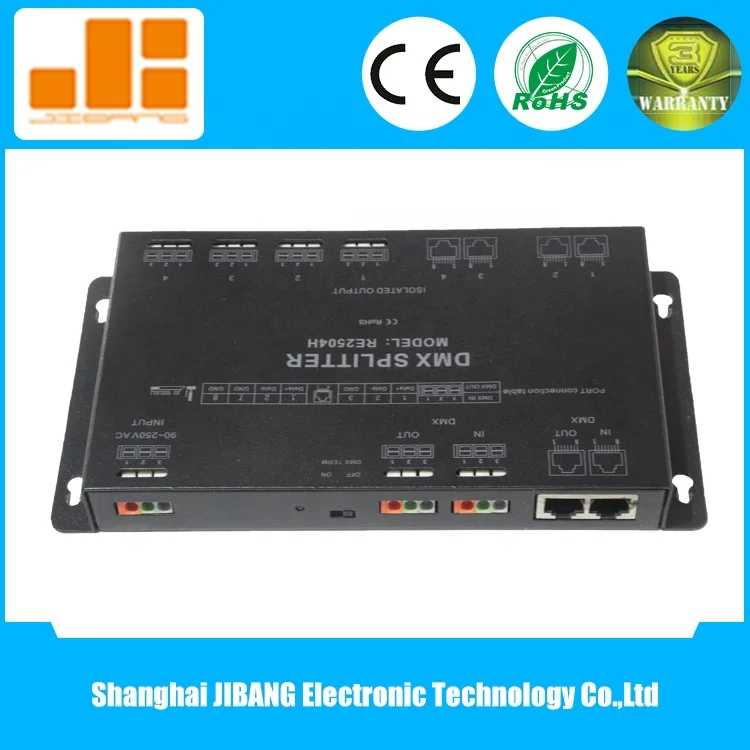

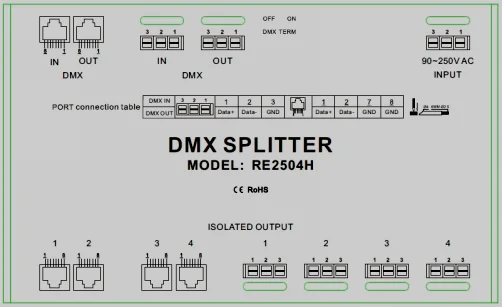

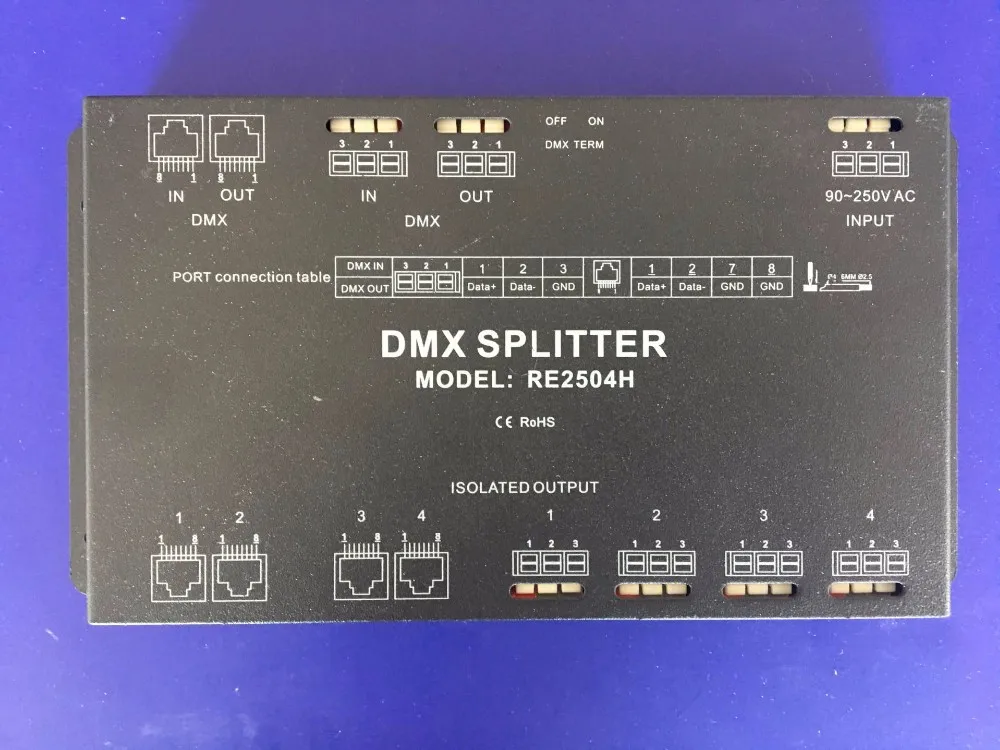

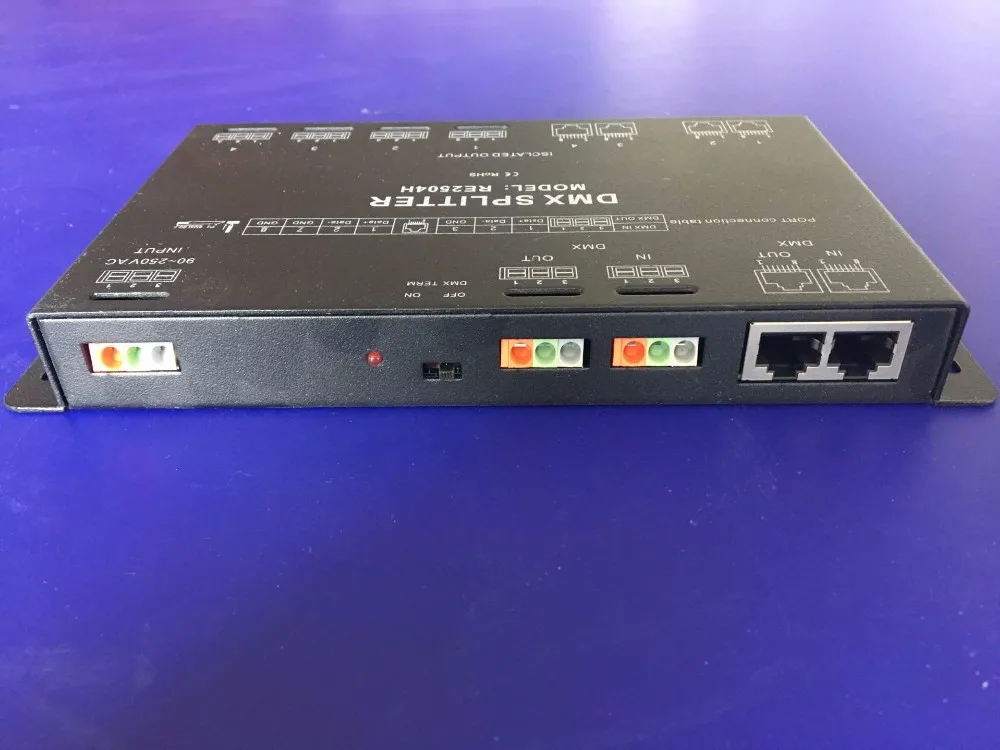

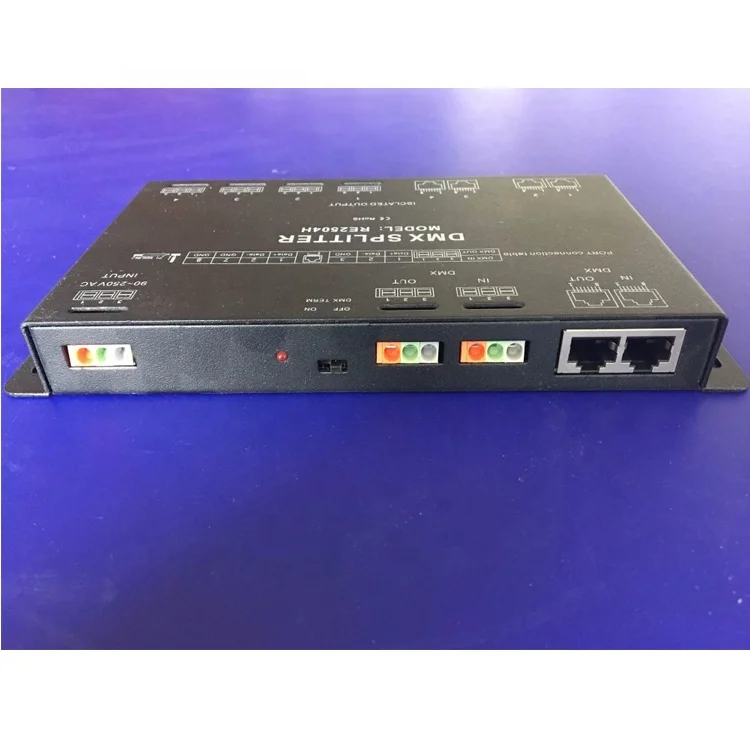

1:The power input terminals, DMX signal input: 3 PIN terminal , RJ45 network interface. See the panel to correct connection

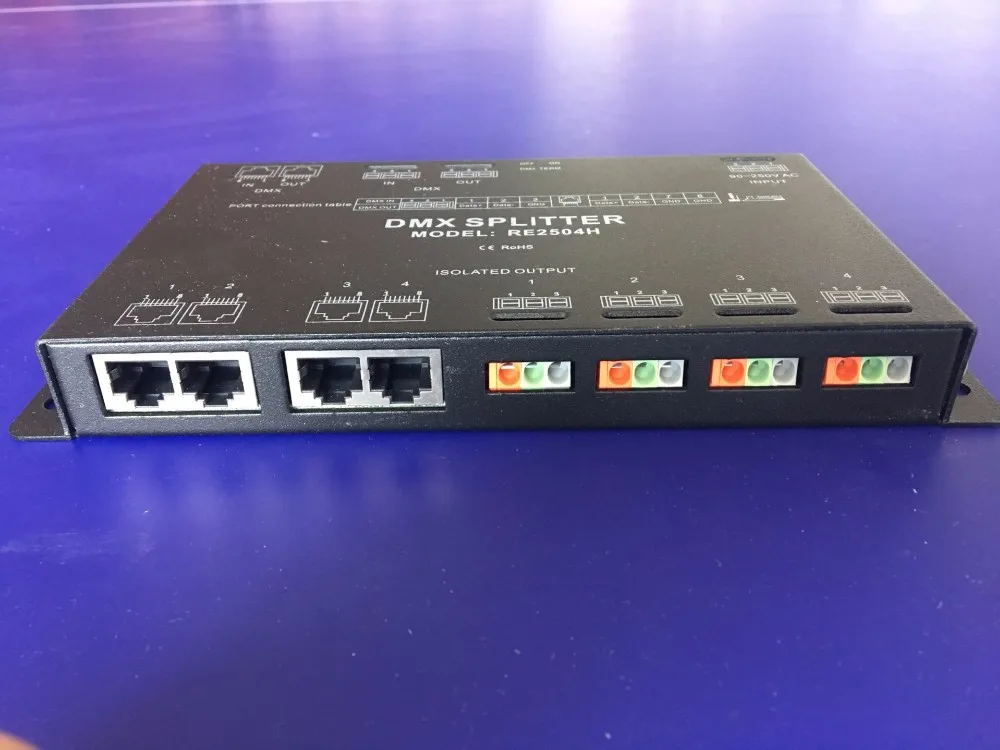

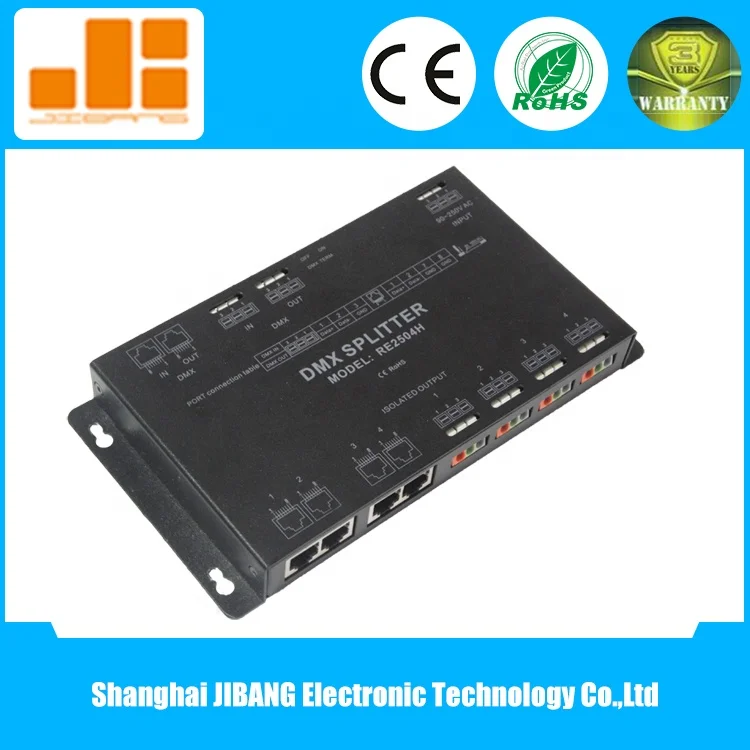

2:DMX signal output: RJ45 double network interfaces, 3 PIN pressure terminals.

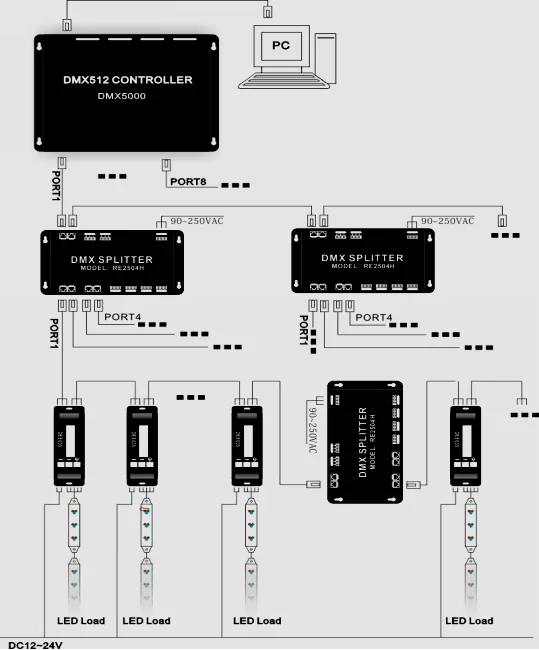

Product On-line



DMX-512 control signal connection

1. DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity.DMX512 controller output signal positive, signal negative, signal ground with DE8008 input interface corresponding connection.

2. DMX5000 output and DE8008's transmission lines can't be over 300 meters.

3. DMX5000 each interface can with not more than 170 DE8008. Eight output interface. Through the JBLED FLASH light making software and can with computer on line control. Realize infinite contact the DMX lights.

4. When contacting 32 DE8008, DMX signal must add a signal amplifier RE2504H . Cascade can't more than 4 PCS.
