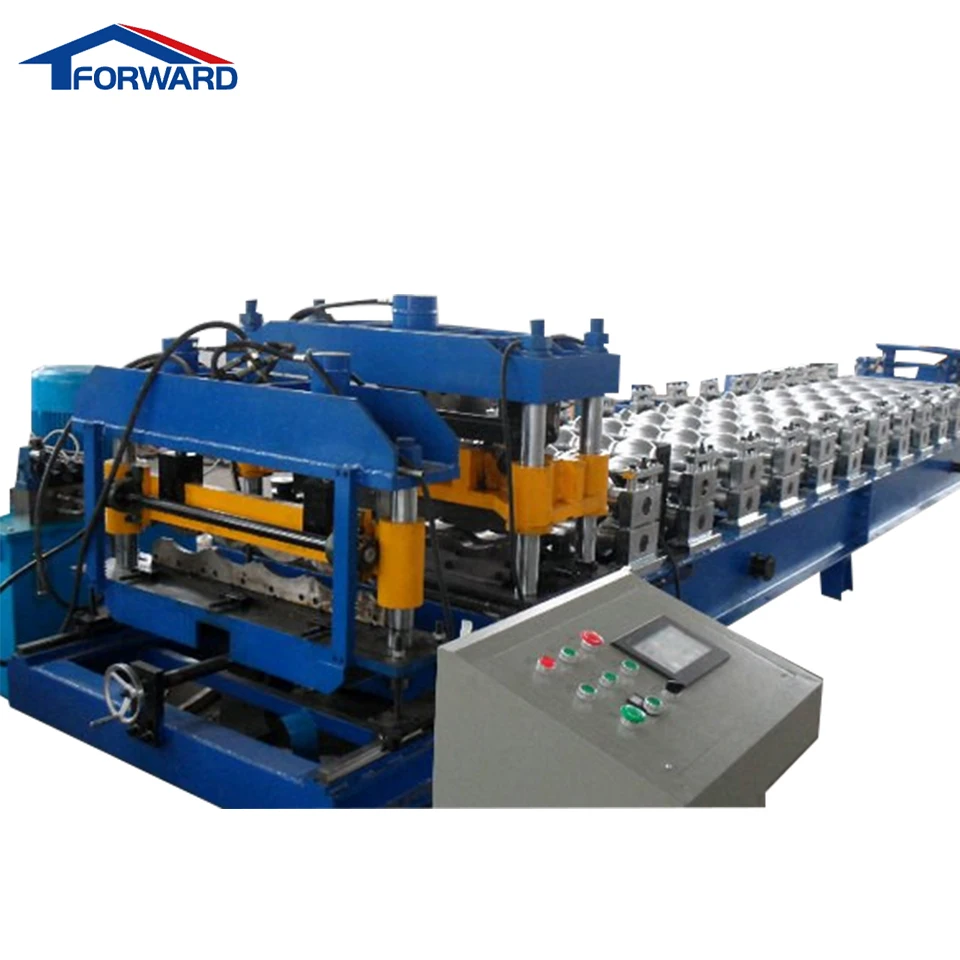

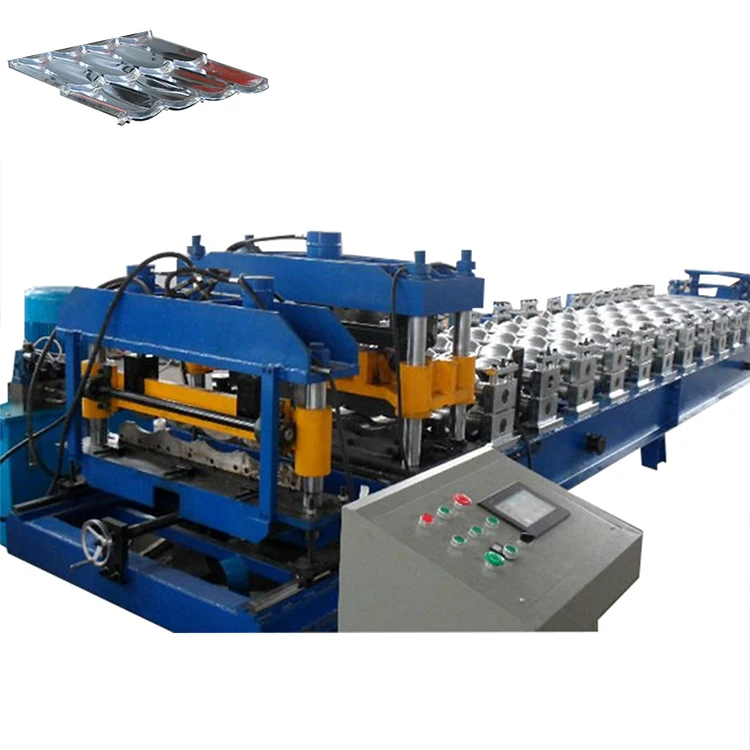

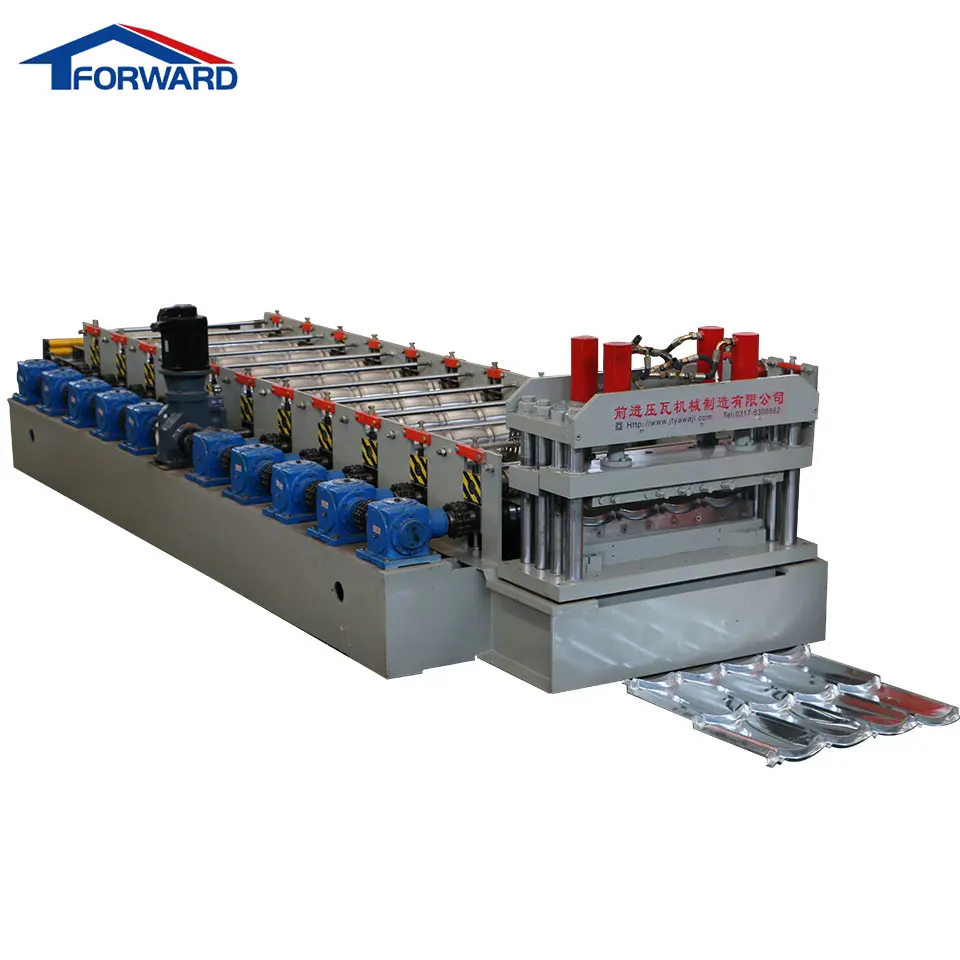

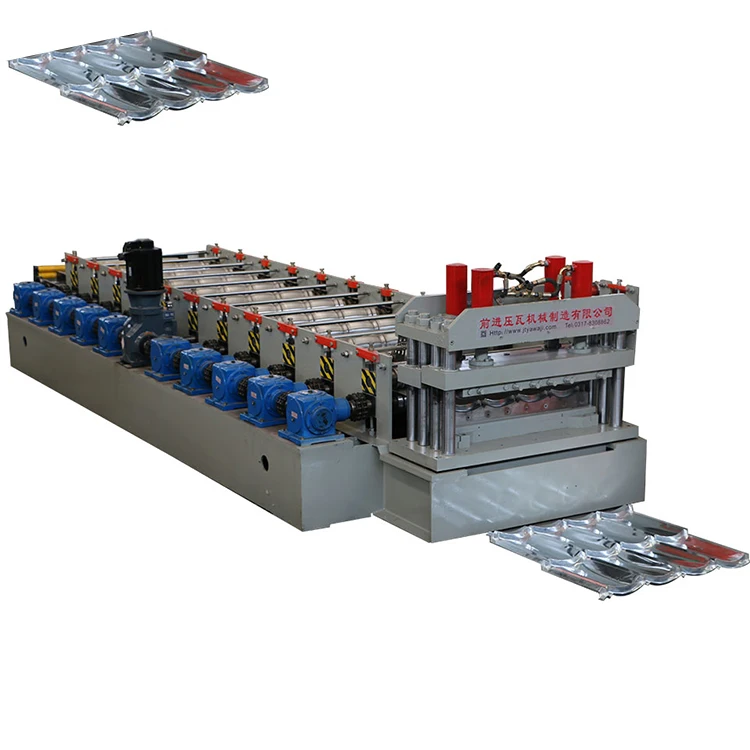

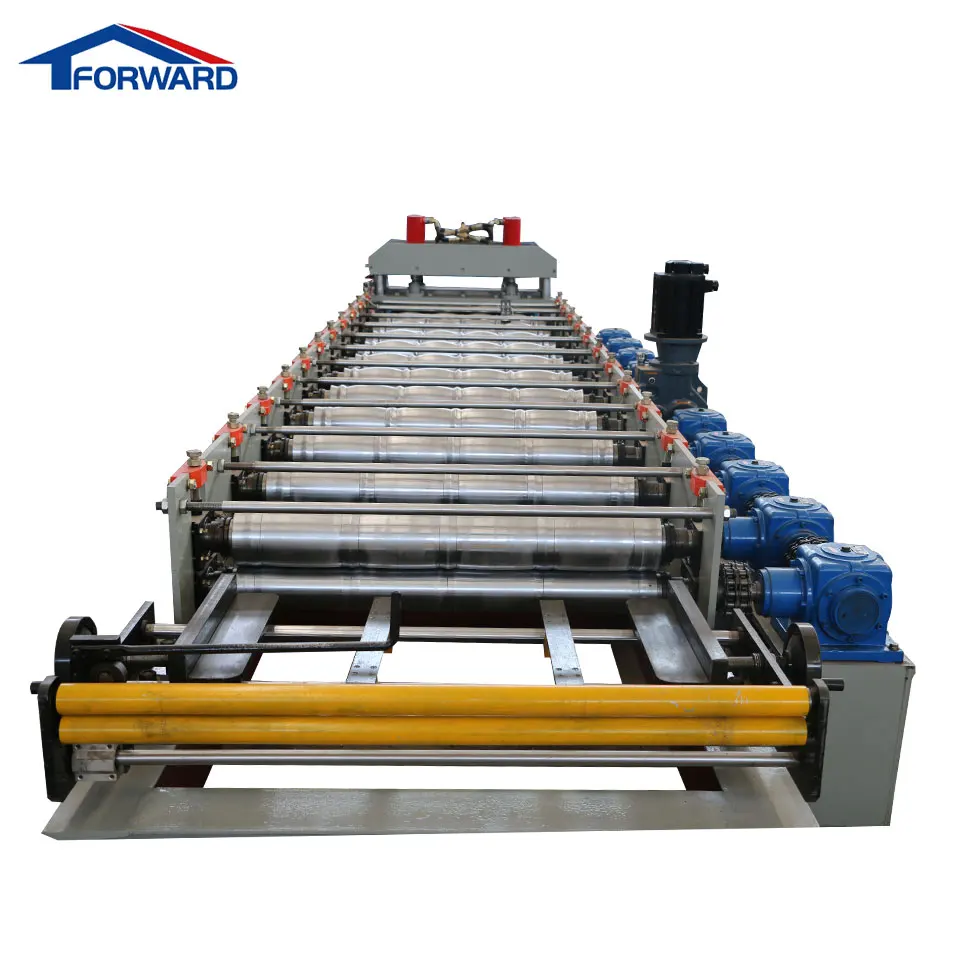

2019 Hot Sale High Quality Low Price Cement Roof Tile Forming Machine/Concrete Roof Tile Machine/Machine For Production Of Roof
- Category: >>>
- Supplier: Hebei Forward Science And Technology Co. Ltd.
Share on (62224963367):
Product Overview
Description
2019 Hot Sale High Quality Low Price Cement Roof Tile Forming Machine/Concrete Roof Tile Machine/Machine For Production Of Roofe
| Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
| Thickness of coil sheet | 0.18-0.25mm |
| Coil width | 914mm |
| Effective width | 800mm |
| Material of main frame | 400H steel |
| Diameter of Soild shaft | 70mm, high grade 45# steel |
| Roller | High grade 45# steel, quenched and tempered treatment, hard chrome plated 0.05-0.07mm |
| Thickness of middle plate | 16mm, 45# steel plate |
| Forming station | 11rows |
| Drive type | By chain(1.0 inch), link bearing model 6210 |
| Power of main motor | 7.5kw, servo motor |
| Sidewall connection bar | 25mm, zinc plated |
| Forming speed | About 12-18m/min |
| Hydraulic pump station | 11 kw, 40# hydraulic oil |
| PLC | DELTA(TAIWAN)/Mitsubishi |
| Material of razor blades | Cr 12, quenching 58-62℃ |
| Frequency converter | It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
| Switch | CHNT |
| Frequency changer | SAJ |
Operation Flow

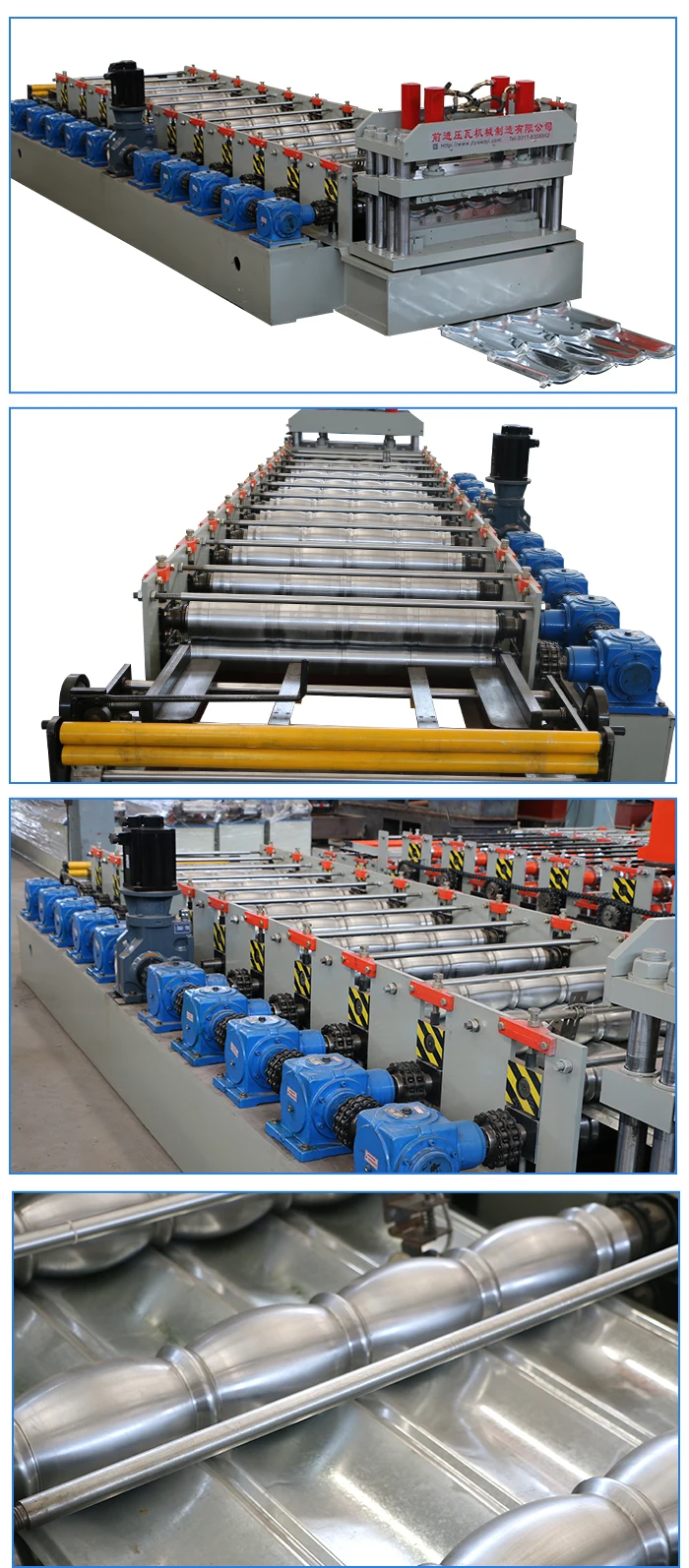

- Main Components:
Production Flow
Trade Shows
Company Information
Packaging & Shipping
Sale Terms
- Payment Method
30% as deposit ,balance payment after inspection while before delivery.
- Production Period
30 days after the 30% deposit.
- Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
- After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
- Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.
