Best used rubber mixing mill

Product Overview

Description

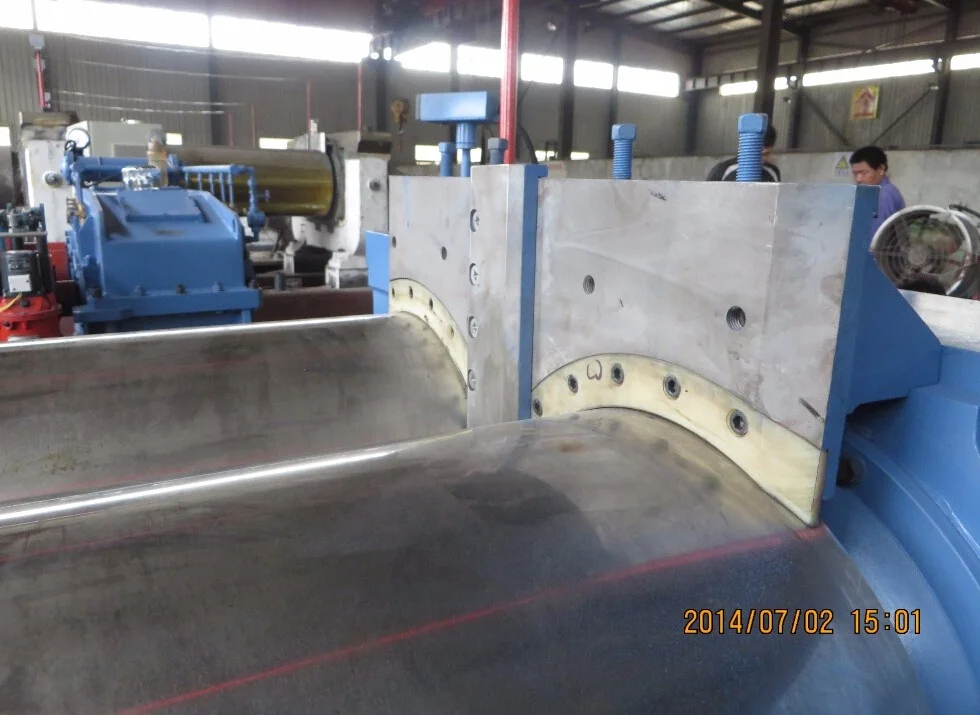

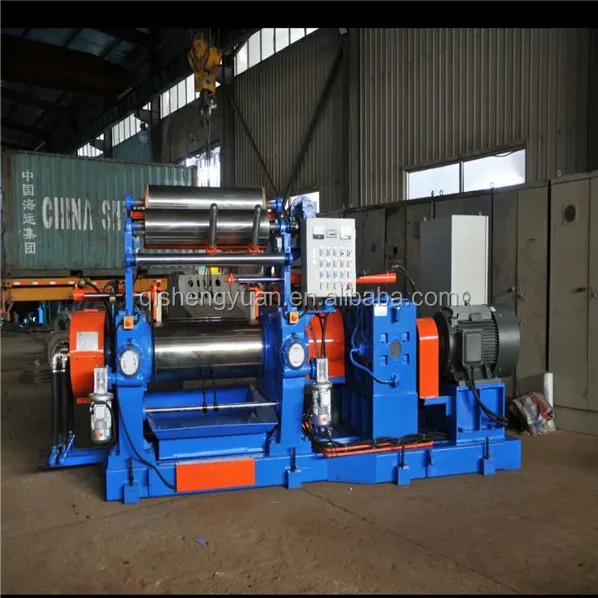

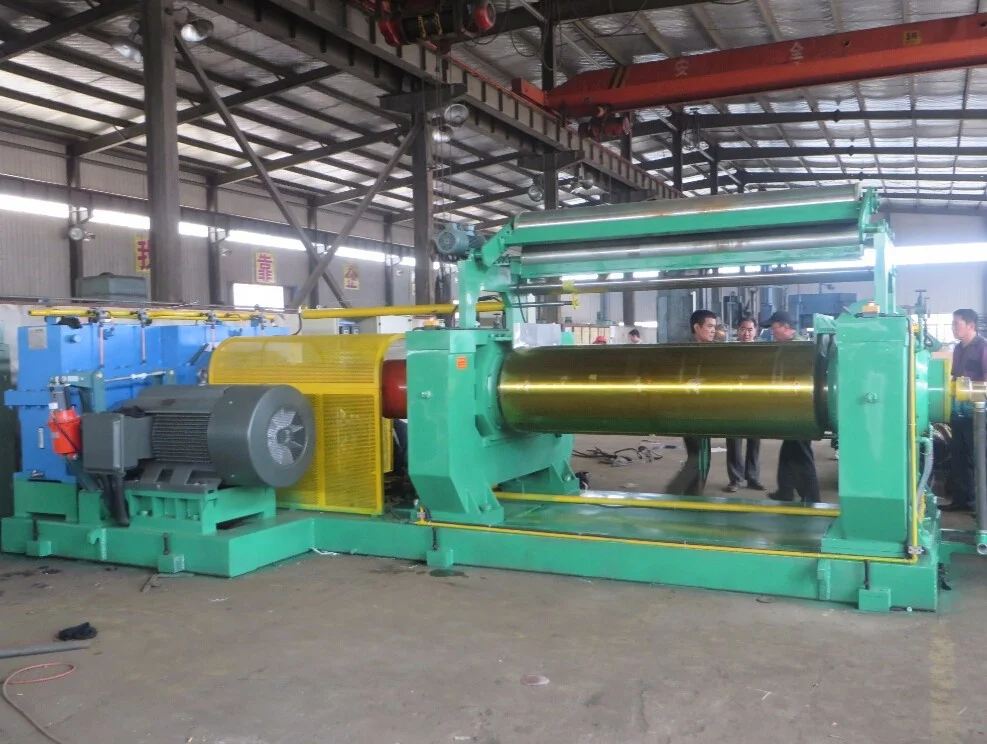

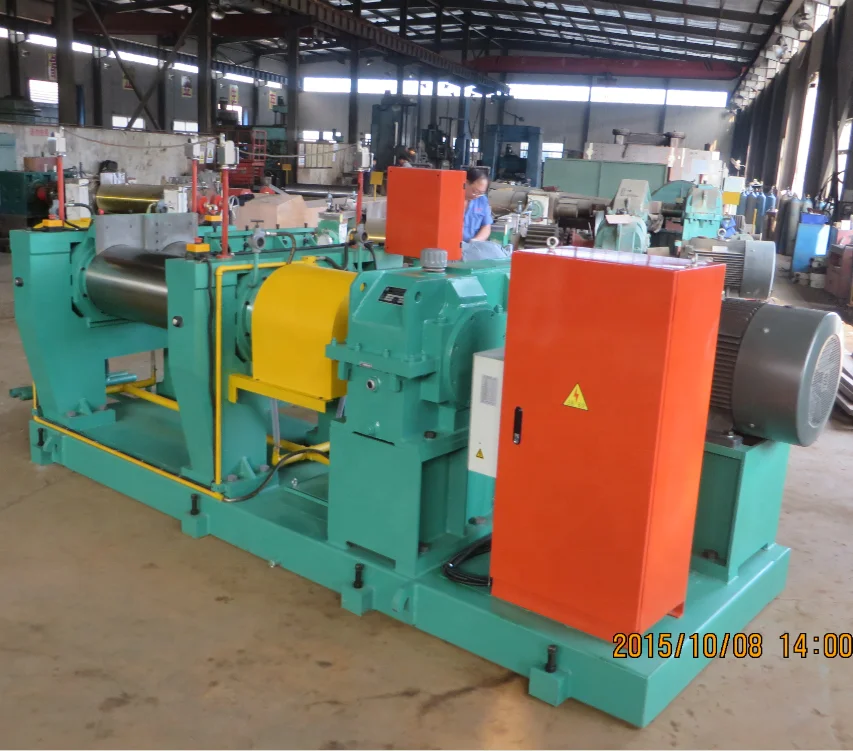

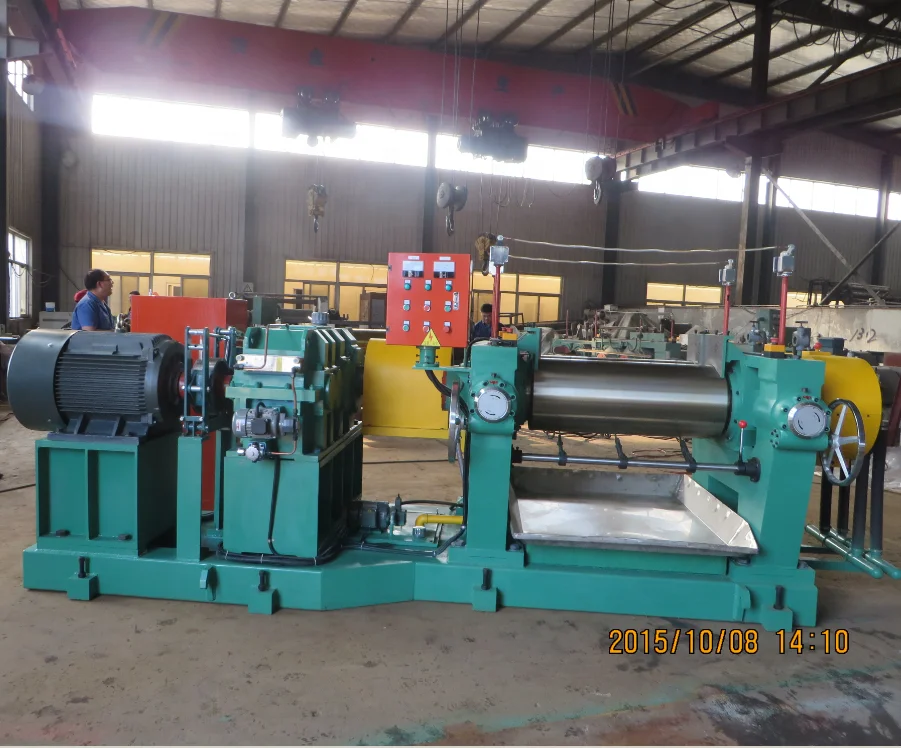

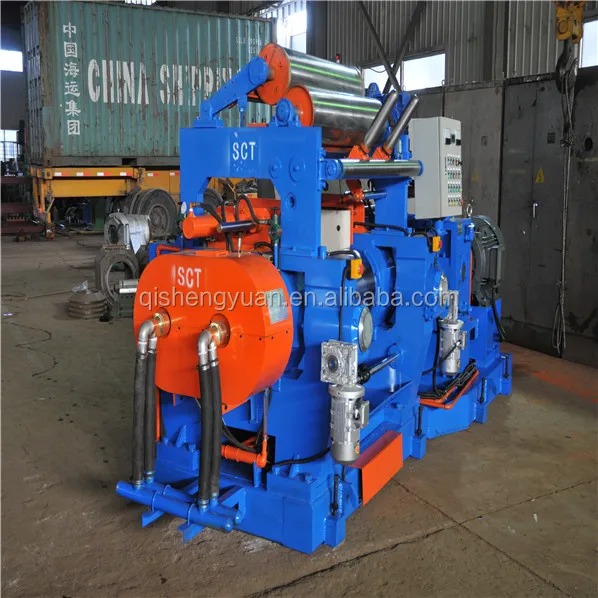

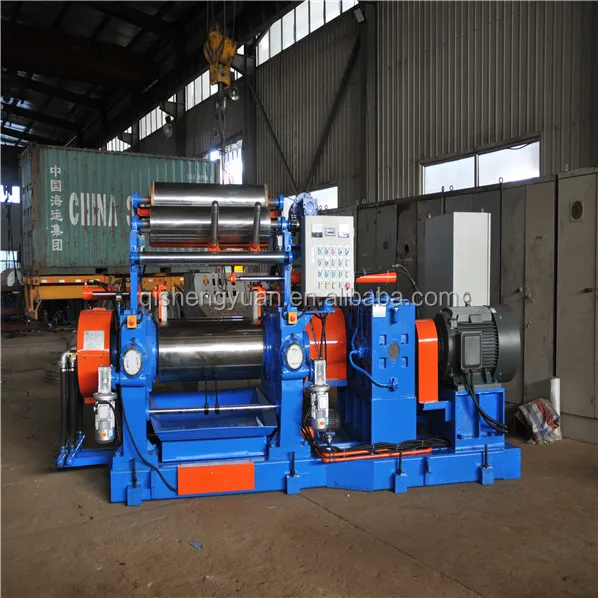

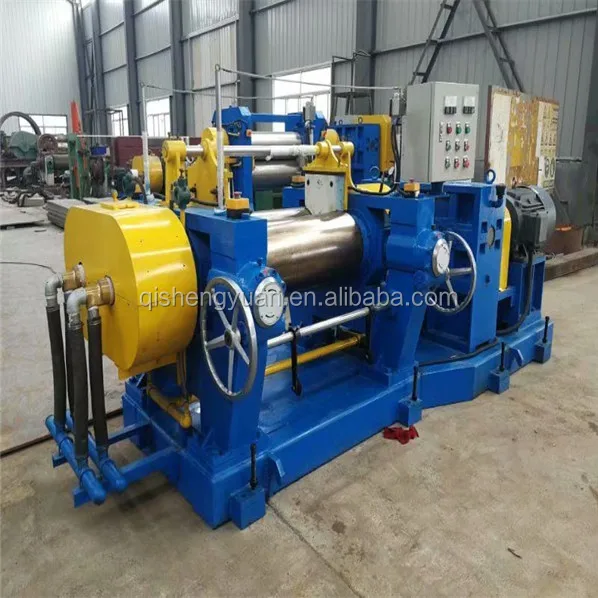

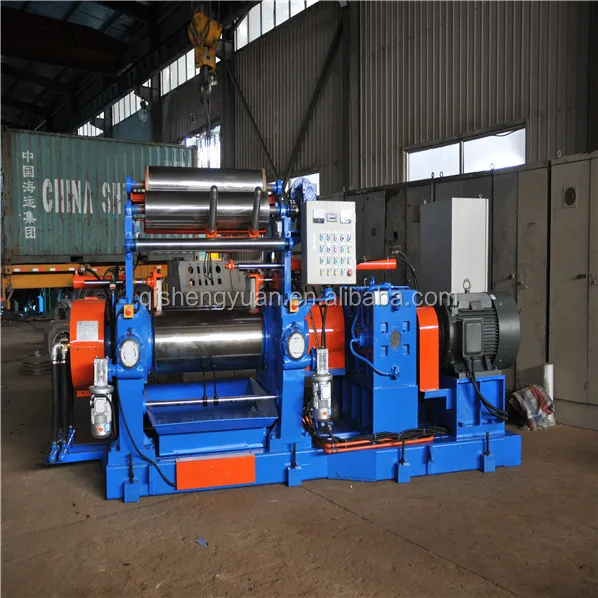

Best used rubber mixing mill







28" Rubber Mixing Machine:

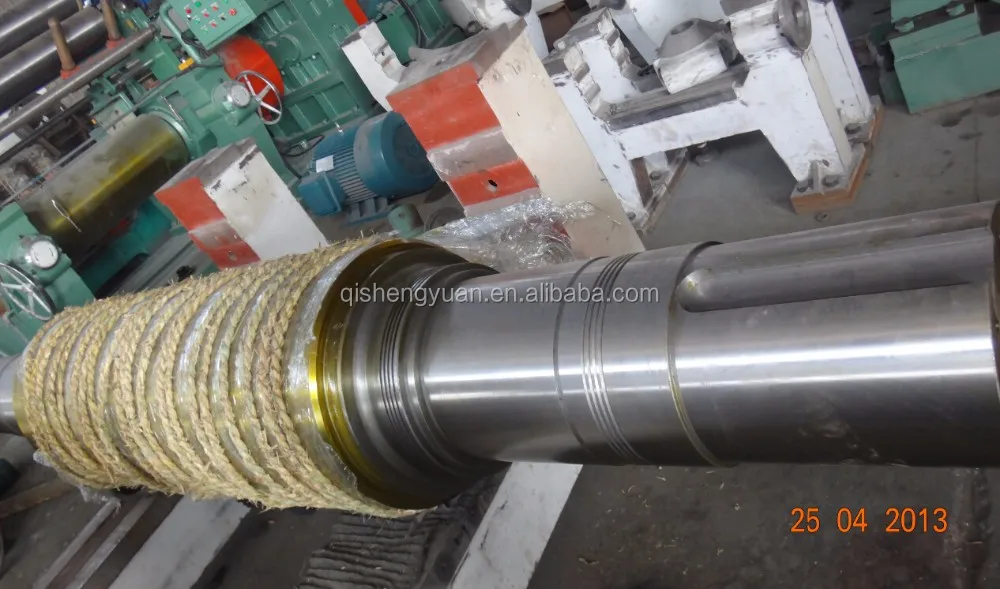

1. The Rubber Mixing Machine is made of LTG-H alloy chilled cast iron
2. The Rubber Mixing Machine speed reducing machine adopts hard tooth, its running noise is low and owns long life. This mixing machine adopts a special design of refining seal structure so that it can eliminate the leakage of lubricating oil.
3. Our Company specially designed the human-orientated machine, such as block rubber board and turbine tapping rubber device of open Mixing Machine can be used steam style; Open Mixing Machine operating system design in nearby working areas etc.
4. This Rubber Mixing Machine can be equipped with hydraulic or mechanical device which can automatically make the rubber material be mixed over and over again, so the labor intensity and mixing time can be reduced greatly.
5. The roll nip of the Rubber Mixing Machine can be adjusted by using manual or electrical mode
6. To ensure the safety of staff and equipment, we install convenient button for emergency.
7. All the Rubber Mixing Machine we provide to you are checked through 8 hours non-stop full load operation, customers can use them immediately after installation.









Model		XK-160	XK-230	XK-250	XK-300	XK-360	XK-400	XK-450	XK-560	XK-550B	XK-660
Working Diameter of rolls (mm)		160	230	250	300	360	400	450	560/510	550	660
Working Length of Rolls (mm)		320	600	620	750	900	1000	1200	1530	1500	2130
Front Roll Surface Speed (m/min)		8.95	10.21	14.1	15.1	16.25	18.65	24.26	27.72	27.94	28.6
Refraction ratio		1: 1.35	1: 1.19	1: 1.17	1: 1.25	1: 1.25	1: 1.271: 1.27	1: 1.2	1: 1.22	1: 1.24	1: 1.09
Max. nip (mm)		4.5	7	8	10	10	10	15	15	15	15
Capacity per Batch(kg)		1-2	6-10	8~15	15~20	20~25	18-35	25-50	35~50	50~60	165
Motor Power (kw)		5.5	15	18.5	22	30	37	55	90	110	245
Dimensions:   (mm)	L	1380	2800	3400	3400	3780	4350	5200	5845	5870	7465
	W	860	1200	1500	1500	1850	1850	2380	2284	2475	3662
	H	1320	1120	1500	1550	1750	1785	1840	1978	2045	2080
