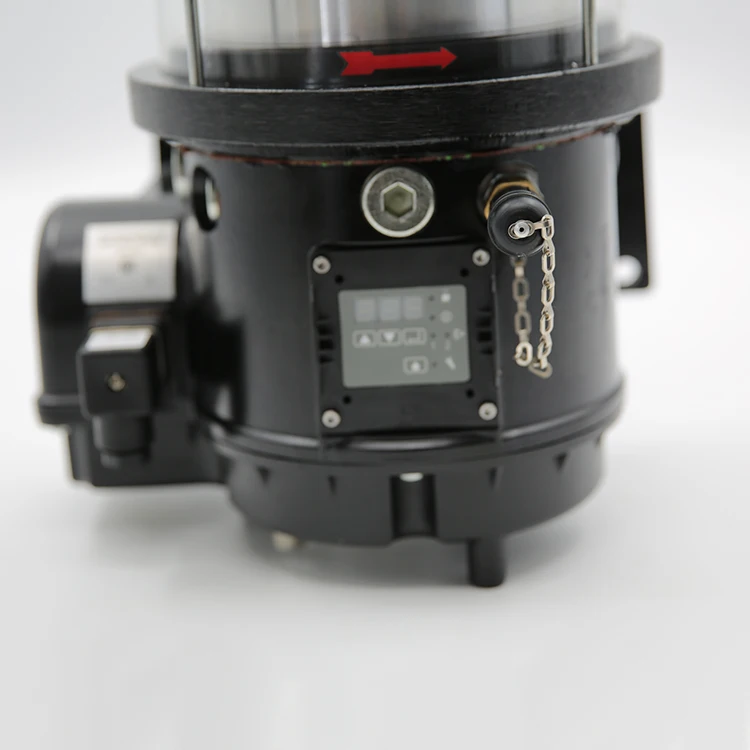

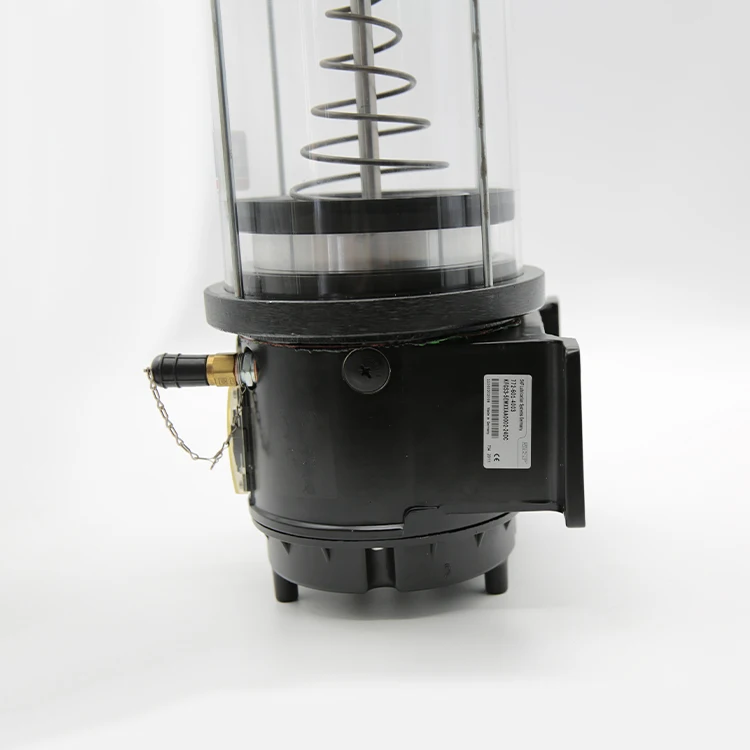

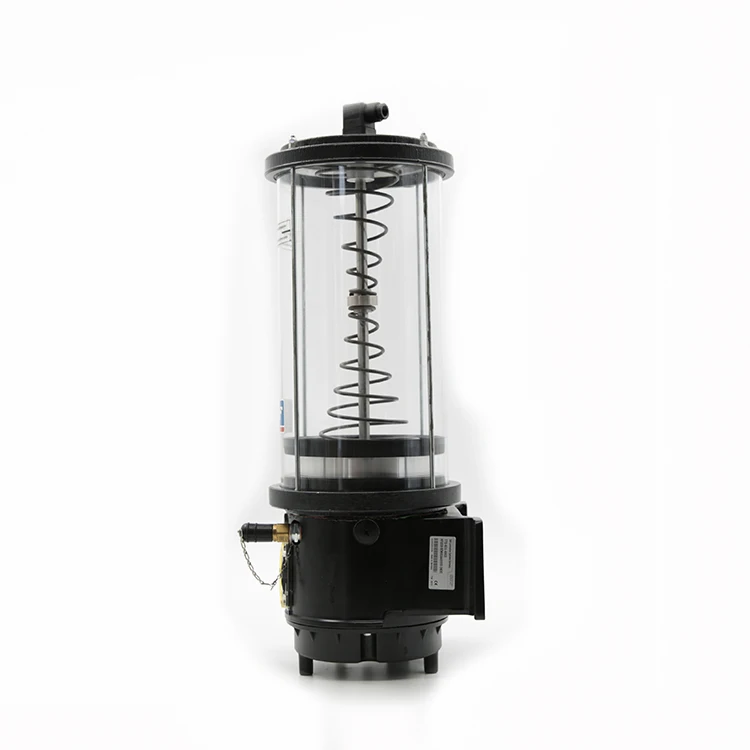

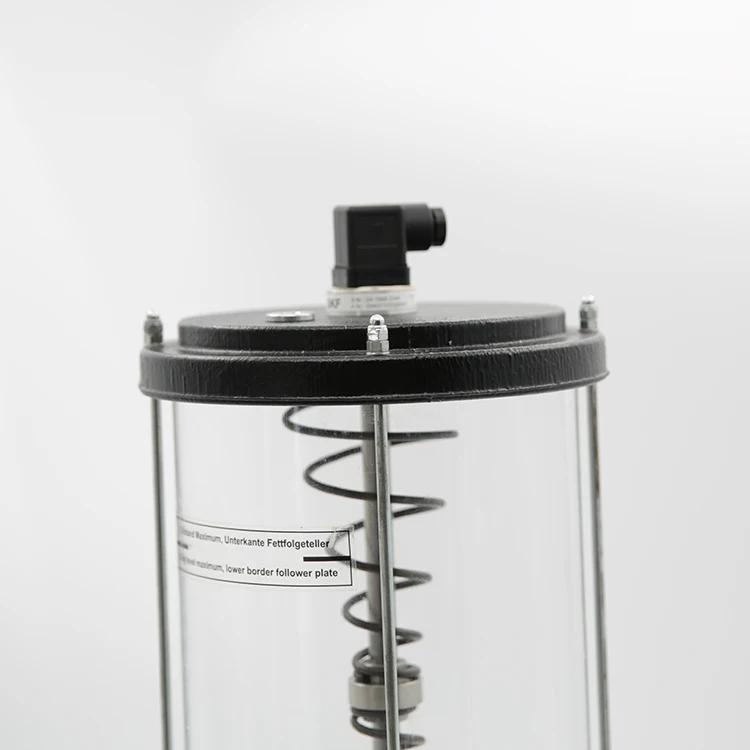

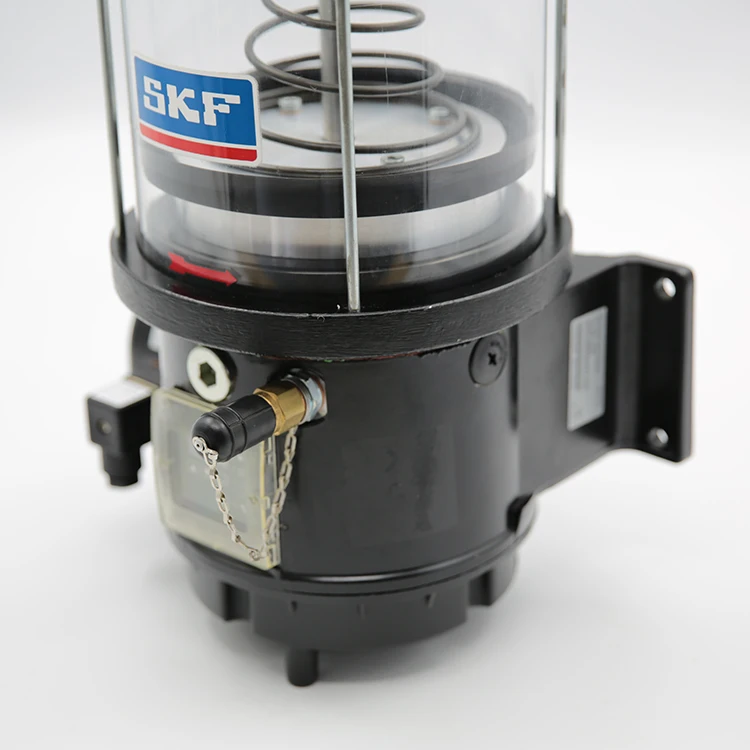

LINCOLN VOGEL KFGS pump Copper Alloys Piston Grease Pump For Wind Energy Stations

Product Overview

Description



Technical data
Operating temperature:
spring-return pump elements	(for 115 / 230 V AC only to +60 °C). . . . . . . -25 to +70 °C
Positively driven pump elements	(for 115 / 230 V AC only to +60 °C). . . . . . . -30 to +70 °C
Lubricant	NLGI Grades 000 to 2 with EP additives, compatible with plastics, NBR elastomers, copper and copper alloys
Flow pressure	up to max. 700 mbar (Pump elements from 0.8–2.5 cm3 / min)
Flow pressure	up to max. 450 mbar (Pump elements with 5.0 cm3 / min)
Protection class according to DIN 40050, T9 IP56
Pump housing and reservoir
Pump housing material	Aluminum-silicon cast alloy
Reservoir material:
2, 6 kg	Polyamide PA 6I
4, 8, 10, 12, 15, 20 kg	PMMA
System voltage	12 V DC, 24 V DC, 230 V AC (90–264 V AC)
Connector plug Variant	-7-pin circular plug
4-pin circular plug / socket M12x1 (IEC 60947-5-2 cable socket) 12-pin elbow connector M16x0.75 4-pin square connector (DIN EN 175301-803 cable socket) Operating mode/ON-time according to VDE0530 / DIN 41756
With 12 / 24 V DC	S1 (continuous duty, constant loading)
With 115 / 230 V AC	S1 (continuous duty, constant loading)
Minimum runtime 0 to 10 min Interval time = 4 x runtime (20% ON-time) and –30 to +40 °C
With 115 / 230 V AC	Runtime 10 to 15 min Minimum interval time = 2 h and 40 to 60 °C
Pump elements
Delivery rate:
Spring-return pump element	0.8; 1.3; 1.8; 2.5; 5.0 cm³ / min
Positively driven pump element	1.3; 1.8; 2.5; 5.0 cm³ / min
Maximum back pressure:
Spring-return pump element	300 bar (200 bar for pump element with 5.0 cm³/min)
Positively driven pump element	350 bar (250 bar for pump element with 5.0 cm³/min)
