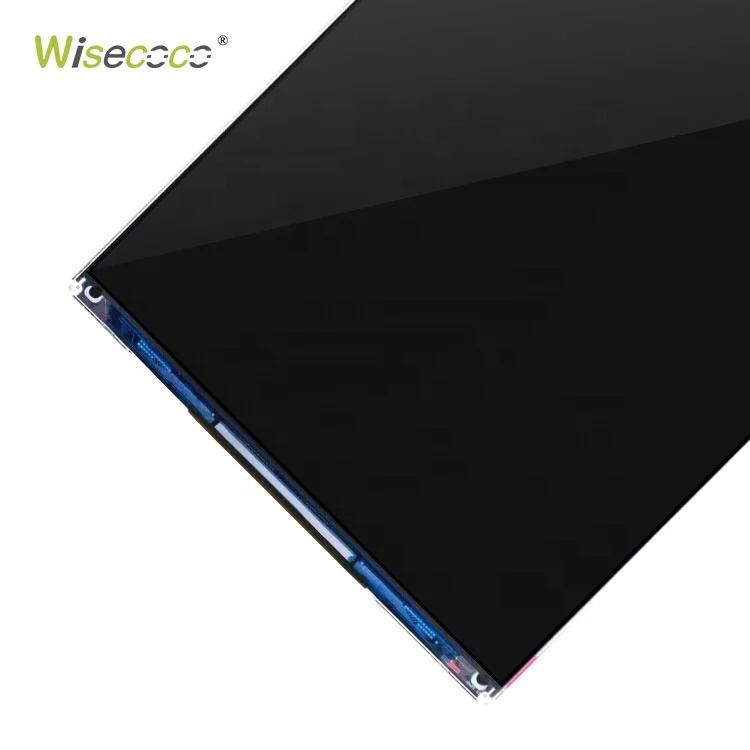

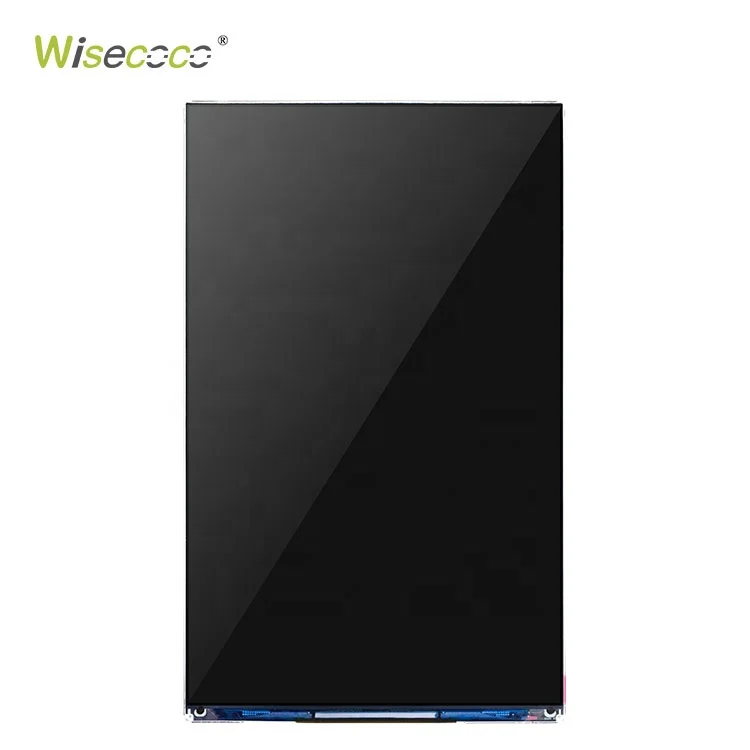

7 Inch 1200*1920 IPS High Brightness Contrast Ratio Portrait Glare Mipi LED Backlight Lcd Panel Sheet Display Screen Module
- Category: >>>
- Supplier: Shenzhen Huaizhi Technology Co. Ltd.
Share on (62225330470):
Product Overview
Description
Product Description
7 inch 1200x1920 high brightness high contrast ratio portrait glare mipi led backlight ips lcd panel display screen module sheet
General Features | |||
Diagonal Size | 7 inch | Type | LTPS TFT-LCD, LCM |
Pixel Format | 1200(RGB)*1920 [WUXGA] | Configuration | RGB Vertical Stripe |

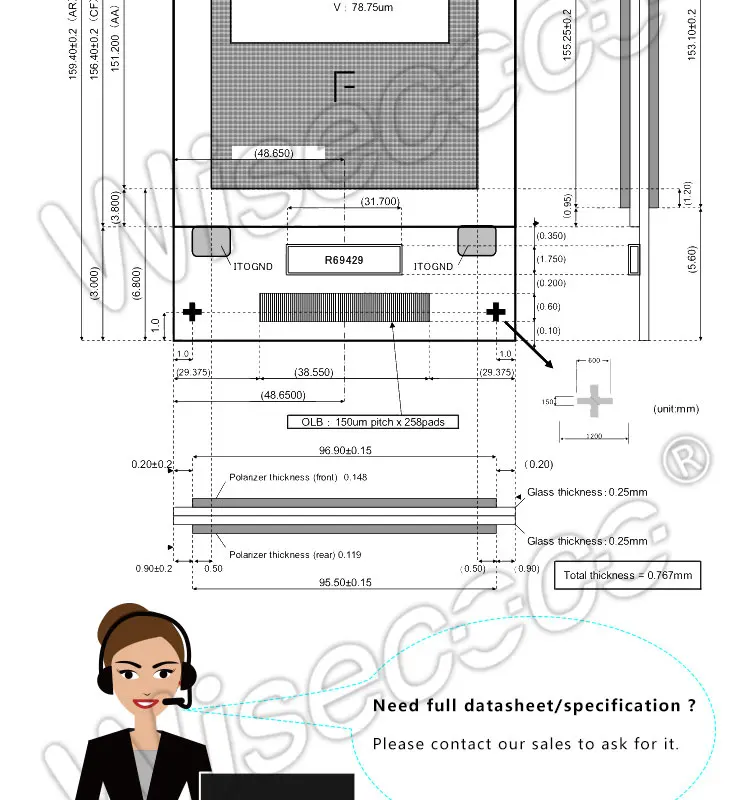

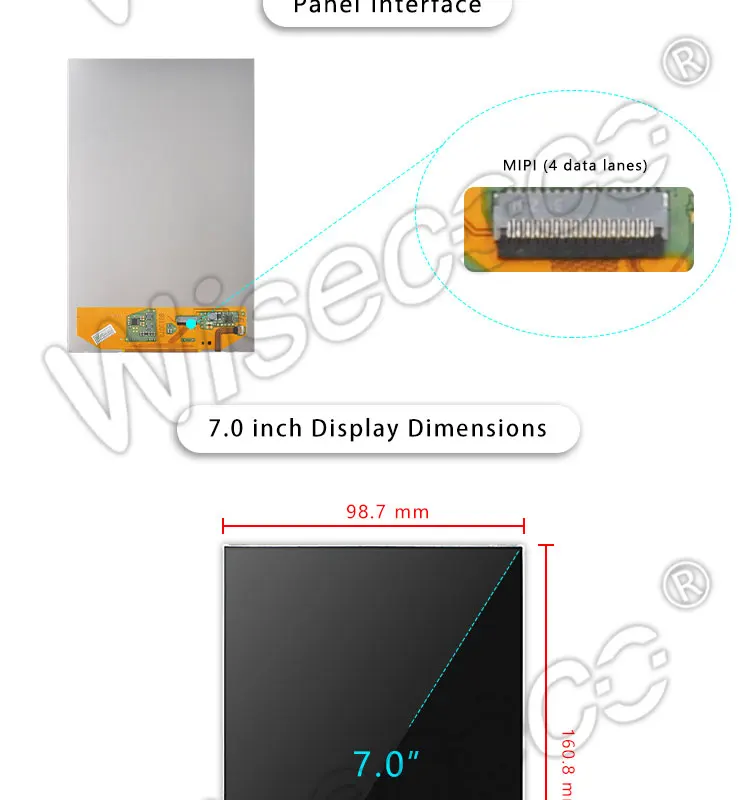

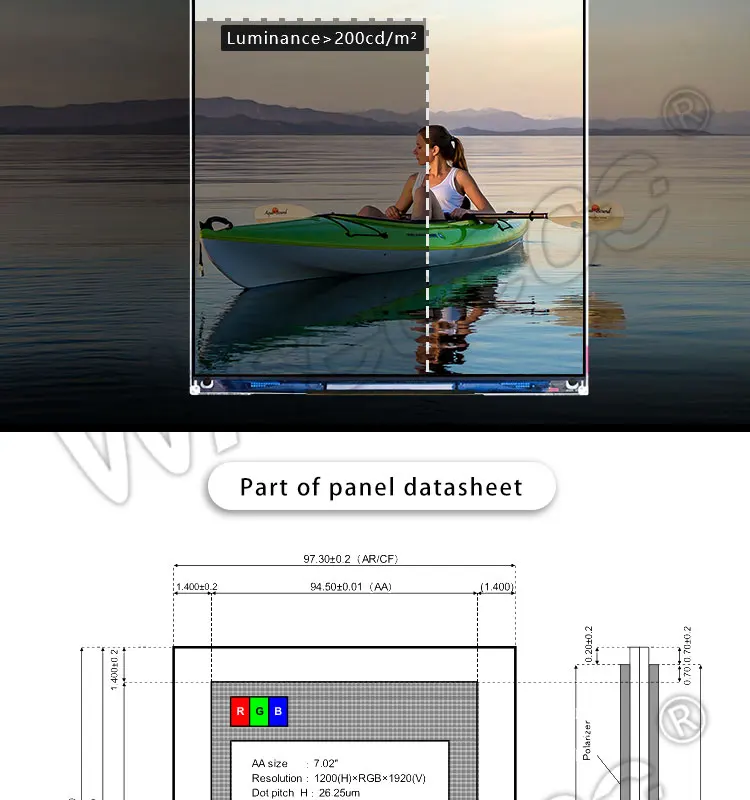

Active Area | 94.5(H)*151.2(V) mm | Outline Dim. | 98.7(H)*160.8(V) mm |
Luminance | 500 Cd/m² (Typ.) | Contrast Ratio | 1100:1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | - |
Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive
|
Support Color | 16.7M 72% (CIE1931) | Light Source | WLED |
| Frame Rate | - | Touch Panel | Without |
Interface Type | MIPI (4 data lanes) | ||
Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C | ||
