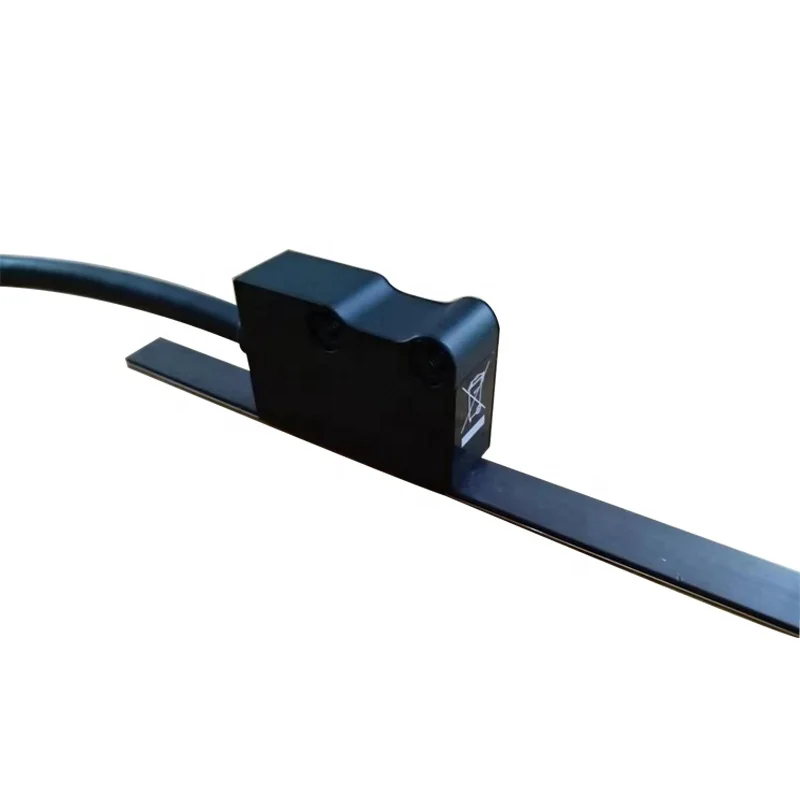

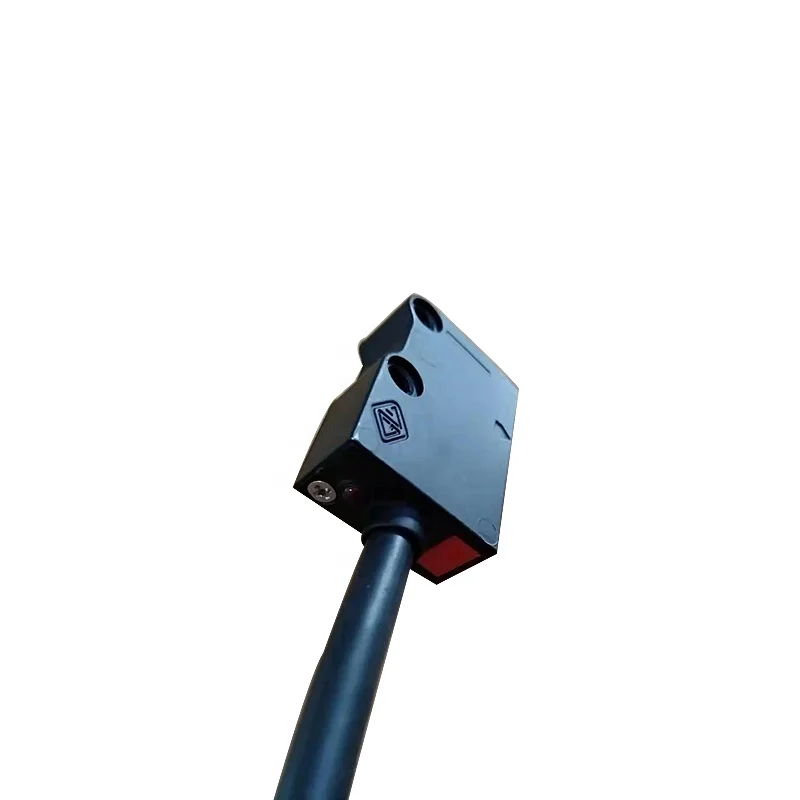

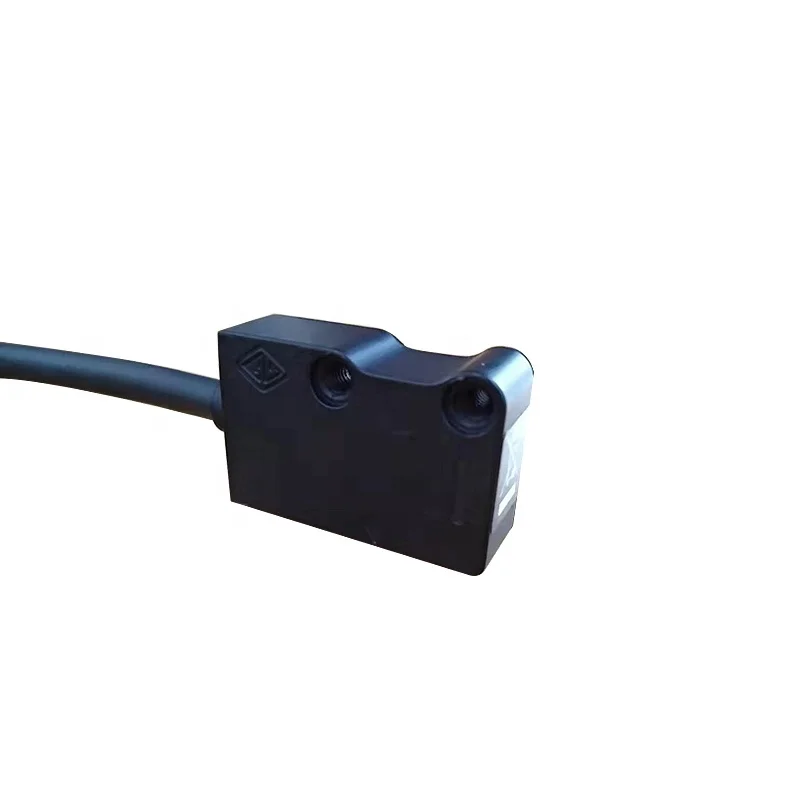

MTS H5C 0528 L M01 SC Magnetic encoder position sensor linear position sensor
- Category: >>>
- Supplier: Jinan Ouna Electromechanical Equipment Co. Ltd.
Share on (62225587372):
Product Overview
Description
Product Description
Product Application
Magnetic displacement sensor
Magnetic sensor for linear and angular reading.
Resolutions up to 1 μm.
Contactless reading.
Extremely easy and fast mounting of the entire measuring system, with wide
alignment tolerances.
Small size, to allow installation in narrow spaces.
Magnetic band composed by a magnetized plastoferrite tape, with pole pitch
5+5 mm. The plastoferrite is supported by a stainless steel tape, already
provided with the adhesive tape, for an easy application on the machine.
To be used with magnetic band MP500 or MP500Z (with reference indexes
positioned upon request).
Main Features
1) Resolution: 10um

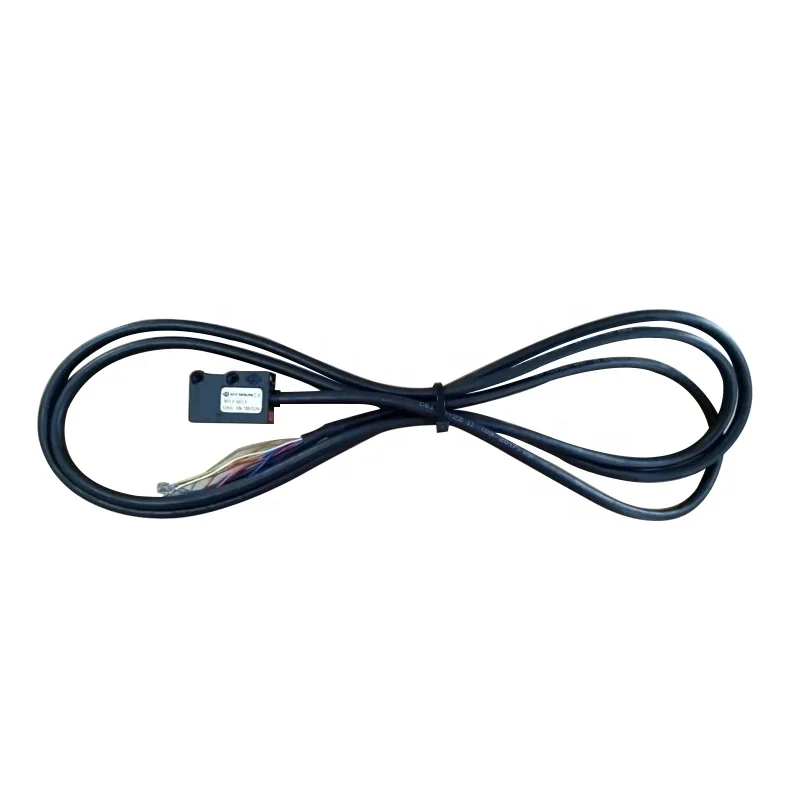

2) Standard wire length: 2 m
3) Working voltage: 5-28v
4) Maximum operating speed: 12 m/s
Detailed Images
Our Service
Packing & Delivery
Packaging | ||
Size | ||
Weight | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
