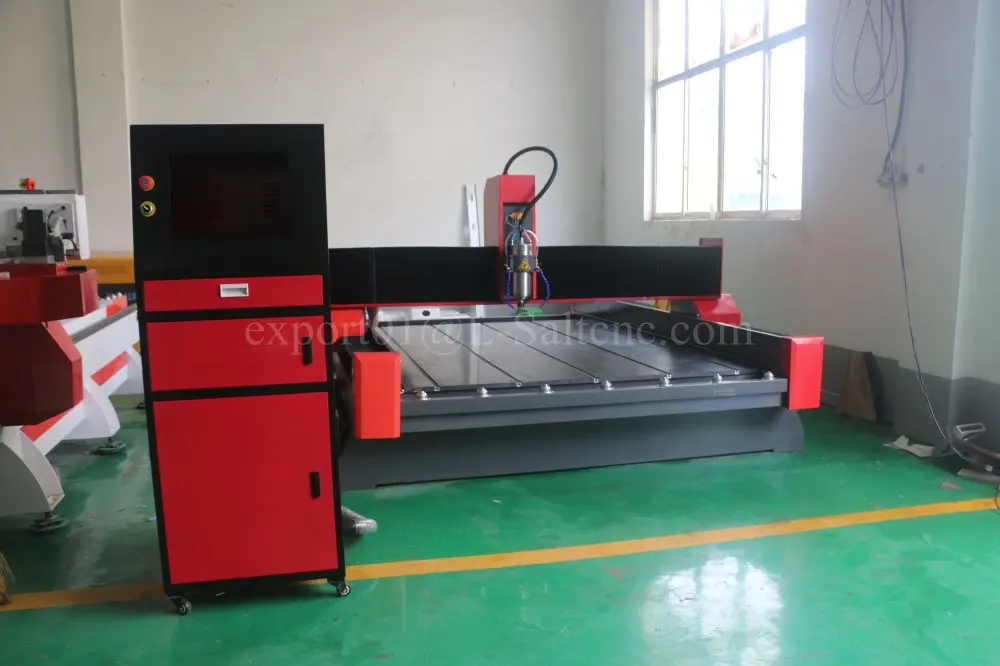

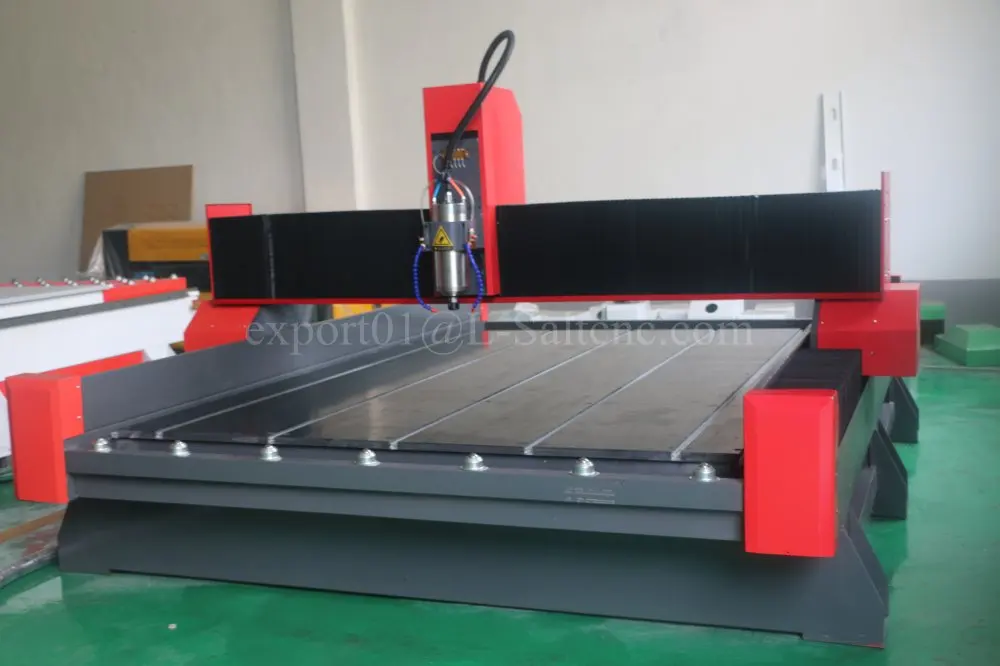

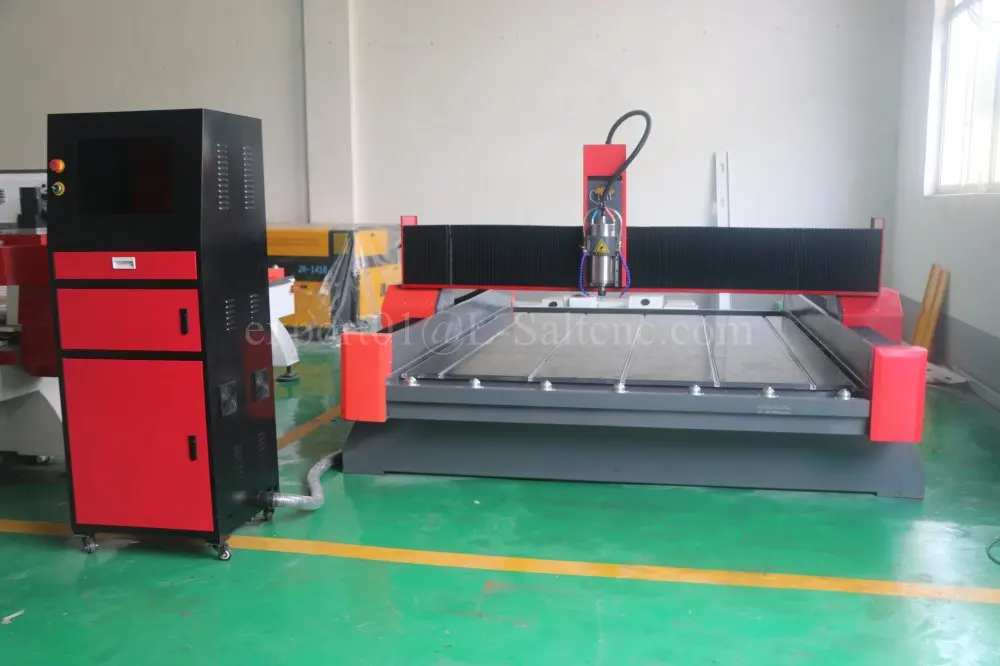

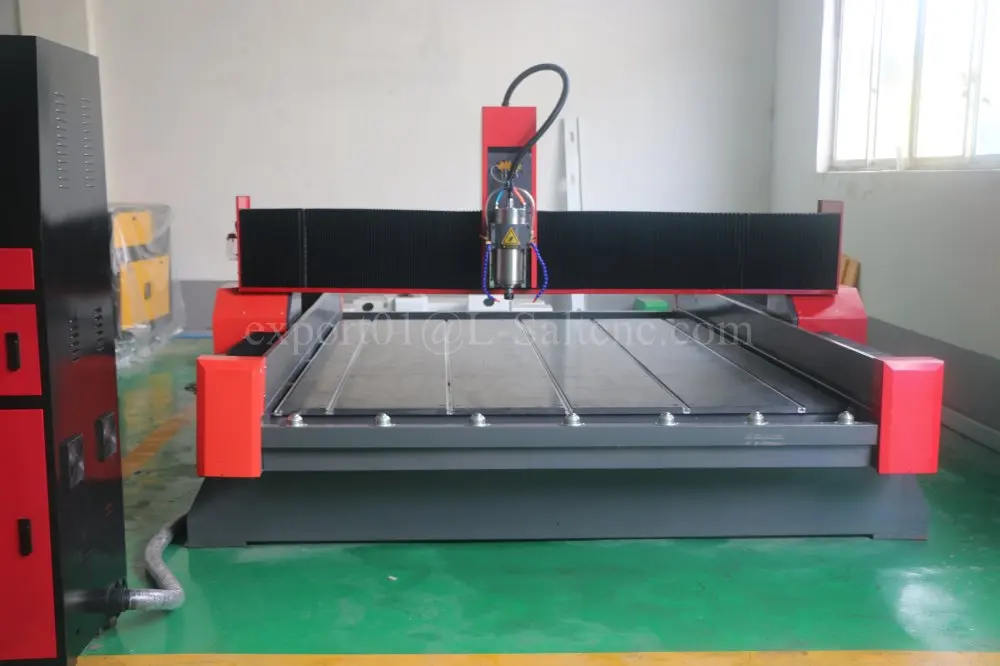

cnc stone router 3 Axis CNC Stone Caving Machine CNC Router 1325 3D Engraving Carving machine for marble

Product Overview

Description

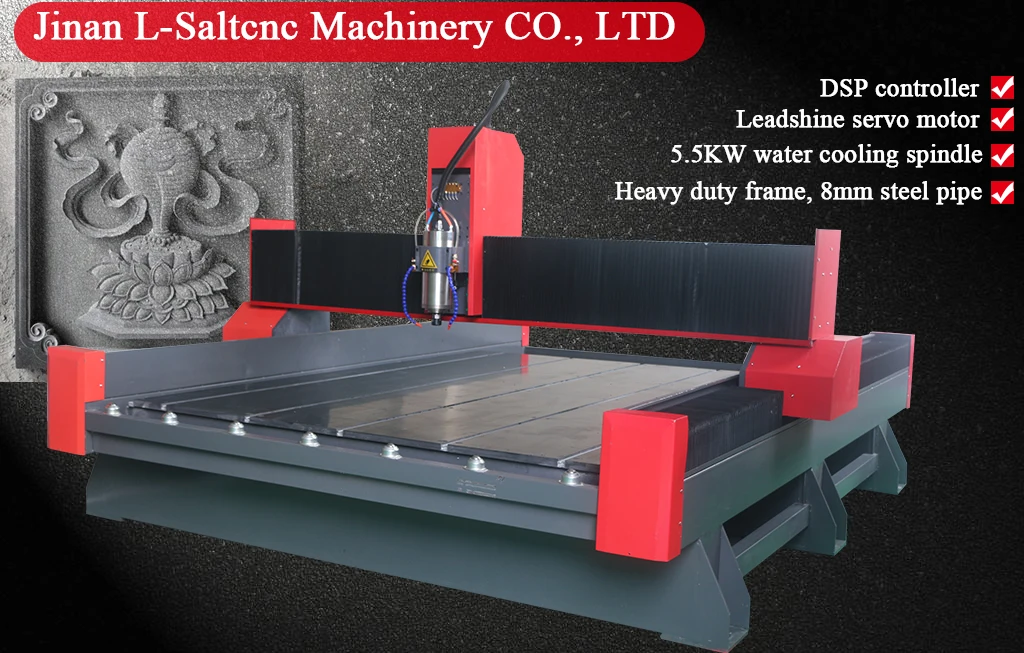

Heavy duty stone cnc router marble engraving machine



Whatsapp: +86 15628767027





Product Description:

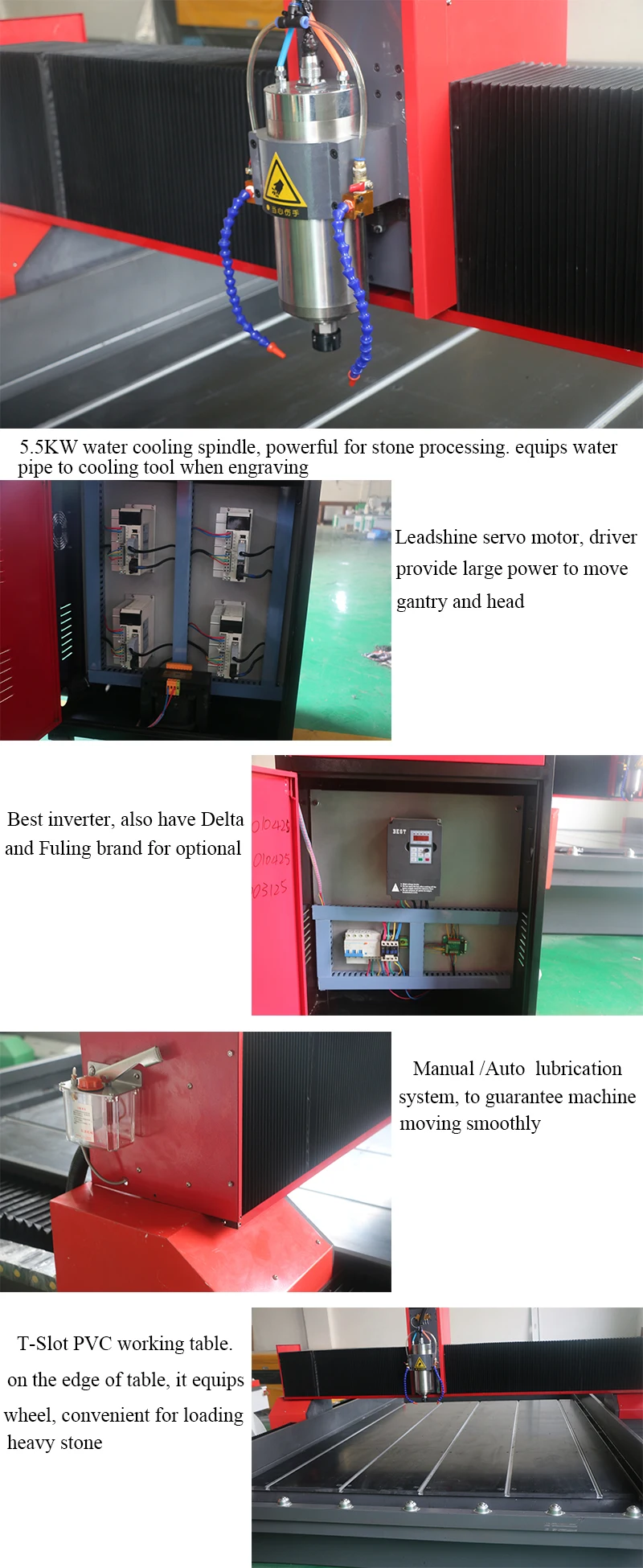

Main parts:



Technical Parameters:

Description	Parameter
X,Y Zworking area	1300*2500*300mm
Resolution	0.05mm
Lathe structure	Seamless welded steel structure
X,Y structure	Rack and pinion transmission, Hiwin square guide rail
Z structure	Germany-made ball screw, Hiwin square guide rail
Max. idling speed	30m/min

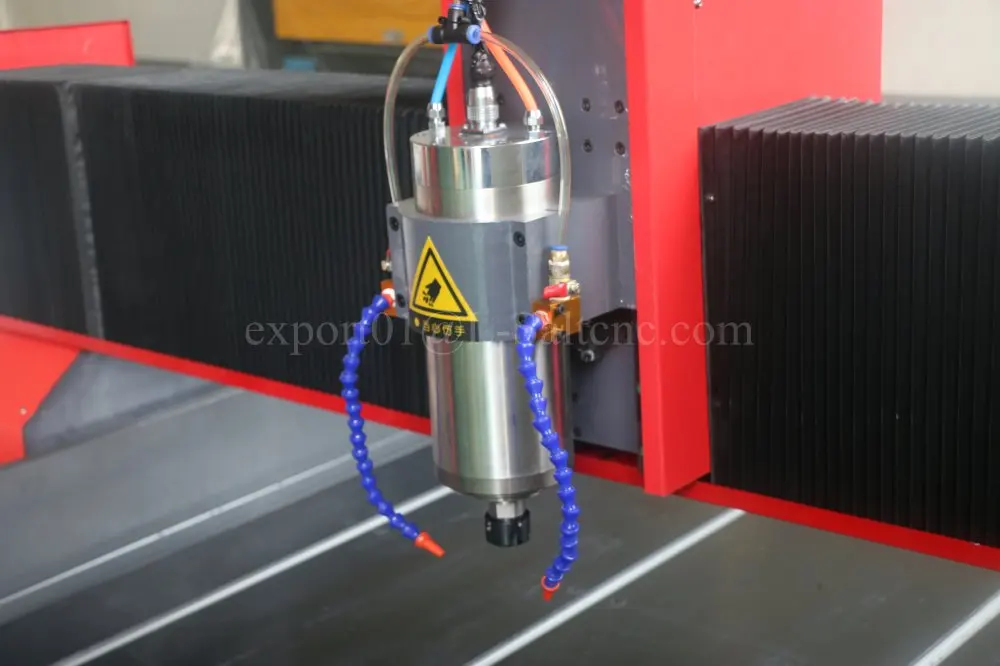

Spindle motor power	5.5KW
Spindle rotate speed	0-24000r/min
Working voltage	AC380V/50Hz(optional:220V)
Working mode	Servo motor
Driver	Leadshine
Command	G code(HPGL,U00,mmg,plt)
Operating system	DSP A11
Interface	USB
Diameter of cutter	φ3.175-φ12.7
Cooling mode	Water-cooling
Dust-collect function	Yes
Work-holding	By clamp
Net weight	2500KG

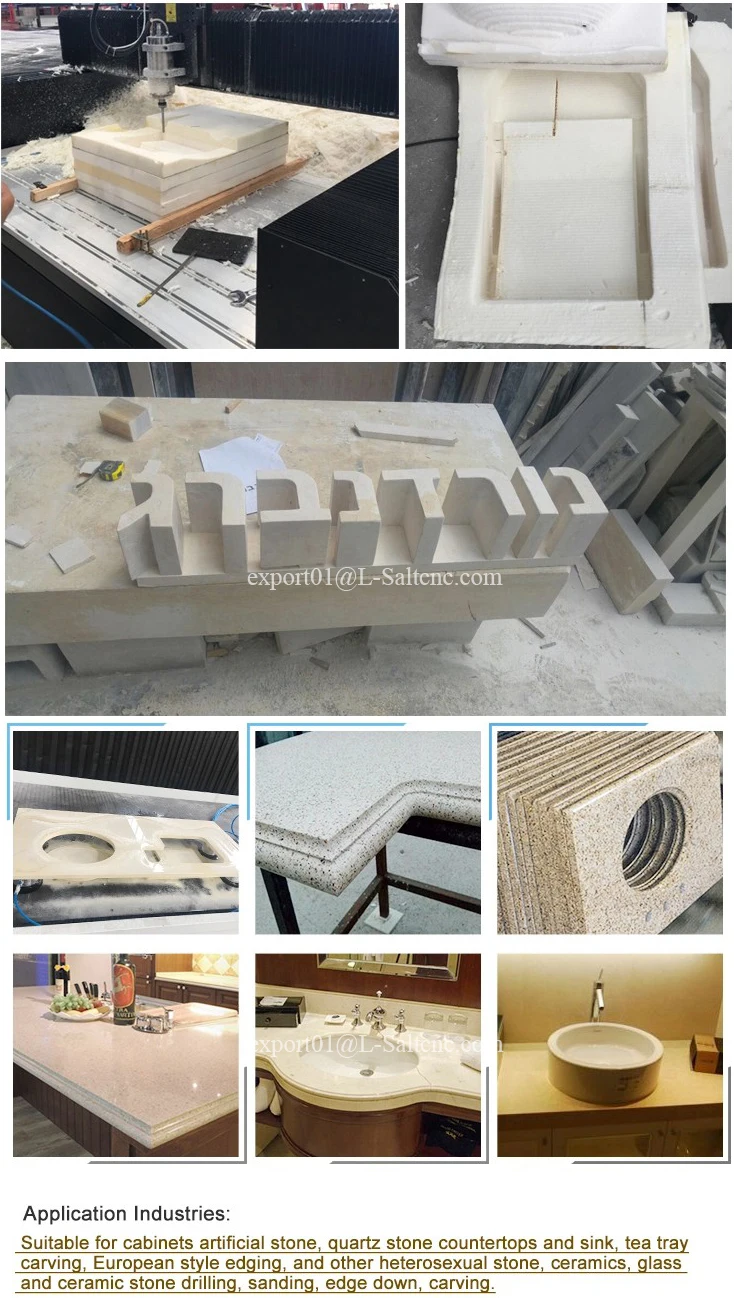

Working samples:



Packaging & Shipping:

Our service:

Q1: Installation and Debugging

Customers can get detailed operation manual and instruction video. We will make sure that customers can

operate machines skillfully.



Q2: Training

Customers can get free technical training. Mainly training are as follow:

• software operation


• machine operation and maintenance


• Instruction of technical parameters, as well as their setting ranges


• solutions for common problems

Q3: Equipment Maintenance

One year free maintenance, lifelong caring

Free technical consultant and software updating

Customer Service responding in 2 hours

Continuous support with software and hardware after free maintenance



Q4: Guarantee

The guarantee period shall be 24 months counting from the date on which the machine arrives destination

port. Except the damage artificially, we are responsible for offering the fittings free of charge during the

guarantee period, but you must send the damaged fittings to us by courier with your charge before we

send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair

or change, if any, shall be paid.

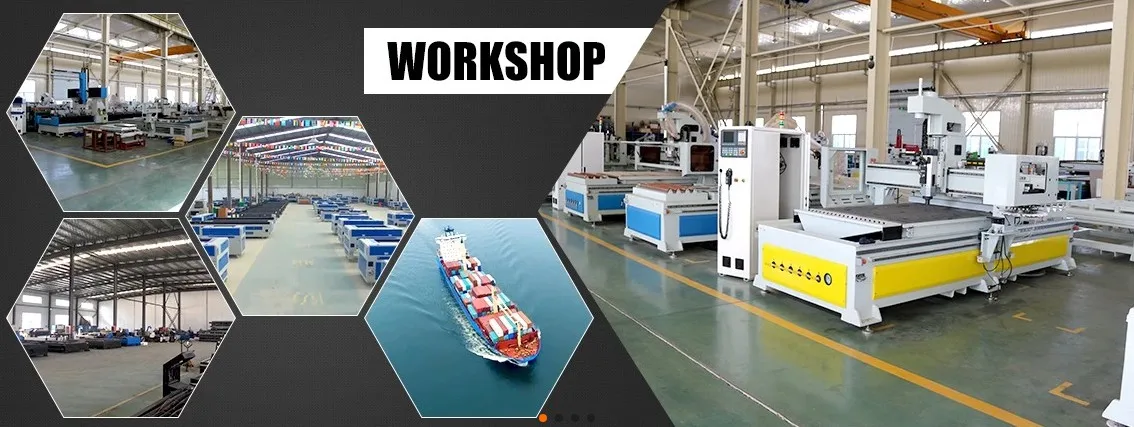

Company profiles:
